| Author |
Message |
GusC2it
Samba Member
Joined: June 23, 2005
Posts: 1376
Location: Orlando, Florida, USA
|
|
| Back to top |
|
 |
1975 Kombi
Samba Member
Joined: August 12, 2007
Posts: 2459
Location: Acton, Ontario, Canada
|
 Posted: Thu Aug 14, 2014 8:29 am Post subject: |
 |
|
One thing that I have noticed is that VDO has changed the method in which the gauge secures itself on the back. They had a metal secure bracket on the back which was held on with two small metal nuts and now are moving towards a plastic screw on sleeve that when in tight spots does not work well. So if you mount the gauges under the radio in the dash the plastic sleeves then to bind with the ashtray making the sleeves useless. So if your looking to install gauges in this area you might want to find an older set.
_________________
Brett
“He’s decieving you boy! Reach into his pocket and take what he’s got.” Mr. Crabbs.
75 Westy auto
03 Jetta TDI
71 SB
74 Westy
2011 Touareg TDI
2001 NB TDI
Licensed pilot (single engine land VFR)
--
Rust In Pieces: 72 Bug, 73 Bug, 81 Rabbit LS D 2D, 83 Rabbit D 2D, 84 Jetta TD GL, 85 Jetta D, 68 Z28 RS 302, 91 Passat 16v |
|
| Back to top |
|
|
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 14655
Location: Arizona
|
| Posted: Sun Feb 12, 2012 6:36 pm Post subject: |
|
|
That's probably the nicest, cleanest, basic gauge installation I've seen. A lot of them end up there but yours doesn't cheapen the looks by hacking the dash.
_________________
71 Superbug
71 Westy |
|
| Back to top |
|
|
lightravels
Samba Member
Joined: August 30, 2009
Posts: 56
Location: Oregon
|
| Posted: Sun Feb 12, 2012 6:21 pm Post subject: |
|
|
I'm usually just lurking, but decided I wanted to play this game too. Tach, A/F ratio, oil pressure, head temp, oil temp.
_________________
"OZ" the baby blue 1970 Campmobile |
|
| Back to top |
|
|
crushie
Samba Member
Joined: September 23, 2011
Posts: 878
Location: alberta
|
| Posted: Sun Feb 12, 2012 5:50 pm Post subject: Re: 1971 Bus Pictures |
|
|
| chrisradioman wrote: |
| CHARLES JETT wrote: |
Here is my 1971 dash.
|
Well nice M8 really looks good.  |
Do you need a co-pilot to fly that thing? |
|
| Back to top |
|
|
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3384
Location: SoCal
|
| Posted: Sun Feb 12, 2012 5:19 pm Post subject: |
|
|
Here's my setup using the Busboys adapter for the tach in the clock hole and oil press/time/voltmeter in the radio hole:
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
Stuartzickefoose
Samba Post Whore
Joined: February 07, 2008
Posts: 10350
Location: SoCal for now...
|
| Posted: Sun Feb 12, 2012 4:00 pm Post subject: |
|
|
Has anyone got any picture of the wiring needed in the engine compartment after the gauges are installed?
_________________
Stuart Zickefoose
2011 Jetta Sportwagen TDi 6 speed manual
206-841-7324
[email protected] |
|
| Back to top |
|
|
rcnotes
Samba Member
Joined: July 09, 2005
Posts: 641
Location: Ann Arbor, MI
|
| Posted: Thu May 28, 2009 7:01 am Post subject: |
|
|
We all have personal music machines? Speak for yourself.
They're not stock.
| jtauxe wrote: |
I like this idea of using the space for the now-obsolete radio/music player for gauges. This precludes having to makes holes in the dash. We've all got little personal music machines now, anyway. |
|
|
| Back to top |
|
|
jtauxe
Samba Member
Joined: September 30, 2004
Posts: 5966
Location: Los Alamos, New Mexico, USA
|
| Posted: Thu May 28, 2009 6:49 am Post subject: |
|
|
I like this idea of using the space for the now-obsolete radio/music player for gauges. This precludes having to makes holes in the dash. We've all got little personal music machines now, anyway.
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
|
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5818
Location: Wamego, Kansas, USA
|
| Posted: Thu May 28, 2009 6:34 am Post subject: |
|
|
Has anyone mounted gauges on the top of the dash, just above the speedo cluster?
I've got a '78 Champagne, and am very reluctant to cut the dash face. Obviously I could use the holders on the underside of the dash, but I can see how they would be difficult to see. So I was wondering if there are any pods that could sit on the top of the dash. I'd be less reluctant to drill the top metal piece (because I don't think there is much special about it) for the wires to go through. |
|
| Back to top |
|
|
rcnotes
Samba Member
Joined: July 09, 2005
Posts: 641
Location: Ann Arbor, MI
|
| Posted: Wed May 27, 2009 4:02 pm Post subject: |
|
|
Jeff, you have enough gauges to require a passenger to read them all!
My wife would drive me nuts with her "Ohh, that isn't right!" with her looking at all the readouts.  |
|
| Back to top |
|
|
Jeff Geisen
Samba Chaplain
Joined: December 21, 2004
Posts: 1930
Location: N.W. Georgia
|
| Posted: Wed May 27, 2009 11:08 am Post subject: |
|
|
_________________
I Corinthians 4: 1 thru 5
‘63 ragtop - ‘68 single cab |
|
| Back to top |
|
|
GusC2it
Samba Member
Joined: June 23, 2005
Posts: 1376
Location: Orlando, Florida, USA
|
|
| Back to top |
|
|
rcnotes
Samba Member
Joined: July 09, 2005
Posts: 641
Location: Ann Arbor, MI
|
| Posted: Wed May 27, 2009 9:48 am Post subject: |
|
|

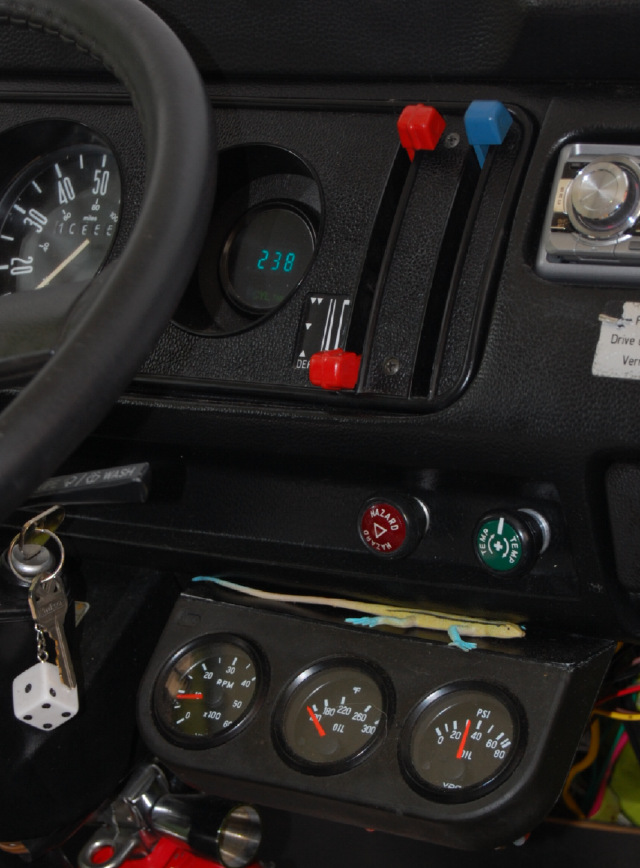

Here's my gauge setup.
The CHT in the main cluster. and the three VDO's on an extension I made so their visible looking down under the steering wheel cross arm. I thought that the VDO's looked nice all together and the same size. The digital LED looked out of place with the black face gauges.
I figured with the CHT right out front that I wouldn't be as easy to take my eyes off of the road. After a while I hardly look down.
|
|
| Back to top |
|
|
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3186
Location: South Benfleet, Essex, UK
|
| Posted: Sun Jul 13, 2008 4:57 am Post subject: Locating VDO supplementary gauges |
|
|
| greenbus pilot wrote: |
| EZ Gruv wrote: |
That's it! I gotta get some gauges!
I totally have gauge envy. |
Hey buddy, I have 8 gauges. Hows that for ya?  |
Eight gauges, is that all!
Here are some from my phase 2 installation. I've yet to complete phase 3
_________________
Regards.
Nigel A. Skeet
Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.
Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper
Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)
https://vwt2oc.co.uk |
|
| Back to top |
|
|
greenbus pilot
Samba Member
Joined: March 14, 2008
Posts: 1285
Location: Wisconsin: Rustbelt, USA baby!!
|
| Posted: Sat Jul 12, 2008 11:26 pm Post subject: |
|
|
| EZ Gruv wrote: |
That's it! I gotta get some gauges!
I totally have gauge envy. |
Hey buddy, I have 8 gauges. Hows that for ya?
_________________
Sent from a white van down the street. |
|
| Back to top |
|
|
EZ Gruv
King of Plaid
Joined: December 10, 2002
Posts: 8575
Location: Las Vegas
|
| Posted: Sat Jul 12, 2008 10:51 pm Post subject: |
|
|
That's it! I gotta get some gauges!
I totally have gauge envy.
_________________
Eric
1977 Deluxe Westfalia - 2.0L FI Type IV, Completely Original
Photographer for HotVWs, VolksWorld, AirMighty, VW Camper & Commercial, Hayburner, and more.
My Photography Page. |
|
| Back to top |
|
|
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 14655
Location: Arizona
|
| Posted: Sat Jul 12, 2008 10:06 pm Post subject: |
|
|
| markd89 wrote: |
Does the laminate overlay the existing plastic that holds the speedo, etc or does it replace what's there?
If a vendor made this part, in black plastic, I would buy it!
Mark |
Yes the Westy cabinet laminate overlays the existing black plastic. But the right hand 1/3 of the console was pretty much removed to get rid of the clock recess and clearance for the new gauges. I had looked all over to try to find some nice black laminate or formica. No sucess.
_________________
71 Superbug
71 Westy |
|
| Back to top |
|
|
markd89
Samba Member
Joined: November 04, 2005
Posts: 674
Location: Los Angeles
|
| Posted: Sat Jul 12, 2008 8:13 am Post subject: |
|
|
| Desertbusman wrote: |
| NOVA Bus wrote: |
Looks like everyones utilizing the same spots for triple gauges.
|
Here's where mine are.
|
I like the look of this
Does the laminate overlay the existing plastic that holds the speedo, etc or does it replace what's there?
If a vendor made this part, in black plastic, I would buy it!
Mark |
|
| Back to top |
|
|
chrisradioman
Samba Member
Joined: September 20, 2007
Posts: 4873
Location: Swansea (Sunny Penllergaer) Wales UK
|
| Posted: Sat Jul 12, 2008 2:17 am Post subject: |
|
|
| rjonas wrote: |
I used a standard 2 gauge plate from FLAPS and fabbed a rear box that mounts on the column via a hose clamp.
No holes in the dash for me.
|
I got the same type of pod, not sure if I like it around the column though I think I'll mount it somewhere else.
_________________
