| Author |
Message |
pom2ter
Samba Member
Joined: February 24, 2012
Posts: 70
Location: france
|
 Posted: Sat Jul 12, 2025 8:23 am Post subject: Re: 16" wheel question |
 |
|
| thx for the details , i'll try to fit on my bus or a 181 just for fun |
|
| Back to top |
|
 |
wagen19
Samba Member
Joined: November 16, 2007
Posts: 744
Location: germany
|
| Posted: Wed Jul 02, 2025 11:30 pm Post subject: Re: 16" wheel question |
|
|
| EverettB wrote: |
Split Beetle are 3.00x16
Barndoor are 3.50x16
Porsche 356 are 3.25x16
If they are all marked 3.00x16 they are Split Beetle size.
I am not familiar with Opel marking and if those are original VW wheels.
Are they for an Opel vehicle?
They may be different than VW wheels, such as a different offset.
In your Opel photo above I think the lug nut hole is different than a VW wheel.
I found this thread that may have some more information on Opel wheels:
https://www.thesamba.com/vw/forum/viewtopic.php?t=727575 |
Opel rims are in 3,00 x 16 and also in 3,50 x 16. Opel used different clips for the hub caps. VW hub caps are larger in diameter and don´t fit on Opel rims. In around 1937 there were Opel rims called "Herzloch-Felgen" (heart hole rims). The Opel Super 6 had them in 3,50 x 16. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71626
Location: Phoenix 602
|
|
| Back to top |
|
|
pom2ter
Samba Member
Joined: February 24, 2012
Posts: 70
Location: france
|
| Posted: Wed Jul 02, 2025 1:21 pm Post subject: Re: 16" wheel question |
|
|
hello
just pick up this set of 16" 5x205 wheel
is that for a barndoor ? ( maybe the same for split beetle ? )
2 seems to be produced by kronpriz ( opel factory ) , the 2 other no special marking
also with vintage tire Smile ( 1956 ) |
|
| Back to top |
|
|
kalymnos
Samba Member
Joined: January 22, 2010
Posts: 117
Location: Hamburg/Germany
|
| Posted: Tue Jul 20, 2021 12:15 am Post subject: Re: 16" wheel question |
|
|
Danke Uli, Leben kann so einfach  |
|
| Back to top |
|
|
mandraks
Samba Member
Joined: November 28, 2004
Posts: 7120
Location: Lawrenceville, Ga
|
| Posted: Mon Jul 19, 2021 5:25 pm Post subject: Re: 16" wheel question |
|
|
| kalymnos wrote: |
Thanks for the input.
The wheel will be kept untouched; the tyre is indeed 5.00-16
@bubba: the pony symbol is a reference to the Westfalia logo? ...means you have more information, please? |
einfach mal westfalia logo googlen....
_________________
regards
Uli
----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel |
|
| Back to top |
|
|
kalymnos
Samba Member
Joined: January 22, 2010
Posts: 117
Location: Hamburg/Germany
|
| Posted: Mon Jul 19, 2021 11:57 am Post subject: Re: 16" wheel question |
|
|
Found another one of those horse marked rims, dated 4.54, same colour.
|
|
| Back to top |
|
|
bubba
Samba Member
Joined: May 09, 2004
Posts: 2533
Location: Florida
|
| Posted: Wed Mar 07, 2018 2:49 pm Post subject: Re: 16" wheel question |
|
|
| kalymnos wrote: |
Thanks for the input.
The wheel will be kept untouched; the tyre is indeed 5.00-16
@bubba: the pony symbol is a reference to the Westfalia logo? ...means you have more information, please? |
No.. not really.. Just looking at the logo. I was thinking military or fire trailer would be my best guess. The horse logo is bang on to the westfalia horse logo.. just my 2 cents.
_________________
***WANTED***
SO-23 Cargo net hooks...
for sale
curtain Bungee cords for SO23, 22, 33 ,34 ,35
http://www.thesamba.com/vw/classifieds/detail.php?id=1587591 |
|
| Back to top |
|
|
kalymnos
Samba Member
Joined: January 22, 2010
Posts: 117
Location: Hamburg/Germany
|
| Posted: Tue Mar 06, 2018 12:17 pm Post subject: Re: 16" wheel question |
|
|
Thanks for the input.
The wheel will be kept untouched; the tyre is indeed 5.00-16
@bubba: the pony symbol is a reference to the Westfalia logo? ...means you have more information, please? |
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2368
Location: Graz, Austria, Europe
|
|
| Back to top |
|
|
bubba
Samba Member
Joined: May 09, 2004
Posts: 2533
Location: Florida
|
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2368
Location: Graz, Austria, Europe
|
| Posted: Mon Mar 05, 2018 2:07 am Post subject: Re: 16" wheel question |
|
|
the color makes it look military surplus. BD correct specs.
In any case, please do save the Firestone Phoenix. gorgeous tire and worth saving for display. out of production for 50 yrs.
it seems as if it is a 5.00-16 though, which would be the split beetle size.
interesting that the wheel rim has what looks to be the deep square indentation at the valve, meaning it is made for use with tubeless tires. I think og BD era wheels just had a shallow recess for properly seating the tube's valve stem.
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
54 Oval project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior |
|
| Back to top |
|
|
Brian_1952
Samba Member
Joined: February 06, 2005
Posts: 712
|
| Posted: Sat Mar 03, 2018 2:28 pm Post subject: Re: 16" wheel question |
|
|
| sled wrote: |
| looks like 10/63 to me |
Yep
_________________
(20-024785)Ambulance (20-037784)truck (20-035850)panel
(20-035778)kombi
WANTED 52 parts and NOS sheet-metal |
|
| Back to top |
|
|
sled
Samba Member
Joined: February 16, 2005
Posts: 6259
|
| Posted: Thu Mar 01, 2018 6:56 pm Post subject: Re: 16" wheel question |
|
|

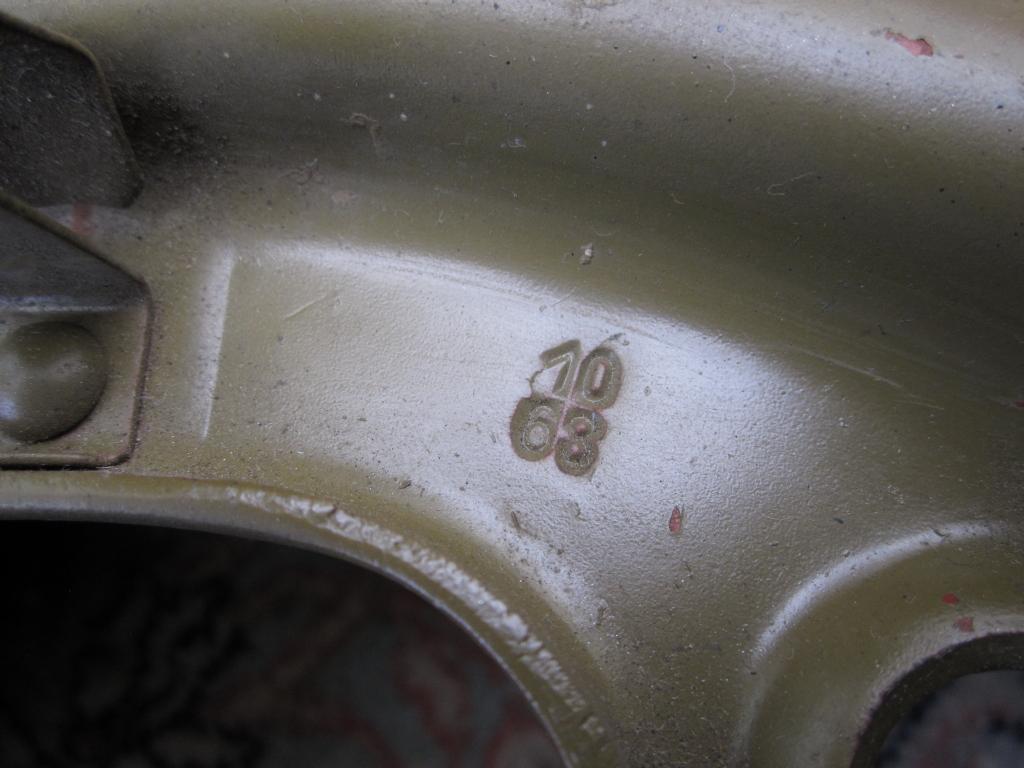

looks like 10/63 to me
_________________
drive your split. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71626
Location: Phoenix 602
|
|
| Back to top |
|
|
kalymnos
Samba Member
Joined: January 22, 2010
Posts: 117
Location: Hamburg/Germany
|
| Posted: Thu Mar 01, 2018 9:23 am Post subject: Re: 16" wheel question |
|
|
What car is this rim for?
Markings: Lemmerz, 3,50Dx16, 1647, "Horse"
Thank you |
|
| Back to top |
|
|
sunnybug84
Samba Member
Joined: July 12, 2008
Posts: 135
Location: Meinkot/Germany
|
| Posted: Mon Oct 07, 2013 9:41 am Post subject: |
|
|
Now with some pictures, maybe that helps.
|
|
| Back to top |
|
|
sunnybug84
Samba Member
Joined: July 12, 2008
Posts: 135
Location: Meinkot/Germany
|
| Posted: Wed Oct 02, 2013 8:46 am Post subject: |
|
|
| Sorry, no pics right now. But it looks exactly like an 3,00x16 bug wheel. No slots or anything else. |
|
| Back to top |
|
|
mandraks
Samba Member
Joined: November 28, 2004
Posts: 7120
Location: Lawrenceville, Ga
|
| Posted: Wed Oct 02, 2013 8:42 am Post subject: |
|
|
| sunnybug84 wrote: |
Hi,
I was going through the 16's today and found an odd 3,50x16 KPZ rim. Its rivited and the vw hubcap fits perfectly. It came with other Barndoor wheels but has a slightly different offset then the other later rims. It looks more like a bug 16" offset but its denfinetly a 3,50. Its dated either 1/50 or 11/50, kinda hard to tell.
Does anybody have an idea whats up with that rim?
Thanks! |
the size would also be right for a 356 wheel? do you have any pictures of the wheel?
_________________
regards
Uli
----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel |
|
| Back to top |
|
|
sunnybug84
Samba Member
Joined: July 12, 2008
Posts: 135
Location: Meinkot/Germany
|
| Posted: Sat Sep 28, 2013 1:36 pm Post subject: |
|
|
Hi,
I was going through the 16's today and found an odd 3,50x16 KPZ rim. Its rivited and the vw hubcap fits perfectly. It came with other Barndoor wheels but has a slightly different offset then the other later rims. It looks more like a bug 16" offset but its denfinetly a 3,50. Its dated either 1/50 or 11/50, kinda hard to tell.
Does anybody have an idea whats up with that rim?
Thanks! |
|
| Back to top |
|
|
|
