Front Emblem - How does it attach?

ROADKILL · Posted: Thu Sep 02, 2010 12:29 am Post subject:

i use plumming washers the kind with a taper on 1 side and flat on the other.
that way it seals the hole when you tighten it.

|\
:::
|/

cheap and available in any hardware store.
Wink

volksfahrer.nl · Posted: Wed Sep 01, 2010 9:43 pm Post subject:

Dave24 · Posted: Wed Sep 01, 2010 2:47 pm Post subject:

It will be fine.

volksfahrer.nl · Posted: Wed Sep 01, 2010 1:55 pm Post subject:

Question,

If I install the logo with the rubber rings (wolfburgwest) on the studs
the logo stick out about 3 to 4 mm from the nose.
Is that correct?
Isn't it supposed to be closer to the nosepanel?

Thanks
_________________
www.volksfahrer.nl
www.theundutchables.nl

66 panel

Dave24 · Posted: Thu Dec 03, 2009 9:35 am Post subject:

I'll ck when at the shop today. Very Happy

67SingleCabGuy · Samba Member Joined: August 27, 2003 Posts: 193

Dave24 · Posted: Tue Dec 01, 2009 3:11 pm Post subject:

Major Woody · Posted: Tue Dec 01, 2009 2:28 pm Post subject:

I have an original one. I wish I had threaded the posts before paint. Too late now!

Buster1956 · Posted: Tue Dec 01, 2009 2:15 pm Post subject:

When I took mine off to repaint it someone had drilled the studs and inserted small cotter pins through the holes. You were not going to pull that puppy off.
_________________
'49 Standard
'56 Oval
‘91 Doka Syncro
'66 Deluxe Bus
'62 Double Cab
'73 Tin Top Westy.

rebapuck · Posted: Tue Dec 01, 2009 12:02 pm Post subject:

Yeah. Those clips will NOT prevent theft. I've lost two. Now I cut mine out of magnetic vinyl. Nobody steals those. And I have fun with them.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Judy
1966 Camper "Hannah"
1967 SingleCab "Khady"

66uno · Posted: Tue Dec 01, 2009 6:10 am Post subject: emblem

I think it was Ronnie from bustoration that gave the following tip: He said to put it on with just clear silicon on each post. That way, if someone wants to pull it off, at least they won't screw up the metal of the nose of your bus too badly.

Eric&Barb · Posted: Sun Nov 29, 2009 3:48 pm Post subject:

Rubber on the emblem first.
_________________
In Stereo, Where Available!

67SingleCabGuy · Samba Member Joined: August 27, 2003 Posts: 193

I'm putting my front emblem on after being off for a long time so am unsure if the little rubber o-rings go on the posts first or do you put them on from the inside. I put them on the emblem first but then when I put the emblem on the nose it seems to stick out a little from the body and I wasent sure if that was correct.

Thanks

EverettB · Posted: Mon Nov 02, 2009 10:16 pm Post subject:

EverettB · Posted: Sun Nov 01, 2009 7:57 pm Post subject:

scvw · Posted: Sun Nov 01, 2009 7:50 pm Post subject:

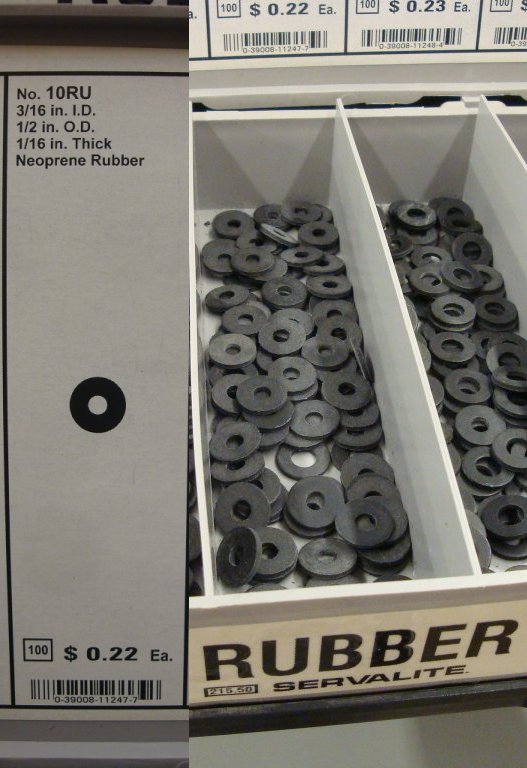

Thanks for the pics Everett. I got the seals from Lowes tonight and they worked great, 3/16"ID x 1/2"OD x 1/16" thick. Can't beat OG paint!

_________________
58 Coral Red ragtop(Diana's car)
63 Ruby Red SC
67 Pearl White SO42
SOUTHERN INTEGRITY AIRCOOLERS

KWZ · Posted: Sun Nov 01, 2009 6:23 pm Post subject:

WW started supplying them recently:

http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=211857611A
_________________
'57 sunroof Standard
'63 15 window
'65 Westy SO44

EverettB · Posted: Sun Nov 01, 2009 6:16 pm Post subject:

FishBus67 · Samba Member Joined: July 15, 2007 Posts: 16

Thanks All!! I went to my local ACE hardware and got the speed nuts!
I plan on painting my bus soon, then I will install the painted emblem.
The after market chrome emblem gets rusty pretty quick.
