| Author |
Message |
D.L.Olson
Samba Member
Joined: July 29, 2011
Posts: 3
Location: kingman az
|
 Posted: Mon Oct 31, 2016 7:13 am Post subject: Re: Baja Mirror Mounts |
 |
|
| Who sells the mirror brackets for the baja's ??????????? Call or text me please 928 208 6531 |
|
| Back to top |
|
 |
oldschool5er
Samba Member
Joined: May 28, 2007
Posts: 804
Location: Ohio
|
| Posted: Sat Jan 09, 2016 11:16 pm Post subject: Re: Baja Mirror Mounts |
|
|
Jeff Paterson the Admin for Strickly Baja's on facebook makes them. I bought a pair from him as I got too lazy to make a set. They were shipped fast and of very good quality. He makes a wide version and a short version. They come complete with mounting hardware with two choices of mirrors,
_________________
HRE in Westerville,Ohio
Full machine shop with all types of CNC. Rapid prototyping available, CNC Plasma cutting, 3D printing and Laser engraving. |
|
| Back to top |
|
|
EnjoyNukaCola
Samba Member
Joined: January 27, 2014
Posts: 510
Location: Santa Clarita
|
| Posted: Sat Jan 09, 2016 5:42 pm Post subject: Re: Baja Mirror Mounts |
|
|
Thanks!
_________________
"when i go to drive it i get to like 5-10 mph it is at high rpms and gets higher the faster i go when i shift up to second the rpms drop is this normal or what and this is my first vw please help" |
|
| Back to top |
|
|
DWP
Samba Member
Joined: September 11, 2007
Posts: 577
Location: Pa.
|
|
| Back to top |
|
|
EnjoyNukaCola
Samba Member
Joined: January 27, 2014
Posts: 510
Location: Santa Clarita
|
| Posted: Sat Jan 09, 2016 4:42 pm Post subject: |
|
|
| dirtkeeper wrote: |
| Snowking63 wrote: |
| the problem with all of these mounts is that the wing cant open fully. my baja is my dd so i will NEED them to open all of the way, ive been looking for some mounts like these but none of them seem to help me. any ideas?? |
to me it looks like they all will open all the way. I plan something similar and with a cardboard mock-up the wing window opens all the way including reverse where it blasts in air.
did you see one in person that didnt work?
this is just one but they all look about the same.
|
Where can I buy a pair like these?
_________________
"when i go to drive it i get to like 5-10 mph it is at high rpms and gets higher the faster i go when i shift up to second the rpms drop is this normal or what and this is my first vw please help" |
|
| Back to top |
|
|
Mal evolent
Samba Member
Joined: March 31, 2009
Posts: 2923
Location: San Antonio, Nuevo Mexico
|
| Posted: Sat Jan 09, 2016 8:37 am Post subject: Re: Baja Mirror Mounts |
|
|
where did you find insurance for that bus?
_________________
73 Beetle Baja, Ghia front brakes, Type 3 rear brakes, 2220 ( 94 X 80 ), Weber Progressive, Bosch SVDA, '97 Mustang seats
Baja Bugs for Volkswagen Virgins: Index |
|
| Back to top |
|
|
MjrBummer
Samba Member
Joined: August 14, 2015
Posts: 37
Location: Chippewa Falls, WI.
|
| Posted: Wed Jan 06, 2016 11:45 am Post subject: Re: Baja Mirror Mounts |
|
|
Thanks for the reply. I checked out your ride. I really dig it and like what you've been ding to it.
I wasn't able to do a very good search the other day when I was stuck on my cell phone. I managed to find someone who is making them and sells them on here. http://www.thesamba.com/vw/classifieds/detail.php?id=1349463
I used to do all this stuff myself too, but these days I'm on the road a lot working and don't have access to a garage anymore and all my tools are in storage, so it's easier to just get things premade and ready to bolt on. Hell, I don't even have an apartment. I'm in a hotel all week then when I head home on the weekends, I rent a room from a friend in the winter and have a 1967 C50 school bus converted to an RV that I stay in during the summer. Saves me money that I can spend on my bug instead.
Bill |
|
| Back to top |
|
|
Snowking63
Samba Member
Joined: December 01, 2012
Posts: 161
Location: Cerritos, CA
|
| Posted: Sun Jan 03, 2016 9:08 pm Post subject: Re: Baja Mirror Mounts |
|
|
| MjrBummer wrote: |
| Is there anybody making and selling amy of these? I would be interested in a pair. |
Check out my daily driver build page in my bio, i made some unique ones out of 1/2" conduit. feel free to follow my design. Very cheap and simple to make even if welding ecperience isn't there. I get asked to make other people a pair quite oftenly but since I'm prepping my baja to sell it I don't have the drive to make anymore.
_________________
Money is a gas, not a trip
OGK
my 63 baja daily driver
http://www.thesamba.com/vw/forum/viewtopic.php?p=6485278&highlight=#6485278 |
|
| Back to top |
|
|
MjrBummer
Samba Member
Joined: August 14, 2015
Posts: 37
Location: Chippewa Falls, WI.
|
| Posted: Sun Jan 03, 2016 8:58 pm Post subject: Re: Baja Mirror Mounts |
|
|
| Is there anybody making and selling amy of these? I would be interested in a pair. |
|
| Back to top |
|
|
dustymojave
Samba Member
Joined: January 07, 2007
Posts: 5820
Location: Lake LA, Mojave Desert, SoCal
|
| Posted: Sat Apr 25, 2015 4:32 pm Post subject: |
|
|
JussumGuy over on ShopTalkForums used a cap for a welding gas cylinder tacked to his weld table with a couple of pieces of scrap plate close to the cap to bend his mirror mounts.
_________________
Richard
Offroading VW based cars since 1965
Tech Inspection 1963 - 2012 SCCA/SCORE/HDRA/MORE/MDR +
Retired from building Bajas, Fiberglass Buggies and Rails in the Mojave Desert. Also Sprints & Midgets, Dry Lakes, Road Race cars. All types New and Vintage
SoCalBajas Member
Kicked Cancer's A$$...1st and 2nd round...Fight ain't over yet. |
|
| Back to top |
|
|
dustymojave
Samba Member
Joined: January 07, 2007
Posts: 5820
Location: Lake LA, Mojave Desert, SoCal
|
| Posted: Sat Apr 25, 2015 4:26 pm Post subject: |
|
|
| RossRinSD wrote: |
| sxuxrxf wrote: |
Too kind.
I also like the one-of-a-kind factor to things that I make, which is why I don't make more of any given item. Usually I decide on something that I think will be cool and a little different, but that also means more of a pita to make.
I also get bored really easy. It's fun to go through the process of turning a thought into reality...the 1st time. After that, not so much.
-Robb |
Trying to find some mirror mounts and came across yours. Very nice.
What did you use to form the main hoop of the mirror mounts? I was thinking I could get some round tube rolled over an old v-belt pulley?? Or conduit bender??? |
For my mirror mounts, I used 1/2" x .065 wall CREW tube, like Jason Busk did for his.

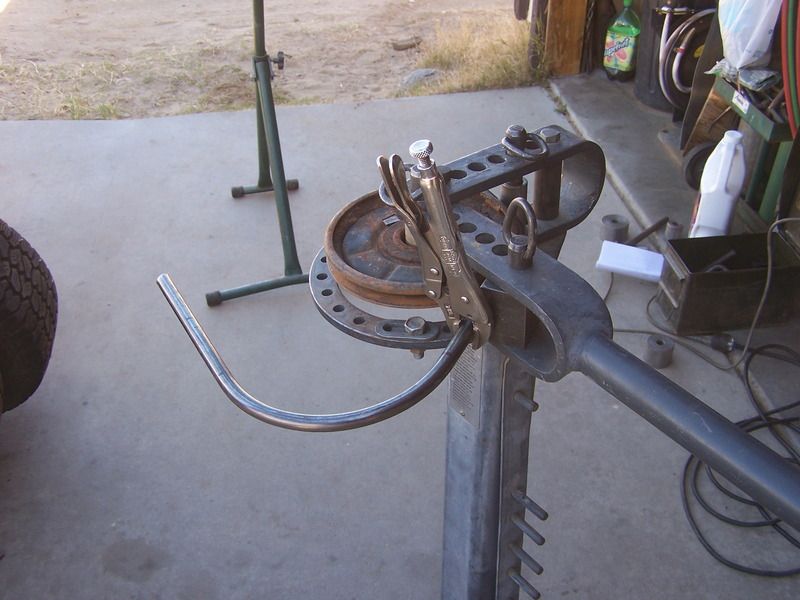

Since I don't bend 1/2" tube very often, I wasn't willing to spend $250 for a die set for my JD2 bender to fit 1/2". But I have an HF bar stock bender and an old VW crank pulley.
I didn't even adapt the crank pulley to fit close on the pivot pin. It still worked fine for making 4 bends. The tube slipped some, so I used a small pair of vice grips to hold it against the block. I only took pics because a guy I know had stated it could not work without "a die set made for a real tube bender". There are more pics in the photobucket album.
Other bend radii could be achieved with different pulleys. eg smaller radius with a VW power pulley. If one were going to bend this size tube often, or a large quantity of bends, it might make sense to put out the effort to adapt the pulley ID to the pivot pin of the bender. Also, the bender could be set up in different ways to achieve the bend. This ain't the only way to skin this sort of cat.
Oh, the mirror housing is not chrome. I hate chrome. It's stainless. I was looking for painted mirrors to paint to match the metallic gray trim on the car.
_________________
Richard
Offroading VW based cars since 1965
Tech Inspection 1963 - 2012 SCCA/SCORE/HDRA/MORE/MDR +
Retired from building Bajas, Fiberglass Buggies and Rails in the Mojave Desert. Also Sprints & Midgets, Dry Lakes, Road Race cars. All types New and Vintage
SoCalBajas Member
Kicked Cancer's A$$...1st and 2nd round...Fight ain't over yet. |
|
| Back to top |
|
|
mr_bill
Samba Member
Joined: February 19, 2006
Posts: 1008
Location: City of Orange, CA
|
| Posted: Sat Apr 25, 2015 3:00 pm Post subject: |
|
|

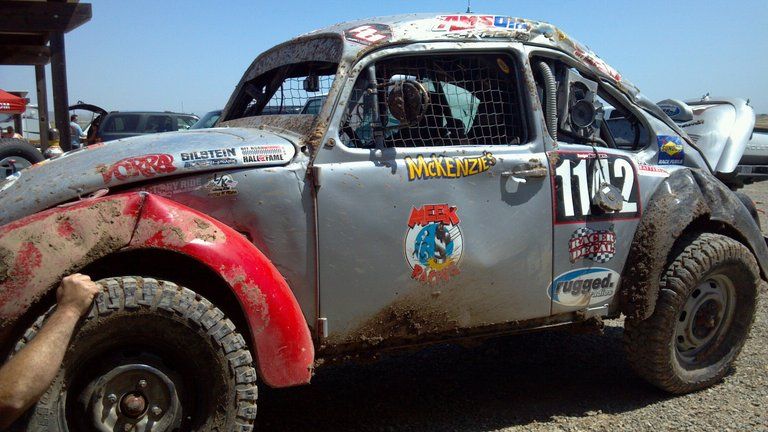

 these are on my 11 car
_________________
see ya' on the trail........
"Mr Bill"
Dos Perros Motorsports
Orange, CA
1972 Class 11x/Stock Bug
'60's era "vintage" Tunnell-Buggy
"...no one here....get's out ALIVE...."
Motor = electric
Engine = internal combustion
www.facebook.com/groups/DosPerrosMotorsports
www.alrchapter132.org
www.DAV.org |
|
| Back to top |
|
|
RossRinSD
Samba Member
Joined: December 27, 2011
Posts: 6
Location: Fallbrook, CA
|
| Posted: Sat Apr 25, 2015 1:53 pm Post subject: |
|
|
| sxuxrxf wrote: |
Too kind.
I also like the one-of-a-kind factor to things that I make, which is why I don't make more of any given item. Usually I decide on something that I think will be cool and a little different, but that also means more of a pita to make.
I also get bored really easy. It's fun to go through the process of turning a thought into reality...the 1st time. After that, not so much.
-Robb |
Trying to find some mirror mounts and came across yours. Very nice.
What did you use to form the main hoop of the mirror mounts? I was thinking I could get some round tube rolled over an old v-belt pulley?? Or conduit bender??? |
|
| Back to top |
|
|
DirtDgr
Samba Member
Joined: August 20, 2011
Posts: 94
Location: Lakeport, Ca
|
| Posted: Sat Feb 08, 2014 11:08 am Post subject: |
|
|

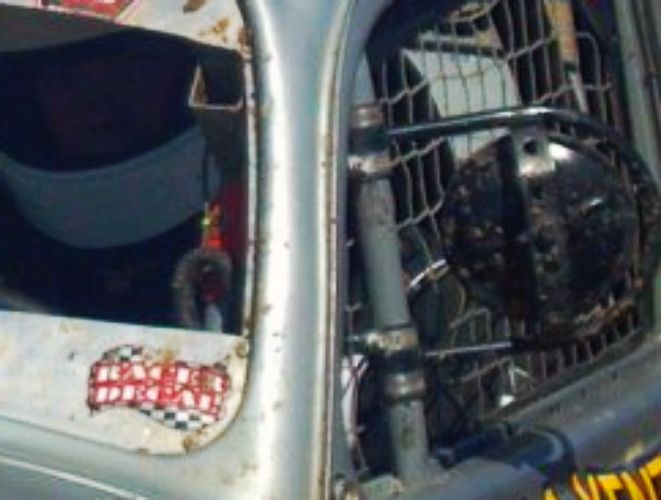

Bad pic but this is on my class 11.
Works great without a window of course. If I hit something too hard it just swings back. Takes a pretty hard hit. Its only happened once when I rolled the car!
Mirror still intact! |
|
| Back to top |
|
|
Snowking63
Samba Member
Joined: December 01, 2012
Posts: 161
Location: Cerritos, CA
|
| Posted: Mon Mar 04, 2013 11:32 pm Post subject: |
|
|
yea i would really like to know. I've seen one factory made online but for me, i would much rather make my own. i want something no one else has but i need full potential for my wing windows
_________________
Money is a gas, not a trip
OGK
my 63 baja daily driver
http://www.thesamba.com/vw/forum/viewtopic.php?p=6485278&highlight=#6485278 |
|
| Back to top |
|
|
dirtkeeper
Samba Member
Joined: February 19, 2008
Posts: 3252
Location: Left of everywhere
|
| Posted: Mon Mar 04, 2013 5:45 pm Post subject: |
|
|
| Snowking63 wrote: |
| No I havnt seen one in person but I could tell by opening mine. In that pic you could tell it'll open but won't open all the way where it stops. |
hopefully somebody with one will pipe up but i really think you are mistaken. I mocked up one nearly exactly like the pic above..... i used a roll of tape taped to the door in that same location and the wing window moved full rotation and misses it by at least an inch and will miss the cage surrounding it too.
So i am confident i will not have a problem making my still to be made copy of the ones above work with the wing fully open.. if there are factory made brackets like this i do not know. I am responding because this is important to me too... that's why i insisted my roll cage be made to allow the wing windows and window handles to function. |
|
| Back to top |
|
|
joescoolcustoms
Samba Member
Joined: August 08, 2006
Posts: 9054
Location: West By God Virginia
|
| Posted: Mon Mar 04, 2013 3:17 pm Post subject: |
|
|
Extend the mirror farther out from the body to where it clears the wing window.
_________________
Bad News Racing 2018 NORRA 1000 3rd in Class
Best Day Ever Racing 2022 NORRA 1000 2nd in Class and first All Female team to complete the race
Everyone is gifted. Some just do not open the package.
Looks like it was painted with a live chicken,polished with a brick and buffed with a pine cone |
|
| Back to top |
|
|
Snowking63
Samba Member
Joined: December 01, 2012
Posts: 161
Location: Cerritos, CA
|
|
| Back to top |
|
|
dirtkeeper
Samba Member
Joined: February 19, 2008
Posts: 3252
Location: Left of everywhere
|
| Posted: Mon Mar 04, 2013 2:44 pm Post subject: |
|
|
| Snowking63 wrote: |
| the problem with all of these mounts is that the wing cant open fully. my baja is my dd so i will NEED them to open all of the way, ive been looking for some mounts like these but none of them seem to help me. any ideas?? |
to me it looks like they all will open all the way. I plan something similar and with a cardboard mock-up the wing window opens all the way including reverse where it blasts in air.
did you see one in person that didnt work?

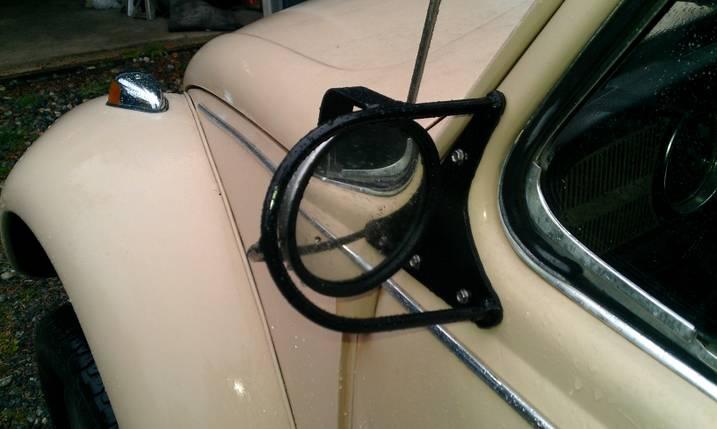

this is just one but they all look about the same.
|
|
| Back to top |
|
|
Snowking63
Samba Member
Joined: December 01, 2012
Posts: 161
Location: Cerritos, CA
|
| Posted: Mon Mar 04, 2013 1:40 pm Post subject: |
|
|
the problem with all of these mounts is that the wing cant open fully. my baja is my dd so i will NEED them to open all of the way, ive been looking for some mounts like these but none of them seem to help me. any ideas??
_________________
Money is a gas, not a trip
OGK
my 63 baja daily driver
http://www.thesamba.com/vw/forum/viewtopic.php?p=6485278&highlight=#6485278 |
|
| Back to top |
|
|
|
