| Author |
Message |
felix ehrhardt
Samba Member
Joined: January 16, 2003
Posts: 101
Location: Germany
|
 Posted: Wed Jan 04, 2017 6:45 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
 |
|
| peter schepens wrote: |
| I see that the seam of the axle boots are put straight upwards at 12 hrs... In the manual it is written to put the seam at 9 or 3 hrs. WHY? |
Hi Peter,
as the axle travels up and down the seam has to be at 3 or 9 o`clock. Otherwise the seam is pushed or strechted which can suffer it.
But there are many out there who drive around with 12 o`clock position without big problems...
Greetz, Felix |
|
| Back to top |
|
 |
peter schepens
Samba Member
Joined: April 17, 2003
Posts: 1031
Location: belgium Caesars camp
|
| Posted: Tue Jan 03, 2017 1:38 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
| LAGrunthaner wrote: |
Thanks Jason vw, this is my favorite photo to understand the Barndoor bus chassis, keep up the good work. Back to Bus School.
|
I see that the seam of the axle boots are put straight upwards at 12 hrs... In the manual it is written to put the seam at 9 or 3 hrs. WHY? it is much easier to bend the seam as to press it in and stretch it when the axle moves only up and down... THe oil will not leak as that tube is not full of oil. Just to inform you.
_________________
Zelensis, glassfibre body made in Belgium , disigned and built on a VW platform About 25 body's built.
Hebmuller info wanted for http://www.hebmueller-registry.com/home.html |
|
| Back to top |
|
|
mandraks
Samba Member
Joined: November 28, 2004
Posts: 7120
Location: Lawrenceville, Ga
|
| Posted: Mon Jan 02, 2017 8:18 pm Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
| notchboy wrote: |
I know some of you have seen this pic as you have the book. Taken from the 125 Year Jubilee Westfalia book. At first I thought it the same bus.
|
don't have the book, but it looks like the yellow one from the westfalia museum
_________________
regards
Uli
----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22663
Location: Escondido CA
|
| Posted: Sat Dec 31, 2016 12:41 pm Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
I know some of you have seen this pic as you have the book. Taken from the 125 Year Jubilee Westfalia book. At first I thought it the same bus.
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
LAGrunthaner
Samba Member
Joined: March 18, 2007
Posts: 5602
Location: 1st Coast
|
| Posted: Sat Dec 03, 2016 4:52 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
Greg, I was referring to the chassis images which helps me learn
| campingbox wrote: |
| LAGrunthaner wrote: |
| Thanks Jason vw, this is my favorite photo to understand the Barndoor bus chassis, keep up the good work. Back to Bus School. |
Linda, Is this what passes as good work these days?
Hurst bumpers? Are you kidding me? I could see those being cool to tart up some panel that didn't have much going on otherwise.
It's sad to watch this bus being ruined so quickly. |
_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters
www.mauiroadsters.com
http://www.oacdp.org
| Lind wrote: |
| Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon. |
|
|
| Back to top |
|
|
npbusguy
Samba Member
Joined: February 08, 2006
Posts: 1661
Location: Budapest, Hungary
|
| Posted: Wed Nov 30, 2016 12:22 pm Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
That is a hell of a first post Joe.
Hope you are well. |
|
| Back to top |
|
|
vwdrvr66
Samba Member
Joined: May 25, 2004
Posts: 1
|
| Posted: Tue Nov 29, 2016 7:28 pm Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
Home sweet home |
|
| Back to top |
|
|
squareweave
Samba Member
Joined: November 15, 2004
Posts: 449
Location: British Columbia
|
| Posted: Mon Nov 28, 2016 7:15 pm Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
Eye spy........
Any other pictures of this? |
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10254
Location: Petaluma, CA
|
| Posted: Tue Jul 26, 2016 6:40 pm Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
| Jason vw wrote: |
Greg,
Your biggest gripe is hurst bumpers?
|
No, I think the biggest gripe is that the owner won't sell it to me!
Second might be the Hurst bumpers....I think there's absolutely no reason to tart up this bus at all, it's cool just how it is.
Third would be the person who left this thing sitting outside for 20 years, man, I'd forgotten what a roach this thing is! |
|
| Back to top |
|
|
Jason vw
Samba Member
Joined: February 18, 2004
Posts: 194
Location: WinterPark Fla
|
| Posted: Tue Jul 26, 2016 7:37 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
| campingbox wrote: |
| LAGrunthaner wrote: |
| Thanks Jason vw, this is my favorite photo to understand the Barndoor bus chassis, keep up the good work. Back to Bus School. |
Linda, Is this what passes as good work these days?
Hurst bumpers? Are you kidding me? I could see those being cool to tart up some panel that didn't have much going on otherwise.
It's sad to watch this bus being ruined so quickly. |
Greg,
Your biggest gripe is hurst bumpers?
It's what the owner wants to do so we oblige.

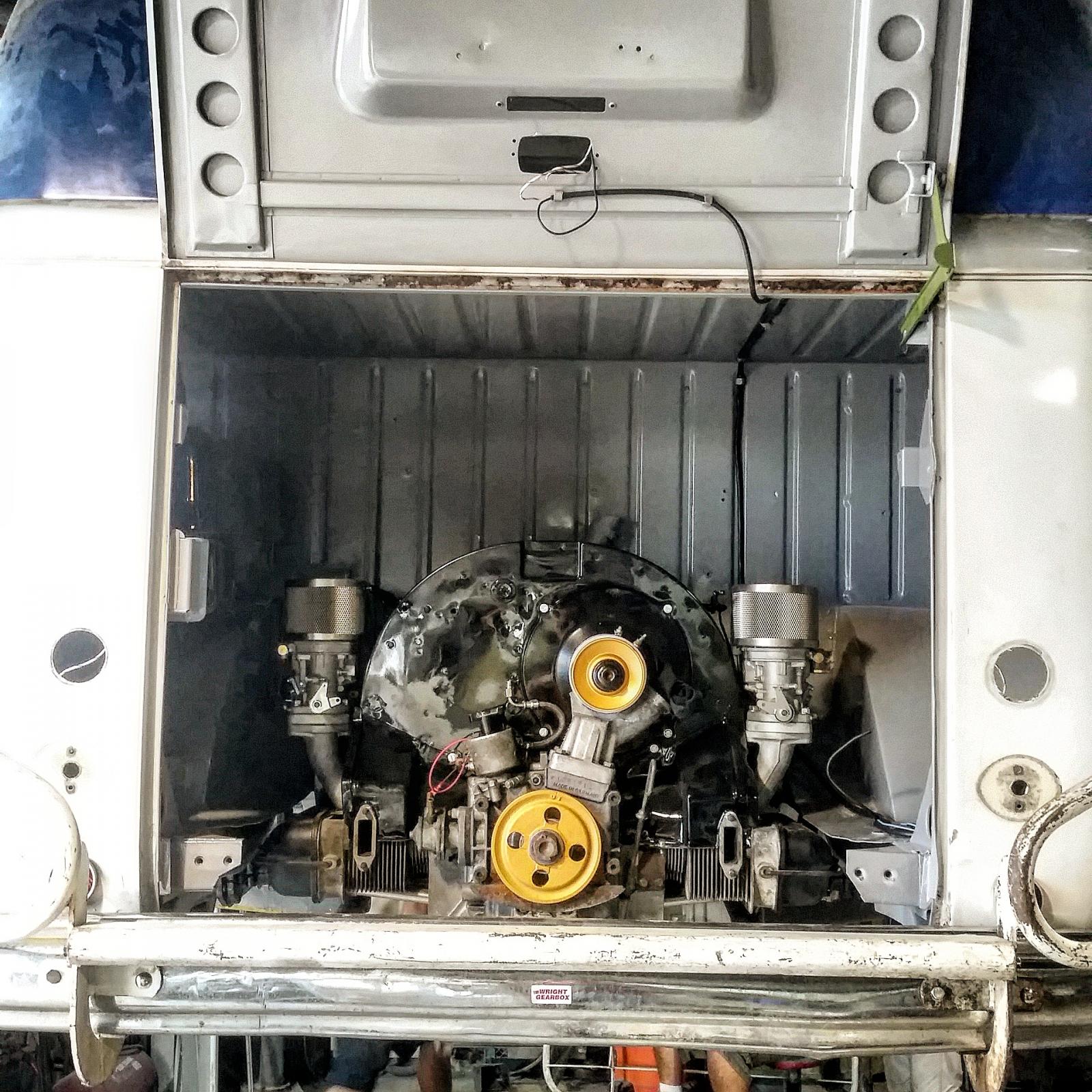

He wanted the underside reserved as well as the engine bay while preserving the exterior in its current condition.

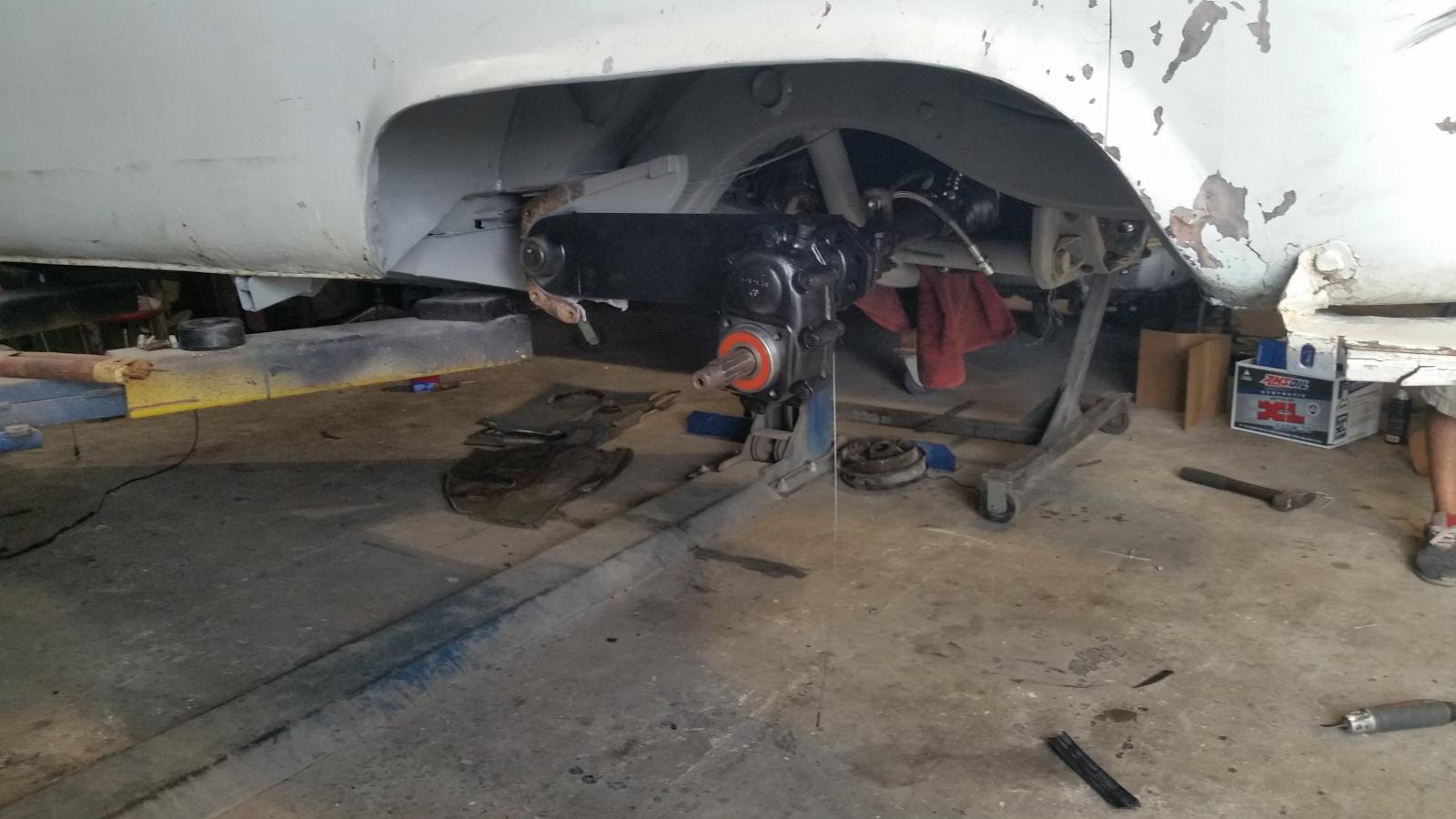

We also restored the Barndoor reduction boxes and the front beam. It will have the 356 drums on it. And Barndoor drums in the rear. And a super 90 356 motor. And the reproduction 16"356 rims from Concept1.

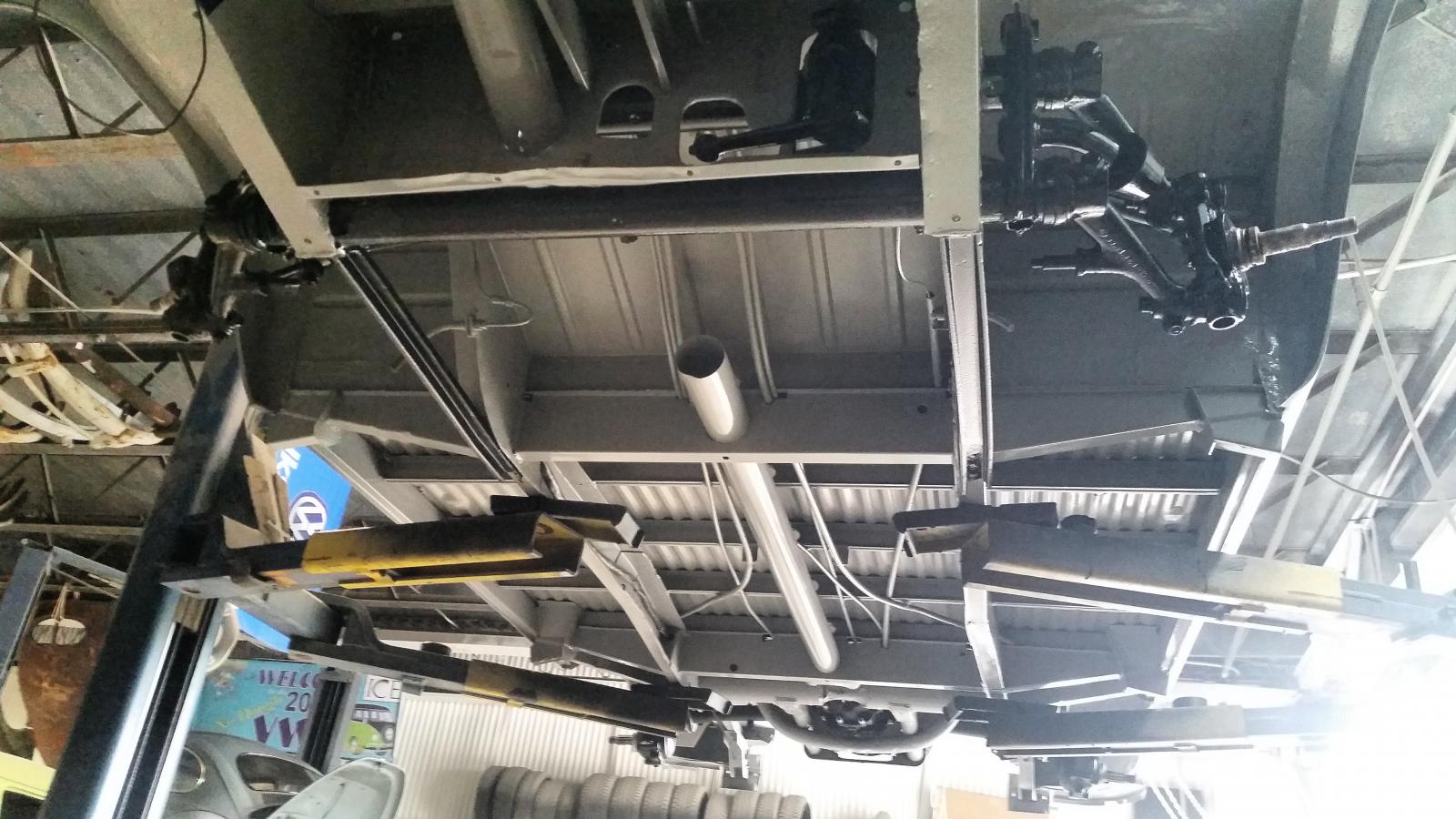

Here are some more pictures of what we did all while preserving the exterior to keep it in its hayday of the Brooks Stevens Excalibur sports car theme.
Btw the owner will be using this bus as a driver and not a show piece.
So I would disagree that it is being "ruined" as would many others
_________________
Jason Stratton 407 497 9944
Stratton Motorsports, Winter Park, Florida
follow me on instagram "Strattonmotorsports"
http://www.thesamba.com/vw/forum/viewtopic.php?p=6855439#6855439 |
|
| Back to top |
|
|
andre b
Samba Member
Joined: August 10, 2004
Posts: 811
Location: San Jose C.A.
|
| Posted: Fri Jul 22, 2016 7:29 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
| campingbox wrote: |
| LAGrunthaner wrote: |
| Thanks Jason vw, this is my favorite photo to understand the Barndoor bus chassis, keep up the good work. Back to Bus School. |
Linda, Is this what passes as good work these days?
Hurst bumpers? Are you kidding me? I could see those being cool to tart up some panel that didn't have much going on otherwise.
It's sad to watch this bus being ruined so quickly. |
 |
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10254
Location: Petaluma, CA
|
| Posted: Fri Jul 22, 2016 6:56 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
| LAGrunthaner wrote: |
| Thanks Jason vw, this is my favorite photo to understand the Barndoor bus chassis, keep up the good work. Back to Bus School. |
Linda, Is this what passes as good work these days?
Hurst bumpers? Are you kidding me? I could see those being cool to tart up some panel that didn't have much going on otherwise.
It's sad to watch this bus being ruined so quickly. |
|
| Back to top |
|
|
LAGrunthaner
Samba Member
Joined: March 18, 2007
Posts: 5602
Location: 1st Coast
|
| Posted: Fri Jul 22, 2016 4:39 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|

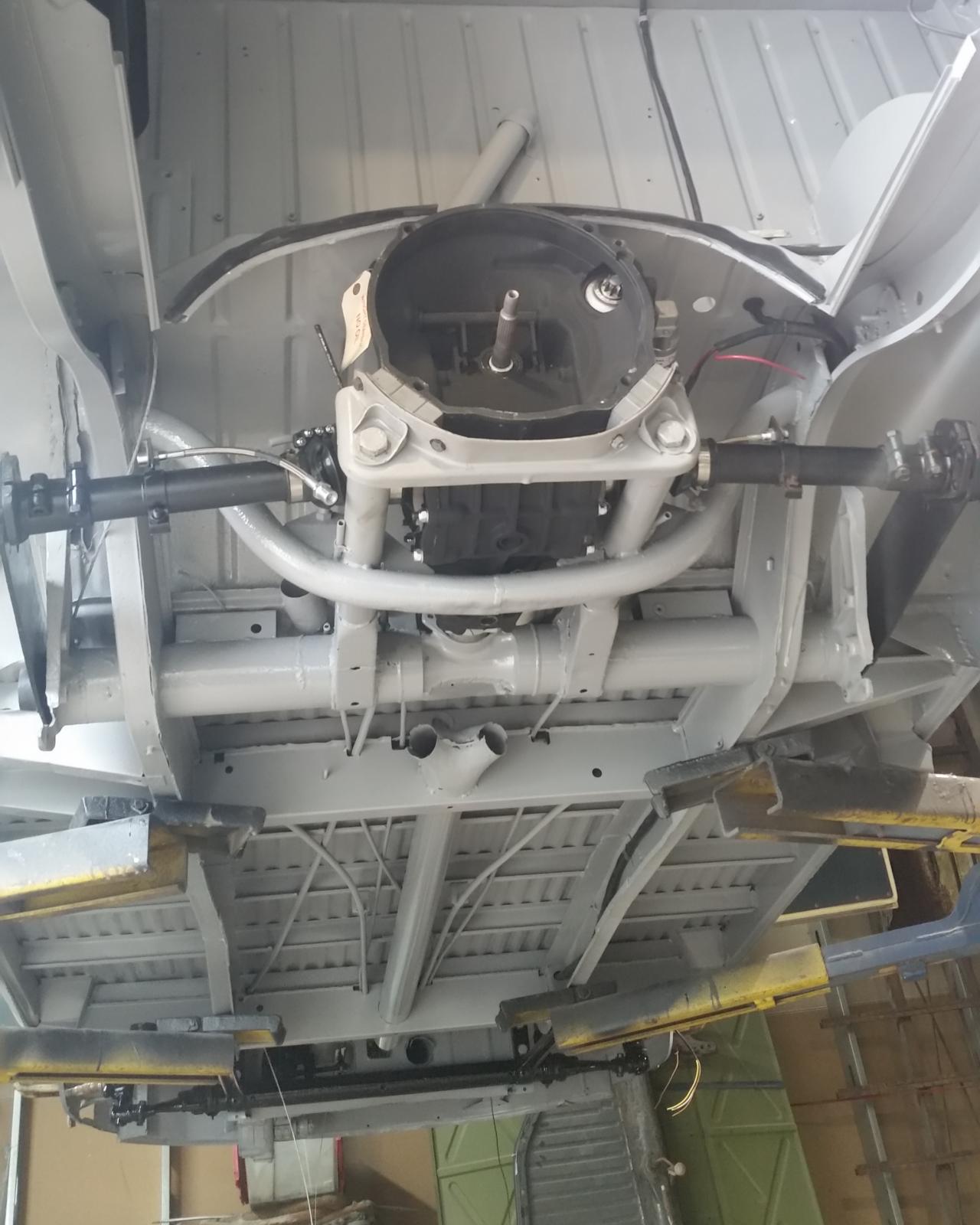

Thanks Jason vw, this is my favorite photo to understand the Barndoor bus chassis, keep up the good work. Back to Bus School.
_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters
www.mauiroadsters.com
http://www.oacdp.org
| Lind wrote: |
| Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon. |
|
|
| Back to top |
|
|
Jason vw
Samba Member
Joined: February 18, 2004
Posts: 194
Location: WinterPark Fla
|
|
| Back to top |
|
|
Jason vw
Samba Member
Joined: February 18, 2004
Posts: 194
Location: WinterPark Fla
|
|
| Back to top |
|
|
Scotty
Samba Member
Joined: July 02, 2003
Posts: 1553
Location: Northampton - Uk
|
| Posted: Mon May 16, 2016 5:17 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
It'll be great to see this bus being used again
_________________
| EverettB wrote: |
I'd be curious to know the length of his tip.
|
http://scottys-stuff.blogspot.com/ |
|
| Back to top |
|
|
Jason vw
Samba Member
Joined: February 18, 2004
Posts: 194
Location: WinterPark Fla
|
| Posted: Thu May 12, 2016 7:18 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|

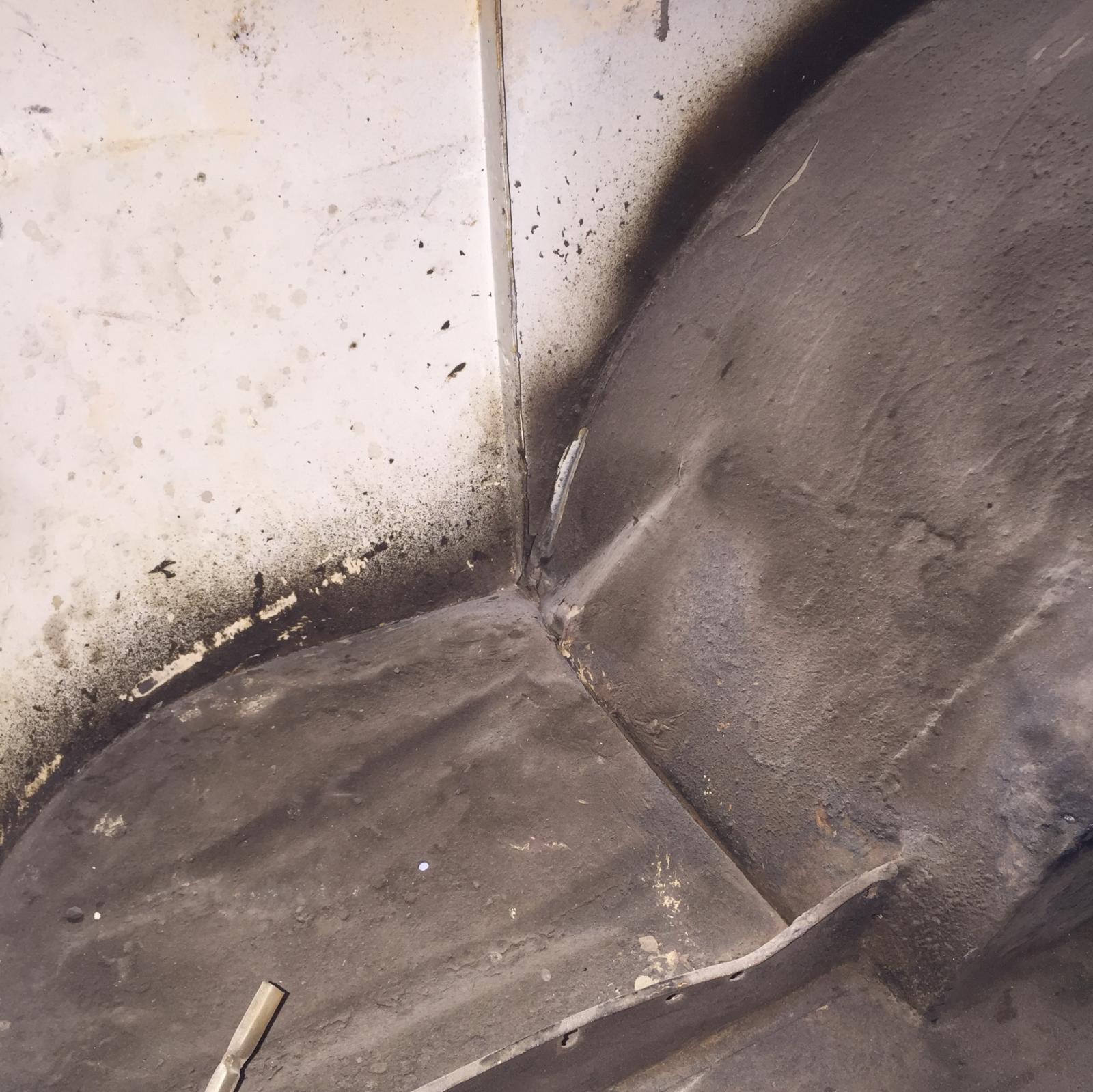

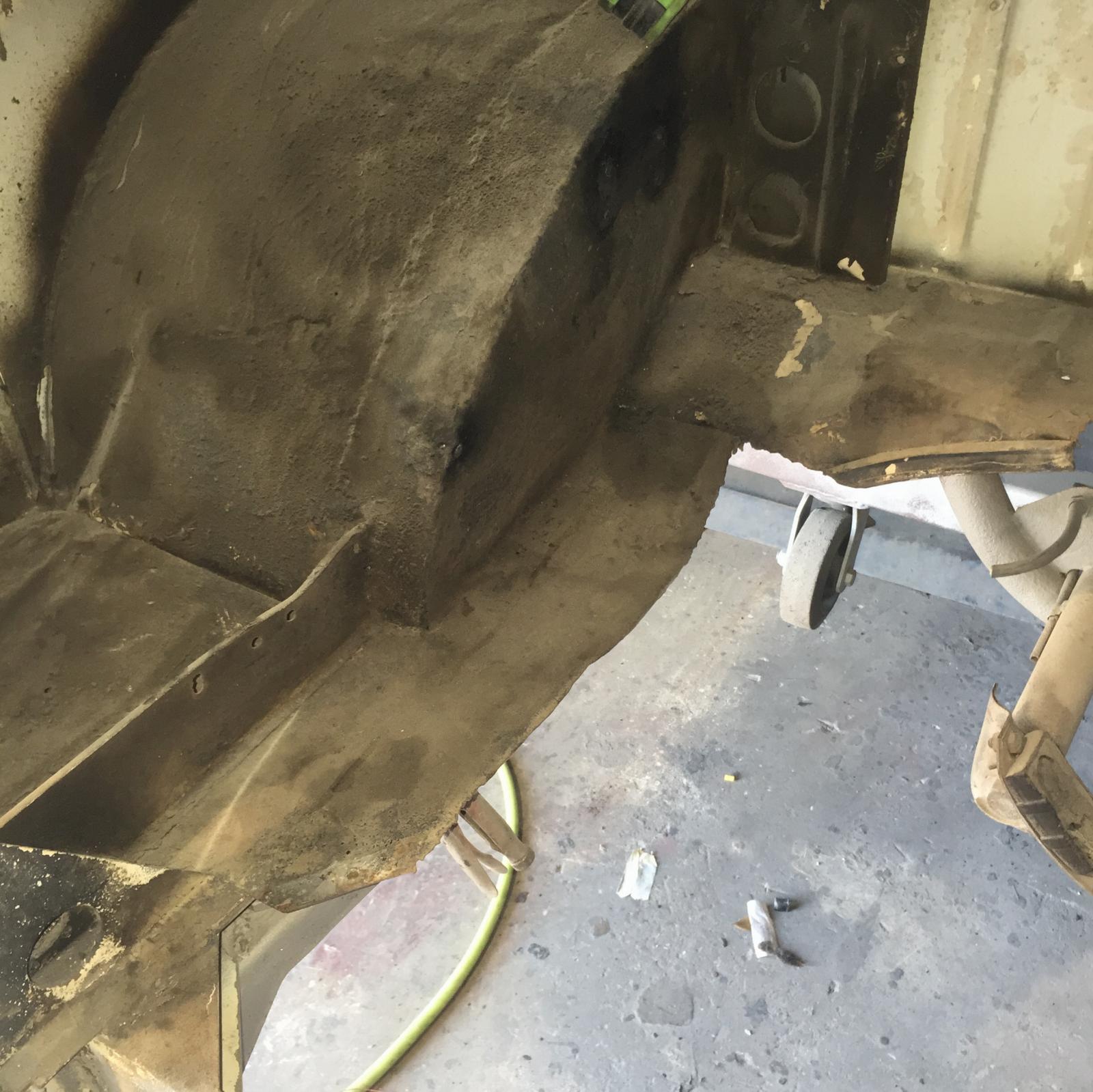

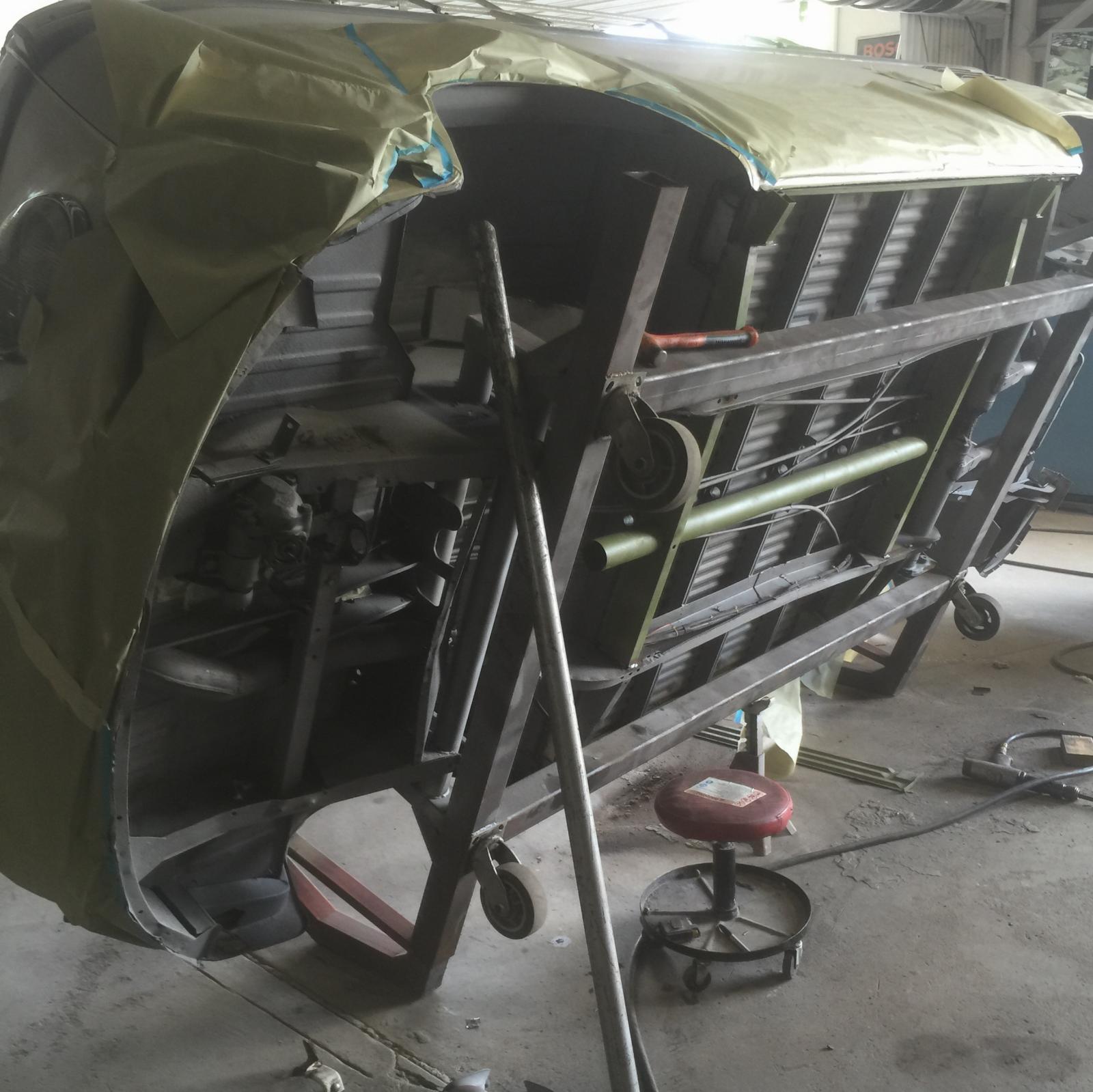

The 1954 Brooks Stevens Westy in its current condition. The underside is getting restore to fix rust and damage incurred over the years with special care to preserve the outside original condition that the bus is known for.
The engine sheet metal is getting fixed. The transmission is getting upgraded it will still retain its barndoor reduction boxes and front beam but will have a 912 motor put back in it just as The pictures above show it. And will running 16" barndoor rims with Porsche drum brakes.
_________________
Jason Stratton 407 497 9944
Stratton Motorsports, Winter Park, Florida
follow me on instagram "Strattonmotorsports"
http://www.thesamba.com/vw/forum/viewtopic.php?p=6855439#6855439 |
|
| Back to top |
|
|
PeteSC
Samba Member
Joined: January 26, 2011
Posts: 932
|
|
| Back to top |
|
|
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3395
Location: SoCal
|
| Posted: Thu Apr 07, 2016 7:21 am Post subject: Re: 1954 Brooks Stevens Campingbox Westy |
|
|
Spotted at Stratton Motorsports.
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
Kasten68
Samba Member
Joined: March 26, 2005
Posts: 138
Location: Switzerland
|
| Posted: Thu Jul 05, 2012 11:50 pm Post subject: |
|
|
Now..
