2.2L GoWesty Rebuild

the man with the van · Posted: Sat Sep 19, 2015 4:25 pm Post subject:

I wasn't able to start the van during my last trip due to a missing throttle cable pin and a mangled hall sender plug. I ordered the replacement plug from van-cafe and should get my hands on a spare pin thanks to a fellow samba member and Albuquerque local. I'll have it running on my next trip at the end of the month and see if my engine was spared when it overheated.

Also, after adjusting my valves, I am now certain that I installed the distributor drive shaft about 90d clockwise past where it "should" be. I'm deciding to leave it that way and should be alright as long as the firing order, valve adjustments and timing are all on point. All of my spark plug wires will just appear to be rotated one spot CW.

DwarfVader · Posted: Wed Aug 19, 2015 12:51 pm Post subject:

holy crap!

Talk about a thread returning from the dead.

I enjoyed reading it till this last page not once looking at the dates in the thread... and at the very end the most recent post from the OP bringing it back to life.

Thread watched! Cool

_________________
- oderint dum metuant -

I'll find my van someday, or it will find me.

the man with the van · Posted: Wed Aug 19, 2015 10:07 am Post subject:

Well guys, I'm sorry to have left everybody hanging for all this time, but there was no happy ending that y'all might have been hoping for. The engine did run well for a short period of time but I soon lost a belt on a short stretch of highway where I in no way could pull over. In just the 1/2 mile it took from when I noticed the temperature alert to when I could pull over, the engine overheated enough blow the head gaskets. (I used to be waay too considerate. If this ever happens again I'll block an entire freeway for all I care). FYI, if you see the battery warning light come on, it might mean there's something up with the alternator which might mean the belt fell off which is the same belt that runs the water pump.

I was in a huge rush to get it running again and had read somewhere that you can reuse the copper head gaskets so I did another head job the next day which failed miserably.

At this point I gave up and took out a loan to buy a lame truck and pretty much let the Vanagon rot for the last 3 years.

Well said truck was recently totaled and fortunately I was paid a fair amount for it. In a few weeks, I'm flying back to Albuquerque to give the van another go!

I'll provide a more technical update soon...

BillWYellowstone · Posted: Sun Jul 26, 2015 9:58 pm Post subject:

Dang! Last chapter missing. I think after readin all the pages with the tools, the confusion, when it is time I am pulling the engine, strapping to a pallet and sending it out to be done.
_________________
Live Fulltime in motorhome
Have 86 Westy Camper 2.1 rebuilt
Work in Yellowstone NP year round.

BetaVan · Posted: Sat Jul 25, 2015 10:34 am Post subject:

I hate shaggy dogs!
_________________
84 Westfalia
Vanistan 2.2 Powerplant
WBXhaust + External Oilcooler

61Scout · Posted: Sat Jul 25, 2015 8:42 am Post subject:

BetaVan · Posted: Fri Jul 24, 2015 10:12 pm Post subject:

How are things going after all this time?
_________________
84 Westfalia
Vanistan 2.2 Powerplant
WBXhaust + External Oilcooler

tilstad · Posted: Thu Mar 06, 2014 2:21 am Post subject:

Yeah, annoying, right? Vanish from the face of the earth just as things are wrapping up. Hate reading build threads like this.

Actually, it seems that the engine builder created a few new threads to finish getting the engine running.

http://www.thesamba.com/vw/forum/viewtopic.php?t=526053&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=527864&highlight=

If one add the three threads together, I guess one could assume the motor is now running. He would probably have been back and created another one if it didn't.

ALIKA T3 · Posted: Sat Jan 25, 2014 11:08 pm Post subject:

Hello!

any feedback on this DiY rebuilt?
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget

charlesnj · Posted: Fri Oct 05, 2012 1:58 pm Post subject: How did your rebuild turn out ?

Hello, thinking of trying to rebuild my 2.1 in my 86 syncro. How did yours turn out ? Thanks Charlie

the man with the van · Posted: Mon Aug 27, 2012 8:53 pm Post subject:

The engine is back in and I just got done changing the fuel lines. The wiring in the engine compartment was a nightmare, I've spent two days replacing wires that were spliced 2-3 times just within a couple of feet. Everything is finished except I completely obliterated the quick connect to the middle green wire for the distributer while trying to remove the wire. Once that's fixed tomorrow I can fill it up with all the fluids and see if it starts!

the man with the van · Posted: Wed Aug 22, 2012 9:13 pm Post subject:

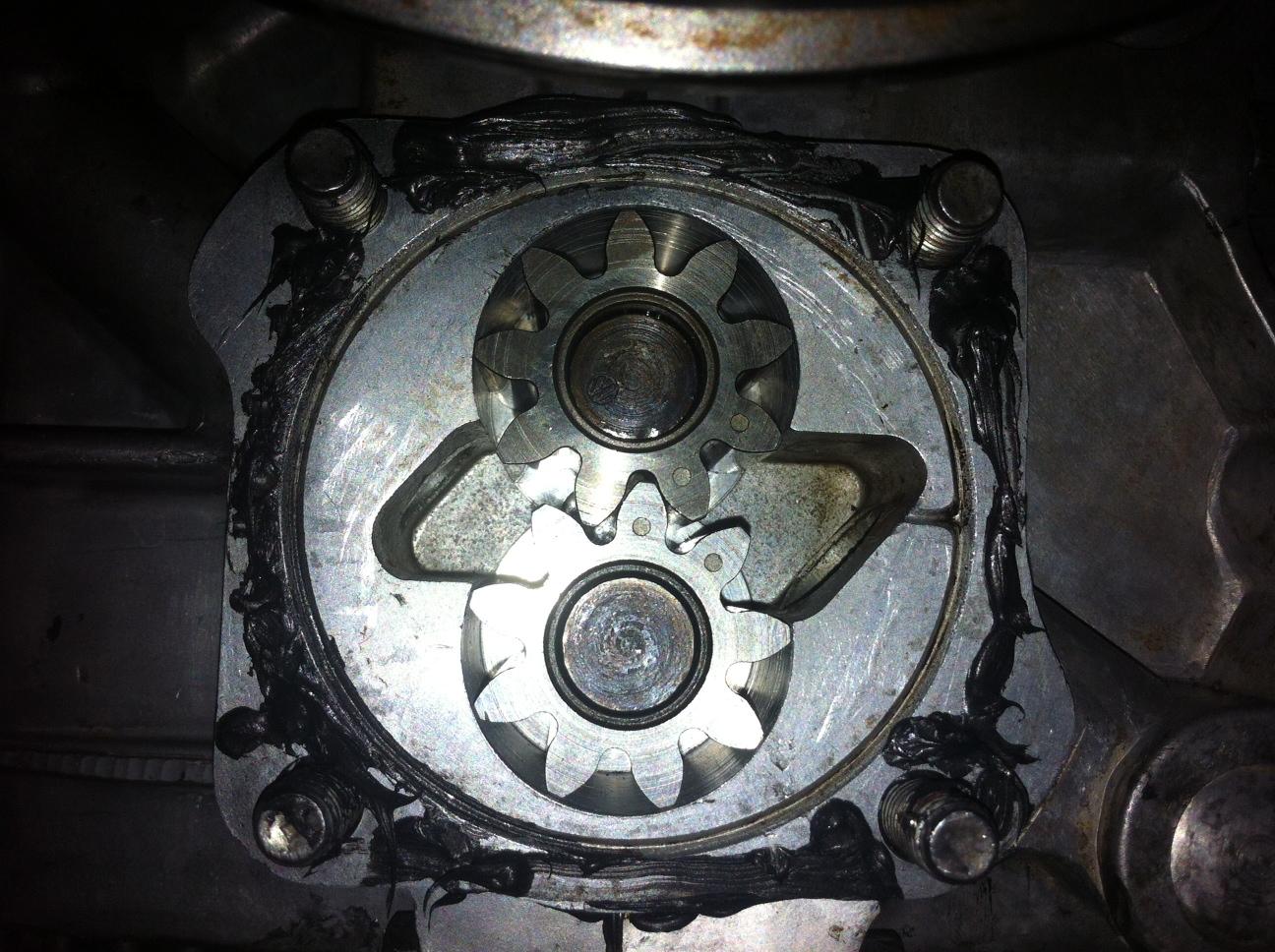

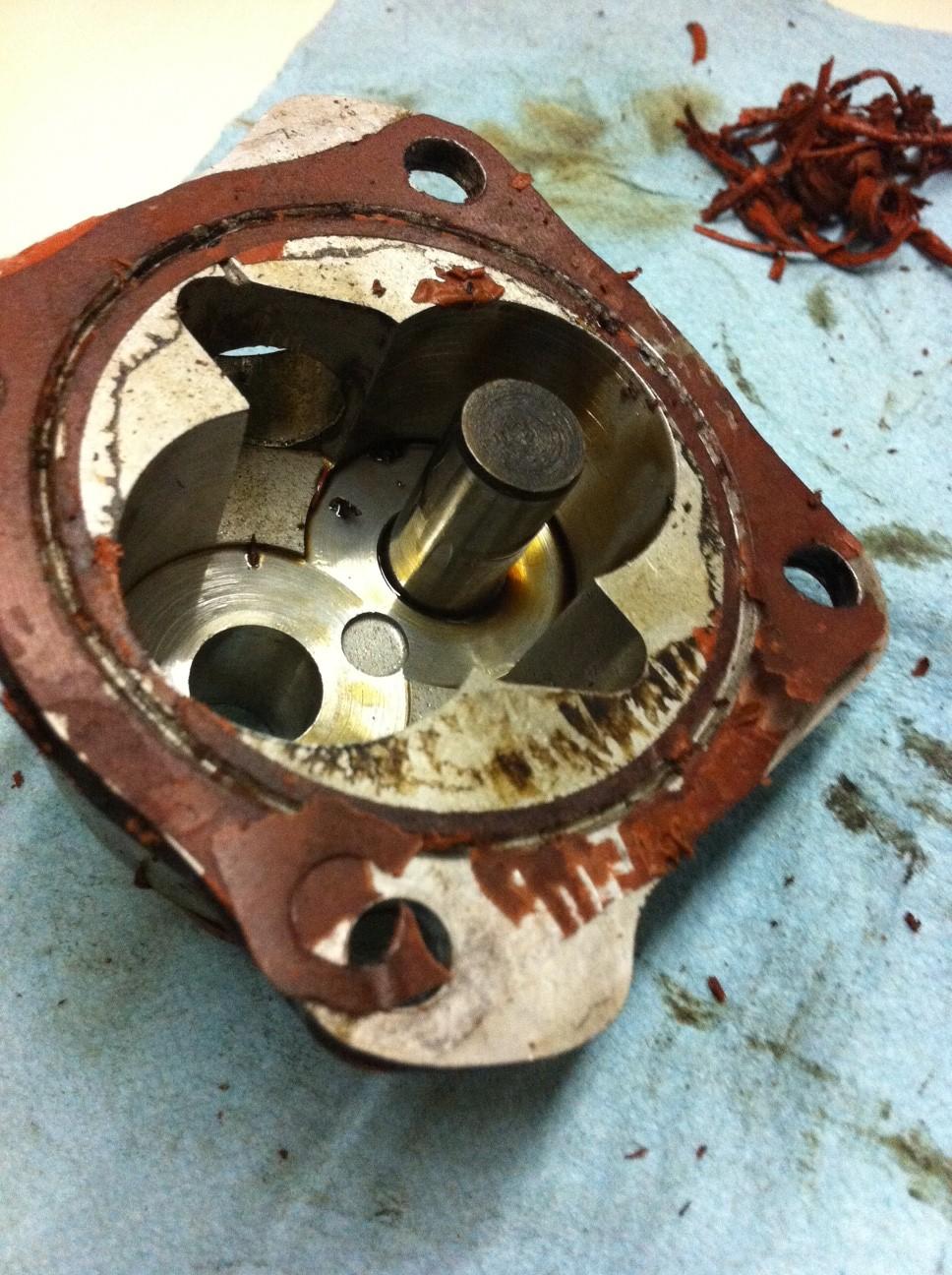

At first I thought the last guy who changed this knew what he was doing but sure enough there were gaskets on both sides under the plethora of RTV

Image may have been reduced in size. Click image to view fullscreen.

I didn't have feeler gauges but I placed a magnetic straight edge over the gears and measured the play by pushing the gears down and letting the magnet pull them back up. I had 0.0035” so I skipped the gaskets, just the right stuff.

Replacing water pump studs with bolts: 8x35mm, 1.25 thread, 13mm wrench

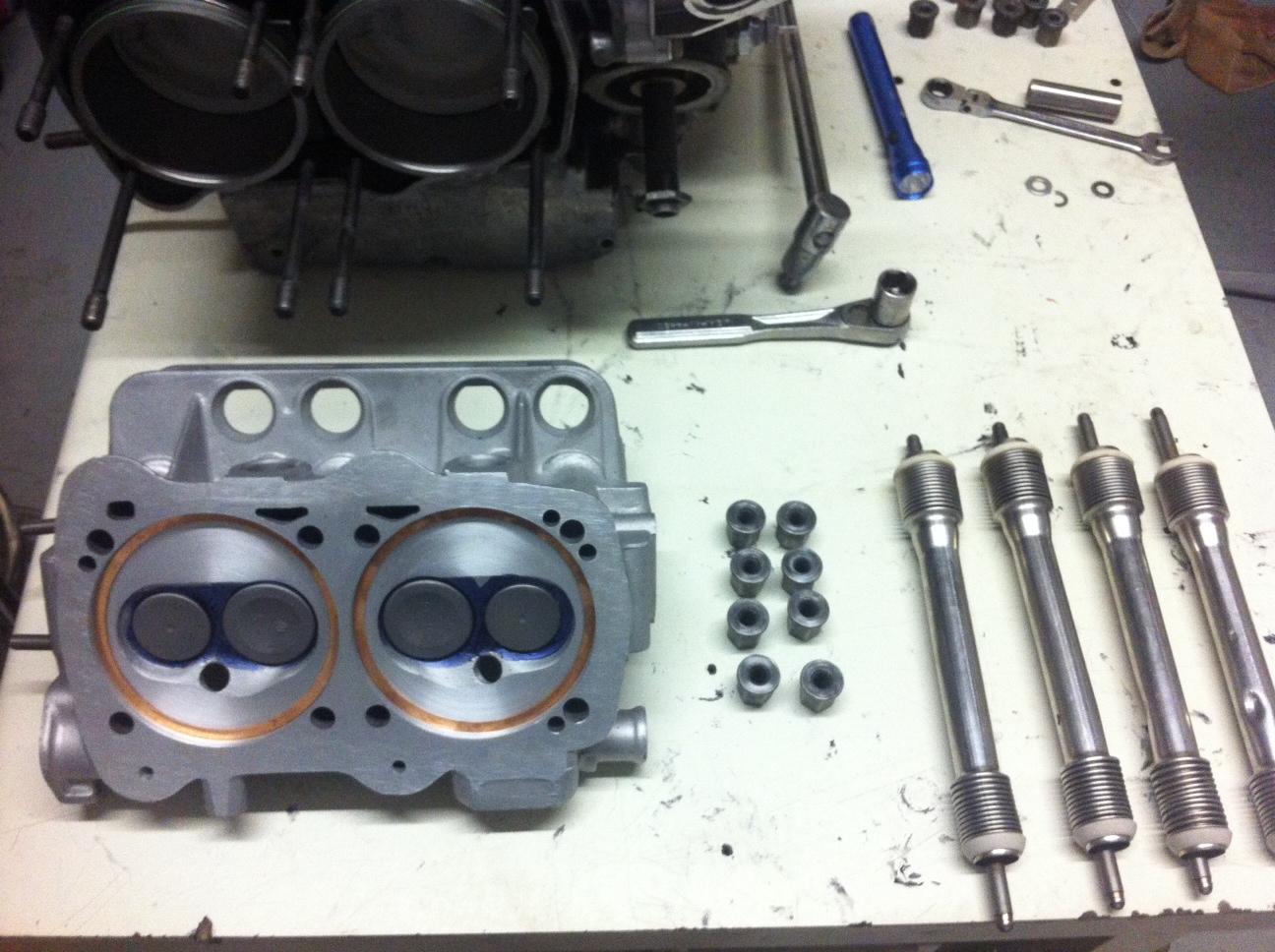

Set up to put the heads on. Sealing surface on heads lightly sanded

I also gave the water jacket seals a quick buzz to form a good seal

Engine strapped down. I put a wrench on the pulley bolt to hold the crankshaft still while I torqued the flywheel down.

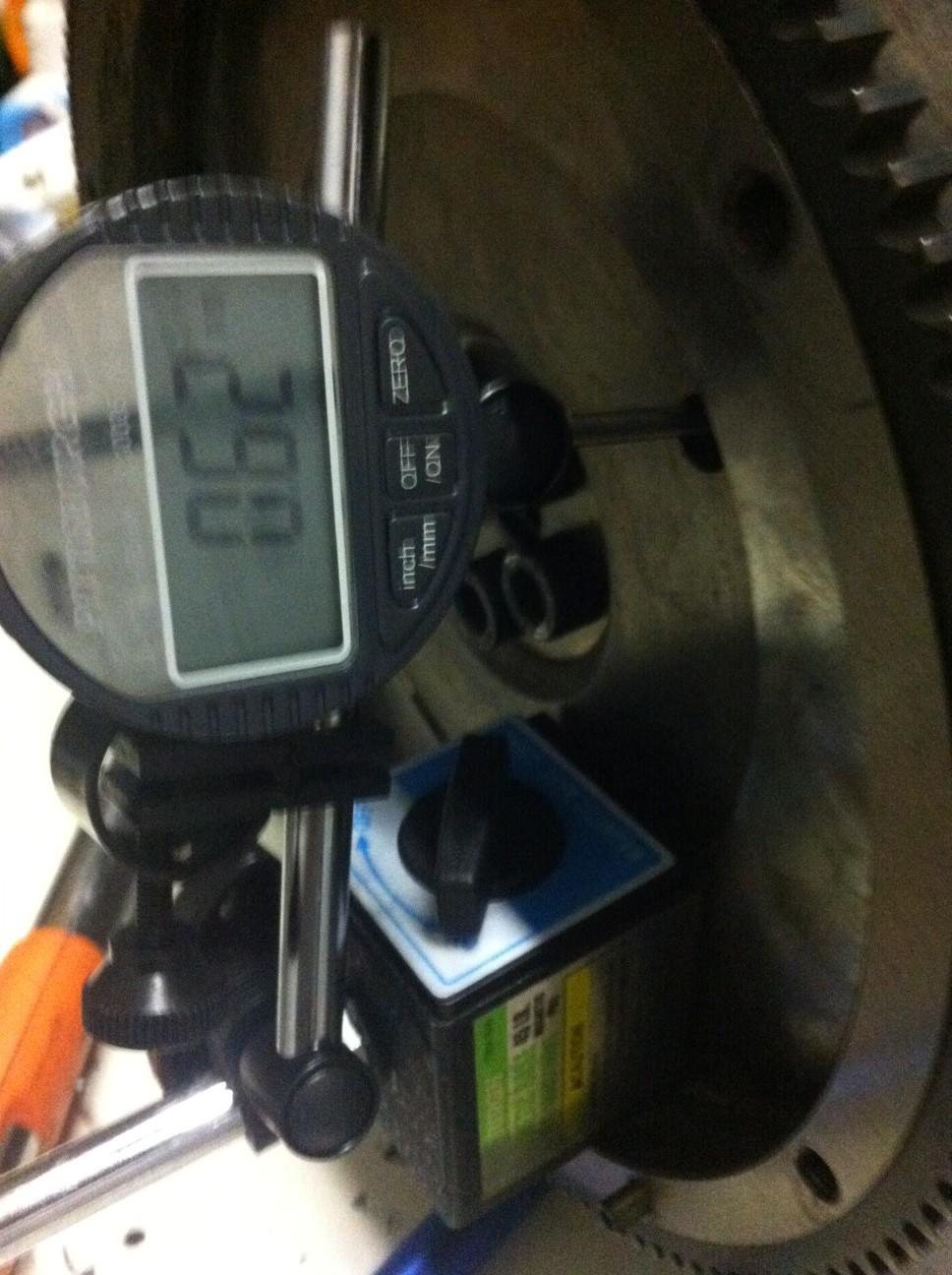

Crankshaft end play is very high. I had to order two .38mm shims to get it down to .10mm.

the man with the van · Posted: Sun Aug 19, 2012 8:43 pm Post subject:

chazz79 · Posted: Sun Aug 19, 2012 5:24 pm Post subject:

Mark · Posted: Sun Aug 19, 2012 4:59 pm Post subject:

Robw_z · Samba Member Joined: April 28, 2007 Posts: 997

So what size main bearings did you end up going with?

-Rob

the man with the van · Posted: Sun Aug 19, 2012 10:30 am Post subject:

Zeitgeist 13 · Posted: Sun Aug 19, 2012 10:22 am Post subject:

Yeah, I just set the gear on there until it gets nice and toasty, and it slides right into place. No fuss no muss.
_________________
Casey--

'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE.

the man with the van · Posted: Sun Aug 19, 2012 10:07 am Post subject:
