 Posted: Sun Jan 08, 2023 6:39 am Post subject: Re: Project 66 Daily Driver. |
 |
|
No, the Beetle/Type 1 FI engine had 33 mm intake valves; the exh valves were either 30 or 32 mm. However, the exh valves had 9 mm diameter stems whereby the usual 32 mm carb-engine valves had 8 mm stems. https://vwparts.aircooled.net/Intake-Valve-33-x-8-x-112mm-113-109-601D-p/113-109-601d.htm
Tom Wilson's book "How to rebuild your VW air cooled engine" has a reference chart of cylinder heads. He lists the FI heads and notes that the left one had the temperature sensor boss. The right one does not. P/N for the right head without the boss is 043 101 375R.
Aircooled.net also lists that the 33 mm intake valve was also fitted to the 1966 1300 single-port engine, though that had the 8 mm valve stem. When you take your intake valves out of this head, if you measure the head diameters, likely the one on the left in your photo will be 33 mm and the right will be 35.5 mm. If I view them correctly.
Happy New Year, and looking forward to seeing you in person at a CVA event- hopefully with your engine back together and running well. |
|
| Back to top |
|
 |
EA812
Samba Member
Joined: December 07, 2008
Posts: 1231
Location: North central, CT
|
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10560
Location: Pearl River, NY
|
| Posted: Mon Dec 26, 2022 2:42 pm Post subject: Re: Project 66 Daily Driver. |
|
|
Glad you are doing some work on the engine, even if it's 1/2 year after your last post. Last time I laid hands on an engine project was Sept. 2021...

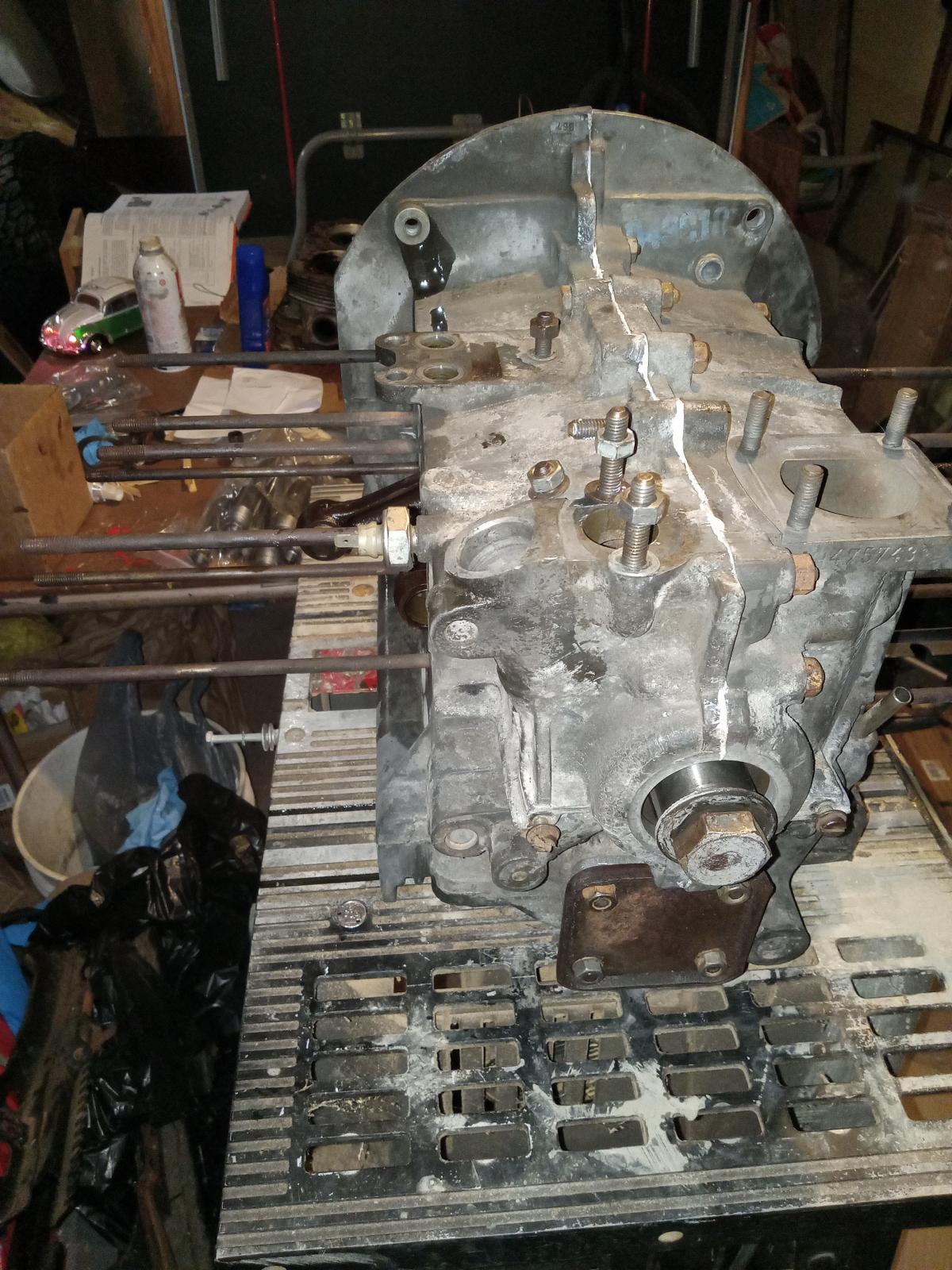

In your engine case photo above, is that just a loosely fitting dust shield at the crank pulley area which will be removed when you fit the pulley?
