67rustavenger
Samba Member
Joined: February 24, 2015
Posts: 11484
Location: Oregon
|
 Posted: Sat May 25, 2024 8:01 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
 |
|
| Thread wrote: |
| 67rustavenger wrote: |
Well, that looks like it's ready for next weekends NW Bug Run.
See ya there!  |
That’s the plan. Looking forward to it. Hopefully I run into you there. |
You can find us in the pits and staging lanes.
Mine is a ZenithBlau 67 with a Beige left rear fender.
I'll likely be running in the pro class this year. My car can run in the 13ings.
So I'll likely get moved over to the right side of the staging lanes.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!
There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas! |
|
| Back to top |
|
 |
Thread
Samba Member
Joined: June 25, 2017
Posts: 71
Location: Portland, Or
|
| Posted: Sat May 25, 2024 7:06 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| 67rustavenger wrote: |
Well, that looks like it's ready for next weekends NW Bug Run.
See ya there! |
That’s the plan. Looking forward to it. Hopefully I run into you there. |
|
| Back to top |
|
|
67rustavenger
Samba Member
Joined: February 24, 2015
Posts: 11484
Location: Oregon
|
| Posted: Sat May 25, 2024 4:12 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| Thread wrote: |
And here it is in the car.
|
Well, that looks like it's ready for next weekends NW Bug Run.
See ya there!
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!
There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas! |
|
| Back to top |
|
|
Thread
Samba Member
Joined: June 25, 2017
Posts: 71
Location: Portland, Or
|
| Posted: Sat May 25, 2024 3:47 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|

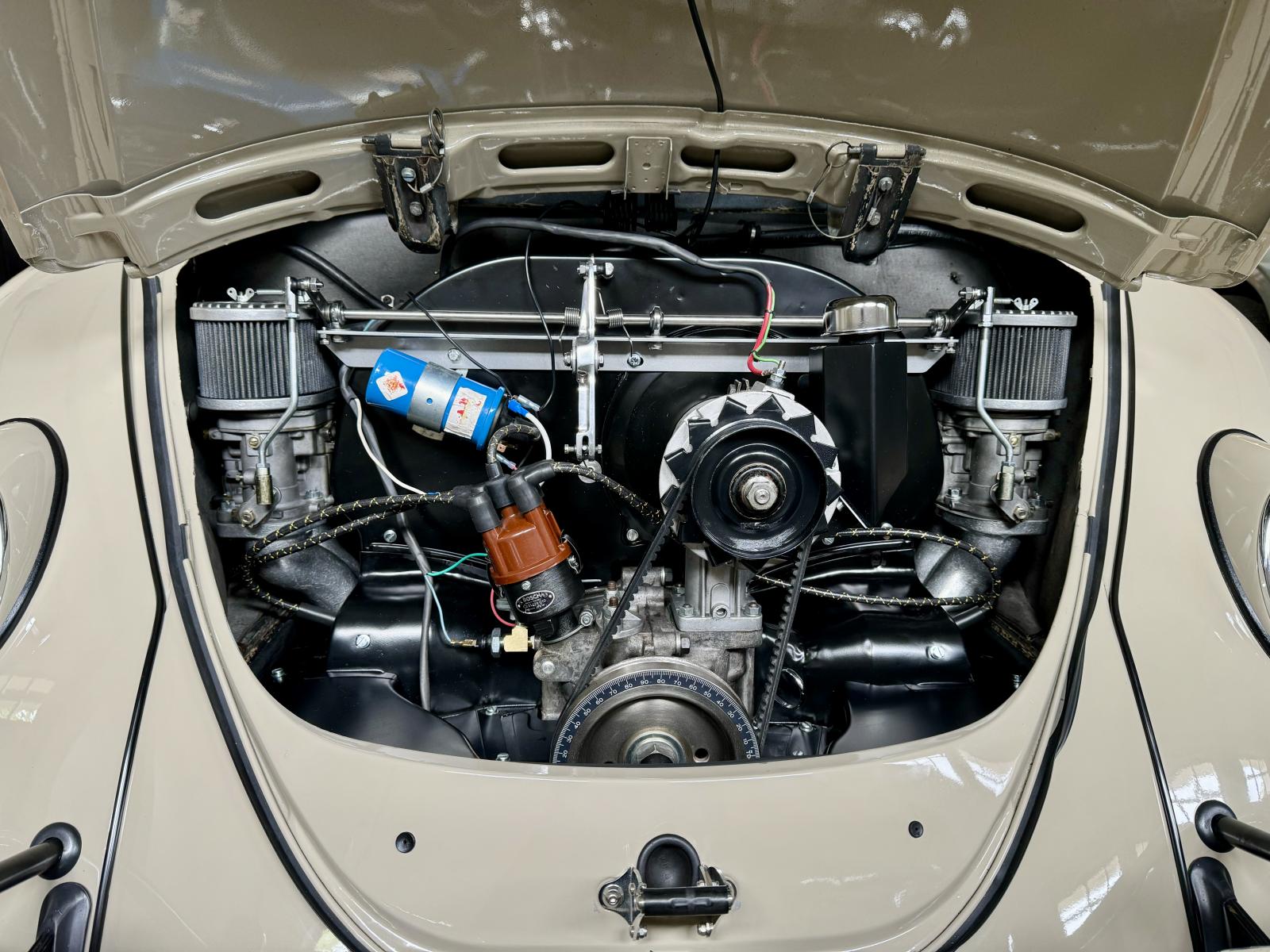

And here it is in the car.
|
|
| Back to top |
|
|
MuzzcoVW
Samba Member
Joined: February 21, 2018
Posts: 1574
Location: Westfield, MA.
|
| Posted: Tue Apr 30, 2024 6:42 am Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| Nice! And a velocity ring like the late model F.I. engines, love it |
|
| Back to top |
|
|
Thread
Samba Member
Joined: June 25, 2017
Posts: 71
Location: Portland, Or
|
| Posted: Mon Apr 29, 2024 10:46 am Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|

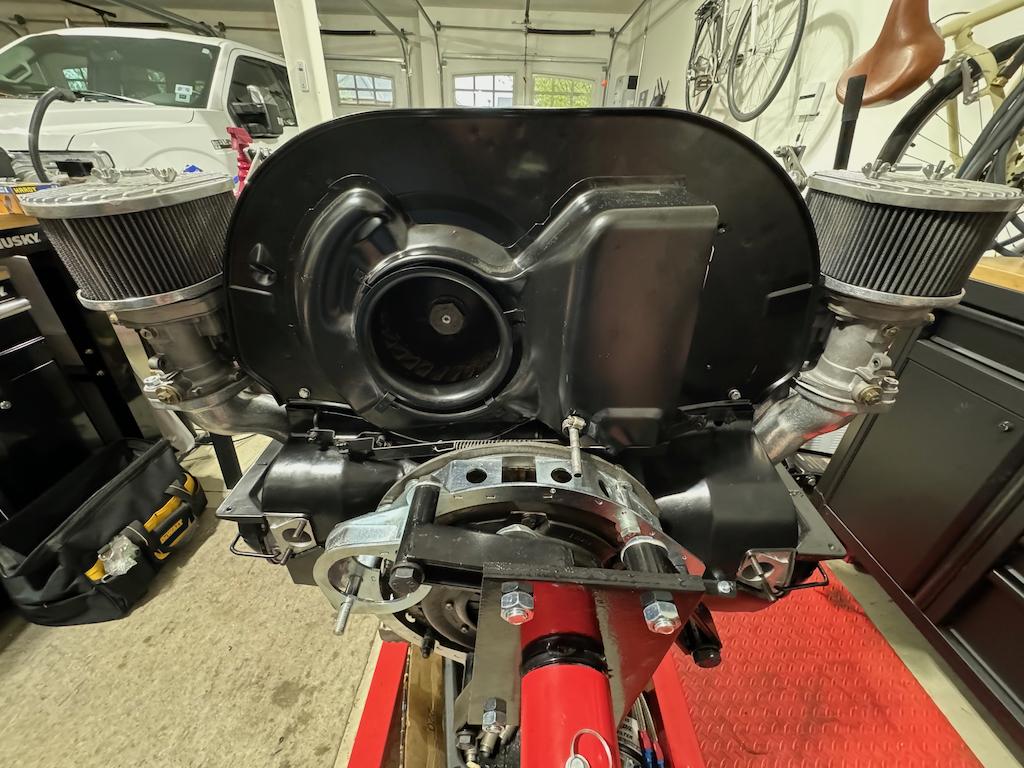

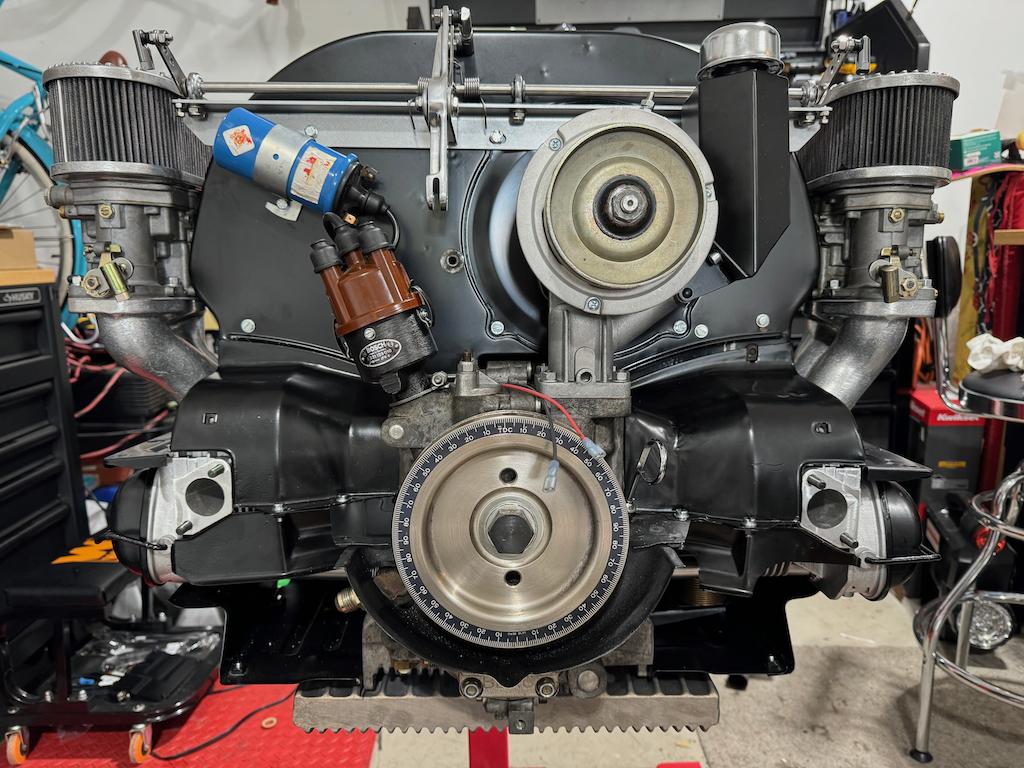

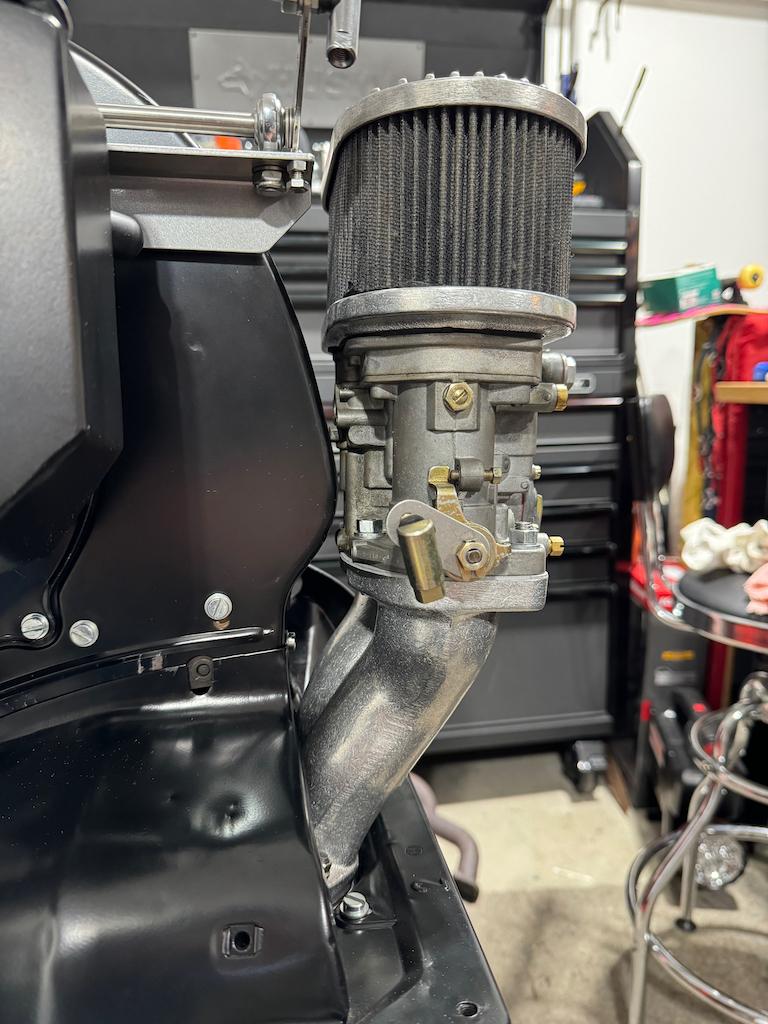

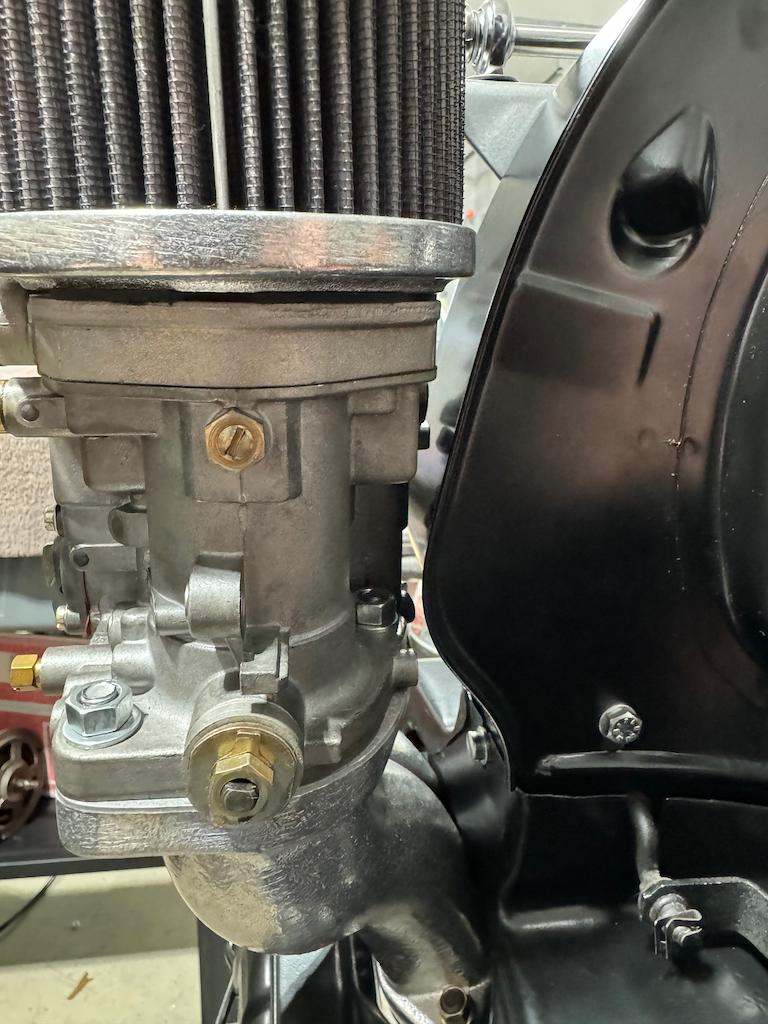

For the sake of future readers, here's how dual Dells on CB manifolds work with the Cooled shroud. I love the fit, carbs have enough space to install in the engine bay and when bolted down aren't contacting the shroud at all. The pics make it look like the carbs are closer than they are in reality.
|
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80273
Location: Sneaking up behind you
|
| Posted: Sun Apr 28, 2024 6:54 am Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| Frizbal wrote: |
| Glenn wrote: |
| Frizbal wrote: |
| Ah yes, you’re right. Meant to say Type 3. I tried every combo of intake, so getting them mixed up. |
So the problem was caused by you. |
Correct. However, I never said there was a problem with the shroud as you are alluding to, only that “I wish they would make a version that fits type 1 manifolds”, corrected to read type 3. |
They made a copy of the OE shroud. It's safe to assume you'd have the same problem with a OE shroud.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Frizbal
Samba Member
Joined: July 03, 2016
Posts: 133
|
| Posted: Sun Apr 28, 2024 6:27 am Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| Glenn wrote: |
| Frizbal wrote: |
| Ah yes, you’re right. Meant to say Type 3. I tried every combo of intake, so getting them mixed up. |
So the problem was caused by you. |
Correct. However, I never said there was a problem with the shroud as you are alluding to, only that “I wish they would make a version that fits type 1 manifolds”, corrected to read type 3. |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80273
Location: Sneaking up behind you
|
| Posted: Sun Apr 28, 2024 4:14 am Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| Frizbal wrote: |
| Ah yes, you’re right. Meant to say Type 3. I tried every combo of intake, so getting them mixed up. |
So the problem was caused by you.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Frizbal
Samba Member
Joined: July 03, 2016
Posts: 133
|
| Posted: Sat Apr 27, 2024 9:25 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| Glenn wrote: |
You have Type 3 manifolds... really short.
Look at the picture i posted and you can see the top of the manifold is much higher.
Here's an old pic of a standard Type 1 manifold with a ruler.
|
Ah yes, you’re right. Meant to say Type 3. I tried every combo of intake, so getting them mixed up. |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80273
Location: Sneaking up behind you
|
| Posted: Sat Apr 27, 2024 6:08 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80273
Location: Sneaking up behind you
|
| Posted: Sat Apr 27, 2024 6:02 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
You have Type 3 manifolds... really short.
Look at the picture i posted and you can see the top of the manifold is much higher.
Here's an old pic of a standard Type 1 manifold with a ruler.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Frizbal
Samba Member
Joined: July 03, 2016
Posts: 133
|
| Posted: Sat Apr 27, 2024 5:45 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|

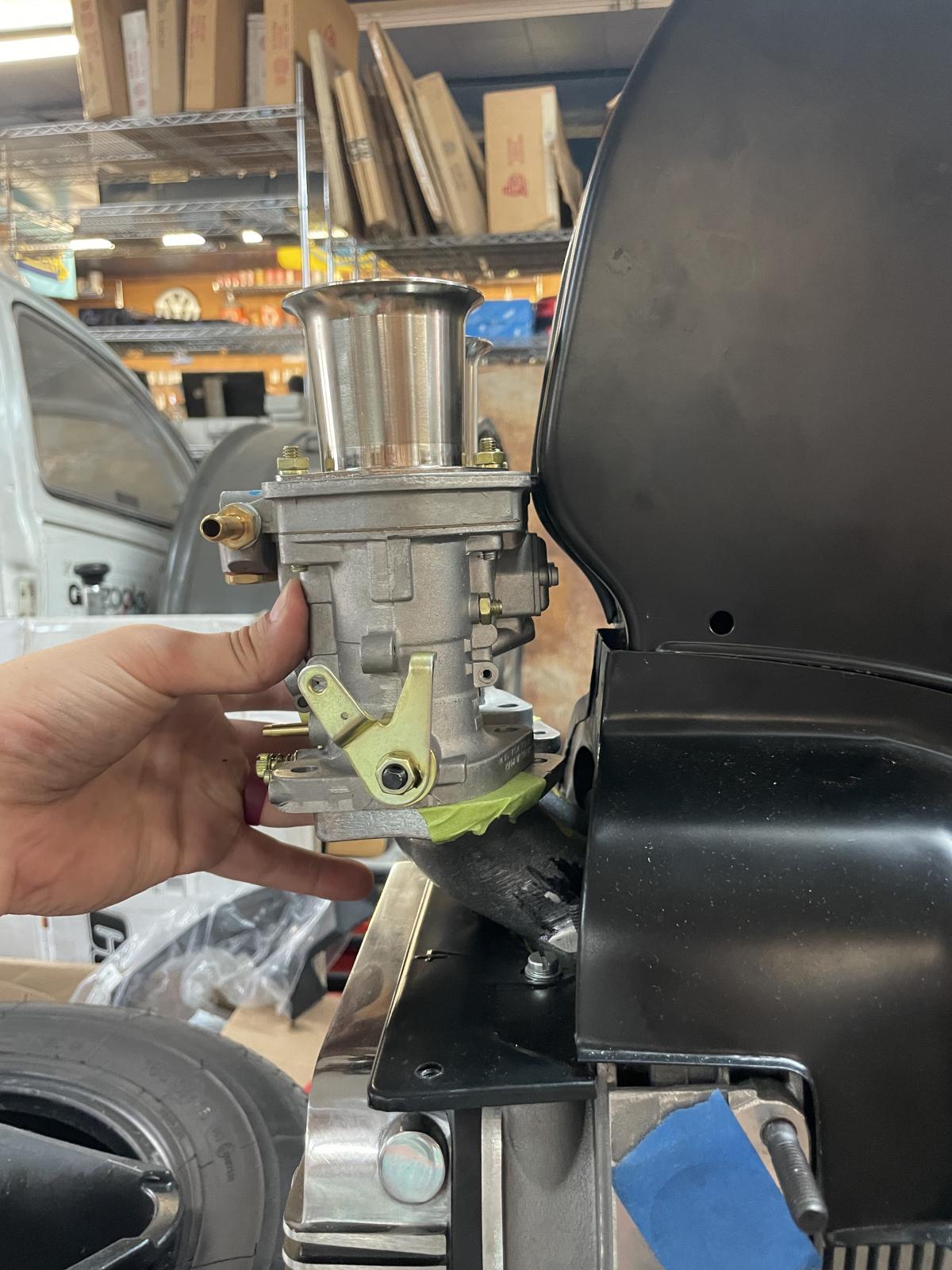

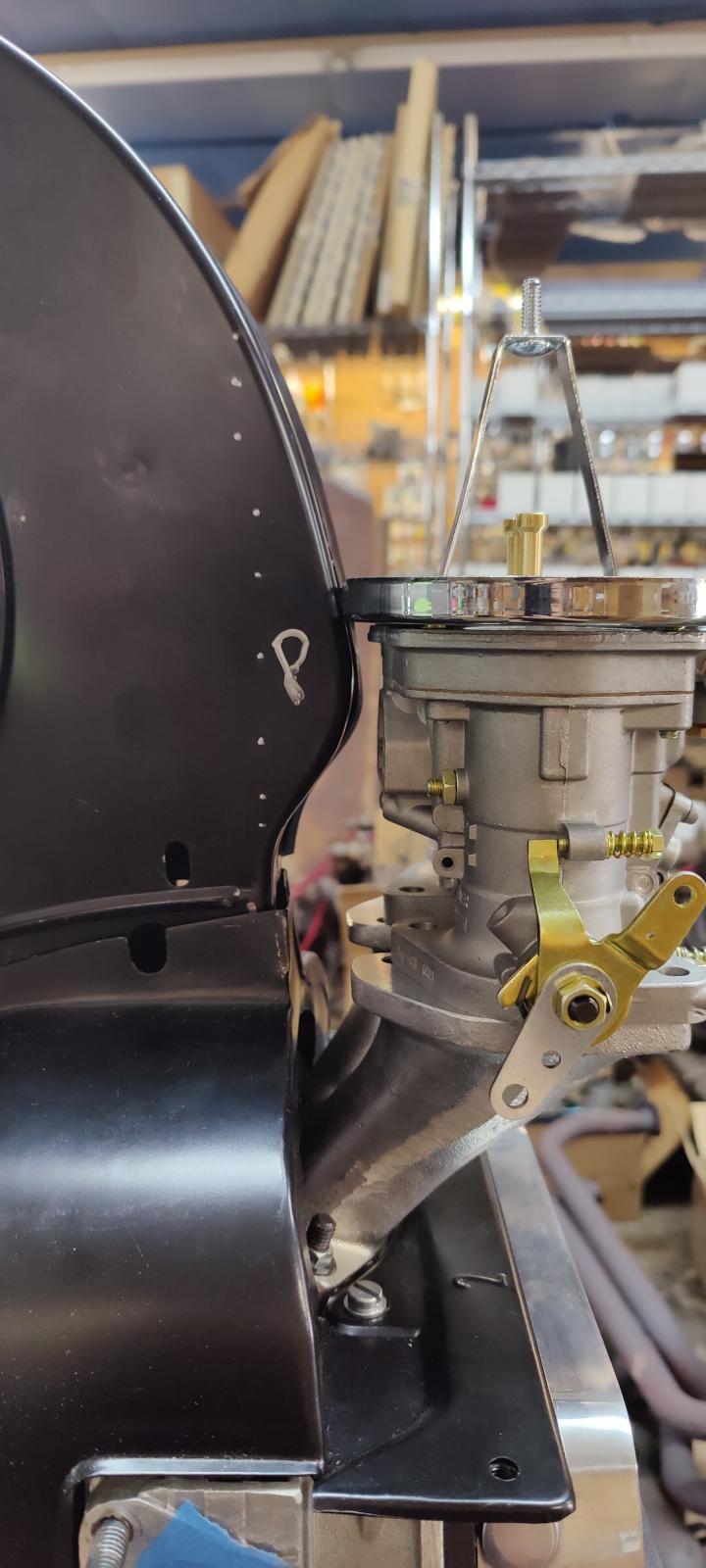

Another picture with the carb.
|
|
| Back to top |
|
|
Frizbal
Samba Member
Joined: July 03, 2016
Posts: 133
|
| Posted: Sat Apr 27, 2024 5:42 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|

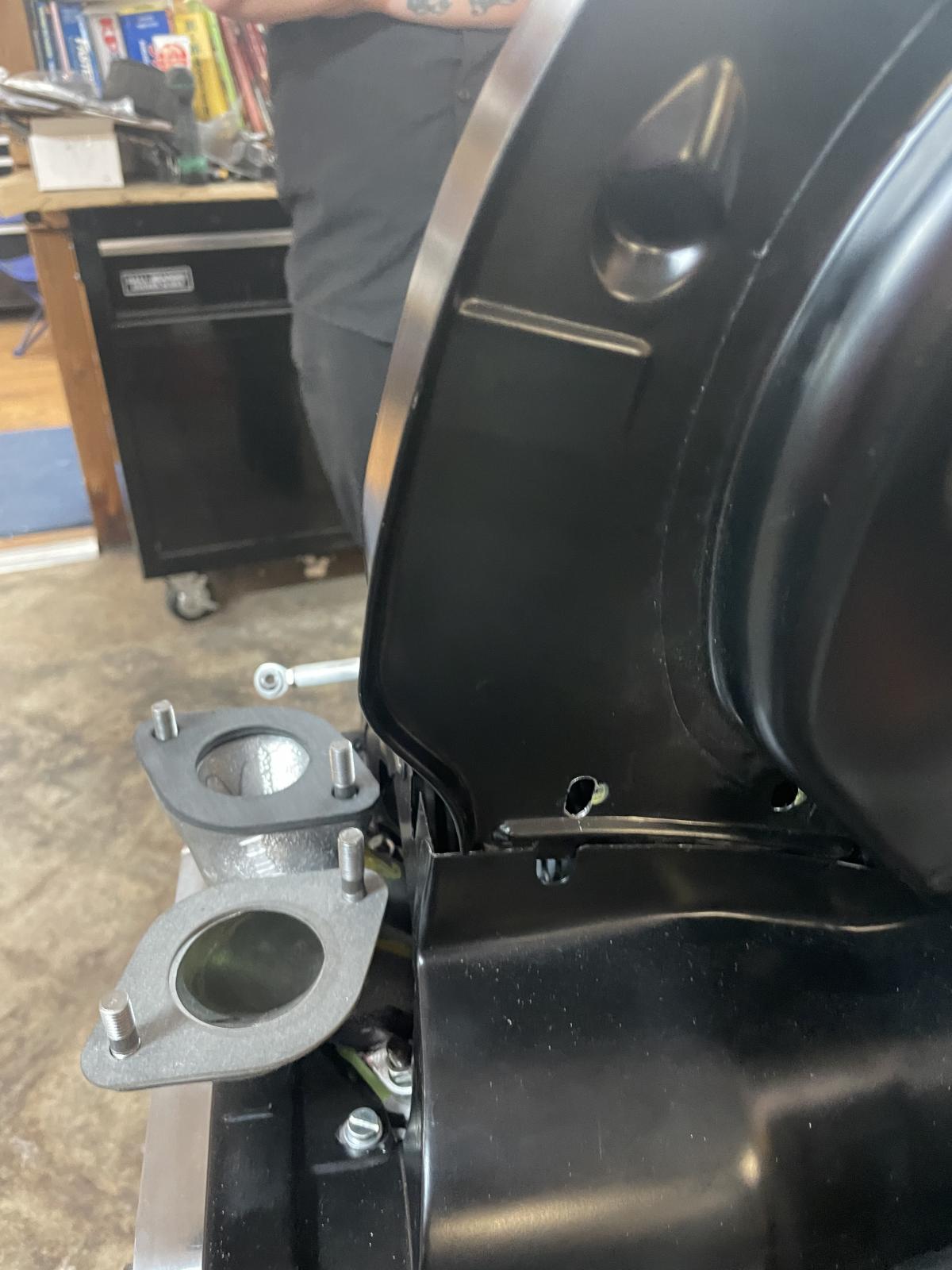

They were the type 1 shorter manifolds from CB. But the gene berg manifolds didn’t fit either. Manifold flanges and carb linkage would have hit the edge of the shroud.
|
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80273
Location: Sneaking up behind you
|
| Posted: Sat Apr 27, 2024 1:24 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| Frizbal wrote: |
I installed one, but unfortunately had to have it hacked to pieces and re-welded… sure wish they would make a version that fits type 1 manifolds. Had interference with both GB and CB manifolds. But she looks sexy now!
|

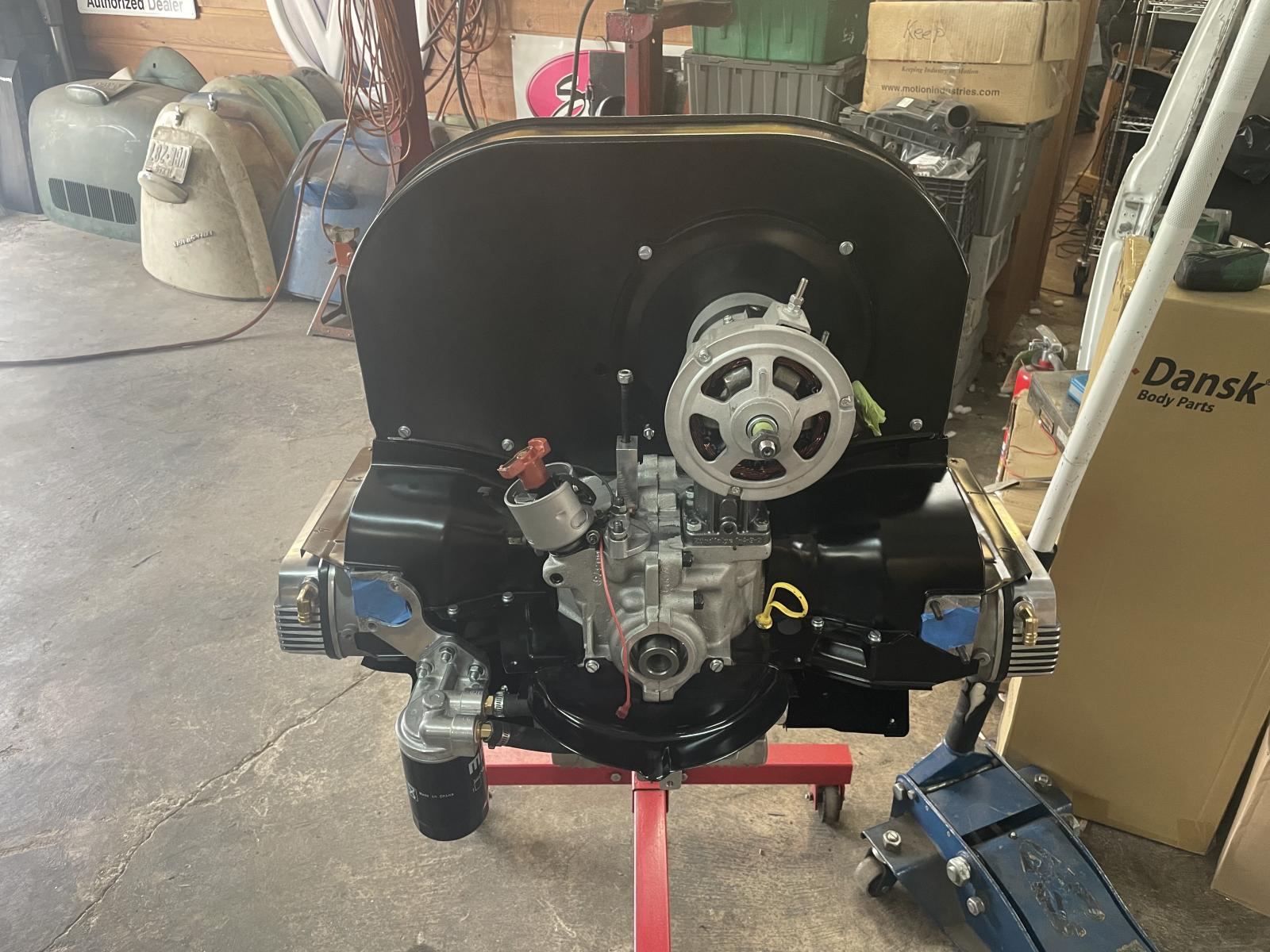

Not sure what your problem was. Here's their fan shroud, with fresh air, and CB manifolds.
The shroud is the same dimensions of the stock one and i've had both Dellorto and 48 IDAs with no problem.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Thread
Samba Member
Joined: June 25, 2017
Posts: 71
Location: Portland, Or
|
| Posted: Sat Apr 27, 2024 12:57 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
EDIT: figured out the interference, it was the inner flaps hitting the cylinder fins. Which makes sense since the barrels are larger.

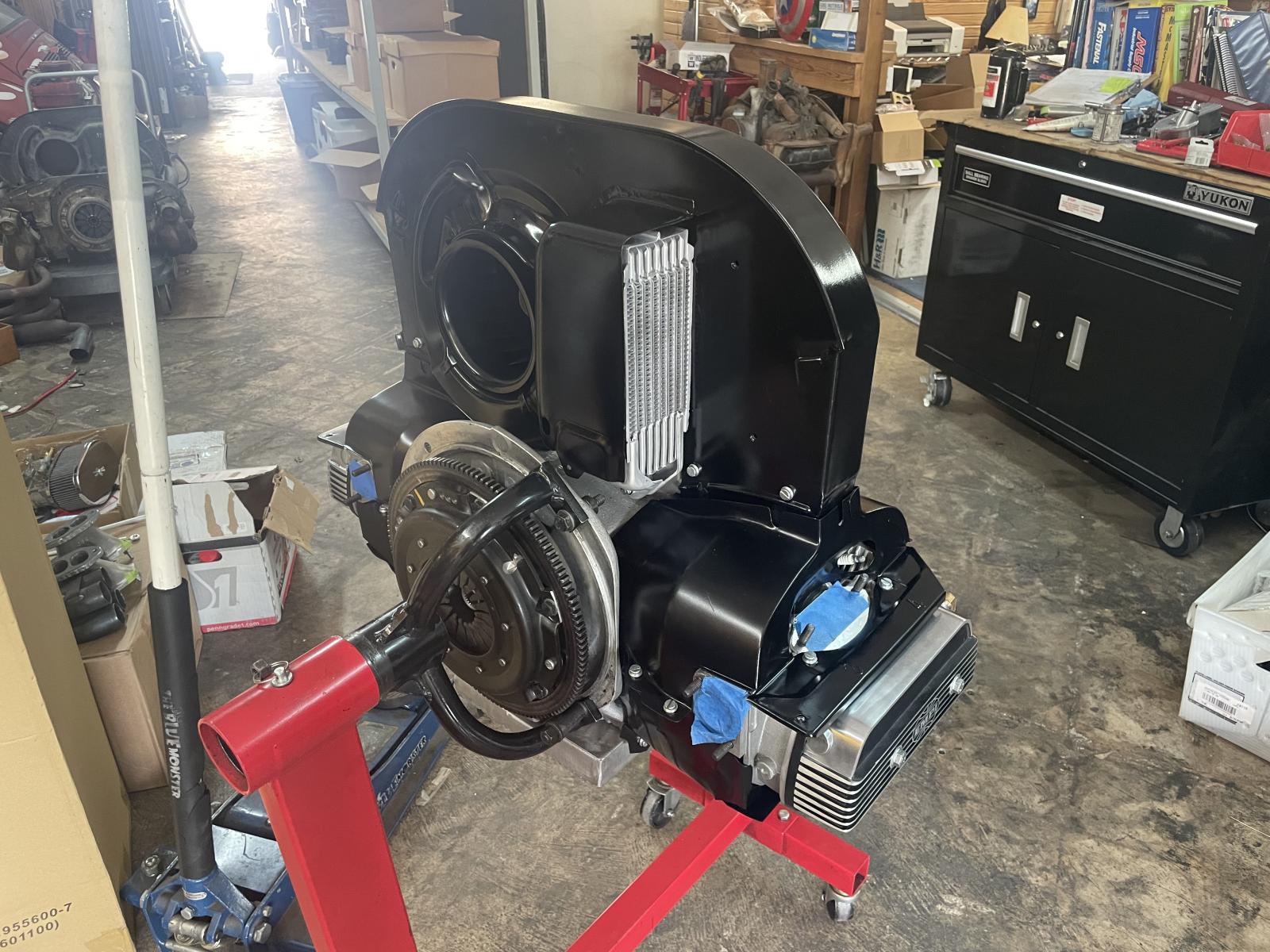

I’m mocking up my build using the cooled fan shroud with the type 4 cooler. I’m also running the stock thermostat flaps. What linkage rod are those of you running this setup using? I’m using a 75-79 linkage and so far it’s pretty tight with the base of the cooler. I’m worried it might interfere when everything is buttoned up.
Was there any modification of the linkage needed on your setups or is there another version of the linkage that works better?
Last edited by Thread on Sat Apr 27, 2024 3:58 pm; edited 1 time in total |
|
| Back to top |
|
|
Frizbal
Samba Member
Joined: July 03, 2016
Posts: 133
|
| Posted: Thu Jan 18, 2024 8:04 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
I installed one, but unfortunately had to have it hacked to pieces and re-welded… sure wish they would make a version that fits type 1 manifolds. Had interference with both GB and CB manifolds. But she looks sexy now!
|
|
| Back to top |
|
|
Busstom
Samba Member
Joined: November 23, 2014
Posts: 4583
Location: San Jose, CA
|
| Posted: Thu Jan 18, 2024 7:22 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| empi3 wrote: |
| Busstom wrote: |
Well, if they weren't made in China then, they will be now. |
Just received mine from JBugs. Box has EMPI made in ROC Taiwan stickers on the original Concept 1 box.
Steven
PS Looks like the quality is still good though |
Good to hear! Specifications and factory selection matter
_________________
My name's Steve and it's pronounced "Bust 'em" (cuz people think I'm Tom)
| cory464 wrote: |
| if you aren't perfectly centered in the hole you will have issues when you tap it. |
|
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80273
Location: Sneaking up behind you
|
| Posted: Thu Jan 18, 2024 6:19 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
I installed one on a 2017 in a 66 Bus. Fit and finish is equal to OEM. Flaps, linkage and thermostat fit just like stock.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי
Last edited by Glenn on Thu Jan 18, 2024 7:29 pm; edited 1 time in total |
|
| Back to top |
|
|
walter kandetzki
Samba Member
Joined: June 02, 2003
Posts: 947
Location: Dillwyn, VA
|
| Posted: Thu Jan 18, 2024 5:46 pm Post subject: Re: COOLED brand Engine fanshrouds and engine tin. |
|
|
| So I’m deleting the heater boxes from my 71 super running j tubes,industrial tins,all factory German tins,thermostat oil bath cleaner,34 pict on a 1641.not a huge fan of the 36hp style especially with quality.would this fan housing be ok with my bug?im using a 3.88 trans and will be doing more highway driving than in town.original thing fan housings are just as much |
|
