john7
Samba Member
Joined: August 06, 2003
Posts: 1545
Location: Garden grove ca
|
 Posted: Sat May 28, 2005 9:50 pm Post subject: Zwitter speedo |
 |
|
My 53 zwitter has a speedometer dated 3/53 but looks like a 53-60 type speedo. could my zwitter be so late that it had a late type speedo? or?
as far as i can tell it is original. |
|
| Back to top |
|
 |
RareAir
Samba Member
Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
|
|
| Back to top |
|
|
john7
Samba Member
Joined: August 06, 2003
Posts: 1545
Location: Garden grove ca
|
| Posted: Sat May 28, 2005 10:34 pm Post subject: |
|
|
they are a single arrow like the 53-60 speedo, that is why i asked.
could my car be one of the last zwitters? i dont have the body # as the car has been clipped in the 80's |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Tue May 31, 2005 5:03 pm Post subject: |
|
|
The '53 speedo is '53 only and is correct for your car. The size of the double headed arrow and the shift points which reflect the 25hp motor are one year only. If you don't want it---I'll buy it. You won't find another one.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
Matthew Tolbert
Samba Member
Joined: March 27, 2004
Posts: 707
Location: Georgia
|
| Posted: Wed Jun 01, 2005 5:02 am Post subject: 53 speedo |
|
|
could someone post a pic of a 53 speedo. i have a may 53 oval and i was wondering about he shift point thing bob mentioned. it is in kph and the date stamped on back is correct i just wanted to make sure the internals had not been changed out.
thanks
matthew |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Wed Jun 01, 2005 6:05 am Post subject: |
|
|
Mine is in MPH and I don't own a digital camera.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
Matthew Tolbert
Samba Member
Joined: March 27, 2004
Posts: 707
Location: Georgia
|
| Posted: Wed Jun 01, 2005 8:44 am Post subject: speedo |
|
|
| are the shift points at a lower speed than the 36 hp cars? if so what are yours at and maybe i could convert to kph to see if they are the same. not sure if that would be correct but worth a try i guess. also what is different about the size of the arrows bigger or smaller? |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Wed Jun 01, 2005 3:44 pm Post subject: |
|
|
The arrow is smaller than the '54 and later speedo and the shift points are at 13, 28, & 43. Hope that helps.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
kafer53
Samba Member
Joined: July 24, 2004
Posts: 904
Location: Ontario, Canada
|
| Posted: Wed Jun 01, 2005 3:53 pm Post subject: |
|
|
| I've seen that 53 Only Speedo that came out just after the seperated arrows for the zwitter and it is definately a rare piece! It has a joined arrow that is smaller than the 54 style "fat arrow" and still has the shift points and is date stamped for 53. Not too many of these around. |
|
| Back to top |
|
|
Jimmy Perez
Samba Member
Joined: September 08, 2003
Posts: 310
Location: Cruising in Cali, Nomad
|
| Posted: Wed Jun 01, 2005 8:27 pm Post subject: Zwitter Speedo |
|
|
| Hi Just put a picture on Gallery, Parts and Accessories Bug. Don't know how to tranfer yet, so 1 of you can transfer it to here. There are 2 types of 53 speedo's both have small arrow indicaters. later 1 has arrow indicaters connected and early 1 does not. The picture is of speedo is dated 5-53 later 1. Hope that helps. |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Wed Jun 01, 2005 8:45 pm Post subject: |
|
|
The pictured speedo is for a '53 oval. The early one you refer to is for the Zwitter, produced until March of that year. Your date stamp makes this an oval speedo. http://www.thesamba.com/vw/forum/album_page.php?pic_id=209989
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
RareAir
Samba Member
Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
|
|
| Back to top |
|
|
surfindo
Samba Member
Joined: March 11, 2004
Posts: 442
Location: Haarlem, Netherland
|
| Posted: Thu Jul 26, 2007 7:15 am Post subject: |
|
|
while searching for zwitter speedo I found this old post,

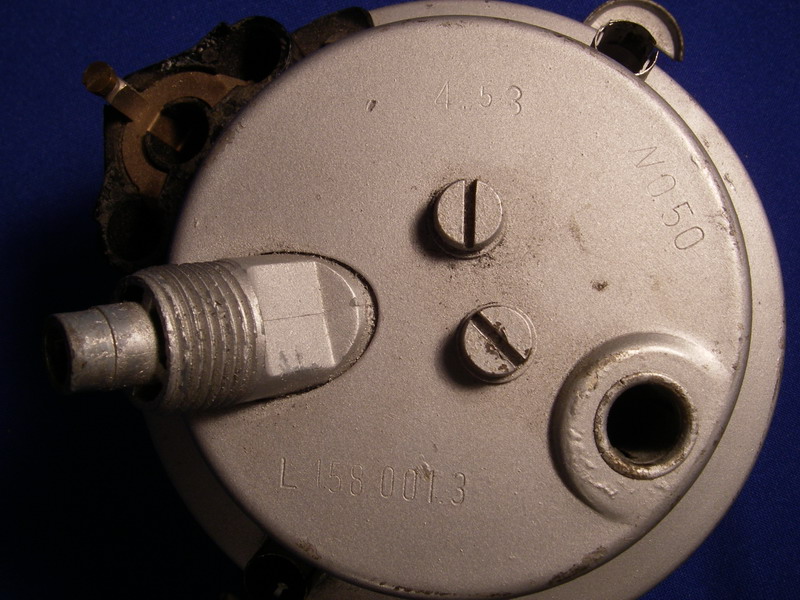

how about this oval speedo dated 4.53 .the arrow look diferent but the shift point exacltly the same w the pic above, my 55 speedo has taller/higher shift point, maybe sombody change the internal parts and just used the housing??
Thanks
Last edited by surfindo on Thu Jul 26, 2007 7:25 am; edited 1 time in total |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Thu Jul 26, 2007 7:21 am Post subject: |
|
|
| 53 0val wrote: |
| Mine is in MPH and I don't own a digital camera. |
Do you have indoor plumbing Bob? Did you know the Beatles broke up??
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Thu Jul 26, 2007 9:23 am Post subject: |
|
|
| johnshenry wrote: |
| 53 0val wrote: |
| Mine is in MPH and I don't own a digital camera. |
Do you have indoor plumbing Bob? Did you know the Beatles broke up??
|
Old quote....  My digital camera does not interface with my computer. The programs do not match up. I have a Sony camera and Mac computer and one will not read the other. The camera is one of the first digitals (took over my daughters when she got a upgraded one.) and I just need to buy a new one. There are no problems with the new stuff.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Thu Jul 26, 2007 9:25 am Post subject: |
|
|
| 53 0val wrote: |
| johnshenry wrote: |
| 53 0val wrote: |
| Mine is in MPH and I don't own a digital camera. |
Do you have indoor plumbing Bob? Did you know the Beatles broke up??
|
Old quote.... My digital camera does not interface with my computer. The programs do not match up. I have a Sony camera and Mac computer and one will not read the other. The camera is one of the first digitals (took over my daughters when she got a upgraded one.) and I just need to buy a new one. There are no problems with the new stuff. |
Oh, I see that post IS quite old..... glad to see you are "keeping up" Bob........
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
|
| Back to top |
|
|
surfindo
Samba Member
Joined: March 11, 2004
Posts: 442
Location: Haarlem, Netherland
|
| Posted: Thu Jul 26, 2007 10:05 am Post subject: |
|
|
Hi Bob thanks!! i've seen that add yesterday, my question was the oval speedo pic I post and the one above, they both come from 53 (one 5-53 the one I post 4-53)but the arrows look diferent?? if the theory there are 2 types of 53 speedo,
1. zwitter speedo with separated arrows
2.speedo with joined arrow that is smaller than the 54
my question why this one dated 4-53 but has fat arrow??
Last edited by surfindo on Thu Jul 26, 2007 10:10 am; edited 1 time in total |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9405
Location: Northwood, NH USA
|
| Posted: Thu Jul 26, 2007 10:07 am Post subject: |
|
|
| surfindo wrote: |
Hi Bob thanks!! i've seen that add yesterday, my question was the oval speedo pic I post and the one above, they both come from 53 (one 5-53 the one I post 4-53)but the arrows look diferent?? if the theory there 2 types 53 speedo,
1. zwitter speedo with separated arrows
2.speedo with joined arrow that is smaller than the 54
my question why this one dated 4-53 but has fat arrow??
|
Arrows look the same to me, between those two. Look at how many lnes it crosses top to bottom, and how much space between it and the warning lights on either side.... Looks to same to me...
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
surfindo
Samba Member
Joined: March 11, 2004
Posts: 442
Location: Haarlem, Netherland
|
| Posted: Thu Jul 26, 2007 10:29 am Post subject: |
|
|
| johnshenry wrote: |
| surfindo wrote: |
Hi Bob thanks!! i've seen that add yesterday, my question was the oval speedo pic I post and the one above, they both come from 53 (one 5-53 the one I post 4-53)but the arrows look diferent?? if the theory there 2 types 53 speedo,
1. zwitter speedo with separated arrows
2.speedo with joined arrow that is smaller than the 54
my question why this one dated 4-53 but has fat arrow??
|
Arrows look the same to me, between those two. Look at how many lnes it crosses top to bottom, and how much space between it and the warning lights on either side.... Looks to same to me... |
is it ?? hmmm i need to check my  eyes!!! |
|
