| Author |
Message |
The Gooch
Samba Member
Joined: March 26, 2002
Posts: 15
|
 Posted: Tue Mar 26, 2002 2:41 pm Post subject: Split Case Transmission |
 |
|
| Does a 54' bug split case have 2 fill and drain plugs? Is the tranny fluid in 2 separate compartments? Thanks for any help. |
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71915
Location: Phoenix 602
|
| Posted: Wed Mar 27, 2002 4:19 pm Post subject: Split Case Transmission |
|
|
| No, just one compartment, it's on the right-hand side though. I'm not sure what the 2 plugs on the left are for. |
|
| Back to top |
|
|
The Gooch
Samba Member
Joined: March 26, 2002
Posts: 15
|
| Posted: Wed Mar 27, 2002 5:21 pm Post subject: Split Case Transmission |
|
|
| Hmmm, I'm a bit confused. I pulled a drain plug toword the motor. This drained completely. Then I pulled another plug, closer to the nose cone of the tranny. This released more oil. Any more insight? |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71915
Location: Phoenix 602
|
| Posted: Fri Mar 29, 2002 7:30 am Post subject: Split Case Transmission |
|
|
Sorry, there is only 1 fill plug, on the right hand side. There are 2 drain plugs but that is only because the tranny fluid gets trapped in the 2 different sections. There is a ridge between the 2 sections.
The 2 sections are connected though and filling it through the 1 fill plug will fill both compartments. |
|
| Back to top |
|
|
aa390392
Samba Member
Joined: March 28, 2007
Posts: 3601
Location: So.Cal
|
| Posted: Thu Dec 05, 2013 2:51 pm Post subject: |
|
|
Excuse me but this is a 1st for me..
1. changing out the fluid in my tranny..so the refill for the tranny is that little ass hole?
2.Lucas 80-09 wt gear oil good?
_________________
.
getting grumpy & less tolerant!
55 ragtop
56 delux sedan
56 Kabriolet |
|
| Back to top |
|
|
wayne1230cars
Samba Member
Joined: April 05, 2010
Posts: 2705
Location: Canada
|
| Posted: Thu Dec 05, 2013 3:03 pm Post subject: |
|
|
Refill is the side plug. Make sure to loosen that plug before you drain the gear oil.
Guessing a typo on that 80-09 but 80-90 should work.
_________________
1960 beetle
1970 beetle convertible |
|
| Back to top |
|
|
aa390392
Samba Member
Joined: March 28, 2007
Posts: 3601
Location: So.Cal
|
| Posted: Thu Dec 05, 2013 3:08 pm Post subject: |
|
|
Thx Wayne...so it is the little hole? I'm use to the newer bus tranny where hole is much bigger and easier to locate
_________________
.
getting grumpy & less tolerant!
55 ragtop
56 delux sedan
56 Kabriolet |
|
| Back to top |
|
|
wayne1230cars
Samba Member
Joined: April 05, 2010
Posts: 2705
Location: Canada
|
| Posted: Thu Dec 05, 2013 3:21 pm Post subject: |
|
|

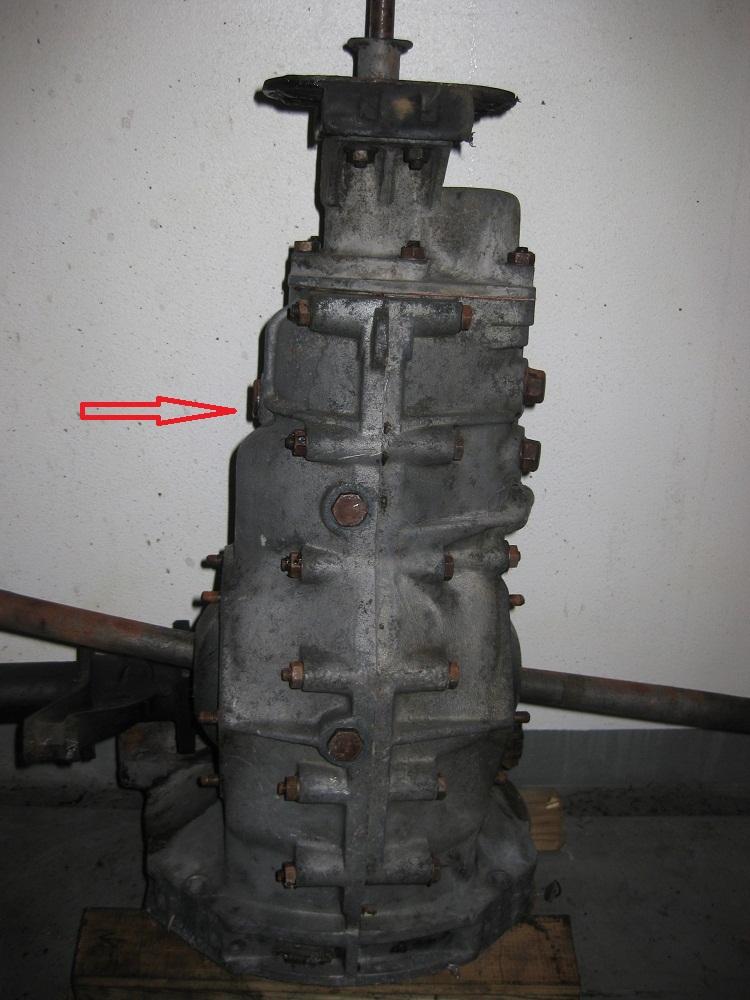

17 mm - This pic is from my '60.
_________________
1960 beetle
1970 beetle convertible |
|
| Back to top |
|
|
aa390392
Samba Member
Joined: March 28, 2007
Posts: 3601
Location: So.Cal
|
| Posted: Thu Dec 05, 2013 3:43 pm Post subject: |
|
|
Nope they must of improved the size from 56, mine has an 11mm bolt head, when removed the hole size to fill is like maybe 1/4" .......!
_________________
.
getting grumpy & less tolerant!
55 ragtop
56 delux sedan
56 Kabriolet |
|
| Back to top |
|
|
wayne1230cars
Samba Member
Joined: April 05, 2010
Posts: 2705
Location: Canada
|
| Posted: Thu Dec 05, 2013 4:15 pm Post subject: |
|
|
Not exactly sure when that changed. There is a Dec 1955 transmission for sale in the classifieds with pics that appears to be the bolt head style you referred to.
_________________
1960 beetle
1970 beetle convertible |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17682
Location: Left coast, Canada
|
| Posted: Thu Dec 05, 2013 7:10 pm Post subject: Re: Split Case Transmission |
|
|
| EverettB wrote: |
| I'm not sure what the 2 plugs on the left are for. |
The two plugs on the left side are to access the clamp bolts securing the shift forks to the shift rods. Through those holes you can adjust the forks to center in the neutral position.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
txoval
Samba Member
Joined: January 23, 2004
Posts: 3893
Location: The Woodlands, TX
|
| Posted: Thu Dec 05, 2013 7:54 pm Post subject: |
|
|
There's a 17mm or 19mm (think 19mm) on the passenger side, it's a regular hex head plug (not the reversed hex like late models)
You need a fill pump that attaches to the oil bottle and you pump it in...it's a hand pump
It is not an 11mm 1/4" hole... |
|
| Back to top |
|
|
aa390392
Samba Member
Joined: March 28, 2007
Posts: 3601
Location: So.Cal
|
| Posted: Thu Dec 05, 2013 8:10 pm Post subject: |
|
|
| txoval wrote: |
There's a 17mm or 19mm (think 19mm) on the passenger side, it's a regular hex head plug (not the reversed hex like late models)
You need a fill pump that attaches to the oil bottle and you pump it in...it's a hand pump
It is not an 11mm 1/4" hole... |
Nope not a 19mm nor 17mm, mine is a small hole, less than a 1/4" I crawled all over that trans..researched and this small hole has to be the fill hole...
_________________
.
getting grumpy & less tolerant!
55 ragtop
56 delux sedan
56 Kabriolet |
|
| Back to top |
|
|
txoval
Samba Member
Joined: January 23, 2004
Posts: 3893
Location: The Woodlands, TX
|
|
| Back to top |
|
|
aa390392
Samba Member
Joined: March 28, 2007
Posts: 3601
Location: So.Cal
|
| Posted: Fri Dec 06, 2013 12:16 pm Post subject: |
|
|
MY Bad..this is what I thought the refill hole but mind you I was in doubt
_________________
.
getting grumpy & less tolerant!
55 ragtop
56 delux sedan
56 Kabriolet |
|
| Back to top |
|
|
aa390392
Samba Member
Joined: March 28, 2007
Posts: 3601
Location: So.Cal
|
| Posted: Fri Dec 06, 2013 12:18 pm Post subject: |
|
|
but it did show in the owners manuals on the opposite side...This morning I crawled back underneath and located the correct refill hole with the 19mm hex bolt...M sorry and thx for the help...
_________________
.
getting grumpy & less tolerant!
55 ragtop
56 delux sedan
56 Kabriolet |
|
| Back to top |
|
|
txoval
Samba Member
Joined: January 23, 2004
Posts: 3893
Location: The Woodlands, TX
|
| Posted: Fri Dec 06, 2013 12:44 pm Post subject: |
|
|
Glad you found it, that's what this forum is here for...to help out
Take care |
|
| Back to top |
|
|
aa390392
Samba Member
Joined: March 28, 2007
Posts: 3601
Location: So.Cal
|
| Posted: Fri Dec 06, 2013 4:53 pm Post subject: |
|
|
Thx for the support..
_________________
.
getting grumpy & less tolerant!
55 ragtop
56 delux sedan
56 Kabriolet |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 2081
Location: Winnipeg
|
| Posted: Fri Dec 13, 2013 11:04 am Post subject: |
|
|
If you're still reading this... I put Redline MTL in my 1959 split-case and that stuff is like a rebuild in a can! My second gear syncro went from not working up or down, requiring me to double clutch into second everytime, to working flawlessly with the addition of this oil. It didn't happen instantly but took some time to wash the old oil out and make the syncro work.
Don |
|
| Back to top |
|
|
gears
Samba Member
Joined: October 28, 2002
Posts: 4411
Location: Tamarack, Bend, Kailua
|
| Posted: Sat Dec 14, 2013 8:57 am Post subject: |
|
|
MTL and MT-90 certainly provide buttery smooth shifting .. possibly the smoothest I've felt. Unfortunately, these oils are not suitable for heavily loaded R&Ps .. they are transmission oils, not transaxle oils. Even the RedLine website now admits this. So, I guess I would use them for a balky trans that I knew I would be replacing some day, but not in a newly rebuilt one that I wanted to last 150K.
_________________
aka Pablo, Geary
9.36 @ 146 in '86 Hot & Sticky
'90 Syncro Westy SVX
'87 Syncro GL 2.5
https://guardtransaxle.com |
|
