Fixing cranks; dowel pins loose?? Holes un-drilled and re-drill

[modok]

Crank dowel jobs are a real challenge.
How do you make 8 pins line up perfectly at the same time, and fit perfectly straight in their perfectly fit holes with just the right press-fit?
You lie to yourself. That's as close as you will ever come. perfection is impossible
But I tried real hard this time and I took some pictures. Probably not enough pictures, but anyway it worked well enough I don't need to destroy the evidence, rather can share it.

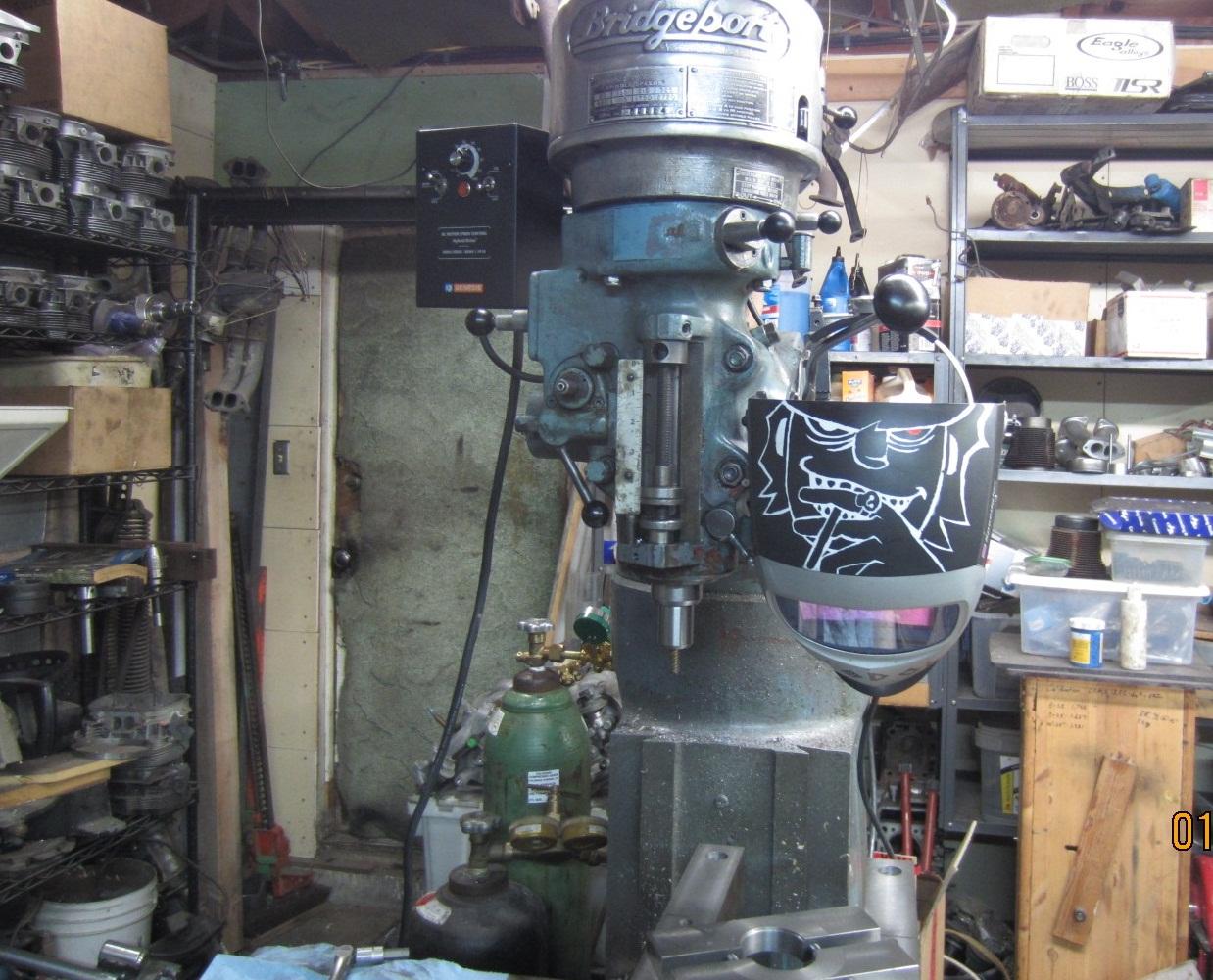

Best christmas gift ever, my brother got me this fancy welding helmet.
Two LARGE parallel bars hang off the back of the table and there is my precision crank clamp-er, which is bored to 2.170" Shims are used to fit different sizes.

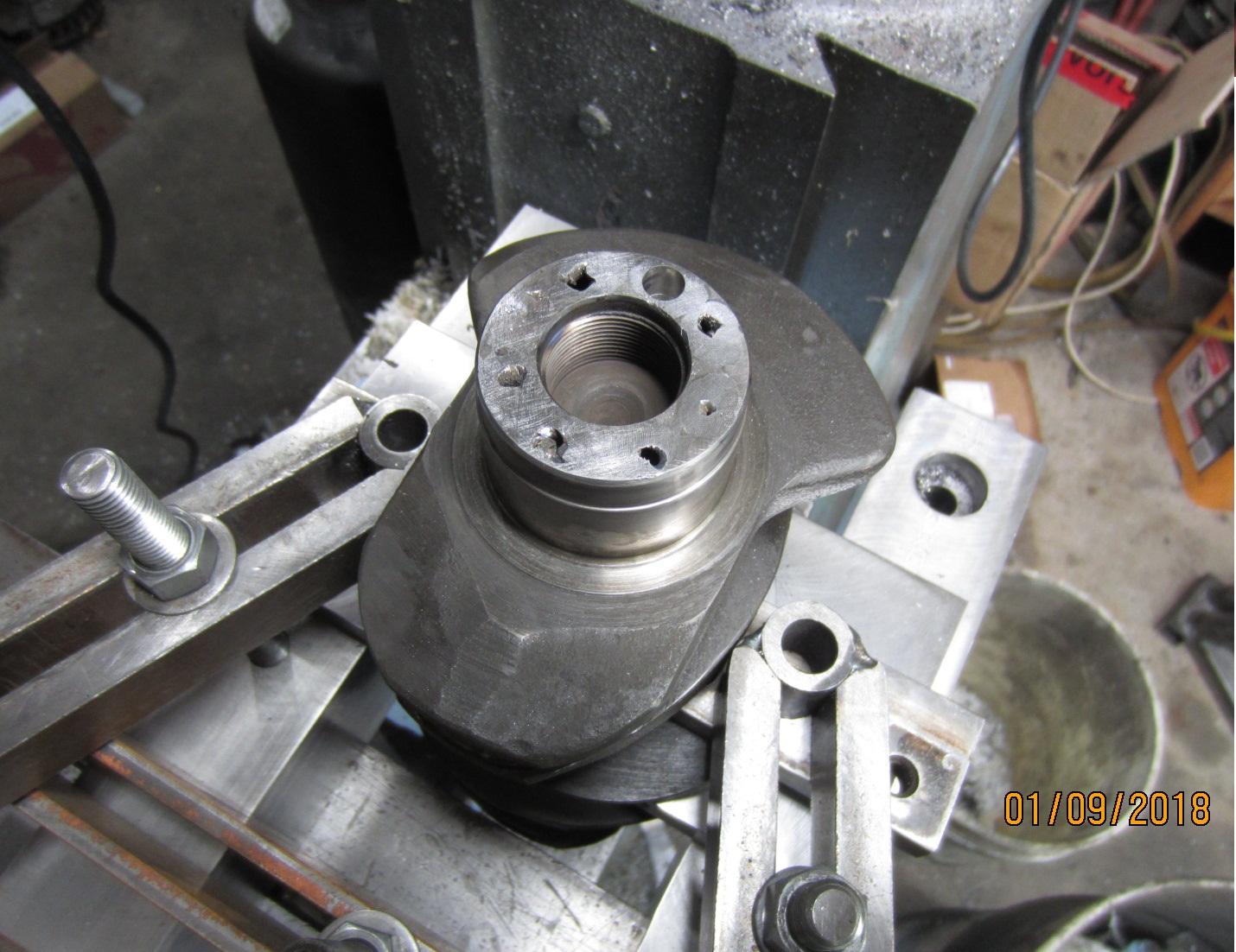

I welded up the holes, and faced the back of the crank flat again.

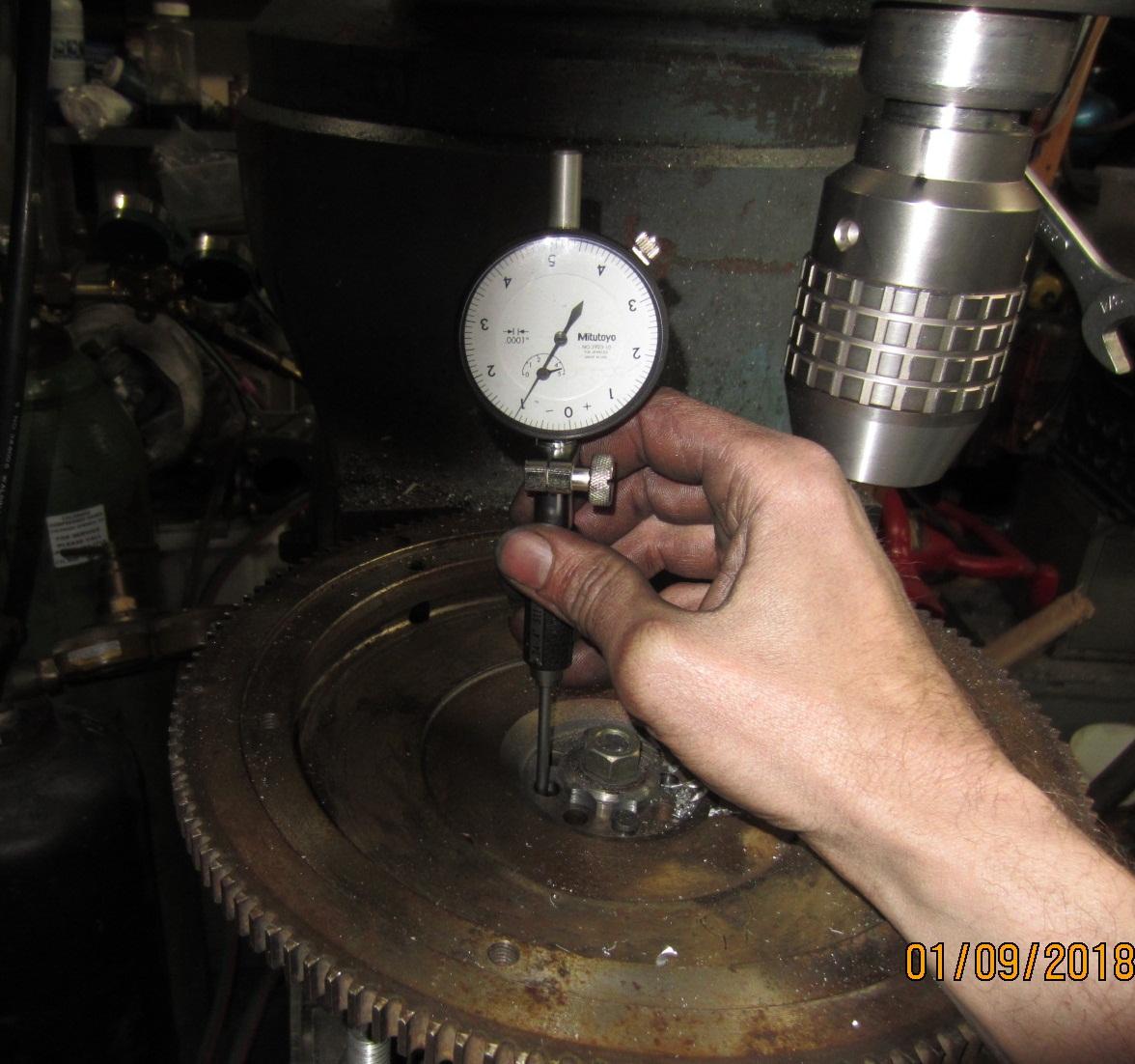

Put the flywheel on, check that it's straight, then attempt to ruin multiple drills and reamers boring into the welds. Wishing for a smooth hole with .001 press and praying they don't go oversize.
This device here lets you see how tapered ovaly and rough your holes are, which is depressing. it was a lot easier not knowing.

Success

[/img]

[esde]

VERY NICE.
Thanks for sharing. And nice helmet, the Speedglas are my favorite masks.

What mangled crank was that?
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.

[modok]

It's the one you think it is.
Porsche journal, Okrasa

Whatever alloy these are, weld there will be HARD spots. like a-2 steel or something.
old scat crank, chinese crank, were far easier.
I haven't yet tried fixing the one you traded me. I probably will, since I have it all setup. CRANK MODE

[esde]

Glad that you were able to fix it for him. I thought it might be the okrasa, the way they are finished is not like anything made now. And, very interesting to see the crank holding arrangement. I've been pondering the same thing, but have no parallels stout enough, yet sound like another excuse to buy tools..

I'm curious, since you've done a few of these repairs, what have you done / figured out along the way thats made the job easier?

SD
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.

[LOWE TECH]

FGood post! I’m a Speedglass fan but I’’m missing the custom paint. Merry CHRISTmas! All these little details go unnoticed unless you’ve tried ‘em yourself. Try saving a hole by welding it shut or lay out multiple holes with a tight tolerance, diametric or X-Y, be honest. Just more small details that add up to ones work.

[nsracing]

I am just curious what the runout is after the flywheel was mounted?
Mount the package on a rollers and find out.

What did you do to cleanup the welds and establish the original flat for the flywheel to sit on?

[ps2375]

I'm getting a fizzy feeling all over my body!!

[Dauz]

glen, what size are those dowels? Have you ever used 8mm?

[anthracitedub]

Very nice job man. A lot better than I did at age 17 with a hand drill on an assembled engine.😁

[veeweeman]

Modok, nice work. ..and that jig you made seems to work for you. ..I thought they made oversized pins to solve the oval-shaped hole problem? ...wouldn't it be easier to just re-drill all the holes for bigger pins?

VeeWeeman

[chrisflstf]

What reamers did you use?

[jpaull]

Nice job! Looks like you have lots of other vw goodies layen around there, cool shop!
