 Posted: Mon Jan 20, 2020 8:07 am Post subject: Re: Improving stock axles |
 |
|
Polishing is the best thing you can do. Stock axles have very sharp ridges at the spade/shank interface. These are where cracks start. Polishing this transition will extend axle life.
Shot peening may help, but no testing has been done that I know of.
The real problem is the level of hardness that stock axles have. They are so hard they are brittle.
Chromoly axles are way better for this reason. |
|
| Back to top |
|
|
UK Luke 72
Samba Member
Joined: September 07, 2011
Posts: 2875
Location: Little Britain
|
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23174
Location: Oklahoma City
|
| Posted: Mon Jan 20, 2020 10:33 am Post subject: Re: Improving stock axles |
|
|
| Ohio Tom wrote: |
Polishing is the best thing you can do. Stock axles have very sharp ridges at the spade/shank interface. These are where cracks start. Polishing this transition will extend axle life.
Shot peening may help, but no testing has been done that I know of.
The real problem is the level of hardness that stock axles have. They are so hard they are brittle.
Chromoly axles are way better for this reason. |
Stock IRS type axles.....are as you noted....very hard on the outside at least.....but have some level of spring tension/wind up ability in their core. Pretty damn tough...but yes....brittle amd under stress on the outside layer. A lot like case hardening.
Several notes in factory manuals through the years.....point out specifically that grooving, denting, deep scratching or heavy sanding the outer surface of the axle can cause breakage.
I have actually seen this happen twice....once on an aircooled beetle and once on a rabbit. But....had something dragging on the shaft that put a small groove in it....very small. It snapped at the groove.
I'm not sure I would suot peen something made like that. Ray |
|
| Back to top |
|
|
vwracerdave
Samba Member
Joined: November 11, 2004
Posts: 15601
Location: Deep in the 405
|
| Posted: Mon Jan 20, 2020 11:22 am Post subject: Re: Improving stock axles |
|
|
On a stock axle polish the spade end. If you are willing to spend the money on Cyro it would be cheaper and better to just go ahead and buy stronger aftermarket axles.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK |
|
| Back to top |
|
|
rugblaster
Samba Member
Joined: March 31, 2016
Posts: 1234
Location: San Angelo, Texas
|
| Posted: Mon Jan 20, 2020 11:34 am Post subject: Re: Improving stock axles |
|
|
X 2 on polishing the spade end and about 6 inches up the axle....I've broken my share to trans parts, but the axles held up through some extreme treatment.
_________________
'69 Karmy, '69 Camper, Meyers clone, '65 drag bug, 10.78 @ 128 (sold it) '51 Dodge farm truck,
'09 MB E350 '18 MB E400, '65 Plymouth Valiant convertible and a '19 Ford F250 King Ranch (nicer, but dirty, farm truck)
VWoA factory trained line tech 75 till 90 or so
ASE Master Certification
VWoA Assoc. of Quality Technicians inductee (One of 25 in the five state southwest region)
La Confrerie des Chevaliers du Tastevin (San Angelo Chapter)
TCU ......GO FROGS!!!!!! |
|
| Back to top |
|
|
UK Luke 72
Samba Member
Joined: September 07, 2011
Posts: 2875
Location: Little Britain
|
|
| Back to top |
|
|
UK Luke 72
Samba Member
Joined: September 07, 2011
Posts: 2875
Location: Little Britain
|
|
| Back to top |
|
|
UK Luke 72
Samba Member
Joined: September 07, 2011
Posts: 2875
Location: Little Britain
|
| Posted: Mon Jan 20, 2020 12:49 pm Post subject: Re: Improving stock axles |
|
|
| raygreenwood wrote: |
| Ohio Tom wrote: |
Polishing is the best thing you can do. Stock axles have very sharp ridges at the spade/shank interface. These are where cracks start. Polishing this transition will extend axle life.
Shot peening may help, but no testing has been done that I know of.
The real problem is the level of hardness that stock axles have. They are so hard they are brittle.
Chromoly axles are way better for this reason. |
Stock IRS type axles.....are as you noted....very hard on the outside at least.....but have some level of spring tension/wind up ability in their core. Pretty damn tough...but yes....brittle amd under stress on the outside layer. A lot like case hardening.
Several notes in factory manuals through the years.....point out specifically that grooving, denting, deep scratching or heavy sanding the outer surface of the axle can cause breakage.
I have actually seen this happen twice....once on an aircooled beetle and once on a rabbit. But....had something dragging on the shaft that put a small groove in it....very small. It snapped at the groove.
I'm not sure I would suot peen something made like that. Ray |
It would seem HD axles are much thicker all the way up to the spade.
I wonder if stock axles could be spray welded app the way...
_________________
2276 Beetle build https://www.thesamba.com/vw/forum/viewtopic.php?t=670744&highlight=2276+beetle+daily
2276 EFI Conversion https://www.thesamba.com/vw/forum/viewtopic.php?t=689172 |
|
| Back to top |
|
|
mark tucker
Samba Member
Joined: April 08, 2009
Posts: 23950
Location: SHALIMAR ,FLORIDA
|
| Posted: Mon Jan 20, 2020 2:31 pm Post subject: Re: Improving stock axles |
|
|
| eye wood thunk new axles would be the best way to go and not much more than what all the suggestions are. |
|
| Back to top |
|
|
UK Luke 72
Samba Member
Joined: September 07, 2011
Posts: 2875
Location: Little Britain
|
| Posted: Mon Jan 20, 2020 4:15 pm Post subject: Re: Improving stock axles |
|
|
| mark tucker wrote: |
| eye wood thunk new axles would be the best way to go and not much more than what all the suggestions are. |
| UK Luke 72 wrote: |
| vwracerdave wrote: |
| On a stock axle polish the spade end. If you are willing to spend the money on Cyro it would be cheaper and better to just go ahead and buy stronger aftermarket axles. |
Not that simple in the UK.
Shipping kills it with the empi axles.
The Finnish guys (kuplapaja? ) are making awesome axles but they're over a $1000. I can have stuff nitrided quite cheaply here, not had quotes on cryo or shot peening though. |
_________________
2276 Beetle build https://www.thesamba.com/vw/forum/viewtopic.php?t=670744&highlight=2276+beetle+daily
2276 EFI Conversion https://www.thesamba.com/vw/forum/viewtopic.php?t=689172 |
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: May 17, 2003
Posts: 4876
Location: Harmony, PA
|
| Posted: Mon Jan 20, 2020 5:24 pm Post subject: Re: Improving stock axles |
|
|
| Polishing, and shot peening would be about all I would do. I’ve known a few people that have added durability by doing those things. The bottom line in material, and diameter. The material doesn’t allow much twist, and is only so big in diameter at the spade. The race axles are softer, and allow a little twist to absorb the shock. I know a few instances where lines were painted on IRS axles so the twist in the axle could be monitored. I’ve seen some twisted 90 degrees that haven’t yet broken. |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27686
Location: Colorado Springs
|
| Posted: Mon Jan 20, 2020 6:22 pm Post subject: Re: Improving stock axles |
|
|
Cryo and temper, and/or shot preening would probably help.
I don't think nitriding is a good idea. |
|
| Back to top |
|
|
Coyotemutt
Samba Member
Joined: June 16, 2017
Posts: 360
Location: Pecos, New Mexico
|
| Posted: Mon Jan 20, 2020 8:17 pm Post subject: Re: Improving stock axles |
|
|
| UK Luke 72 wrote: |
Too hard? Are you saying the chromoly axles are softer?
Interesting, makes me wonder what people have tried in the past wrt making them last.
Shot peening makes stuff harder, so I guess that's out.
Also, afaik cryogenic treatment also increases hardness too, can the spade b annealed to a degree? |
As a hobby blacksmith, I can tell you that if you dont know the source material and the current hardness then tempering it down further is a shot in the dark.
If you know those two variables it would be pretty simple. In my area there are a few ceramics kilns that dont mind tempering large items in their precisely controlled ovens. The part has to be immaculately clean though. |
|
| Back to top |
|
|
busey
Samba Member
Joined: October 19, 2016
Posts: 420
Location: Sun City Arizona
|
| Posted: Tue Jan 21, 2020 7:58 am Post subject: Re: Improving stock axles |
|
|

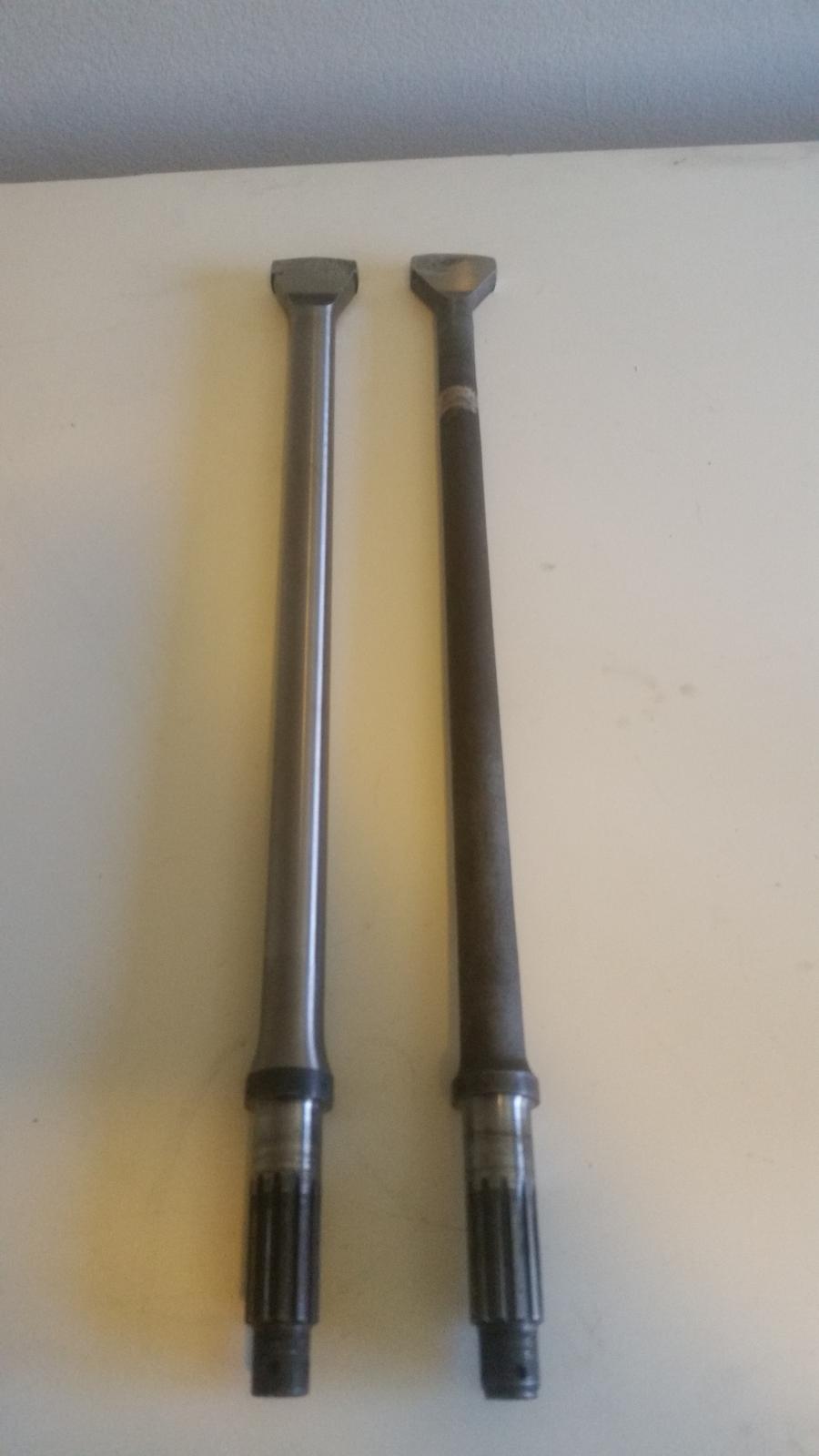

Here is a pic i took of a stock axle next to a heavy duty axle. General knowledge is that the stock axle is brittle and it tapers skinny to towards the spade. YIKES!
_________________
No turning back now, "Its Blow thru or No thru" baby! |
|
| Back to top |
|
|
volksworld
Samba Member
Joined: November 26, 2011
Posts: 2580
Location: formerly NY currently NC
|
| Posted: Tue Jan 21, 2020 8:16 am Post subject: Re: Improving stock axles |
|
|
| the reason stock axles are skinnier at the spade end is to increase the angle they can operate at...so you may lose some travel with the larger ones |
|
| Back to top |
|
|
UK Luke 72
Samba Member
Joined: September 07, 2011
Posts: 2875
Location: Little Britain
|
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: May 17, 2003
Posts: 4876
Location: Harmony, PA
|
| Posted: Tue Jan 21, 2020 6:07 pm Post subject: Re: Improving stock axles |
|
|
This is the only pic of polished spades I could find, but it’s not the best. Radius all the edges of the spade. Spinning it in a lathe would help on the shaft part. See if you can get the majority of the forging stamping surface irregularities smoothed out, and literally polish it with wet fine sandpaper/metal polish.
http://img2169.imagevenue.com/img.php?image=33714_DSC00075_122_236lo.JPG |
|
| Back to top |
|
|
stevemariott
Samba Member
Joined: November 09, 2003
Posts: 1103
Location: Portland, OR
|
| Posted: Tue Jan 21, 2020 9:35 pm Post subject: Re: Improving stock axles |
|
|
| UK Luke 72 wrote: |
Does anyone have any pics of the polished ends? To what degree is necessary?
I can chuck them up in the lathe. |

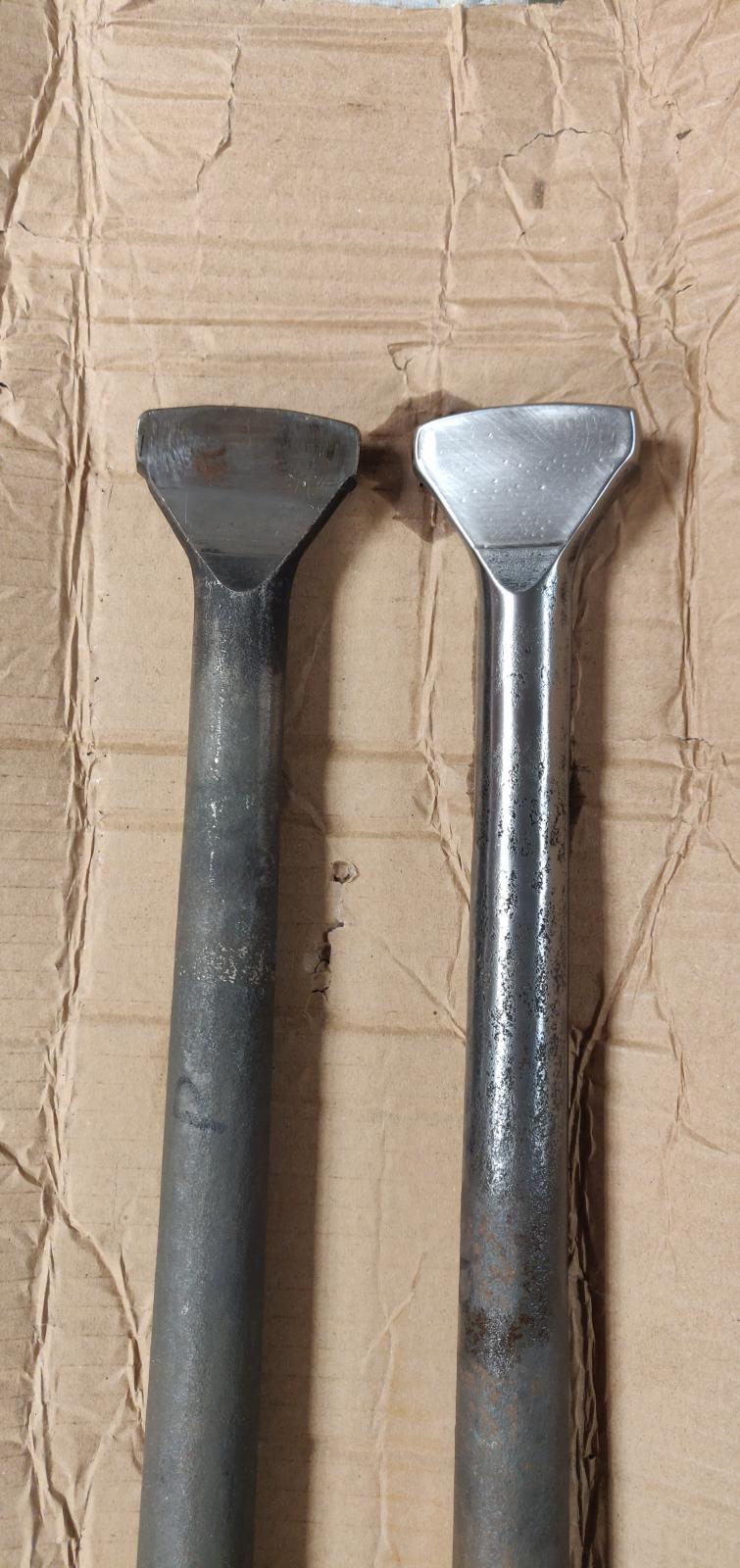

I couldn't find a whole lot of info on polishing axles when I did mine, so I just did the best I could - polished on the left, not polished on the right.
