 Posted: Wed Jul 23, 2025 6:38 pm Post subject: Weird torsion leaf configuration |
 |
|
I was trying to install new leaf packs in my front beam, but I just couldn’t get them to go through. Then, when I compared the new leaves to the old pack, the older pack is way smaller and the dimple for the grub screw isn’t even a full hole.
Is this some underground secret configuration or did the previous owner just not care. I’m mainly wondering what I should do next |
|
| Back to top |
|
 |
RLFD213
Samba Member
Joined: January 21, 2009
Posts: 487
|
| Posted: Wed Jul 23, 2025 7:28 pm Post subject: Re: Weird torsion leaf configuration |
|
|
| Let’s take “the previous owner just didn’t care for 100.00 Alex… that was probably the only way they could get the leaf pack back in. |
|
| Back to top |
|
|
baldessariclan
Samba Member
Joined: October 14, 2016
Posts: 2050
Location: Wichita, KS
|
| Posted: Thu Jul 24, 2025 4:51 am Post subject: Re: Weird torsion leaf configuration |
|
|

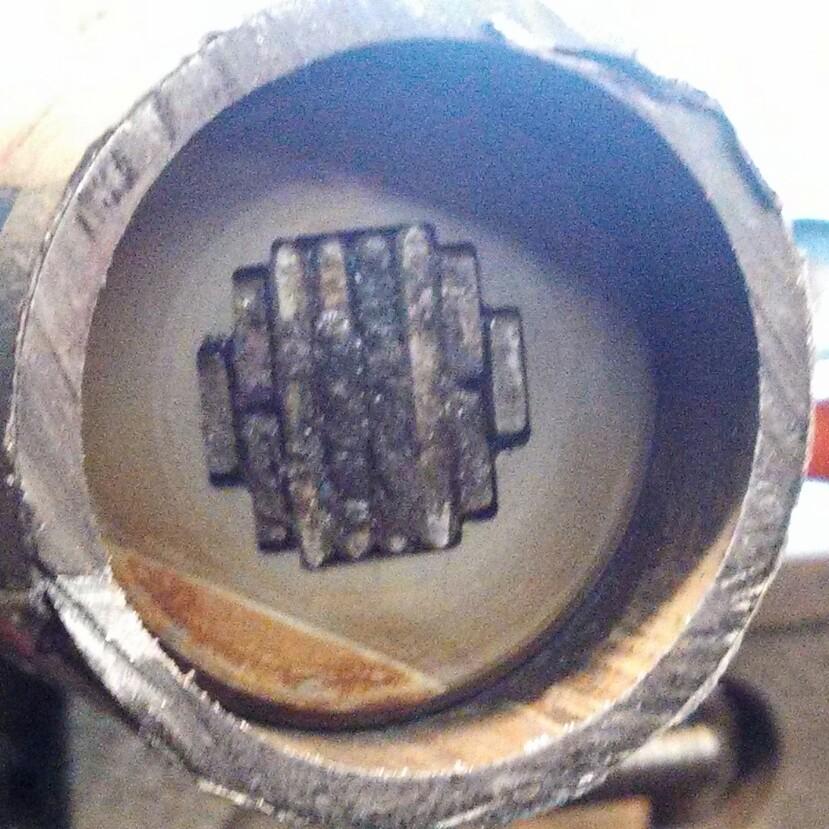

Front torsion bar leaf springs are supposed to stack like as shown in the photo below:
Note also that there should be no “hole” for the end grub screws — it’s a “dimple”, and is formed by grinding into the edges of the central leaf springs:
_________________
1971 Standard Beetle — fairly stock / driver
baldessariclan -- often in error, never in doubt... |
|
