| Author |
Message |
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8340
Location: Oceanside
|
 Posted: Sun Dec 13, 2015 8:19 pm Post subject: Re: Off road modifications for your bus |
 |
|
I was curious to see what a bay would look like with one of them bumpers. Thanks for sharing
_________________
Wash your hands
'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper
Only losers litter |
|
| Back to top |
|
 |
forn
Samba Member
Joined: January 29, 2006
Posts: 11
|
| Posted: Tue Dec 15, 2015 3:23 pm Post subject: Re: Off road modifications for your bus |
|
|

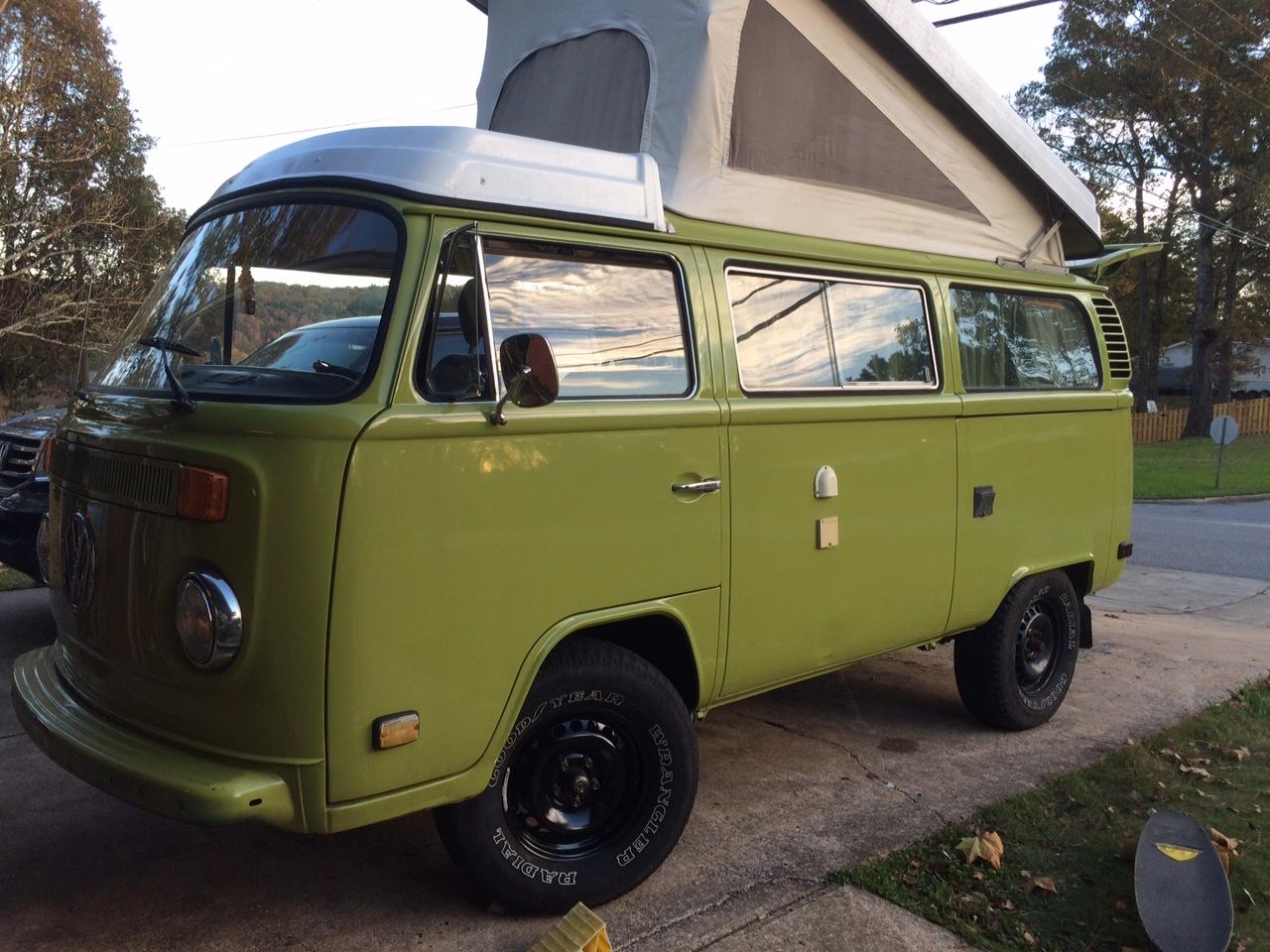

I think this is the biggest tire that will fit without a lift. |
|
| Back to top |
|
|
OG Velvet
Samba Family Man
Joined: February 24, 2003
Posts: 2174
Location: Portland, OR
|
| Posted: Tue Dec 15, 2015 4:45 pm Post subject: Re: Off road modifications for your bus |
|
|
| forn wrote: |
I think this is the biggest tire that will fit without a lift. |
What size are they?
_________________
'67 13 Window
'77 Westy
'69 Sunroof Beetle
'65 Honda Dream |
|
| Back to top |
|
|
forn
Samba Member
Joined: January 29, 2006
Posts: 11
|
| Posted: Wed Dec 16, 2015 2:28 pm Post subject: Re: Off road modifications for your bus |
|
|
| OG Velvet wrote: |
| forn wrote: |
I think this is the biggest tire that will fit without a lift. |
What size are they? |
235/75/15 on some Passat steels. |
|
| Back to top |
|
|
levi20AE
Samba Member
Joined: June 24, 2005
Posts: 485
Location: Las Vegas, NV
|
| Posted: Mon Dec 21, 2015 8:22 am Post subject: Re: Off road modifications for your bus |
|
|

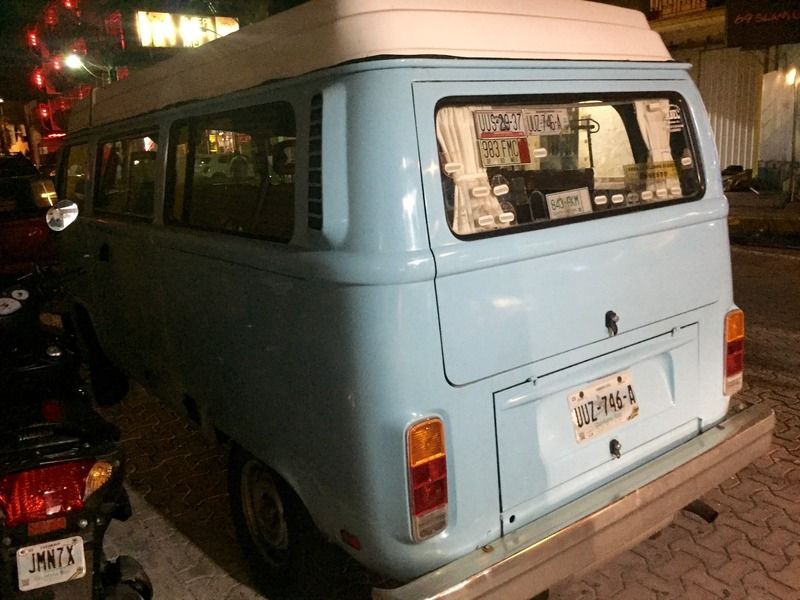

I have been down in Mexico for a few weeks now and nearly every bus i come across has had a modified rear bumper. Mostly they tend to use stronger bumpers from other vehicles to keep their busses safe. Each year the number of busses running around down here seems to thin out, it's crazy how fast the ocean most can eat even new cars.

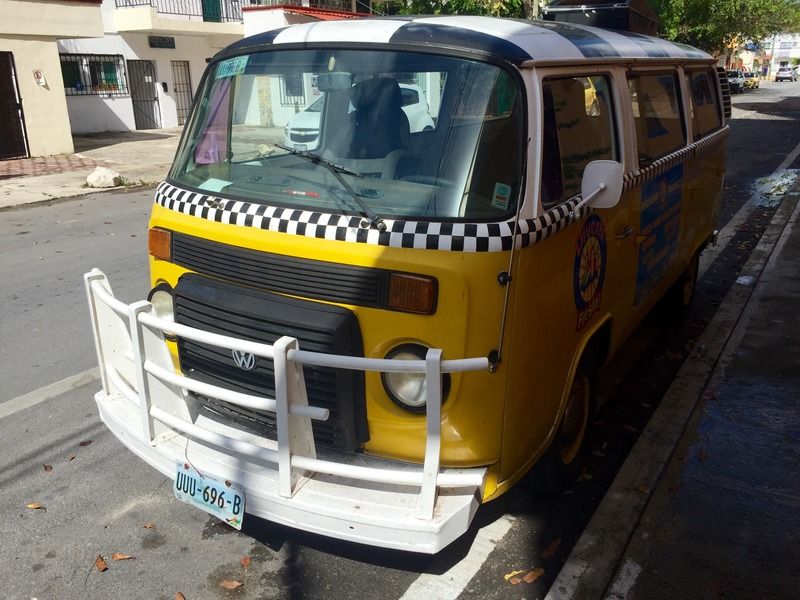

This front bumper was a little over the top but pretty resourceful.
_________________
1973 Campmobile http://www.thesamba.com/vw/forum/viewtopic.php?t=524511&postdays=0&postorder=asc&start=0
20th AE VW GTI - 369hp 340tq @ 26 PSI
1982 Rabbit Pickup - German AAZ 1.9TD - daily with lots of MPGs |
|
| Back to top |
|
|
Nepenthe88
Samba Member
Joined: September 03, 2010
Posts: 1320
Location: Colorado
|
| Posted: Mon Dec 21, 2015 4:25 pm Post subject: Re: Off road modifications for your bus |
|
|
| forn wrote: |
| OG Velvet wrote: |
| forn wrote: |
I think this is the biggest tire that will fit without a lift. |
What size are they? |
235/75/15 on some Passat steels. |
Wow... them's some BIG tires!

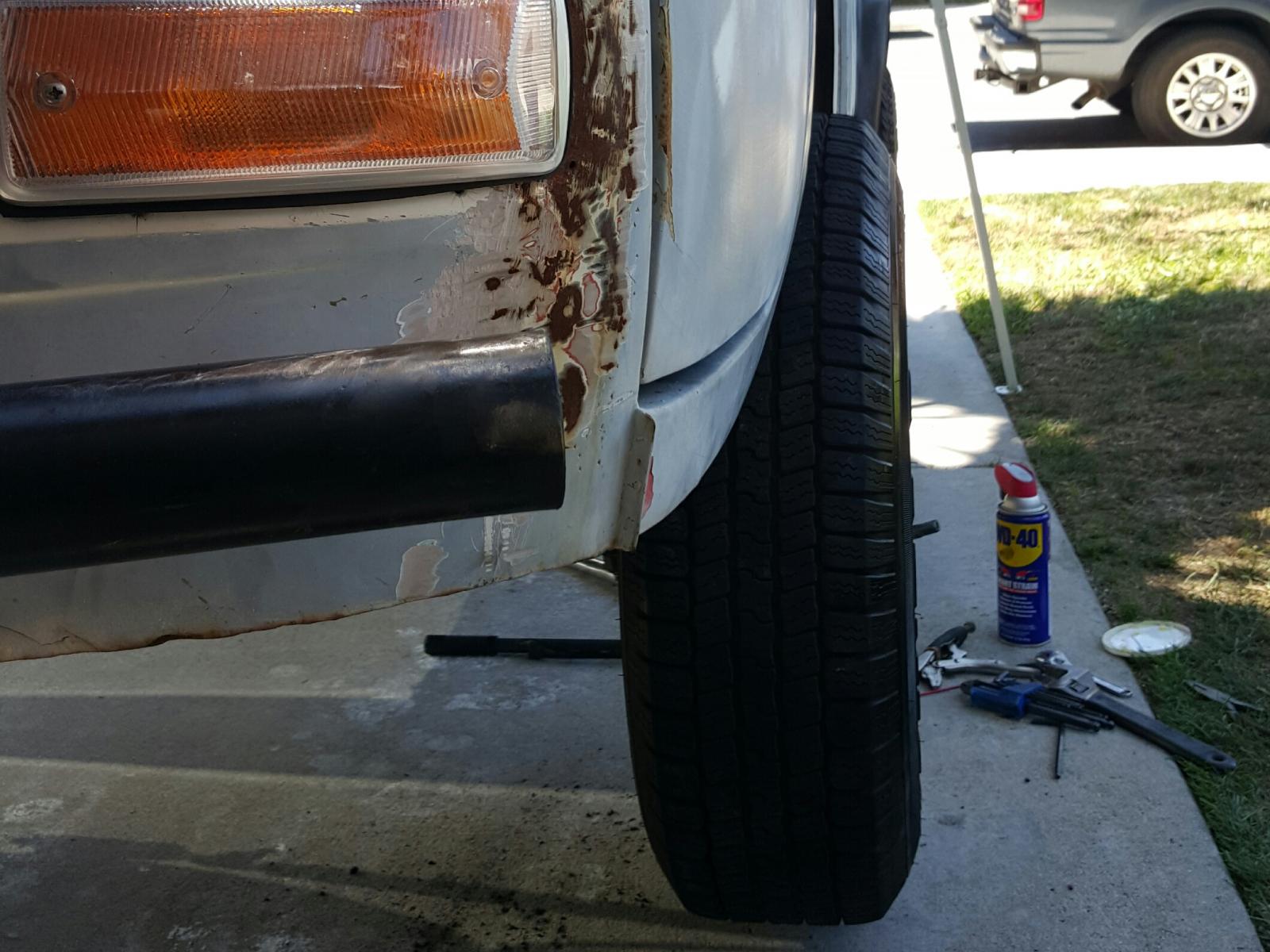

I'm running 215/65/16's and I thought those were the biggest diameter / width set-up you could put on a non-lifted bus. The tire calculator site says your 235/75/15's are 1.88 inches taller and 3/4 of an inch wider than the geolanders I'm running. You must notice some rubbing at times, cause I rub just a wee little bit when I turn into or out of a steeply inclined driveway:
_________________
a Black & Blue Su-BUS-aroo
Follow my adventures in the GoWAND'RLoST bus on Instagram:
https://www.instagram.com/gowandrlost/ |
|
| Back to top |
|
|
tristessa
Samba Member
Joined: April 07, 2004
Posts: 3993
Location: Portland, OR
|
| Posted: Mon Dec 21, 2015 6:08 pm Post subject: Re: Off road modifications for your bus |
|
|
Offset matters for fitting wheels/tires. Check this out, ET45 Passat steelies with 235/75R15 vs your "effectively" ET29 (wheel+spacer) BMW steelies with 215/65R16:
http://www.willtheyfit.com/index.php?width=235&...29#content |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22644
Location: Escondido CA
|
|
| Back to top |
|
|
tristessa
Samba Member
Joined: April 07, 2004
Posts: 3993
Location: Portland, OR
|
| Posted: Mon Dec 21, 2015 8:38 pm Post subject: Re: Off road modifications for your bus |
|
|
| Click on the lnk and look at the pretty pikshurz... |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22644
Location: Escondido CA
|
| Posted: Mon Dec 21, 2015 8:41 pm Post subject: Re: Off road modifications for your bus |
|
|
So the 235/75/15's are pushing the tire more out? Or I should say the Passat rim.
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
Stuartzickefoose
Samba Post Whore
Joined: February 07, 2008
Posts: 10350
Location: SoCal for now...
|
| Posted: Mon Dec 21, 2015 10:05 pm Post subject: Re: Off road modifications for your bus |
|
|
The rim pushes the tire to the outside of the car allowing a wider tire which won't rub as much
_________________
Stuart Zickefoose
2011 Jetta Sportwagen TDi 6 speed manual
206-841-7324
[email protected] |
|
| Back to top |
|
|
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8340
Location: Oceanside
|
| Posted: Tue Dec 22, 2015 11:08 am Post subject: Re: Off road modifications for your bus |
|
|
all about running 0 offset 6" wheels with your 215/75-15s. Major difference in handling with wider offset for obvious reasons.
_________________
Wash your hands
'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper
Only losers litter |
|
| Back to top |
|
|
tristessa
Samba Member
Joined: April 07, 2004
Posts: 3993
Location: Portland, OR
|
| Posted: Tue Dec 22, 2015 12:21 pm Post subject: Re: Off road modifications for your bus |
|
|
| notchboy wrote: |
| So the 235/75/15's are pushing the tire more out? Or I should say the Passat rim. |
That visualization is for 235/75R15 on ET45 Passat vs. Nepenthe's 215/65R16 on ET47 BMW with 18MM adapters (effective ET29). If he had better offset he might be able to go bigger on his 16's without rubbing. If you look at 215/75R15 on the 15x6 ET45 Passat wheels vs. 185R14 on 14x5.5 ET39 Bus wheels, the extra width on the 15x6 is almost totally tucked inward (0.3MM more poke, pfft) because of the offset difference.
http://www.willtheyfit.com/index.php?width=215&...39#content
I'm gonna pick up a 235/75R15 at Pick & Pull to play with next weekend... |
|
| Back to top |
|
|
77VWBusDude
Samba Member
Joined: April 09, 2008
Posts: 772
Location: Seattle
|
| Posted: Tue Dec 22, 2015 11:13 pm Post subject: Re: Off road modifications for your bus |
|
|
Some wheel spacers might get you where you need to be. Not sure how thick you can go without needing longer wheel studs, maybe 10mm. Studs need at least 6 revolutions to tighten securely.
_________________
'77 Bus auto EFI(stock)
| WendyArmbuster wrote: |
| Oh man, I had forgotten the smell of a running bus. Sort of like a combination of old things and burning dust. Smells like... victory. |
|
|
| Back to top |
|
|
Busstom
Samba Member
Joined: November 23, 2014
Posts: 4576
Location: San Jose, CA
|
| Posted: Wed Dec 23, 2015 1:39 am Post subject: Re: Off road modifications for your bus |
|
|
| forn wrote: |
I think this is the biggest tire that will fit without a lift. |
How's your Bus performance all around with that setup? Do you have any rubbing anywhere?
I like that setup, those tires look burly on a Bus...I think I'm getting past the idea of needing hubcaps in favor of that stout look...I'd really like to know more about real world performance and drawbacks. And I presume that setup resolves the concern over adequate load rating for a loaded Westy.
Thanks for sharing. |
|
| Back to top |
|
|
Stuartzickefoose
Samba Post Whore
Joined: February 07, 2008
Posts: 10350
Location: SoCal for now...
|
|
| Back to top |
|
|
jokgel
Samba Member
Joined: October 10, 2015
Posts: 47
Location: North-Germany
|
| Posted: Mon Dec 28, 2015 4:06 pm Post subject: Re: Off road modifications for your bus |
|
|
in this time i drive 195/80/15 MT
|
|
| Back to top |
|
|
VWDog
Samba Member
Joined: June 24, 2005
Posts: 624
Location: Ladysmith, BC
|
| Posted: Mon Dec 28, 2015 8:53 pm Post subject: Re: Off road modifications for your bus |
|
|
| jokgel wrote: |
in this time i drive 195/80/15 MT
|
I love that Bus!
_________________
1970 Lotus White Single Cab 2015- , 1979 Sage Green 2014-2015, 1978 Dakota Beige Westy 2012-2015, 1978 Neptune Blue Riviera 2012-2017 , 1970 Neptune Blue Bus 2010-2012, 1970 Deluxe Savannah Beige 2010-2012, 1985 Iltis 2010- , 1962 Single Cab 2010-2013, 1975 Brasilia? Bay/Split Kombi from Brazil 2008-2011, 1985 DoKa 1999-2009, 1971 Bus 1999-2000, 1968 Double Cab 1991-1998, 1965 Ghia 1987-1991, 1970 Westfalia-bought by Mum and Dad in 1970, sold by me in 1993 why-oh-why :_(
|
|
| Back to top |
|
|
LivinInnaVWBus
Samba Member
Joined: October 07, 2013
Posts: 968
|
| Posted: Tue Dec 29, 2015 11:20 am Post subject: Re: Off road modifications for your bus |
|
|
Lol @winter
|
|
| Back to top |
|
|
jokgel
Samba Member
Joined: October 10, 2015
Posts: 47
Location: North-Germany
|
| Posted: Tue Dec 29, 2015 12:36 pm Post subject: Re: Off road modifications for your bus |
|
|
beautiful old style tires . love the patterns in snow  |
|
| Back to top |
|
|
|
