| Author |
Message |
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8267
Location: NE MN (tinyurl.com/dhaaverslocation)
|
 Posted: Mon May 05, 2025 9:17 pm Post subject: Re: What did YOU do to your van today? |
 |
|
Mmmmm…your cassette game is strong. Very “80’s”…classy.
- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS> |
|
| Back to top |
|
 |
Alleycat1990
Samba Member
Joined: October 21, 2024
Posts: 40
Location: Ottawa
|
| Posted: Tue May 06, 2025 6:50 am Post subject: Re: What did YOU do to your van today? |
|
|
For the wiring I was going to use a fold over splicer that has an option for I think it is called a spade conector of the power wire of the camera. Thanks for the information. What do you suggest instead?
_________________
1990 Vanagon purchased fall of 2024
never winter driven and well maintained
minor repairs needed example odometer |
|
| Back to top |
|
|
Alleycat1990
Samba Member
Joined: October 21, 2024
Posts: 40
Location: Ottawa
|
| Posted: Tue May 06, 2025 10:14 am Post subject: Re: What did YOU do to your van today? |
|
|
In the Bentley page 97.214, 1990 yr. it is a BLK/blu wire going to T7/#4. I found this in another post related to the backup lights.
I cannot climb under the Vanagon at this point because I have a torn rotator cuff. I have a new 77 pound dog that a rabbitt jumped up in front of and almost tore my right arm out of its socket.
_________________
1990 Vanagon purchased fall of 2024
never winter driven and well maintained
minor repairs needed example odometer |
|
| Back to top |
|
|
Icebox500
Samba Member
Joined: October 09, 2021
Posts: 184
Location: Colorado
|
| Posted: Tue May 06, 2025 10:28 am Post subject: Re: What did YOU do to your van today? |
|
|
| Alleycat1990 wrote: |
In the Bentley page 97.214, 1990 yr. it is a BLK/blu wire going to T7/#4. I found this in another post related to the backup lights.
I cannot climb under the Vanagon at this point because I have a torn rotator cuff. I have a new 77 pound dog that a rabbitt jumped up in front of and almost tore my right arm out of its socket. |
Don’t know what camera you have. I wired mine into the backup lights via a trailer wiring box I already had. I believe the wire was white (don’t quote me). My mirror/display gets permanent power from the dome light. I ran additional power down the A pillar.
_________________
87 Westy 2WD
2.2 Rebuilt WB
AZ Transaxle + Peloquin Manual Transmission
GW lift springs, solar, Burley front disc, etc...
Littleton, CO
Moving to NOLA 6/25 (anyone around?)
Past
87, 90 Westys
64, 65 splittys + various air cooled |
|
| Back to top |
|
|
Alleycat1990
Samba Member
Joined: October 21, 2024
Posts: 40
Location: Ottawa
|
| Posted: Tue May 06, 2025 7:15 pm Post subject: Re: What did YOU do to your van today? |
|
|
| Alleycat1990 wrote: |
In the Bentley page 97.214, 1990 yr. it is a BLK/blu wire going to T7/#4. I found this in another post related to the backup lights.
I cannot climb under the Vanagon at this point because I have a torn rotator cuff. I have a new 77 pound dog that a rabbitt jumped up in front of and almost tore my right arm out of its socket. |
I ordered a new Bentley book mine covers up to 89 so when I tried to find the referenced page it doesn't exist. it supposed to arrive on the 10th of may..
_________________
1990 Vanagon purchased fall of 2024
never winter driven and well maintained
minor repairs needed example odometer |
|
| Back to top |
|
|
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8267
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Tue May 06, 2025 8:35 pm Post subject: Re: What did YOU do to your van today? |
|
|
| Alleycat1990 wrote: |
| For the wiring I was going to use a fold over splicer that has an option for I think it is called a spade conector… |
I believe you are describing a crimper…??? Like any tool, there are good, better & bad style crimpers. It would be great if you learned the name of the tools you’ll be using!
Are you brand new to automotive electrics? If your injury is preventing you from actually working on the van, you would do well to spend some time studying about the tools and type of work you have planned.
A good, basic auto electric manual would answer many of the questions you’ve already posted here. Consider: https://www.thriftbooks.com/w/haynes-automotive-el...on=4574847
If you’re a “just watch a video” -type guy, YouTube is certainly a resource, although you gotta consider the source(s).
Keep up the chatter, this is how we learn things!
- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS> |
|
| Back to top |
|
|
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8267
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Tue May 06, 2025 8:58 pm Post subject: Re: What did YOU do to your van today? |
|
|
OT: Today I replaced the hose between the coolant “tower” & t’stat housing, which had given up on me last Saturday causing low coolant level and therefore blinking light & swinging needle syndrome. Limped it home using my spare coolant onboard plus a gallon of distilled water from the gas station. Parked it until . . . today I pulled out new hose, clamps & spare coolant I already had on hand & got the job done. Hardest parts of the job are just getting all the starter wiring outta the way, working (from below) over the top of the transmission, plus just having to deal with old hose clamps…
Also: Replaced failed shift lever boot at the tranny, repaired recently split (Rockford) CV boot (allowed to set overnight), ArmorAll all remaining CV boots for additional longevity <fingers crossed>, applied headlight protection plastic (GW, urethane actually) to the still kinda new BD H4 lenses & called it a night.
Still more to come this week, but this all puts me closer to Utah next week…
- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS> |
|
| Back to top |
|
|
Alleycat1990
Samba Member
Joined: October 21, 2024
Posts: 40
Location: Ottawa
|
| Posted: Wed May 07, 2025 10:18 am Post subject: Re: What did YOU do to your van today? |
|
|
TodaybI sorted electrical connectors and wires and tried testing with a tester that has bulb in it put my Vanagon in reverse turned the key to electrics only. Tried testing parking light wirenn7mber 4 and got nothing searched everywhere for my multi meter to no avail. An excuse to buy na new one. Watched 3 youtube videos on how to use one-to-one test voltage, amperage and continuity. Basics any books I looked at online come from the USA shipping Islas much as the book. Plus American exchange is about 30 percent.
_________________
1990 Vanagon purchased fall of 2024
never winter driven and well maintained
minor repairs needed example odometer |
|
| Back to top |
|
|
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8267
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Wed May 07, 2025 11:38 am Post subject: Re: What did YOU do to your van today? |
|
|
^^^ Good on you for checking things out! You’re learning…
| Alleycat1990 wrote: |
…any books I looked at online come from the USA shipping Is [as] much as the book.
Plus American exchange is about 30 percent… |
Kinda why I linked to a used book reseller. New, full price books are gonna get hit with all the “extras” these days...
FWIW, Here’s a seller that I know offers no additional fee for shipping worldwide AND 15% off your first order if you sign up for something-or-other:
https://www.betterworldbooks.com/product/detail/automotive-electrical-manual-9781850106548
From my end of the internet, it shows just $1.49USD shipping for this title, and I checked that with several different addresses in several different countries…all the same shipping fee. Please tell me if it shows you anything different. NO, I’m not associated with the company in any way, other than…
This company was actually started by a former student of mine (unfortunately since passed away) but I’ve ordered from here many times. They are committed to reducing and renewing resources, hence the used book angle. Highly recommended.
Keep in mind, books ship rather slowly (at least in the US) because of the low rate charged for “media mail”. The trade off for cheap shipping is they are always the last packages to be loaded, often just to get a postal shipment up to weight for best efficiency. What doesn’t go out today might go tomorrow…
…or the next day…
- Dave
PS: Don’t buy a new multimeter just because it didn’t “work” one time…first test it in a circuit that you know is working because the thing plugged <or> wired into that circuit is working. You can do this in the house OR in the van. In other words, test your tester! (More electricity basics…)
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS> |
|
| Back to top |
|
|
Alleycat1990
Samba Member
Joined: October 21, 2024
Posts: 40
Location: Ottawa
|
| Posted: Wed May 07, 2025 2:49 pm Post subject: Re: What did YOU do to your van today? |
|
|
Thanks Dave I picked up a set of Klien meters and ordered your recommended book. I also ordered a new Bentley manual hardcover because my Bentley covers to 89 and my vehicle is 90. M7ch appreciated.
_________________
1990 Vanagon purchased fall of 2024
never winter driven and well maintained
minor repairs needed example odometer |
|
| Back to top |
|
|
Alleycat1990
Samba Member
Joined: October 21, 2024
Posts: 40
Location: Ottawa
|
| Posted: Thu May 08, 2025 12:29 pm Post subject: Re: What did YOU do to your van today? |
|
|
| dhaavers wrote: |
Mmmmm…your cassette game is strong. Very “80’s”…classy.
- Dave |
Hi Dave Rick again did you print the termperature controller diagram. I like it because it is less confusing. I asked my wife if she could print it like that on her newer Dymo printer.
_________________
1990 Vanagon purchased fall of 2024
never winter driven and well maintained
minor repairs needed example odometer |
|
| Back to top |
|
|
f451
Samba Member
Joined: November 16, 2021
Posts: 11
Location: Colorado
|
| Posted: Thu May 08, 2025 9:10 pm Post subject: Re: What did YOU do to your van today? |
|
|
| VeeDubn wrote: |
Washed her . . . got her into the garage to dry her off just as the raindrops started falling on the driveway!
|
Gosh! Who did the body work and paint? That looks sharp!
_________________
1987 Camper -- 255K -- 2.5L Subaru engine conversion since 2/2023. |
|
| Back to top |
|
|
Alleycat1990
Samba Member
Joined: October 21, 2024
Posts: 40
Location: Ottawa
|
| Posted: Sat May 10, 2025 4:41 pm Post subject: Re: What did YOU do to your van today? |
|
|
| Alleycat1990 wrote: |
Thanks Dave I picked up a set of Klien meters and ordered your recommended book. I also ordered a new Bentley manual hardcover because my Bentley covers to 89 and my vehicle is 90. M7ch appreciated. |
I spliced into the Wire and the backup camera is working but the backup light isn't working. Also the dash light is flashing as if there is a problem with na relay argh.
_________________
1990 Vanagon purchased fall of 2024
never winter driven and well maintained
minor repairs needed example odometer |
|
| Back to top |
|
|
Hazey
Samba Member
Joined: December 15, 2023
Posts: 14
Location: Upstate NY
|
| Posted: Sat May 10, 2025 6:09 pm Post subject: Re: What did YOU do to your van today? |
|
|
Last weekend I finished up my winter projects - replaced the fuel lines, upgraded to van cafe fuel rails, and sent my injectors out to Mr Injector for refurbish. Also replaced the exhaust from the elbow pipe on back.
450 miles on the van this week, running like a champ and have had a big smile on my face the entire time. I've missed her over the winter!!
_________________
91 Multivan Stock |
|
| Back to top |
|
|
BigPapaV
Samba Member
Joined: February 05, 2023
Posts: 73
Location: Long Beach, CA
|
| Posted: Sun May 11, 2025 7:55 pm Post subject: Re: What did YOU do to your van today? |
|
|

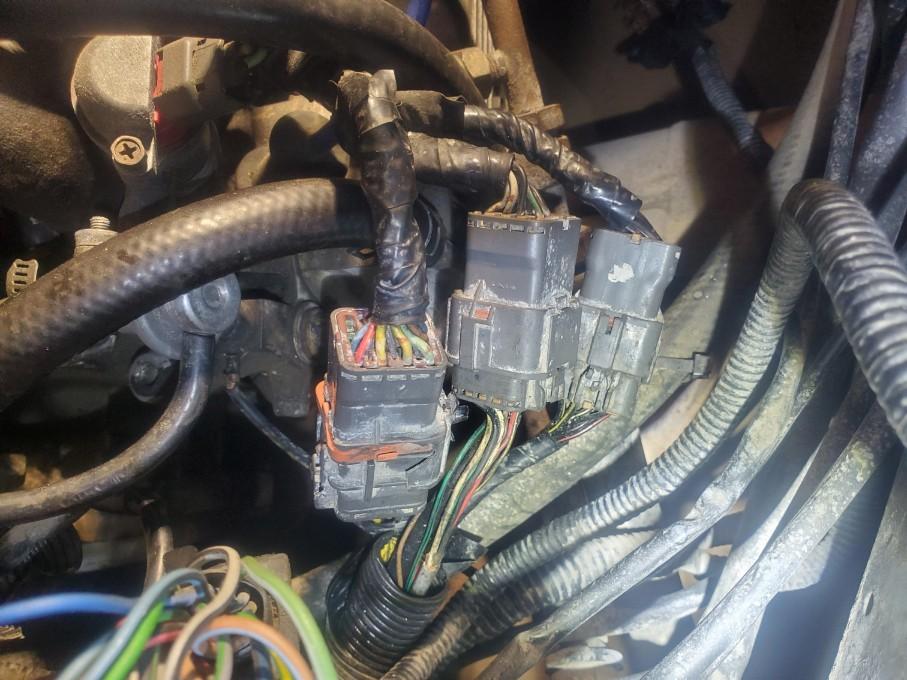

Finished changing my engine connectors out for Deutsch style ones.
One of the old ones had broken and PO had ziptied it together, but moisture still made it inside and light oxidation was setting in. Figured that as long as I was changing one, I'd update all three to a more serviceable connector -at least for me. Also packed the connectors with anti-oxodizing zinc paste from OxGard.
Before
After
_________________
1986 VW 3-knob Syncro Tintop w/ 1992? Suby Legacy 2.2L (KEP install) |
|
| Back to top |
|
|
alohah3
Samba Member
Joined: July 31, 2012
Posts: 24
Location: Alexandria, VA
|
| Posted: Mon May 12, 2025 7:40 am Post subject: Re: What did YOU do to your van today? |
|
|

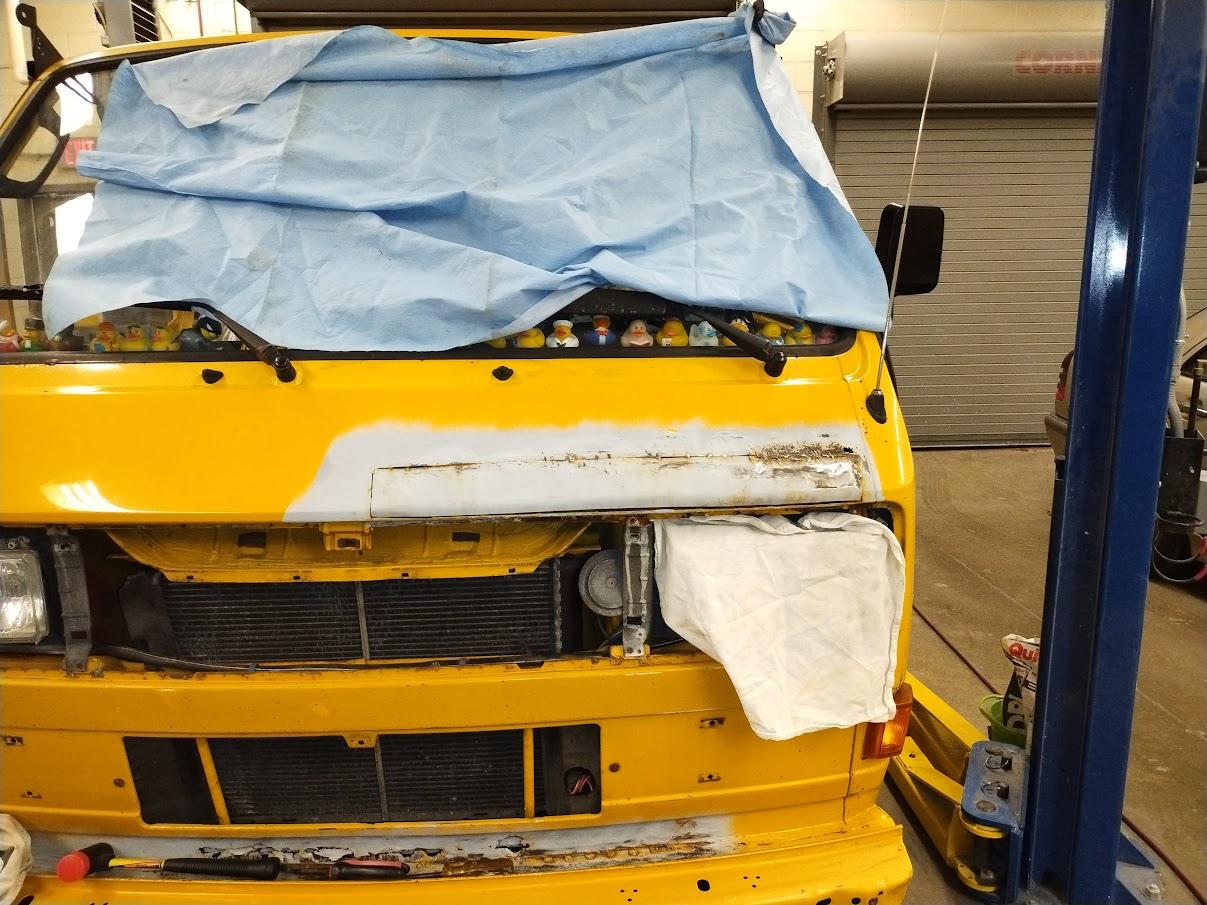

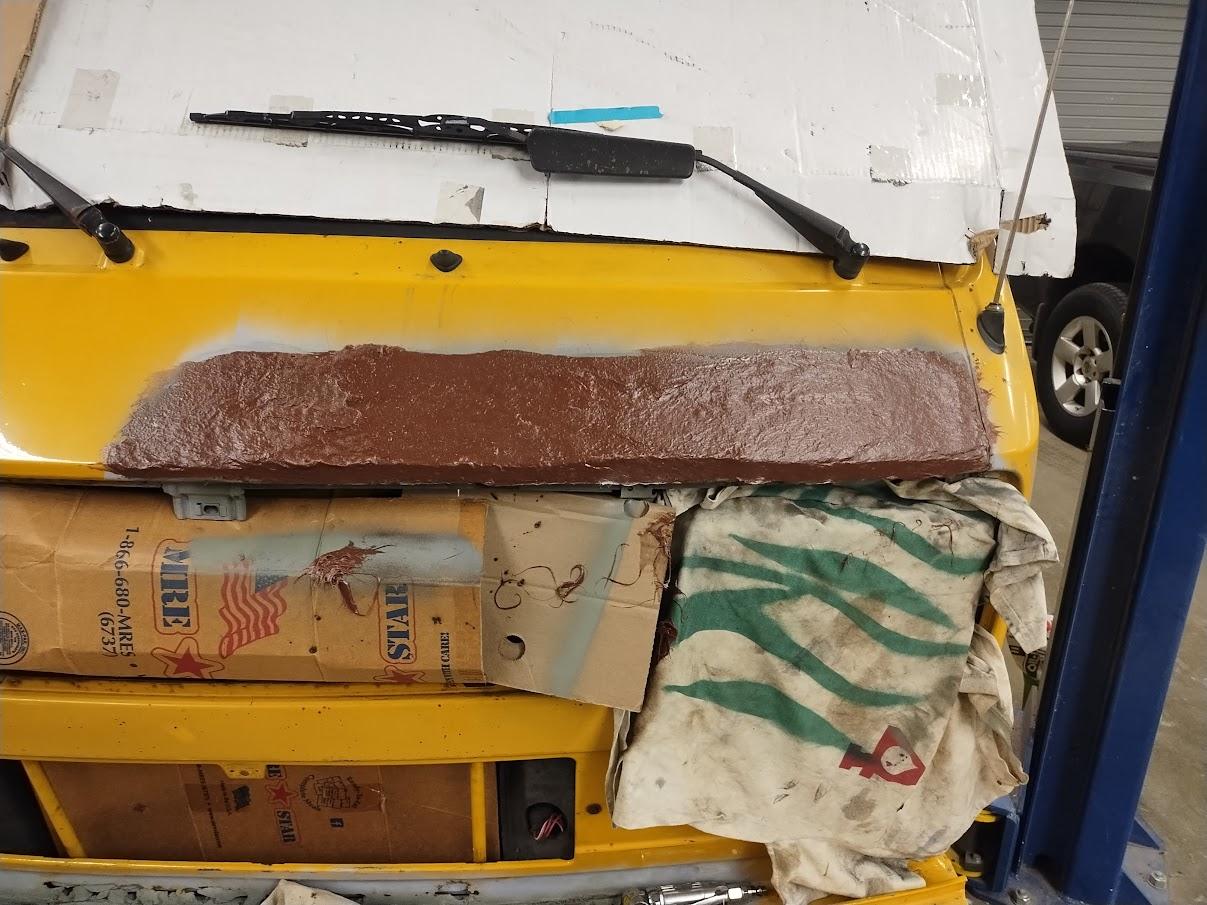

Over the last few months, took an auto body & paint adult continuing education night class at the local HS. Worked on Ducky's nose rust - definitely learned a lot! Now to put the front end back together. School is out for summer!
_________________
1988 DOKA Transporter
1989 Twin Slider Syncro
1984 Green Machine 4x4 |
|
| Back to top |
|
|
alohah3
Samba Member
Joined: July 31, 2012
Posts: 24
Location: Alexandria, VA
|
| Posted: Mon May 12, 2025 7:41 am Post subject: Re: What did YOU do to your van today? |
|
|
Over the last few months, took an auto body & paint adult continuing education night class at the local HS. Worked on Ducky's nose rust - definitely learned a lot! Now to put the front end back together. School is out for summer!
_________________
1988 DOKA Transporter
1989 Twin Slider Syncro
1984 Green Machine 4x4 |
|
| Back to top |
|
|
DehlerPEB
Samba Member
Joined: January 13, 2010
Posts: 116
Location: Germany, Augsburg
|
| Posted: Mon May 12, 2025 8:29 am Post subject: Re: What did YOU do to your van today? |
|
|
| BigPapaV wrote: |
Finished changing my engine connectors out for Deutsch style ones.
Before
After
|
Hi,
sounds as would it make to my TODO-List. Could you link your Tools/The Connectors -- but just if you have this info at hand. Would make my life a little easier, so i do not want to bother you to much with that (IMHO) worthwile Upgrade-desire ....
Thanks
peb
T3svx Dehler 2+2 Whitestar ....
T3svx ... sonst nix! |
|
| Back to top |
|
|
BigPapaV
Samba Member
Joined: February 05, 2023
Posts: 73
Location: Long Beach, CA
|
|
| Back to top |
|
|
BigPapaV
Samba Member
Joined: February 05, 2023
Posts: 73
Location: Long Beach, CA
|
| Posted: Mon May 12, 2025 11:18 pm Post subject: Re: What did YOU do to your van today? |
|
|

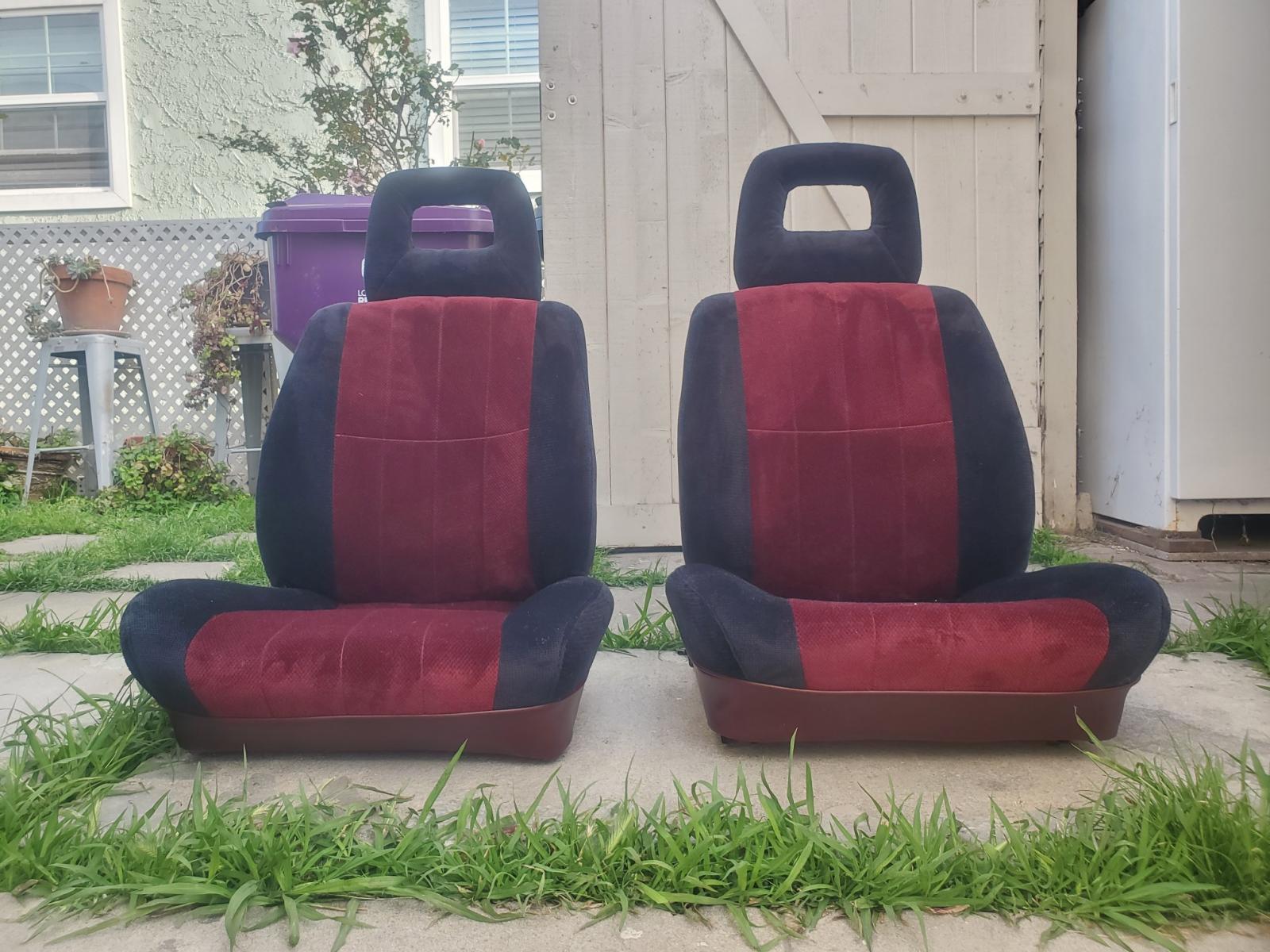

Got my seats and rear pad back from upholstery shop, super happy with how they turned out.
I had them add seat heaters and change the sewing pattern to mimic my Volvo 240 seats, that's also why the vinyl doesn't come all the way up to seat edge. Haven't installed yet to check foam stiffness, but it's a "40 grade" whatever that means. They put the same in my recently redone Volvo seats and it's great.

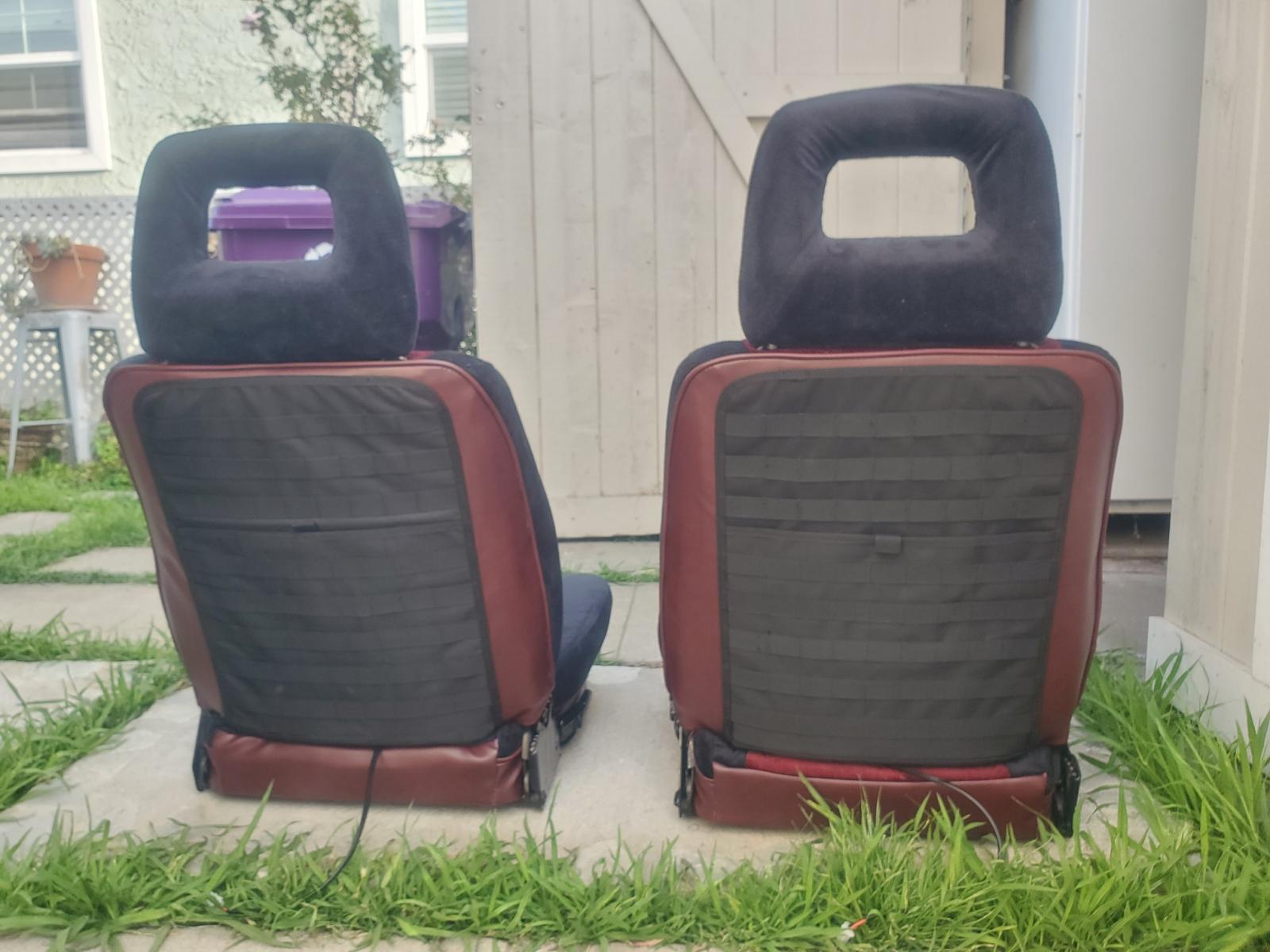

Also had them sew a molle panel straight to the seat back for added utility. I don't have jump seats nor mid-row seats installed.
Not sure if I like how the fuzzy head rests came out but at least the vinyl tears are covered up.
Rear seats would've been done, but I asked them to add seat heaters to them after they were closed up.

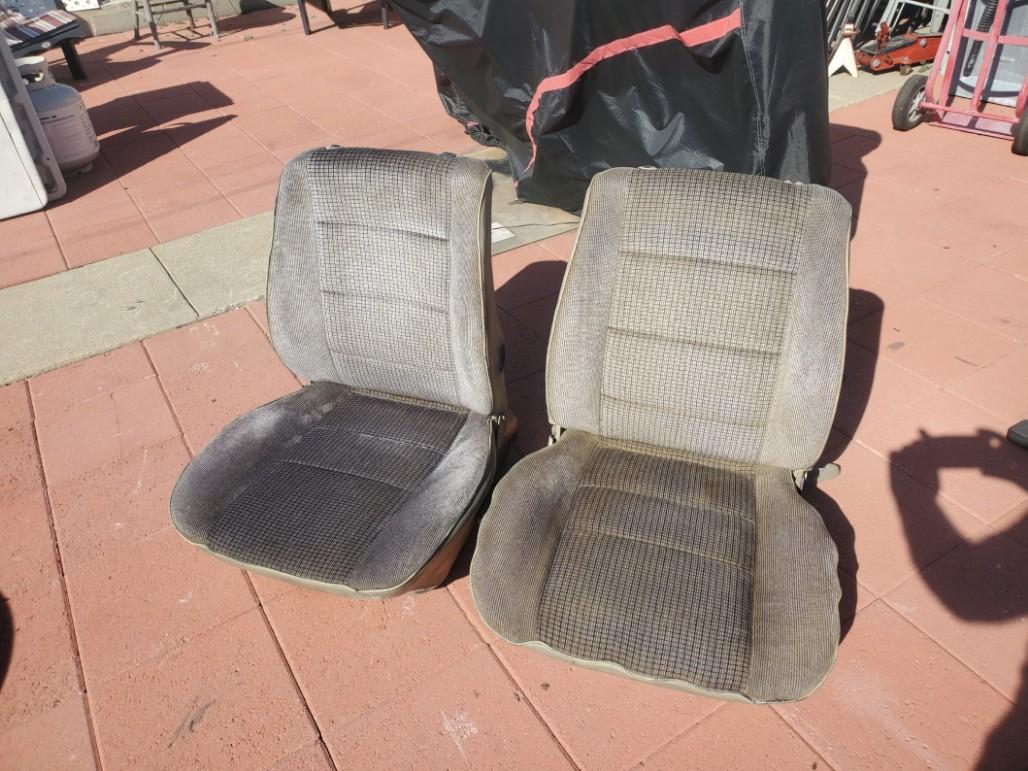

Before
After
_________________
1986 VW 3-knob Syncro Tintop w/ 1992? Suby Legacy 2.2L (KEP install) |
|
| Back to top |
|
|
|
