ashman40
Samba Member
Joined: February 16, 2007
Posts: 16749
Location: North Florida, USA
|
 Posted: Sat Apr 30, 2011 11:48 pm Post subject: |
 |
|
After 7 pages I suppose the message gets diluted?
(1) The transmission input shaft having a sleeve (or not) will dictate which throwout (release) bearing you need to match your transmission.
With a sleeve = later style throwout bearing
Without a sleeve = earlier style throwout bearing
(2) The throwout bearing release arm must match the bearing or you cannot properly control the throwout bearing.
(3) The throwout bearing will dictate the type of pressure plate to install on the flywheel.
Late style without ring
Early styles with ring

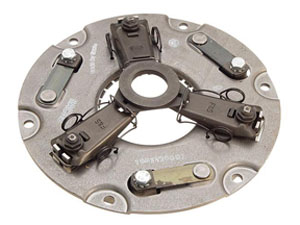

If your pressure plate came with a centering ring (early style), you may be able to remove it and use the pressure plate with a later throwout bearing (seems to work with all diaphragm type pressure plates).
I would NOT expect an ORIGINAL '68 pressure plate to have a removable/convertible centering ring and still work with the later style throwout bearing since the later style clutch system didn't yet exist at that time.
And I doubt ALL centering rings are interchangeable amongst ALL pressure plates. You can see above that the 3-finger pressure plate has a different ring than the diaphragm type.
Having said all that... I've just gone through the entire thread and noticed no one posted a pic of the input shaft seal conversion kit that allows earlier transmissions to use the later style throwout bearings:
In the upper right is the special input shaft seal with an integrated sleeve. You also need the newer style release arm (in the kit) to work with the newer style throwout bearing (also included). The only custom part in this kit is the sleeve/seal.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
