| Should I cut the dash? |
| Do it, it'll be nice to be able to reach the radio! |
|
41% |
[ 26 ] |
| Don't do it, you'll kick yourself in the end! |
|
58% |
[ 37 ] |
|
| Total Votes : 63 |
|
| Author |
Message |
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
 Posted: Thu Apr 16, 2009 3:59 pm Post subject: |
 |
|
| Bajatacoma wrote: |
| On the downside, my dash was near perfect fine until some kids decided to steal my stereo and tried to pry it out. Those are screwdriver marks around it. |
There is the downside for sure. Mine has never been messed with in the glovebox. I say cut it, then my uncut dash will be that much more rare.
_________________
Caleb
'68 Tagged Manx | My Wanted Ads
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
 |
magnus0328
Samba Member
Joined: April 20, 2006
Posts: 1160
Location: There
|
| Posted: Thu Apr 16, 2009 5:52 pm Post subject: |
|
|
Dont do it man... You said that all you had to do is cut the metal, not the padding. The metal is what counts. You want the metal to stay factory size and not cut. If worst comes to worst, you can take the padding off of the dash and paint the metal underneath like they did in Europe until 1979. The metal needs to keep its integrity and form... Dont cut a 35 yarl old dash a $150.00 disposible stereo. Here is my earlier dash with the padding off, but the metal around the radio is intact

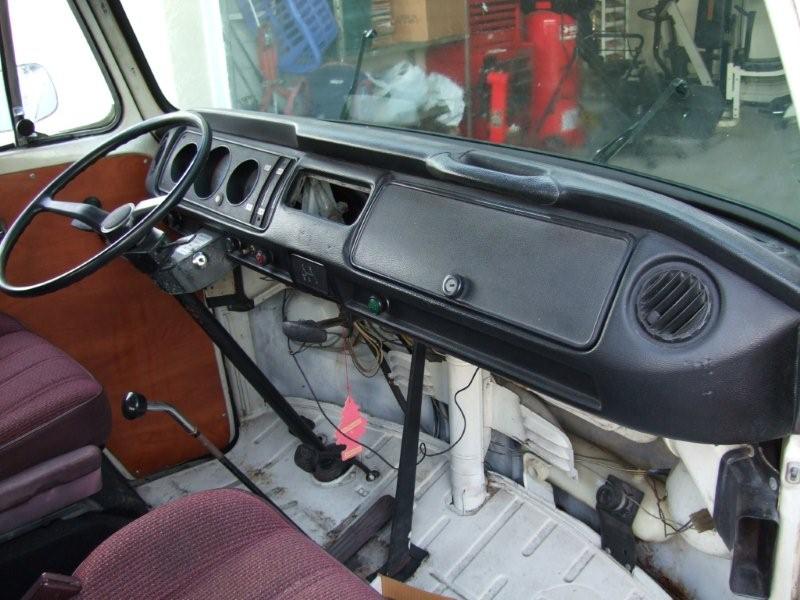

Here was my stock '73 dash that the PO hacked the metal so that he could put in a modern radio. I wanted to put the stock radio back in the dash for looks but couldnt due to teh hole being too big. I eventually had to put in an earlier year dash that had intact metal around the radio... Here is the pic before with the busted metal.
|
|
| Back to top |
|
|
vw76westy
Samba Member
Joined: May 06, 2007
Posts: 1584
Location: so cal
|
| Posted: Thu Apr 16, 2009 9:38 pm Post subject: |
|
|
cut it
but with caution
i cut the corners then bent the metal back to fit a radio
years later......... now i want to put a original stereo in
all ill have to do is bend metal back
i could even tach weld the cut corners back |
|
| Back to top |
|
|
Baja Champ SE
Samba Member
Joined: June 09, 2007
Posts: 442
|
| Posted: Thu Apr 16, 2009 11:24 pm Post subject: |
|
|
I bet reaching for the glove box is safer than reaching for the radio under the passenger's seat in my bug...
Relax. I wait until I'm at a red light. Nothing like the funny looks I get after I've leaned down to mess with it and one of my buddies is in the passenger seat, though.
_________________
-1972 Baja Champion SE Super Beetle "Frank the Freak"
SOLD
-1969 Deluxe Bus "Warhaul" aka "Project Whitestock"
Air Speed VW Club of So Cal
Member Since July 2007 |
|
| Back to top |
|
|
Mr. Loaf
Samba Member
Joined: March 30, 2005
Posts: 2098
Location: Okra, Oklahoma
|
| Posted: Fri Apr 17, 2009 4:25 am Post subject: |
|
|
Don't cut the dash! Find a CD Changer from a BMW or Mercedes in a wrecking yard. Look on Ebay or Craigslist too, They are out there. The changer will be black and look very unobtursive. Mount it in the back out of the say. Load that baby up with your favorites and roll!
_________________
Never drive faster than your Angel can fly
$24,100 was too hard to resist................. |
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5868
Location: Wamego, Kansas, USA
|
| Posted: Fri Apr 17, 2009 6:17 am Post subject: |
|
|
| calebmelvin wrote: |
There is the downside for sure. Mine has never been messed with in the glovebox. I say cut it, then my uncut dash will be that much more rare. |
Probably my favorite response!
Well, for now I've chickened out. I have it set up so "turning on" the old radio that is in the hole makes it come on, which I think makes it kinda "retro-cool."
I figure I can always cut it later, but can't ever un-cut it. And I have always liked the fact that it is well-hidden in the glove box. We'll see how the remote does as far as reaching things goes. |
|
| Back to top |
|
|
ned
Samba Member
Joined: June 28, 2004
Posts: 1574
Location: Arroyo Grande Ca.
|
| Posted: Fri Apr 17, 2009 6:41 am Post subject: |
|
|
| Its No big Deal. Try to enjoy yourself and the radio and the bus. |
|
| Back to top |
|
|
jtauxe
Samba Member
Joined: September 30, 2004
Posts: 5976
Location: Los Alamos, New Mexico, USA
|
| Posted: Fri Apr 17, 2009 7:03 am Post subject: |
|
|
[quote="vwwestyman"]
| busmania24 wrote: |
| ...I was thinking maybe I could at least rig it so that turning the dial on it made the hidden cd player come on. Then it wouldn't have to be tied to the ignition switch, but would be simple to turn on and off. ... |
Are you suggesting connecting the controls from an old radio to those of the new deck? Now that would be very cool. I have an original old VW radio (actually, I shouldn't hack that up, either, but this is just hypothetical here)... wouldn't it be neat to use its controls, reconfigured to operate the controls on the remote unit? Fun idea!
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
|
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5868
Location: Wamego, Kansas, USA
|
| Posted: Fri Apr 17, 2009 11:30 am Post subject: |
|
|
| jtauxe wrote: |
Are you suggesting connecting the controls from an old radio to those of the new deck? Now that would be very cool. I have an original old VW radio (actually, I shouldn't hack that up, either, but this is just hypothetical here)... wouldn't it be neat to use its controls, reconfigured to operate the controls on the remote unit? Fun idea! |
Sort of, the only thing that is controlled by the old radio is the on/off.
The old radio had some kind of 12v out wire when it is turned on (presumably to control an auto antenna or something like that).
Because I discovered that the voltage kinda faded (as opposed to being off immediately) from that wire when the old radio was switched off, I used that power out wire to control a relay. The wire that is normally attached to the ignition switch on the new radio is attached to the other side of the relay.
So:
You turn the on dial of the old radio. This causes power to come to the 12v out, which turns on the relay, which allows the new cd player in the glovebox to come on.
Seems to work great, and that means I won't have to turn the key on to listen to the radio, and it is quick and easy to turn it off (instead of having to hold the off button for a couple seconds which would be required if it were hotwired). |
|
| Back to top |
|
|
kevin77westy
Samba Member
Joined: November 12, 2004
Posts: 795
Location: Ocean Springs, MS
|
| Posted: Fri Apr 17, 2009 11:43 am Post subject: |
|
|
You guys are still hauling CDs around? C'mon, get with the times  .. I vote to not cut and find a radio (just a radio) with an ipod jack that fits in the hole. Or even if its still in the glovebox, the ipod cord will easily reach the driver.. |
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5868
Location: Wamego, Kansas, USA
|
| Posted: Fri Apr 17, 2009 12:40 pm Post subject: |
|
|
| kevin77westy wrote: |
| You guys are still hauling CDs around? C'mon, get with the times .. I vote to not cut and find a radio (just a radio) with an ipod jack that fits in the hole. Or even if its still in the glovebox, the ipod cord will easily reach the driver.. |
LOL, that was another reason I chose to not cut it. I've got XM radio, and the controller sits on the Plug N Chug cupholder easily enough, so that is usually what I'm messing with most of the time. |
|
| Back to top |
|
|
surf4321
Samba Member
Joined: April 15, 2008
Posts: 95
|
| Posted: Fri Apr 17, 2009 4:03 pm Post subject: |
|
|
| do it. It is just a plastic dash anyway... |
|
| Back to top |
|
|
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
|
| Back to top |
|
|
FreedomBuild
Samba Member
Joined: September 21, 2010
Posts: 385
Location: Calgary, Alberta
|
| Posted: Wed Aug 07, 2013 8:20 pm Post subject: |
|
|
| melville wrote: |
You need only take about 3mm max off all the way around to fit a modern radio. I did this one in less than an hour with a Dremel tool, using the cut-off wheel:
I'm pretty sure if I really wanted to put an OG Sapphire in that spot it would go right in and look just fine. I KNOW I really don't want to, though. |
I have been watching this thread because I need to install my new deck. I think I'm going to use a Dremel with a barrel bit and slowly grind the hole out until the cage fits in. I don't think I will go ape $h1t and cut the metal and fold it back. That's too extreme for me. I like the idea of having modern audio in my bus. My Audiovox 8 track sucks monkey balls. Don't get me wrong, I love the 8 tracks but this one sucks. Time to hook up my ipod and sat radio.
_________________
1973 Campmobile rustoration in progress..
1700 Type 4 engine
Manual Transmission
Pertronix Mechanical advance distributor
Pertronix Flame Thrower coil
Weber Progressive
Come visit our Facebook page!
http://www.facebook.com/pages/Freedom-the-Campmobile/158775277473211
Click to view image |
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5868
Location: Wamego, Kansas, USA
|
| Posted: Wed Aug 07, 2013 8:36 pm Post subject: |
|
|
Probably the first time one of my threads has been resurrected. At least that I've noticed.
Weird to read through it 4 years later.
I ended up refining the system awhile back, shortly before disabling the bus to swap in a TDI motor.
I removed the relay I had mentioned earlier, to clean up the wiring and found that the system seems to work fine without it.
Also I bought a marine radio mount, and cut it up to match the contours of the inside of the glove box. This offers a little protection, as well as makes it look better.
So I have no plans to cut the dash at any time. |
|
| Back to top |
|
|
GeorgeO.
Samba Member
Joined: October 08, 2010
Posts: 881
Location: Menifee, CA
|
| Posted: Wed Aug 07, 2013 8:41 pm Post subject: |
|
|
| melville wrote: |
You need only take about 3mm max off all the way around to fit a modern radio. I did this one in less than an hour with a Dremel tool, using the cut-off wheel:
I'm pretty sure if I really wanted to put an OG Sapphire in that spot it would go right in and look just fine. I KNOW I really don't want to, though. |
Did the same to mine. Took off just 3 mm off the stereo port to install the Stereo cage. It went in well. |
|
| Back to top |
|
|
Djoul
Samba Member
Joined: January 16, 2008
Posts: 216
Location: France
|
| Posted: Thu Aug 08, 2013 3:10 am Post subject: |
|
|
don't cut
with the pad, it will be impossible to fix it ...
I really doesn't like moderns radio on busses
i put a stéréo blaupunkt which fit well in the original hole
I add an i-pod on the auxiliary socket...
sound is very good, and no one was molested...

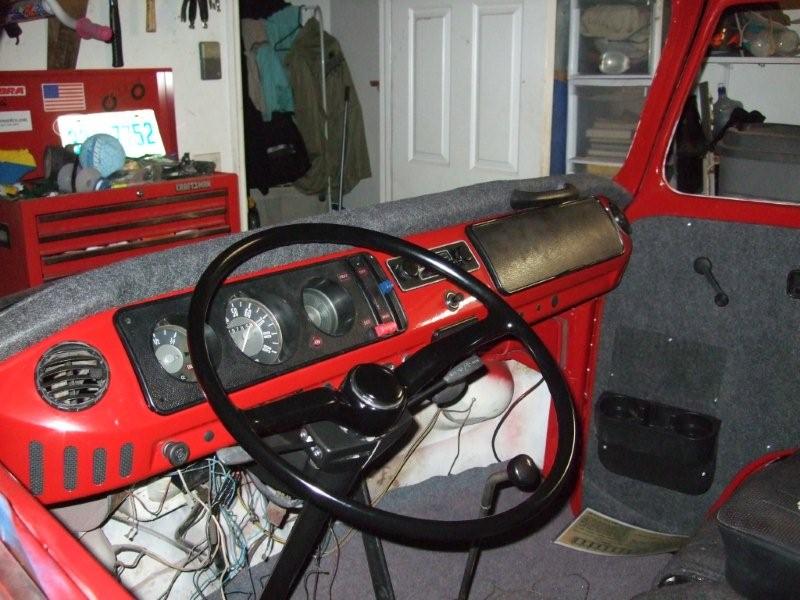

in the westy:
in the deluxe (mono blaupunkt):
_________________
"please, excuse my bad English...."
69 CLIPPER-L
74 WESTY
68 BUG
73 THING
NEVER UNDERESTIMATE A BUS! |
|
| Back to top |
|
|
|
