Barndoor Pedal Parts
Page: Previous  1, 2
Forum Index -> Split Bus - Barndoor Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
gr8vw4sale
Samba Member


Joined: September 09, 2007
Posts: 49

gr8vw4sale is offline
PostPosted: Wed Jun 14, 2017 10:28 am    Post subject: Re: Barndoor Pedal Parts Reply with quote
The springs look to be the same between LHD & RHD. If you are not aware, this is a great resource for barndoor part/part numbers:

http://oacdp.org/5054part.html

Look under Main Group 7: Frame, Hand and Foot Lever Systems

They have both right and left depictions for pedals.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
joshbuchan
Samba Member


Joined: April 12, 2007
Posts: 712
Location: victoria bc canada
joshbuchan is offline
PostPosted: Thu Jun 15, 2017 2:30 pm    Post subject: Re: Barndoor Pedal Parts Reply with quote
spit nolan wrote:
If they are the same how much for a set posted to the UK? Smile


ill pm ya as this thread isn't an ad Confused Wink gonna try and have a pile of these made up in next month and will post an ad in classified once have some stock.

first half dozen shipped out Wednesday....thanks for everyones patience Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gatorwyatt
Samba Member


Joined: April 24, 2002
Posts: 1890
Location: Clearwater Fl.
gatorwyatt is offline

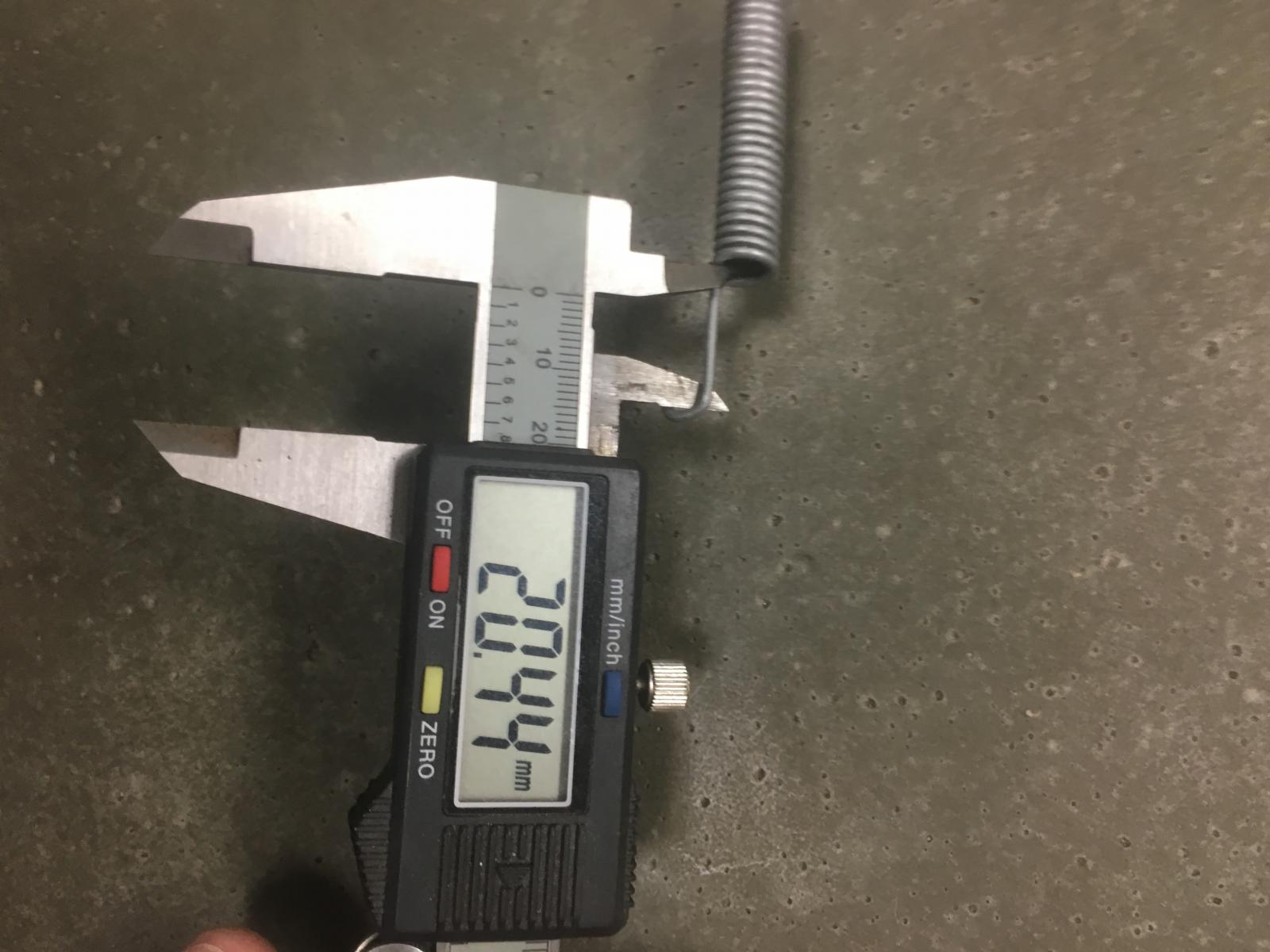

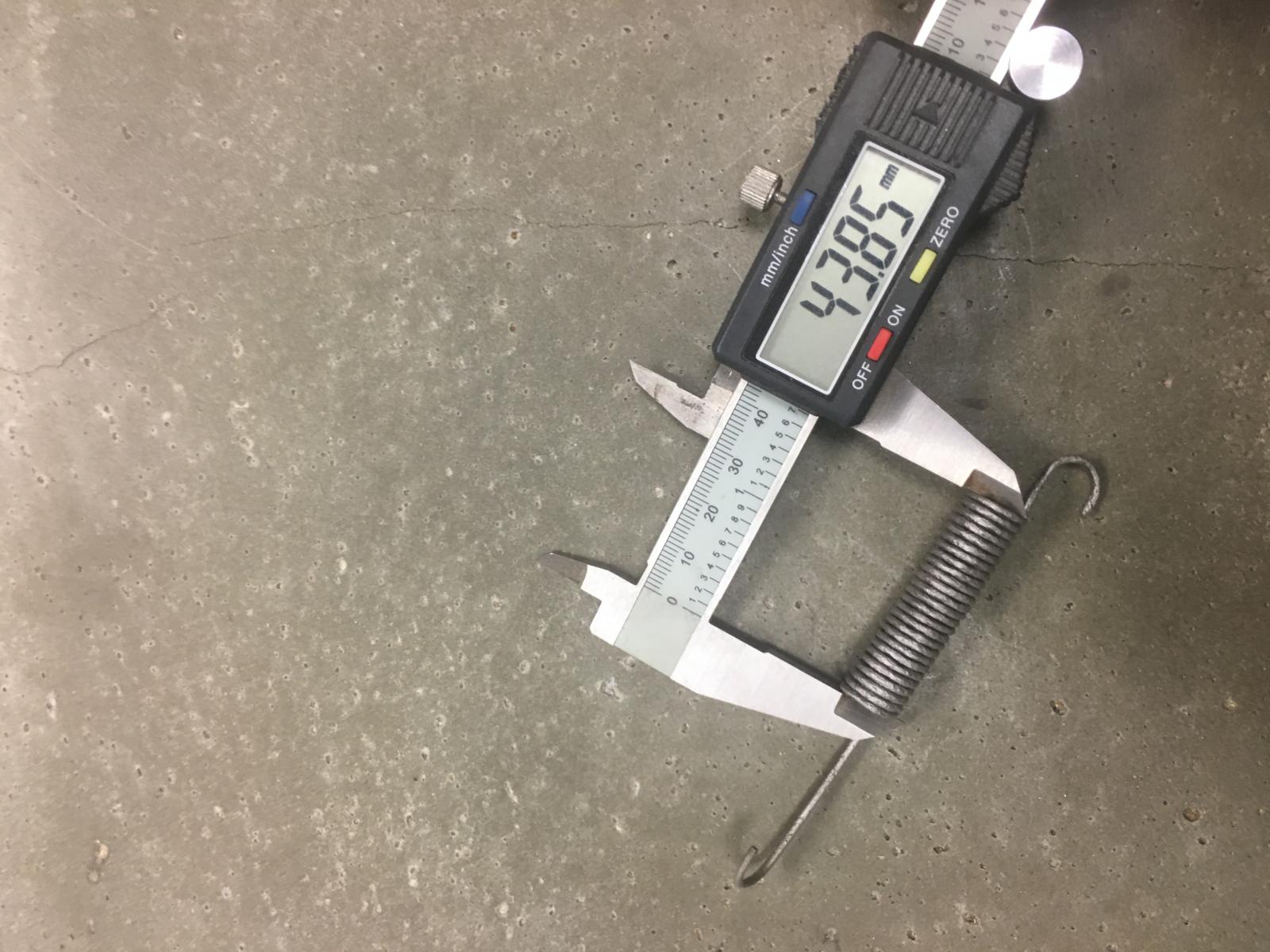

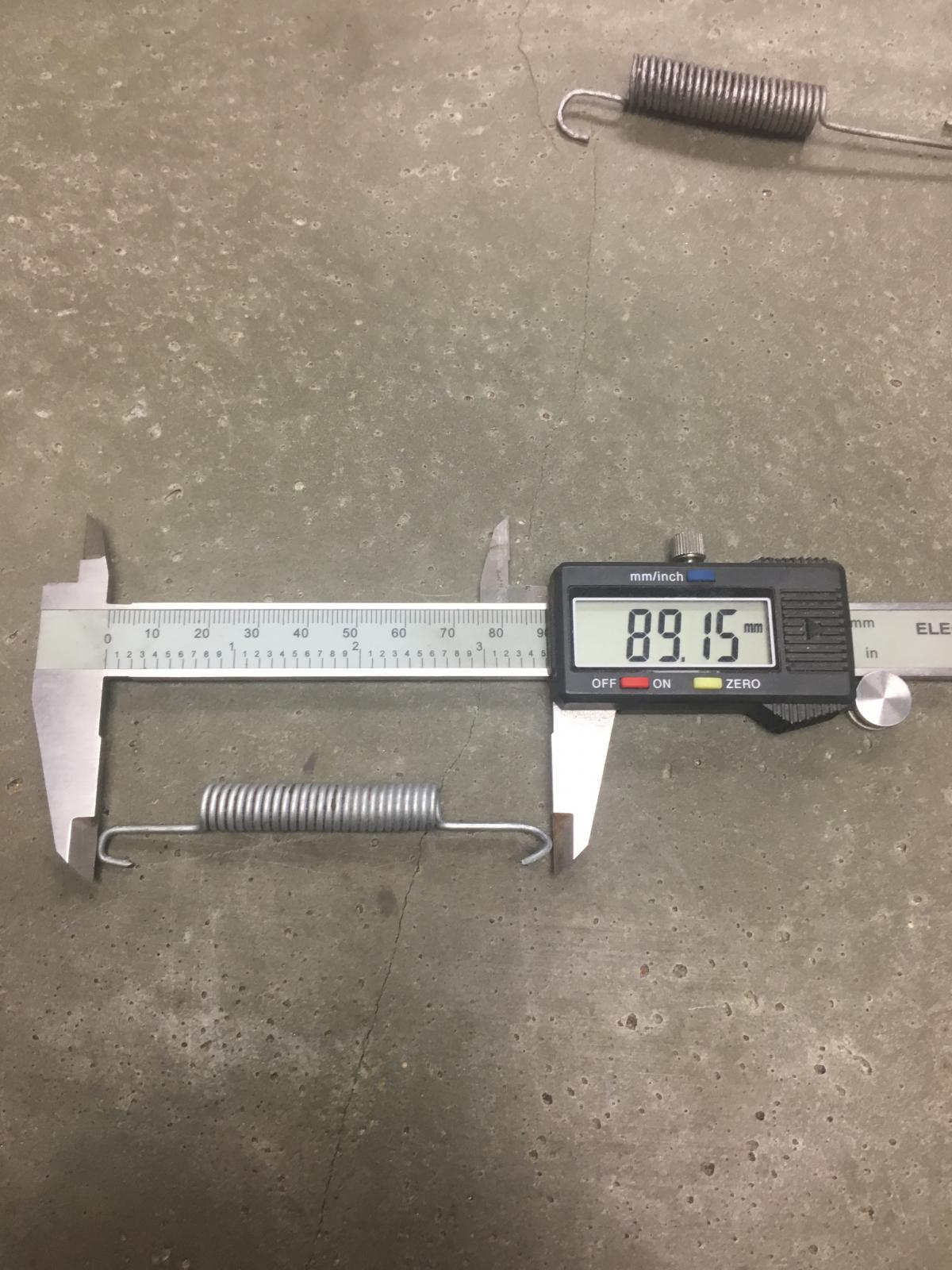

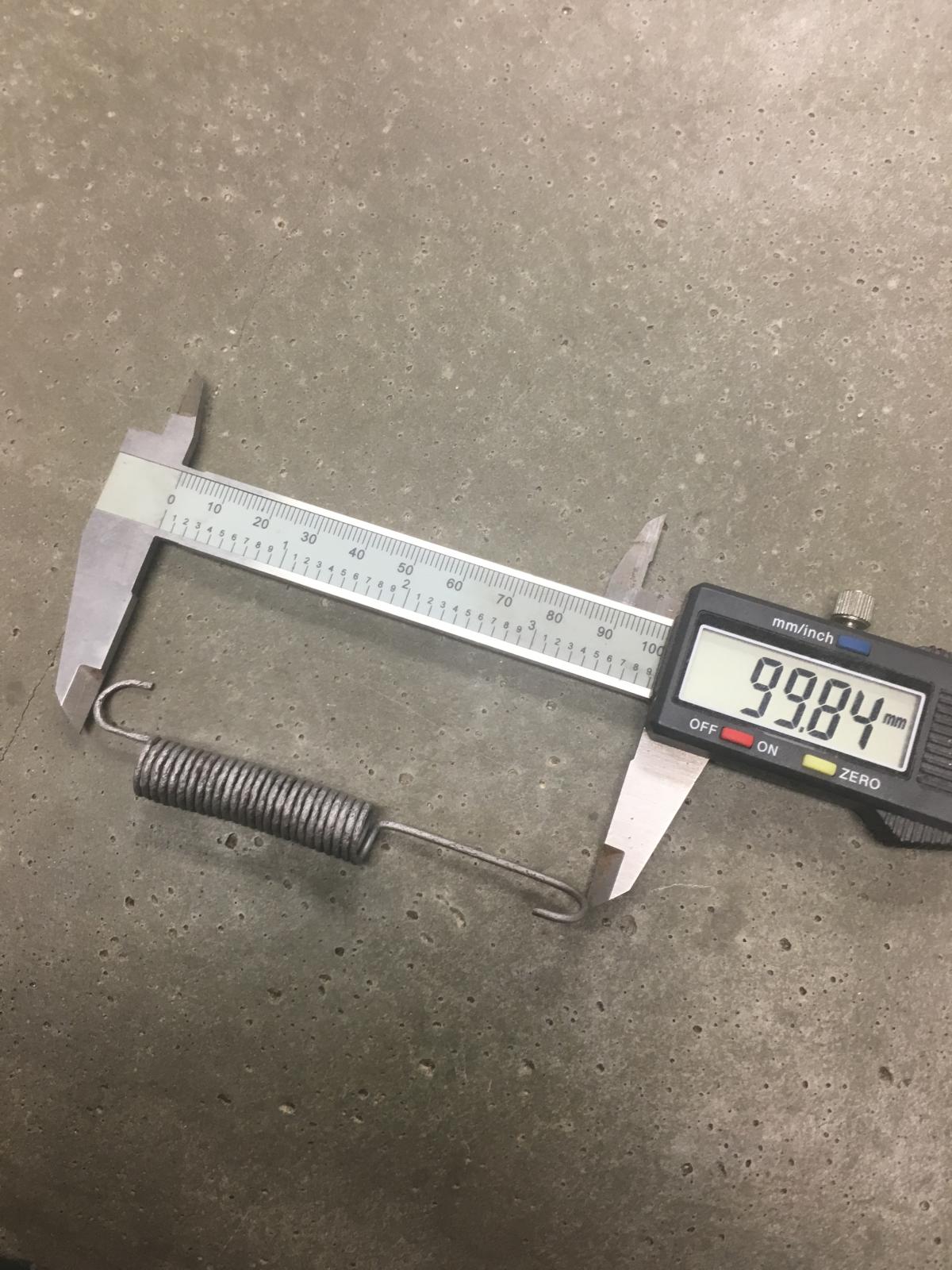

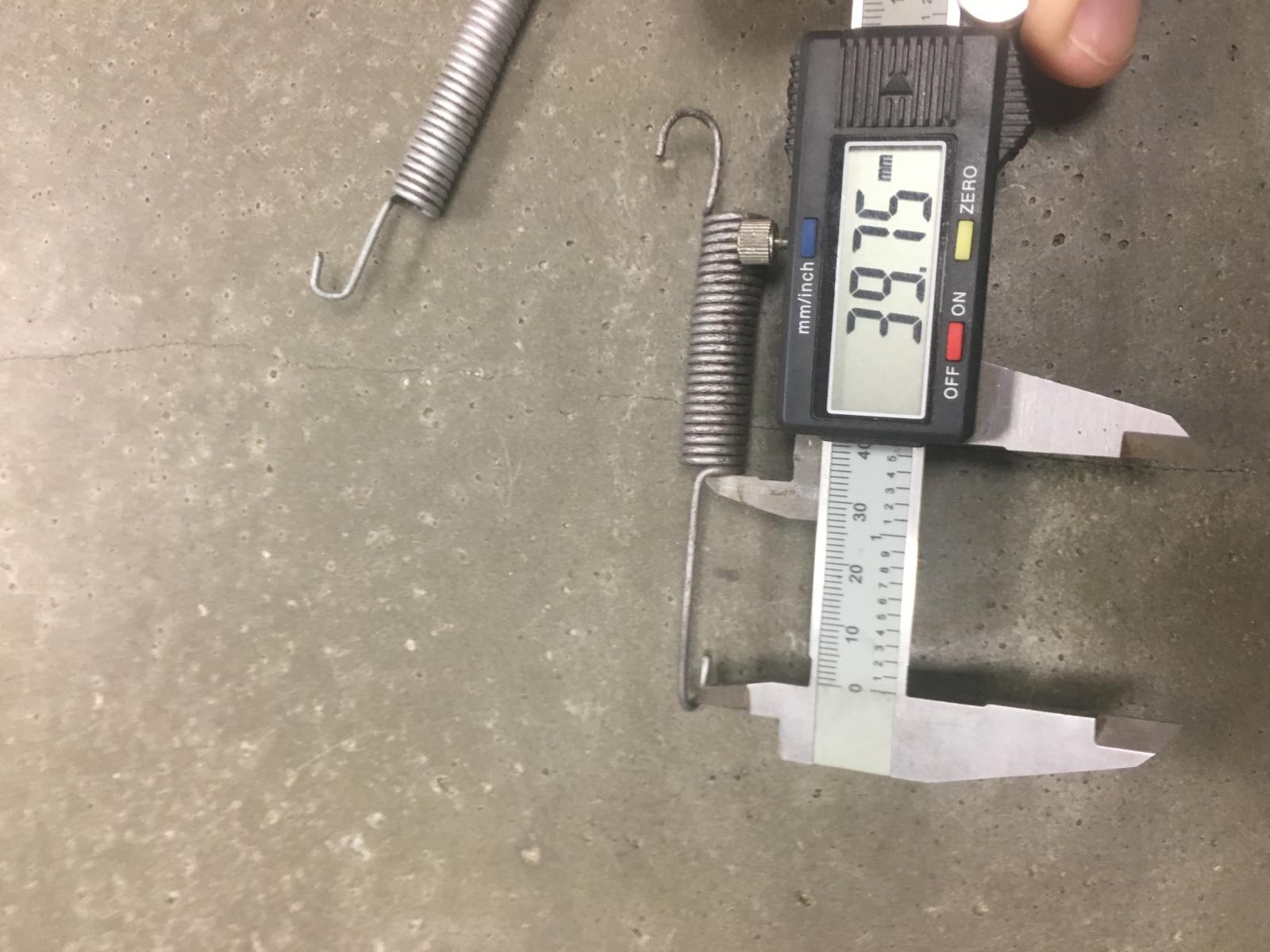

PostPosted: Wed Jun 21, 2017 8:34 am    Post subject: Re: Barndoor Pedal Parts Reply with quote
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

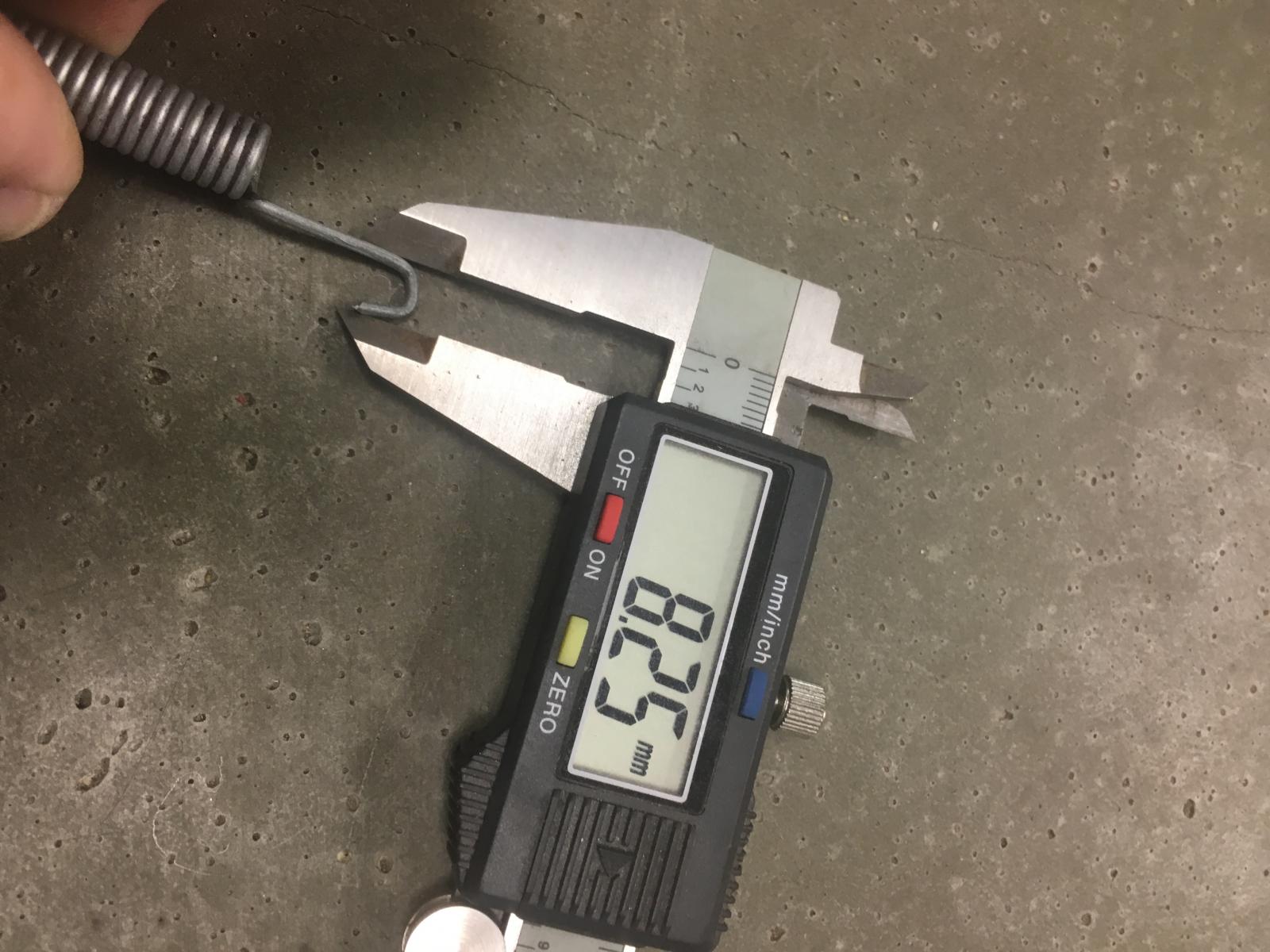

This measurement was the same for both sides
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Showing clocking of bends
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Showing clocking of bends
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
www.blastserv.com

wanted:
Nothing!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
joshbuchan
Samba Member


Joined: April 12, 2007
Posts: 712
Location: victoria bc canada
joshbuchan is offline
PostPosted: Wed Jun 21, 2017 9:43 am    Post subject: Re: Barndoor Pedal Parts Reply with quote
wow nice work man!!! no problem making RHD versions Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jarrod worth
Samba Member


Joined: April 18, 2015
Posts: 6
Location: Victoria bc
Jarrod worth is offline
PostPosted: Wed Jun 28, 2017 11:12 am    Post subject: Re: Barndoor Pedal Parts Reply with quote
Thanks for the info on rhd springs .We are waiting for more spring wire to show up at our supplier , probably a few week delay in production.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Merlin
Samba Member


Joined: August 19, 2004
Posts: 2119
Location: South Africa
Merlin is offline
PostPosted: Wed May 09, 2018 11:33 pm    Post subject: Re: Barndoor Pedal Parts Reply with quote
Any more RHD springs available, please?
_________________
iowegian wrote:
People who are allowed to have signature lines annoy me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Merlin
Samba Member


Joined: August 19, 2004
Posts: 2119
Location: South Africa
Merlin is offline
PostPosted: Sun Nov 03, 2019 7:45 am    Post subject: Re: Barndoor Pedal Parts Reply with quote
Jarrod,

Whatever happened to your manufacturing project? Smile

Thanks.
_________________
iowegian wrote:
People who are allowed to have signature lines annoy me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gatorwyatt
Samba Member


Joined: April 24, 2002
Posts: 1890
Location: Clearwater Fl.
gatorwyatt is offline
PostPosted: Sun Nov 03, 2019 1:02 pm    Post subject: Re: Barndoor Pedal Parts Reply with quote
I could use a fresh set as well...
_________________
www.blastserv.com

wanted:
Nothing!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
derRHDmeister
Samba Member


Joined: June 22, 2004
Posts: 570
Location: worldwide
derRHDmeister is offline
PostPosted: Tue Jan 25, 2022 7:49 am    Post subject: Re: Thanks Reply with quote
PedalWerks wrote:
Please PM me your Shipping address and I will send you a set of bushings for the pedals, no charge, I have just made these in my shop Pedal Werks,

Value $100 plus shipping

Scott

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Hello, I am in search of this barndoor clutch pedal bushing, do you still sell them? I was unable to find them on in your ads. #52 on the VW diagram,2nd pic on your post. Thanks
_________________
Ask not what your bus can do for you, but ask what you can do for your bus.

unclespanky wrote:
Piercy could dip those wheel cylinders between his cheek and gums and spit them out rebuilt.


Check us out on Instagram:
@DeafVolks
@BarndoorBuggy
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
sgellis
Samba Member


Joined: July 06, 2016
Posts: 2221
Location: SW Nova Scotia, Canada
sgellis is offline
PostPosted: Thu Dec 28, 2023 10:00 am    Post subject: Re: Barndoor Pedal Parts Reply with quote

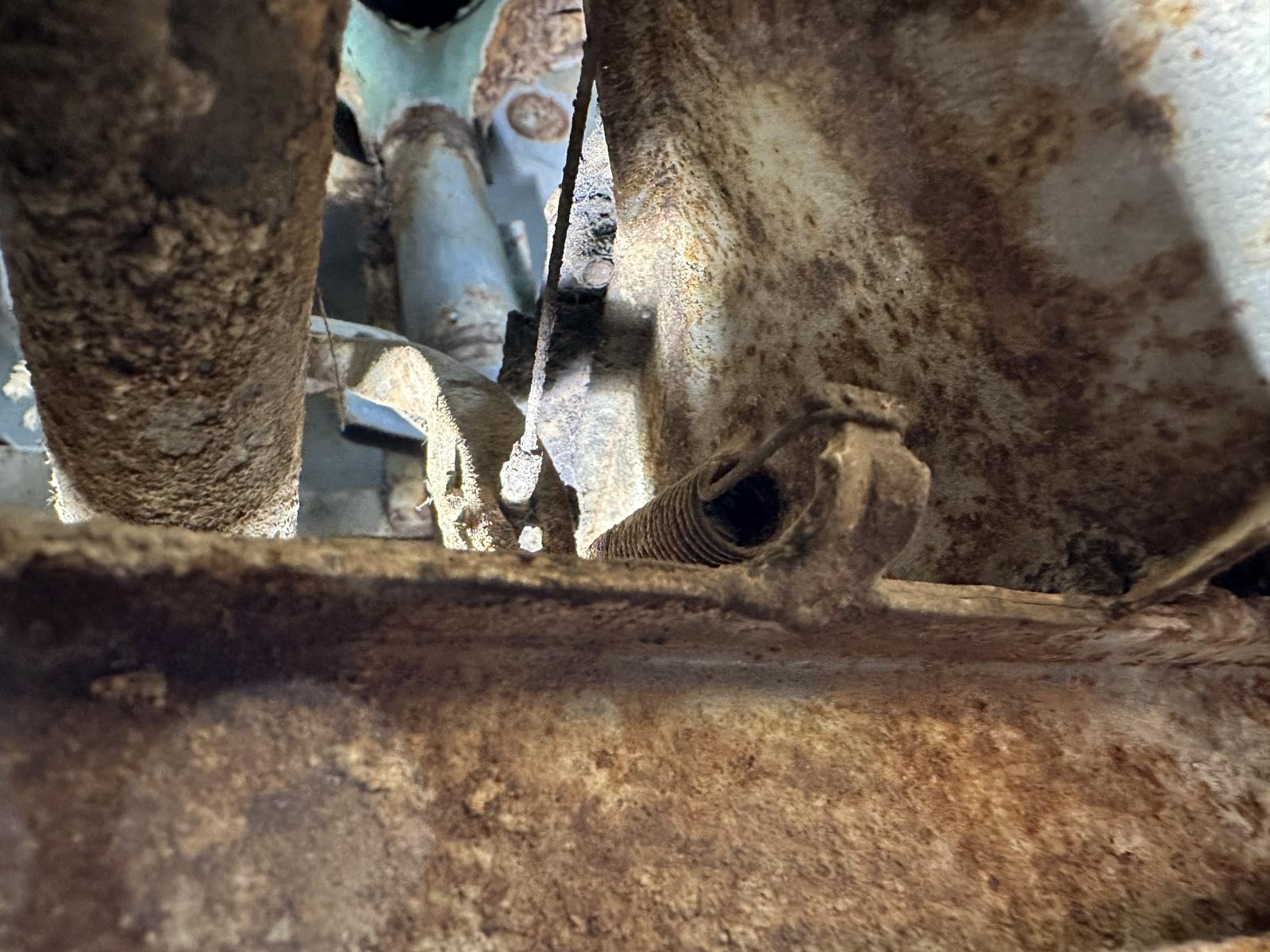

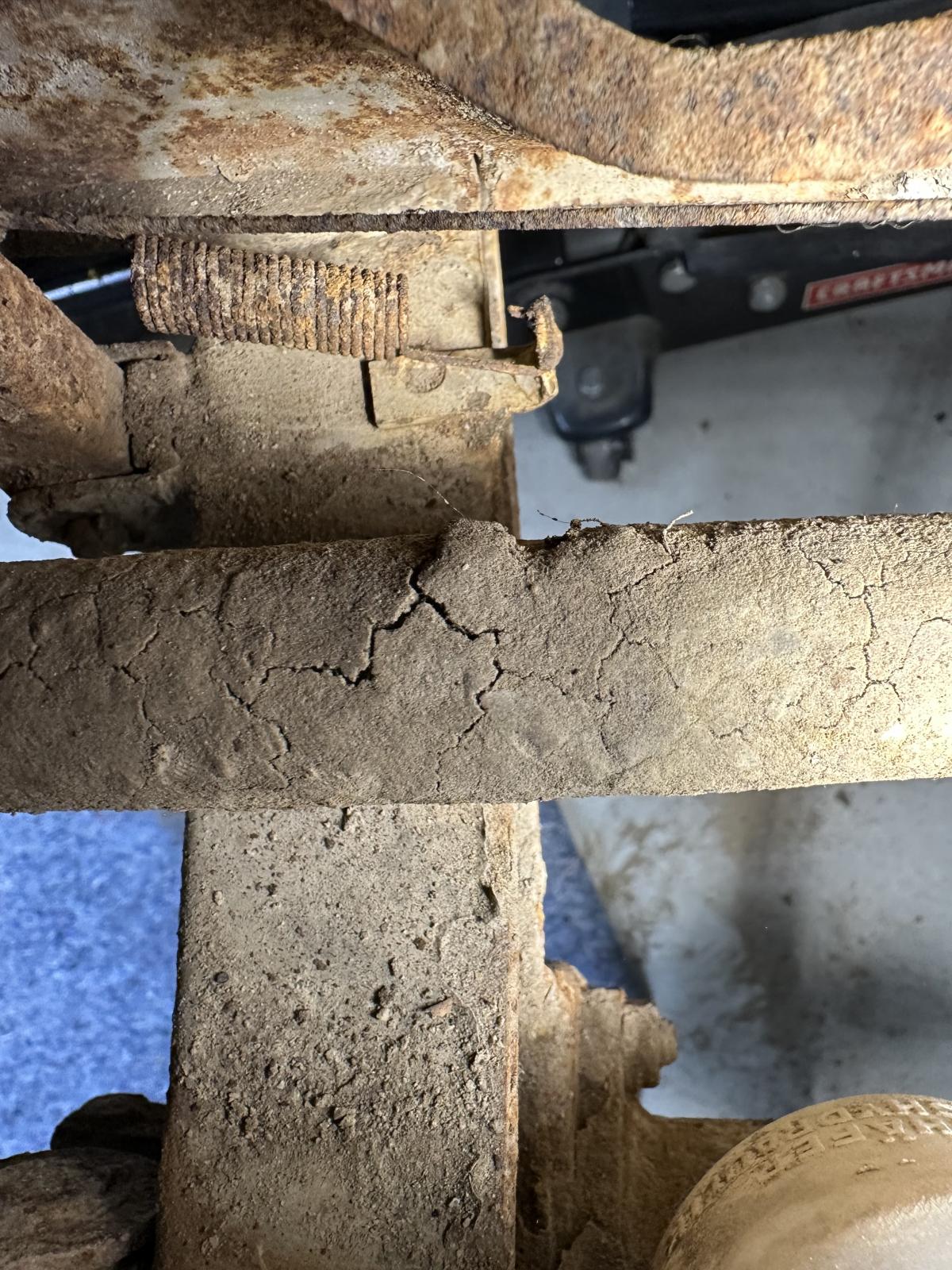

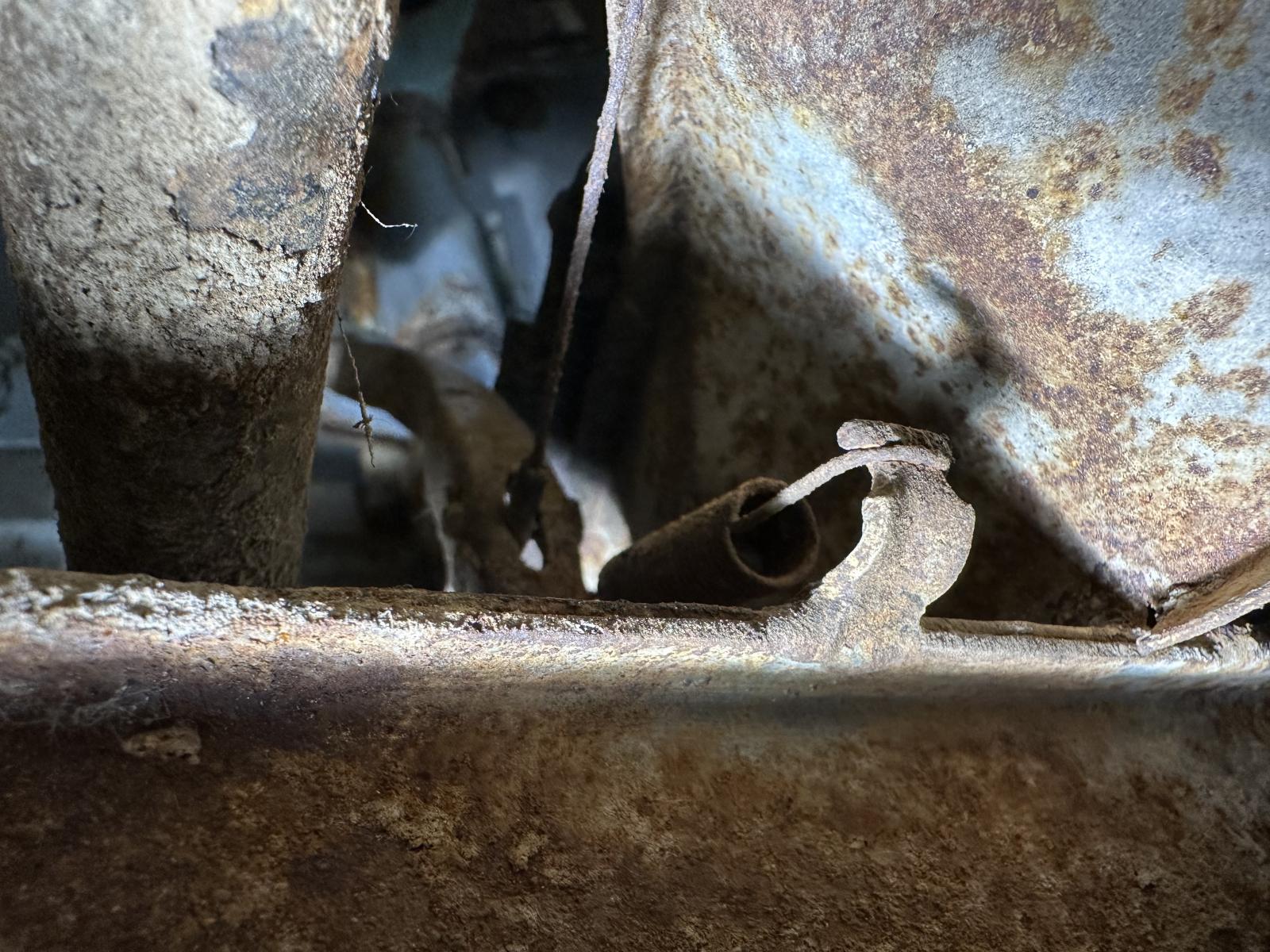

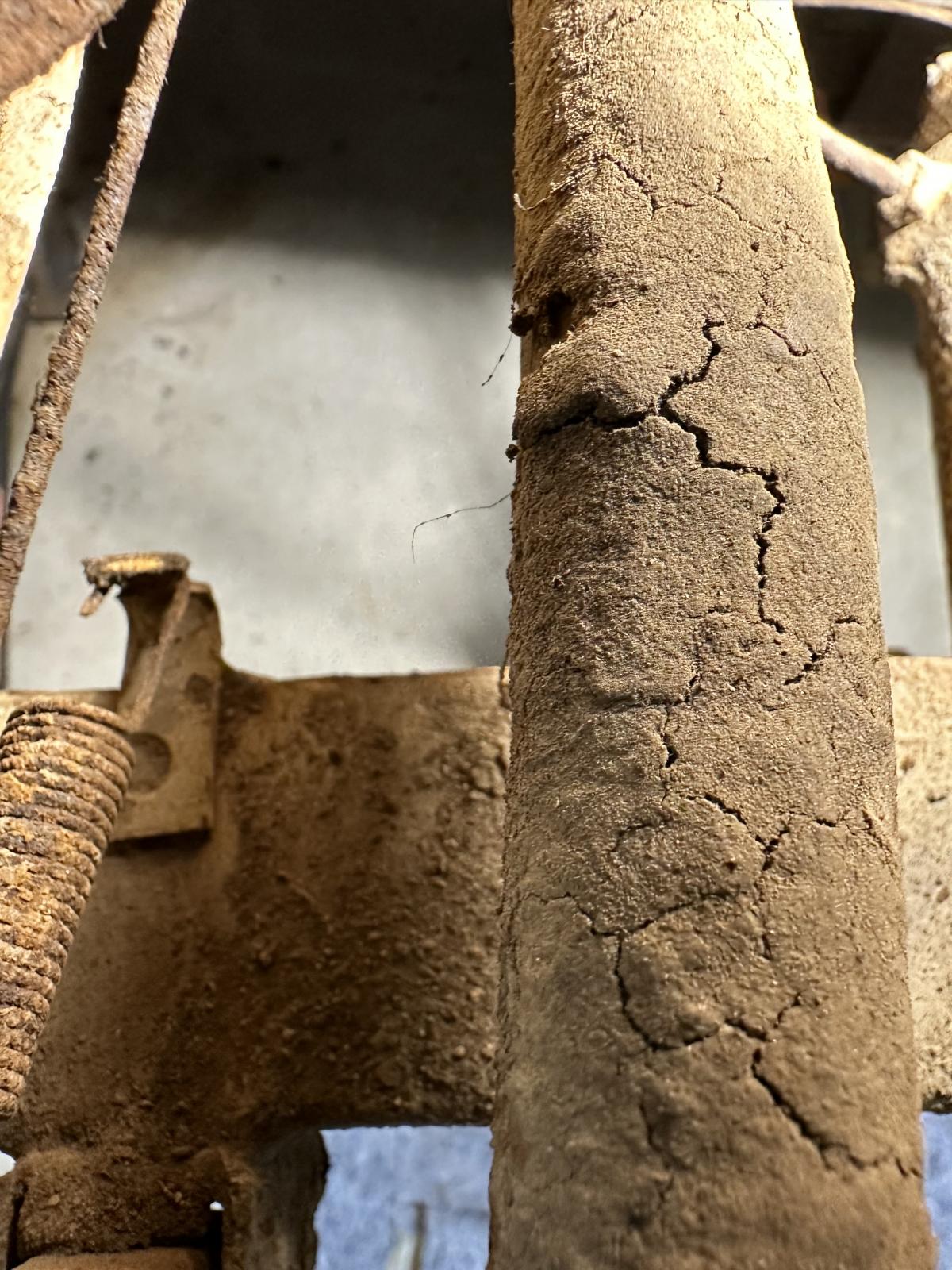

Anyone have a good photo of the brake pedal spring bracket? (Edit: make that accelerator pedal) I assumed the one on my 54 was just a 90 bend. After looking closer to what I thought was just rust damage I think there was a gusset pressed into it. Also was the weld at the edge normal or was this a repair?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 534

myklsmyth is offline
PostPosted: Fri Dec 29, 2023 5:36 pm    Post subject: Re: Barndoor Pedal Parts Reply with quote
Looks to me like you have it correct. Here are some photos of mine. They are also in the gallery if that view is larger or better. I tried to shoot a couple angles and in different lighting. Hope that helps.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sgellis
Samba Member


Joined: July 06, 2016
Posts: 2221
Location: SW Nova Scotia, Canada
sgellis is offline
PostPosted: Sat Dec 30, 2023 12:53 pm    Post subject: Re: Barndoor Pedal Parts Reply with quote
Perfect.
Thanks!
_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
