Osku's Vans

[Osku]

I wonder what the part number for that bracket is on the pipe as it is definitively not the same I got from VW in Finland.

[Osku]

This bracket is interesting do some one know more?

[Osku]

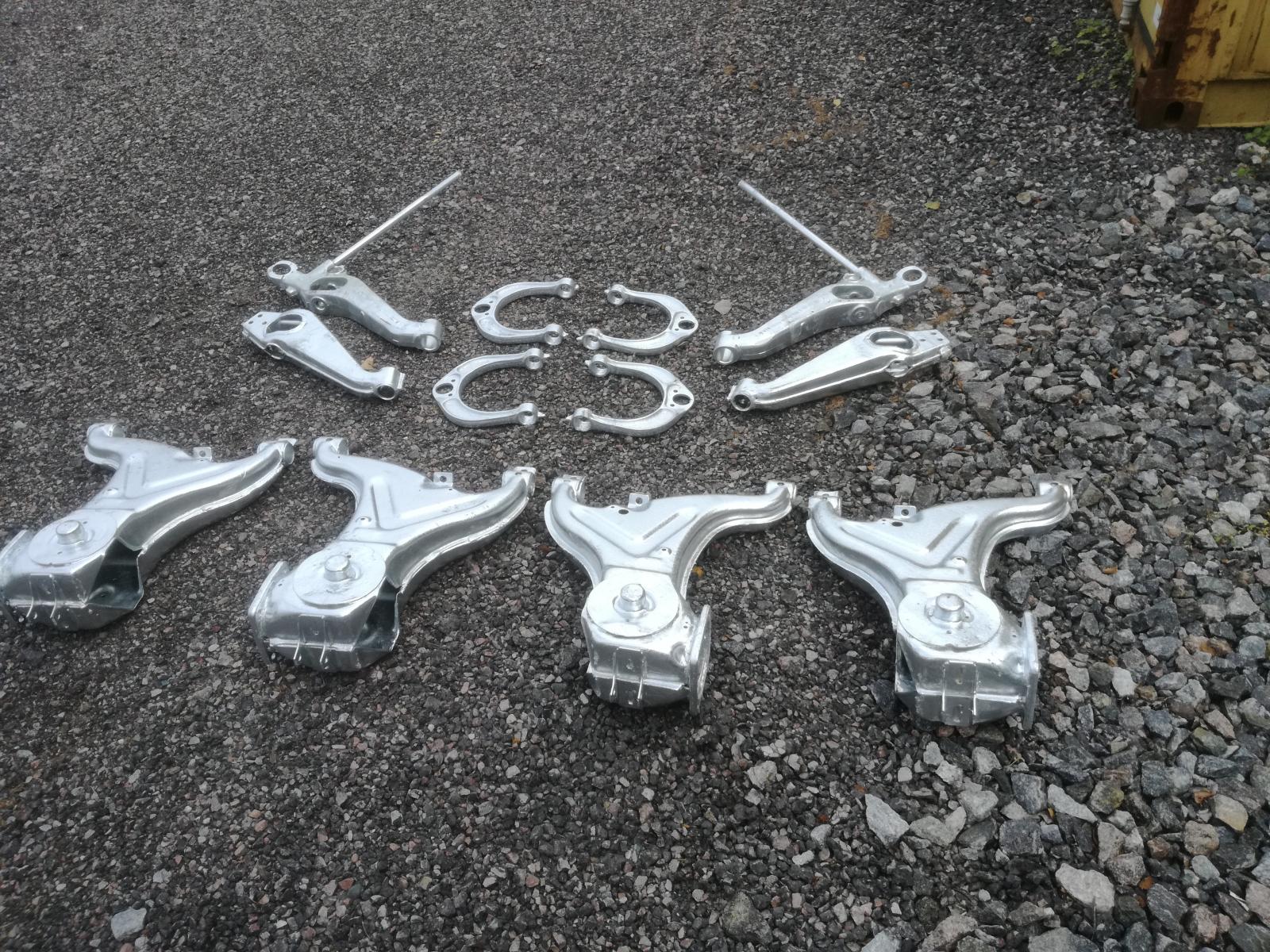

When I Built my AHL TDi syncro I zink dipped the suspension and subframe components. a few pictures of that proses with the parys first sandblasted and then welded where problems arose and then dipoed in melted zink. Well I made two sets back then and today I started to put togather the other set for my Restoration project (The TDi was more of a restomod) where this pipe O have been asking for is also going.

[Osku]

This was the slightly faulty subframe as there had obviously been some shit in the pipes wich boiled out so I have to fix that small misshap, thats the stains on the subframe. The rest of the component are luckily perfect.

p.s. I still am interested in more info and pictures from that charge air cooler pipe.
_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

Today I got the Oetinger charge pipe back from the welder, Usualy I do weld my self but thin aluminium and orginal oetinger part I thought I out source this one. Now its whole again, just need to grind the welds down, the only weld the welder grinded was the one with an actual he the filled deep scraches he left for me.

_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[beach_creature]

Cool project! How did the Hot Dipping of the rear control arms work out? I’ve been thinking of getting this done. How did you protect the threads while you did this? Or did you re-tap them afterwards? Any issues with extra material on the mating surface to the rear wheel bearing housing?

Thanks.
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD

[Osku]

I did not protect the tread in any way but opened them afterwards with taps.
No problems with the extra material, but obviously bearing surrace component where not hot dipped. Busching surfases is quickly rounded of with the sandpaper flap and good was l, rubber givs away. in the front I took it of a bit more as the upper control arms had metal frame buschings. Zink is slippery so it alows for slightly tighter fit so some can be left on the surface.
_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

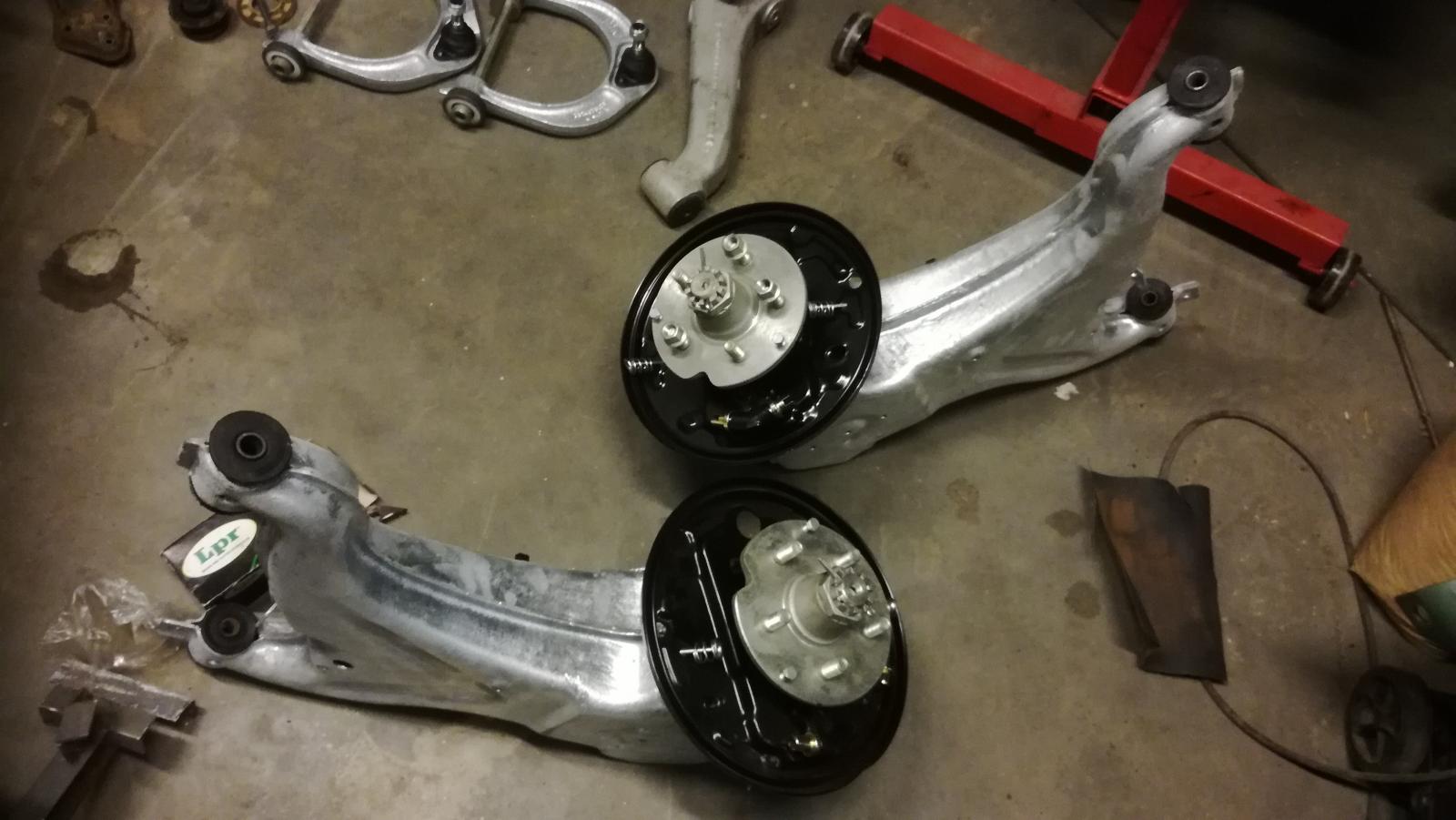

The Bearing housings them self where electro sink plated and then painted. The same threatment was given to the fron upright, as it was a bearing surface. The bearing surface it self was not painted but left on raw electrosink plating and that was just fine. If one would want to zink dip them one would have to re-mill them and even then it might be questionable do you hit the old hole spot on.
_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

The company that did the zink dipping said one could also get the sing of the outer threads with heating them with a torch, I did not do this but I gues it could work too. I used the Tap as mentioned.
_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

I ask it here also even that I know not many where sent to the US but there is also non Amis her so they might know. And the question is did the Oetinger intercooler and intercooler piping come from the factory in different shades of blue as mine are? Just would like to pain them as the once was.

_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Zeitgeist 13]

I'd love to hear more about these Oettinger JX kits. Were they accompanied with instructions for adjusting the pump for more fuel under boost?
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?

[beach_creature]

Found this

http://vwbus.no/forum/viewtopic.php?f=4&t=26182
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD

[Osku]

So is that color the same or different on that picture??
The rubber hose should be black in every case as the thing with coloful hoses came a bit later than this Oetingerset.
And to the question about the kit yes they did come with isnstructions for the pump and dump.
I actually have the whole manual it can be ordered still today for som 20€ from them directly that is what I did. Sadly the pictures are black and white old photocopy style so they do not help me.
_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Zeitgeist 13]

That blue hose is an aftermarket silicone version, which is superior to rubber, but not original.
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?

[Osku]

Yes it is, but is the metal pipe and IC the same color or not is the question I can't determine from the picture as the lighting is slightly different on both parts. What do you think?
_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

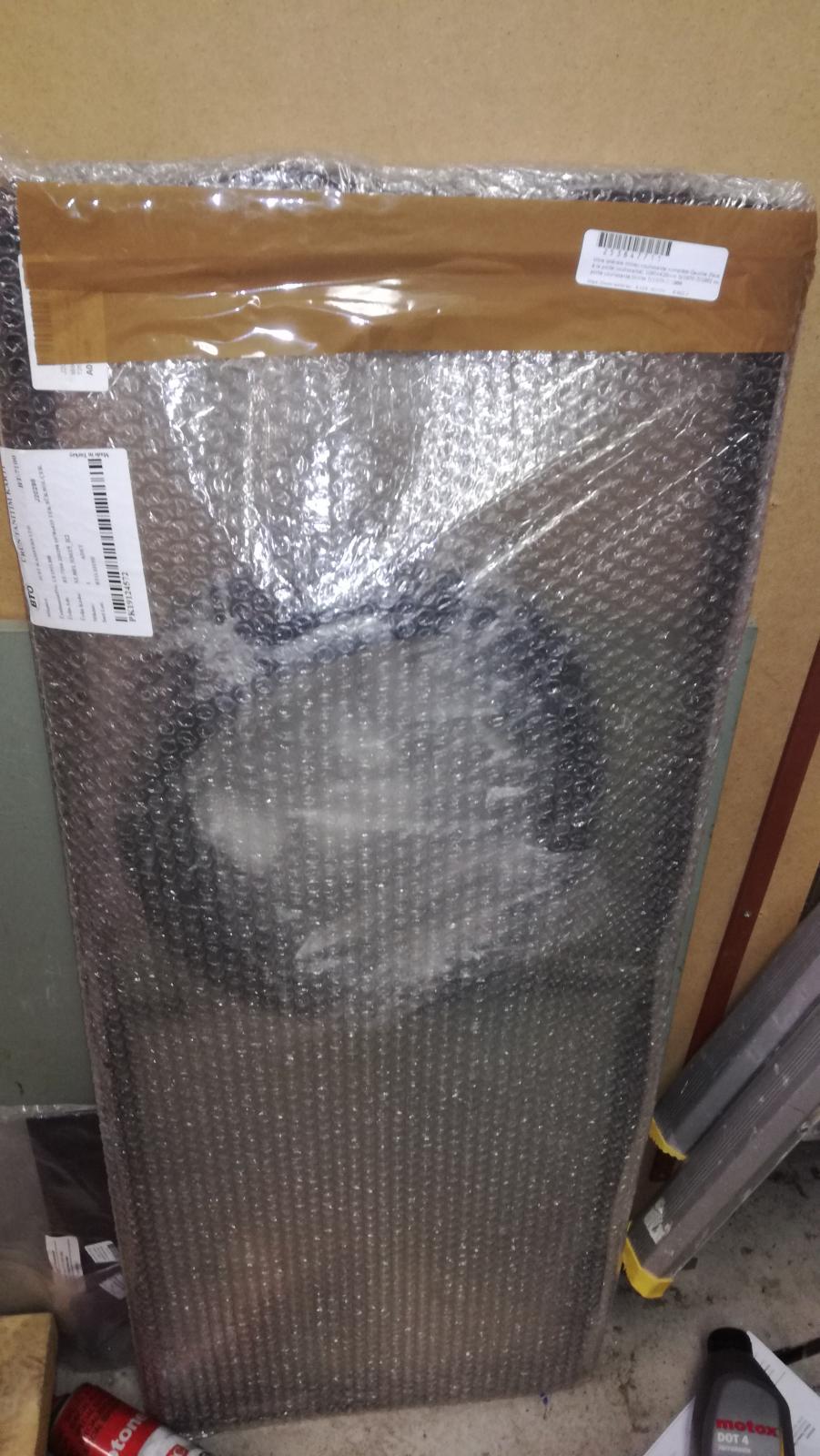

I got some part for all but one of my Vans today.
The Spliti got some new Safari windows for both front and back and some details for the door locks
The Oetinger 1.6TD Syncro got some new front grills
The AHL Syncro got also the grils and a Sliding center window for the driver side with a Wentilation grill.

_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

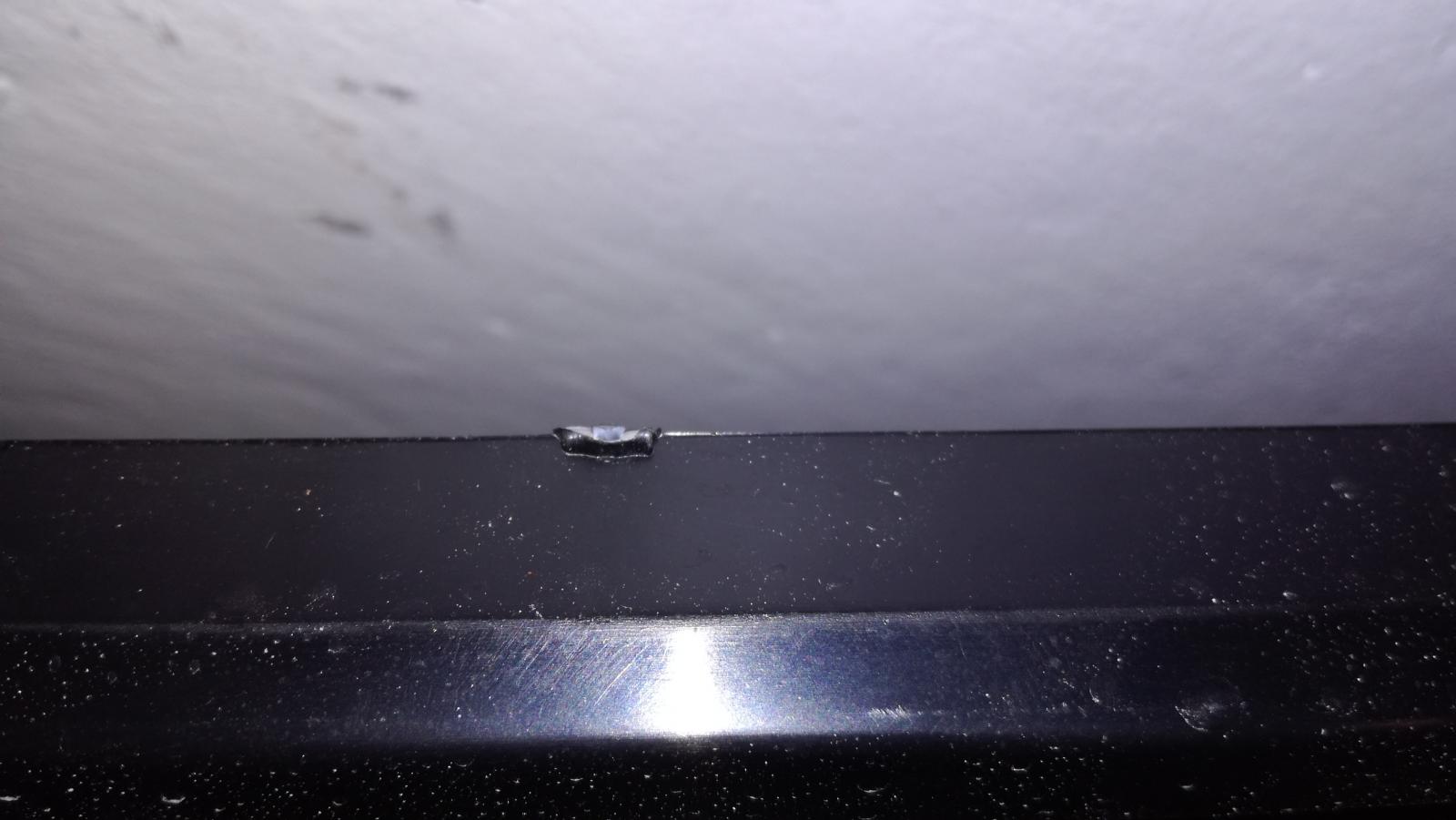

It seems like the lower grils that all the supliers sell for the T3 come orginally from Spain and are of substandard quality. The problem is the injection ports where the plastik is injected in manufacturing are not trimmed nely but rater twisted off. This results in a variyng degree of fault ranging from best case just a white dot to the averag pothole to worst case like in the photo below.
I called several companys in Europe and the all selled the same shit this one came from Serial Kombi.
This aplies only to he lower grill. Theupper grill wich was OEM VW was of superb quality.

_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

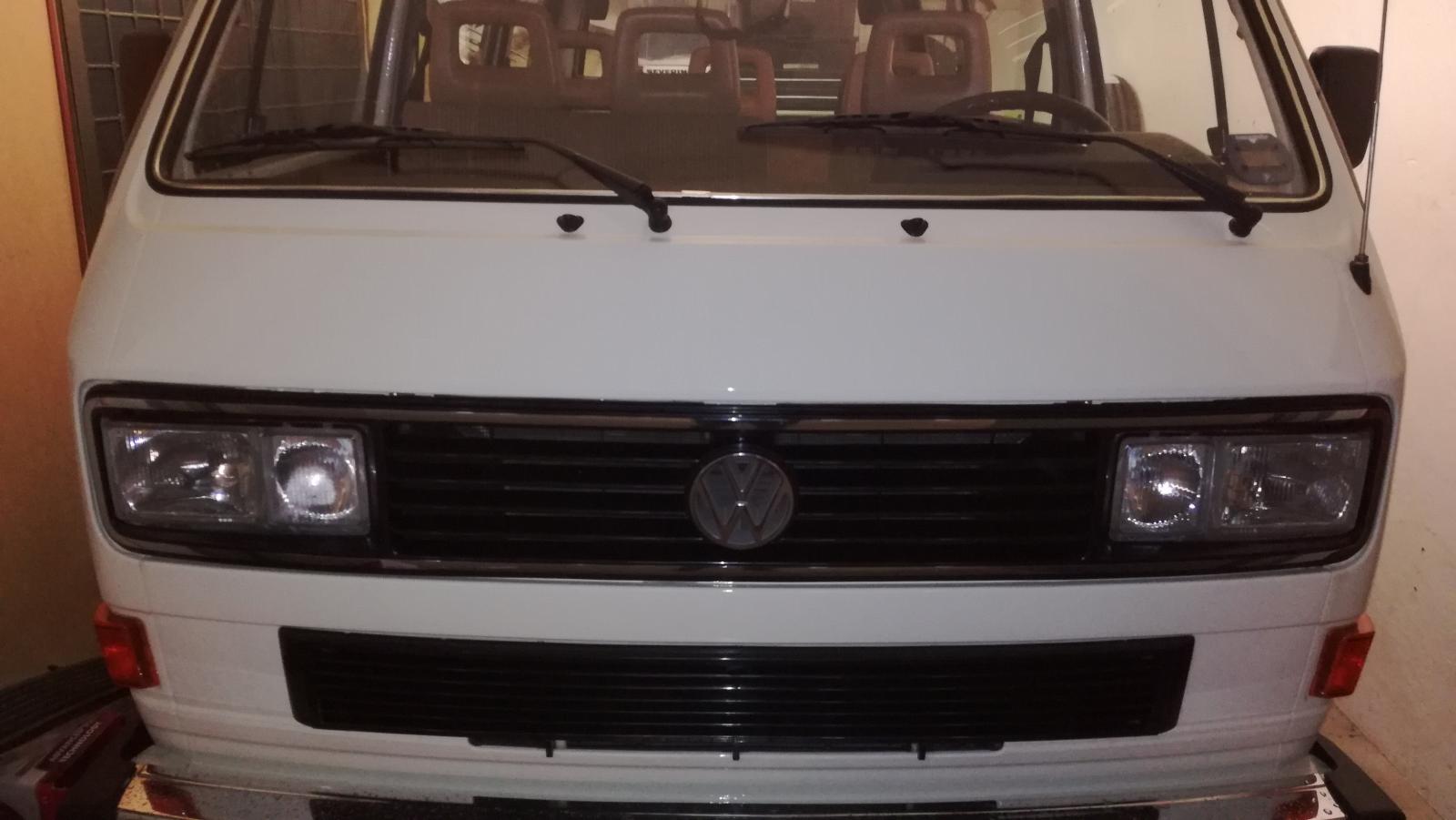

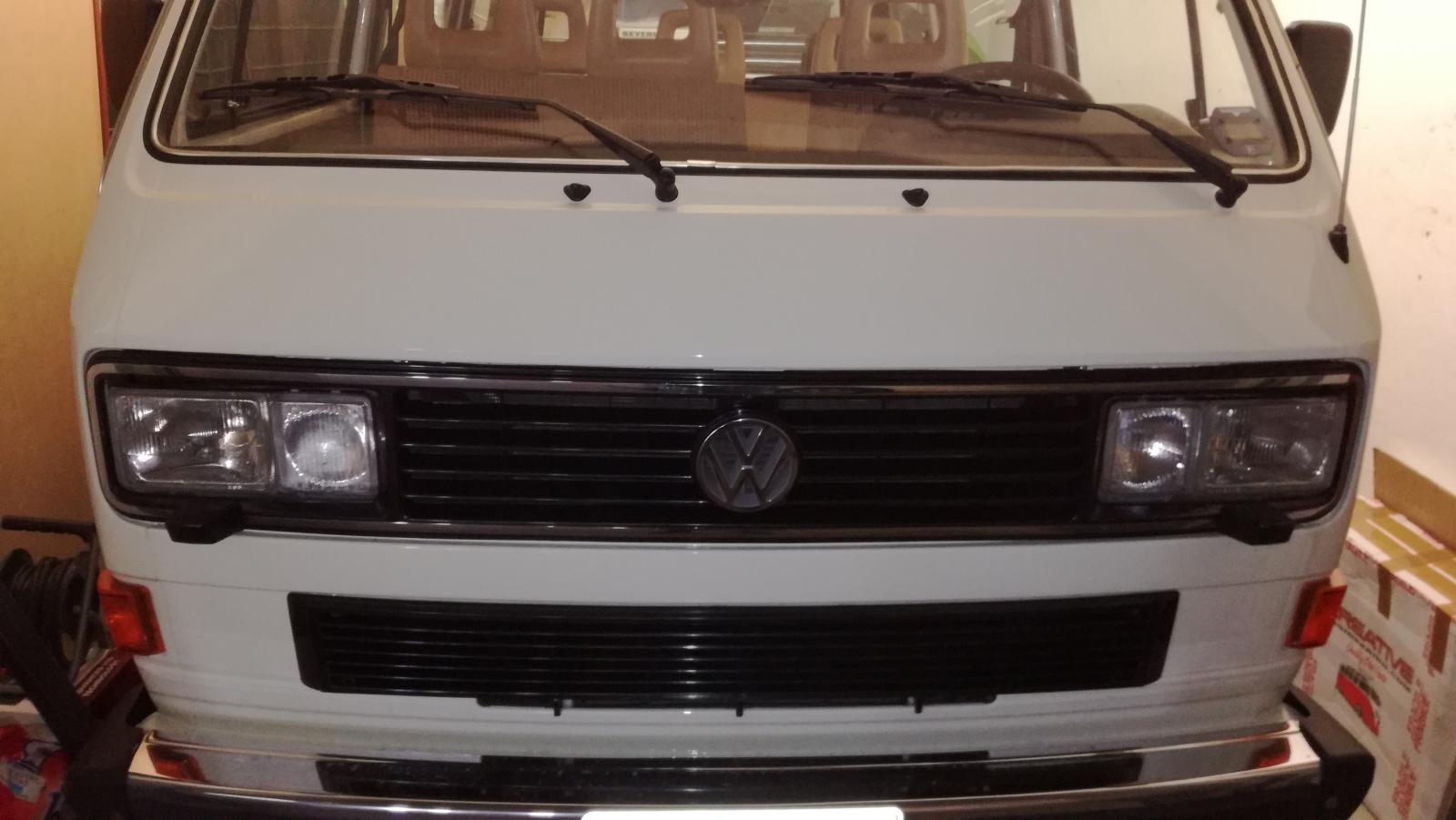

I got the lower grill Touched up today and I also installed the orginal headlight washers.
Yes I know the do nothing but once agin some details that was on the car orginally.

_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

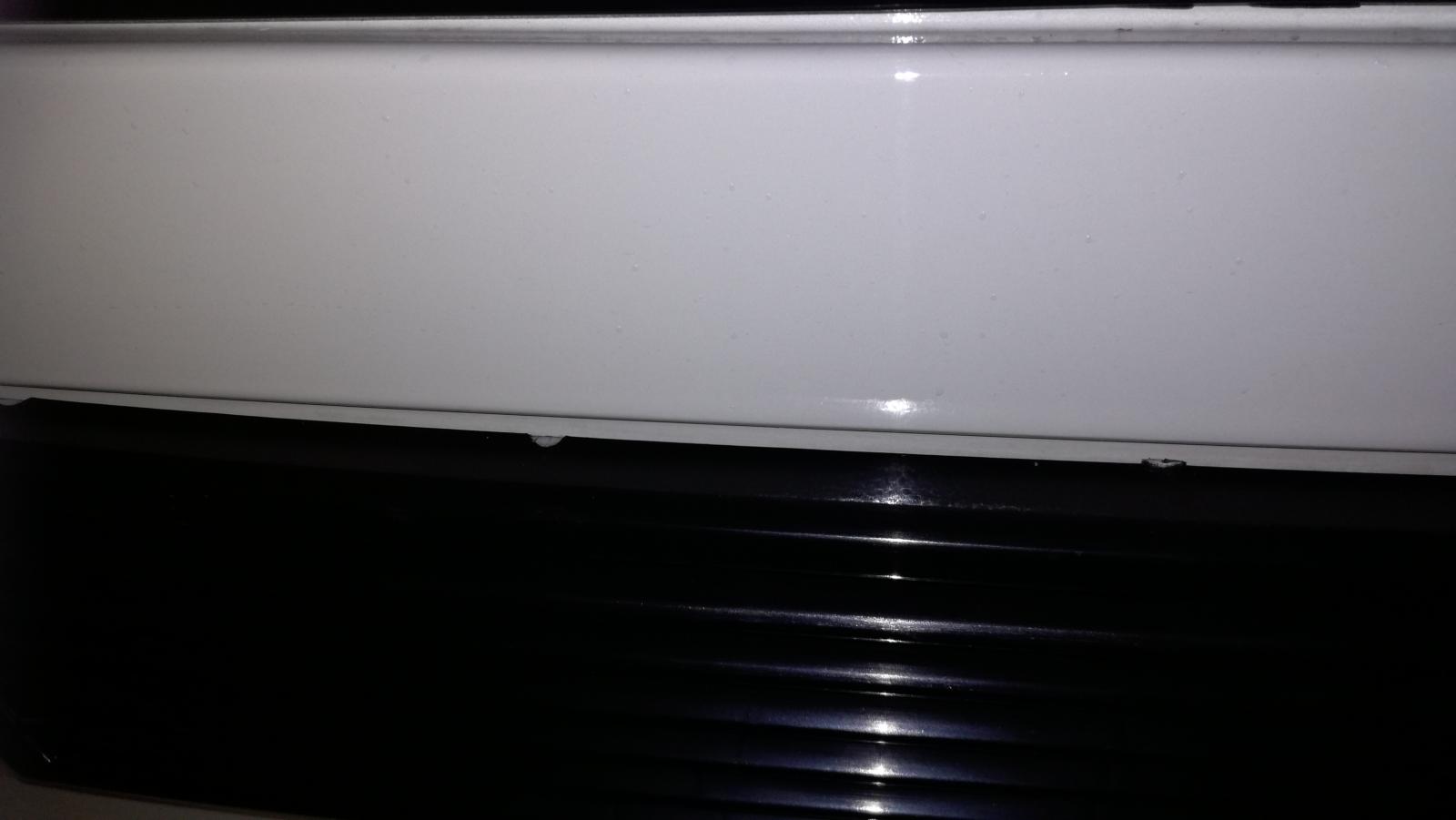

Here is some pictures on the problems on the lower grill before I fixed it.

_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP

[Osku]

I was fixing drive shafts today and got a pair with the orginal yellow outer rubbers recinditioned today. For thohese that do not kbow the yellow or after years of use rather brown colored dust cocer are what the factory orginally put on the front outer drive shafts and the are superior in quality to all later versions. As a testament to that this rubbers has been on one f my cers for atleast 200tkm (might be from new when they would be 350tkm) and no signs of degradation or cracks part from the color change from yellow to rather brown. So if yo se these on your car respect them and do spare them in most case they will out live anything you will put there that s sold today.. So those are definitively going on this museum piece. In general now days the drive shaft rubbers are even wors than they where still a 15 years back as the new enviromental norms have pulled back on the quality.

_________________
65-T1 1500 45HP
87-T3 Syncro 1.6TD JX 69HP
88-T3 Syncro 1.9TDi ALH 150HP
89-T3 Syncro 1.6TD JX Oettinger Intercooler 90HP
