Oh no! Another Vanagon TDI swap

[dieseltdi]

yes just email him or via his Facebook page.
_________________
When a clown moves into a palace he doesn’t become a king, the palace instead becomes a circus. — Turkish proverb

Those who will willingly sacrifice freedom for security, deserve neither.

Currently:
1982 Vanagon Westy TDI conversion with Coast Mt. Hightop - SKYE
2025 Hyundai Ioniq 6 EV
2015 Golf Sportwagen S TDI
Way too many previously owned to list!

[dieseltdi]

About the PD intake, easy to remove and replace when the engine is out of the car and the turbo isn't mounted. MUCH harder to do with engine in the car and with the turbo installed on a flipped AAZ exhaust manifold (puts the turbo nearly on top of the manifold and in the way of the bolts that hold the intake on). Also the ALH engine that you have combines the MAP and IAT into one sensor mounted in or near the intercooler. I would need to have a IAT bung attached to the extension piece of the intake. More money, more time, more effort. My inclination is to go the easy route so I don't have to remove any mechanical parts of the engine. I probably wouldn't notice the tiny increase in power anyway.
_________________
When a clown moves into a palace he doesn’t become a king, the palace instead becomes a circus. — Turkish proverb

Those who will willingly sacrifice freedom for security, deserve neither.

Currently:
1982 Vanagon Westy TDI conversion with Coast Mt. Hightop - SKYE
2025 Hyundai Ioniq 6 EV
2015 Golf Sportwagen S TDI
Way too many previously owned to list!

[dieseltdi]

Chris, it comes with some basic instructions for testing but you might need to do a search on actually turning on the cruise mine was already programmed for cruise and my harness was already wired for cruise. You also need some sort of VSS to feed the ECU. Hayden
_________________
When a clown moves into a palace he doesn’t become a king, the palace instead becomes a circus. — Turkish proverb

Those who will willingly sacrifice freedom for security, deserve neither.

Currently:
1982 Vanagon Westy TDI conversion with Coast Mt. Hightop - SKYE
2025 Hyundai Ioniq 6 EV
2015 Golf Sportwagen S TDI
Way too many previously owned to list!

[MarkWard]

Different generation ALH, but enabling the cruise was simple using Ross Tech VCDS.

Unrelated, to the TDI owners, have any of you noticed the temp inside the van in the engine cover area after a long day of highway driving?

[dieseltdi]

I insulated the underside of the engine compartment, the engine lid, top and bottom and I have a mat of two layers of automotive carpet with rubber in between, then the westy mattress. This was done mostly for sound but it also doesn’t allow much heat to come through. I imagine that the old air cooled engines produced more heat than a TDI.
_________________
When a clown moves into a palace he doesn’t become a king, the palace instead becomes a circus. — Turkish proverb

Those who will willingly sacrifice freedom for security, deserve neither.

Currently:
1982 Vanagon Westy TDI conversion with Coast Mt. Hightop - SKYE
2025 Hyundai Ioniq 6 EV
2015 Golf Sportwagen S TDI
Way too many previously owned to list!

[MarkWard]

Sounds like you’ve done a lot more. After a day at highway speeds the top of the mattress is warm. I think an air cooled engine by design was better at keeping the heat out of the actual engine compartment. I’ve got some ideas to maybe improve it. Was just curious if anyone else noticed it.

[dieseltdi]

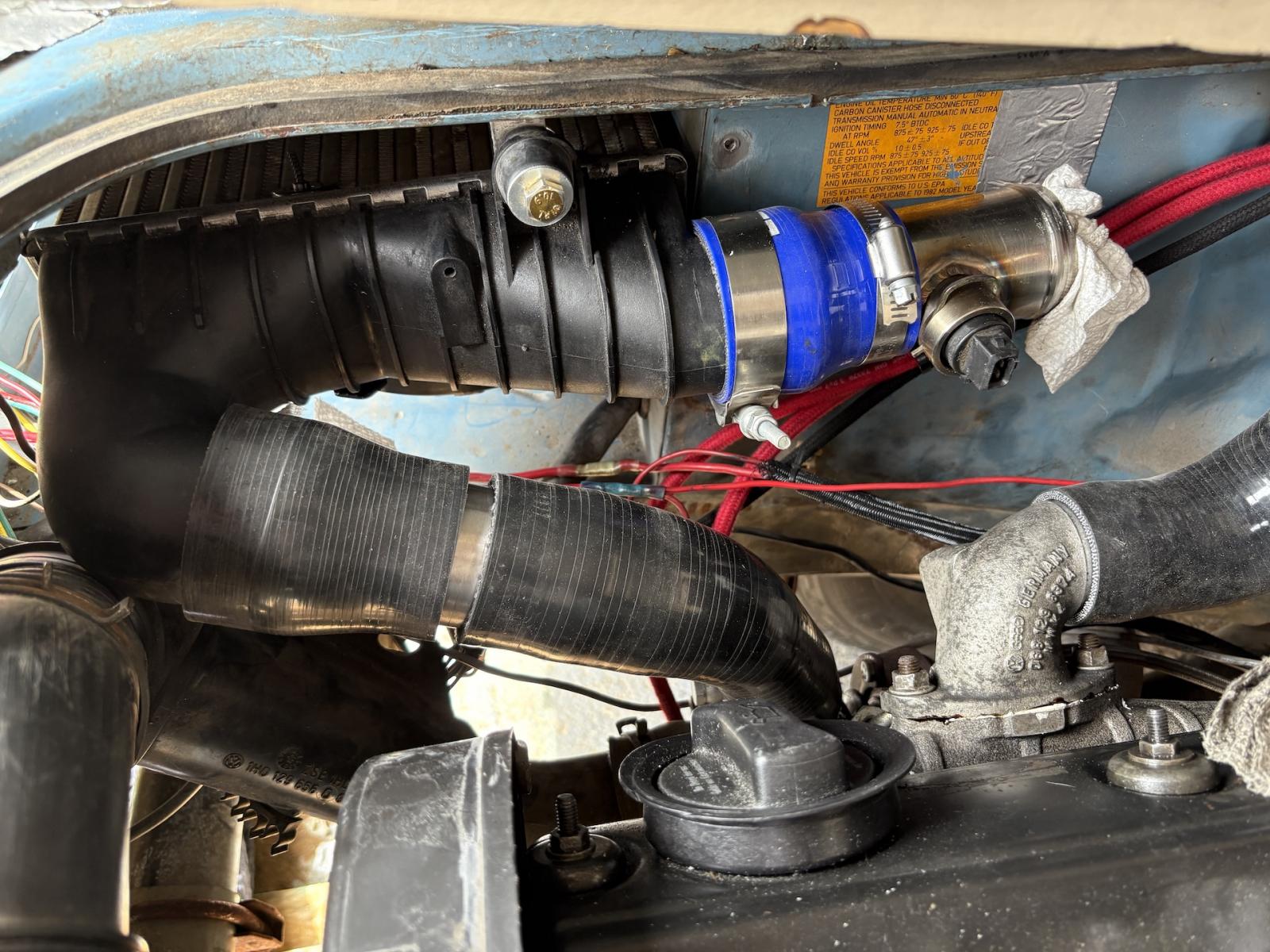

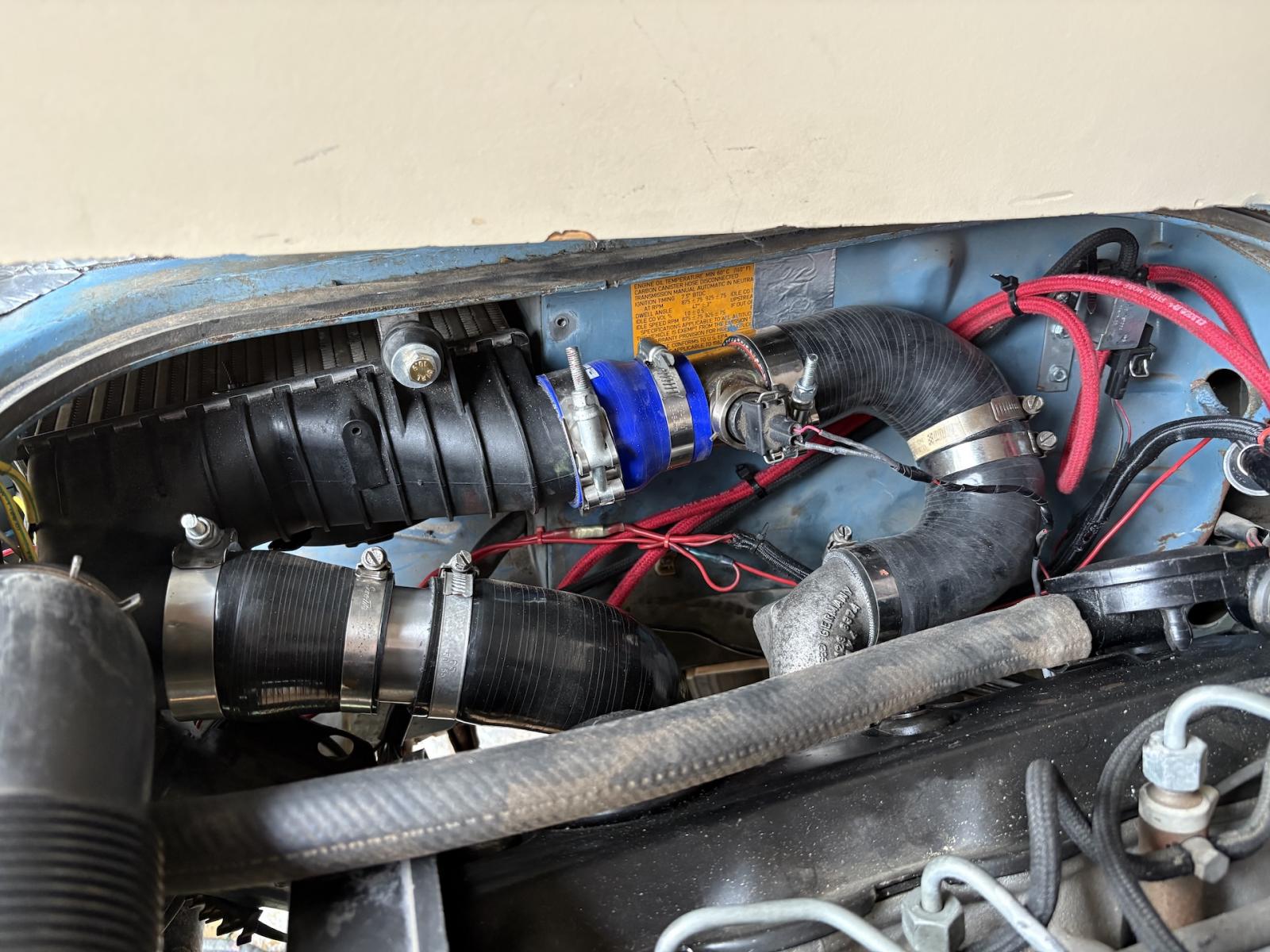

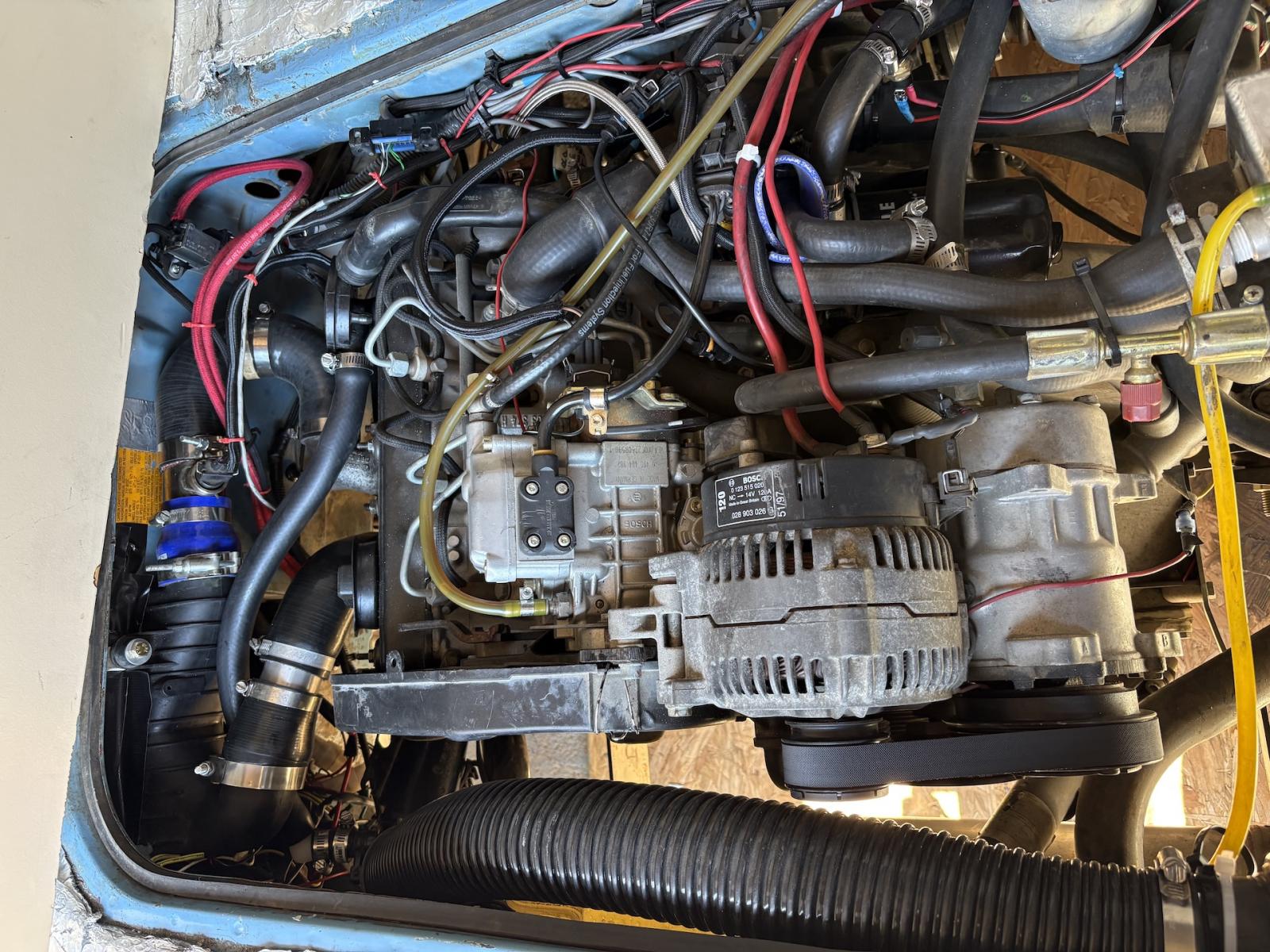

Well after about 2 weeks of a renewed winter here in Texas, including 3 days in the teens with single digit wind chills, it finally warmed up enough to work on my intercooler relocation to the D pillar. I have moved all the boost and vacuum hoses, the N75 and the wiring. And have clearanced for the intercooler in the D pillar. I have mocked it up once but tomorrow I intend to do a mockup actually in the van so I know exactly where the intercooler needs to sit and how much cutting I need to do on my aluminum tubing. But as I was working with the original SAAB intercooler that I had installed (it has a crack and is damaged in other ways so it needed to be replaced) I noticed that there is a huge difference between the two. As you can see from the attached pictures, the old version has 10 rather large air pathways between the tanks with heat distribution fins between. The replacement has 15 pathways with fins in between. I can only think that this will have an effect on the air temperature as it passes through the intercooler! I didn't know that there were differences. Anyway, the other pictures are of the mock up of the intercooler in the van and then the mockup of how everything will be connected. Will see how everything falls into place tomorrow.

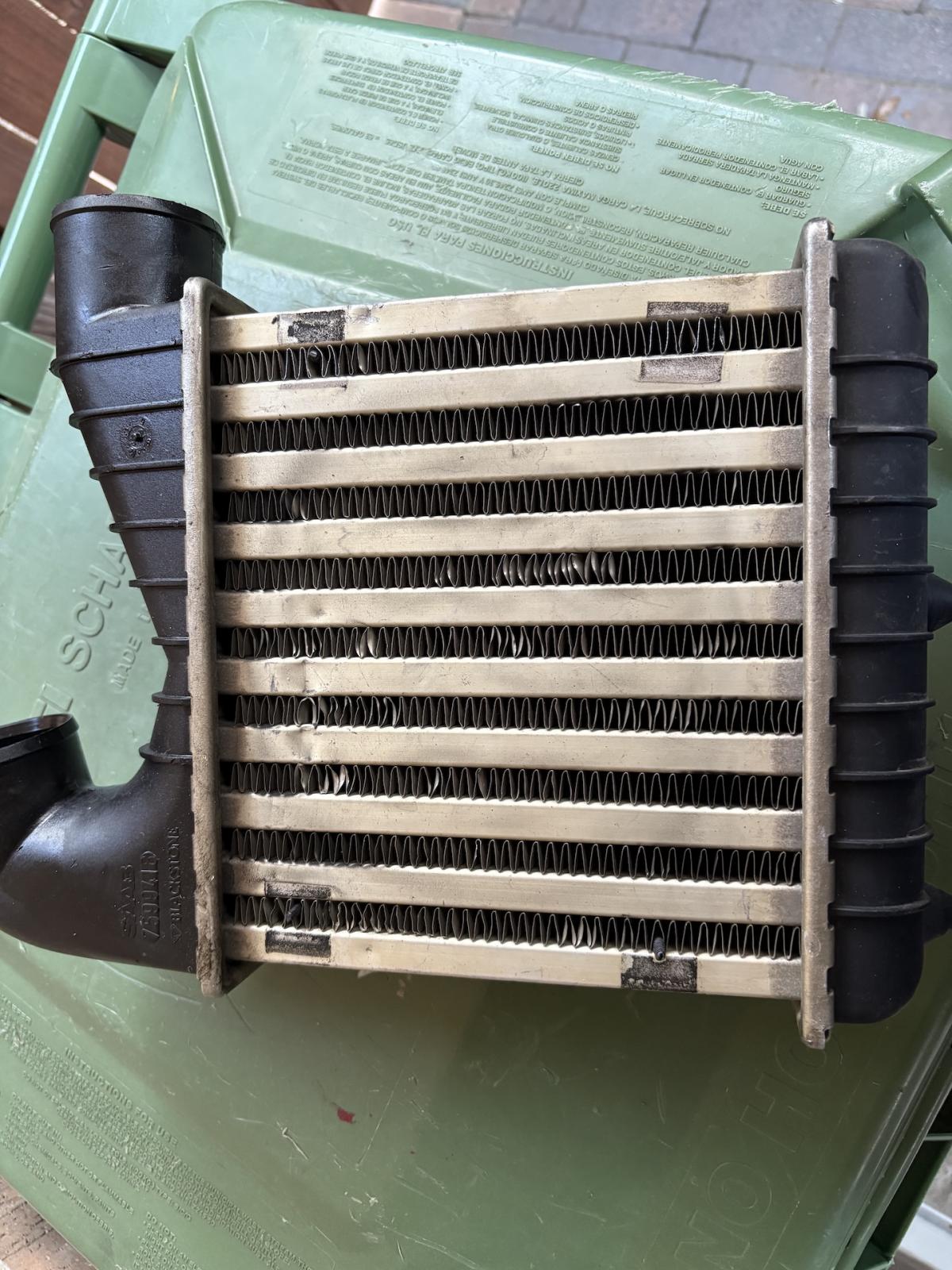

old intercooler

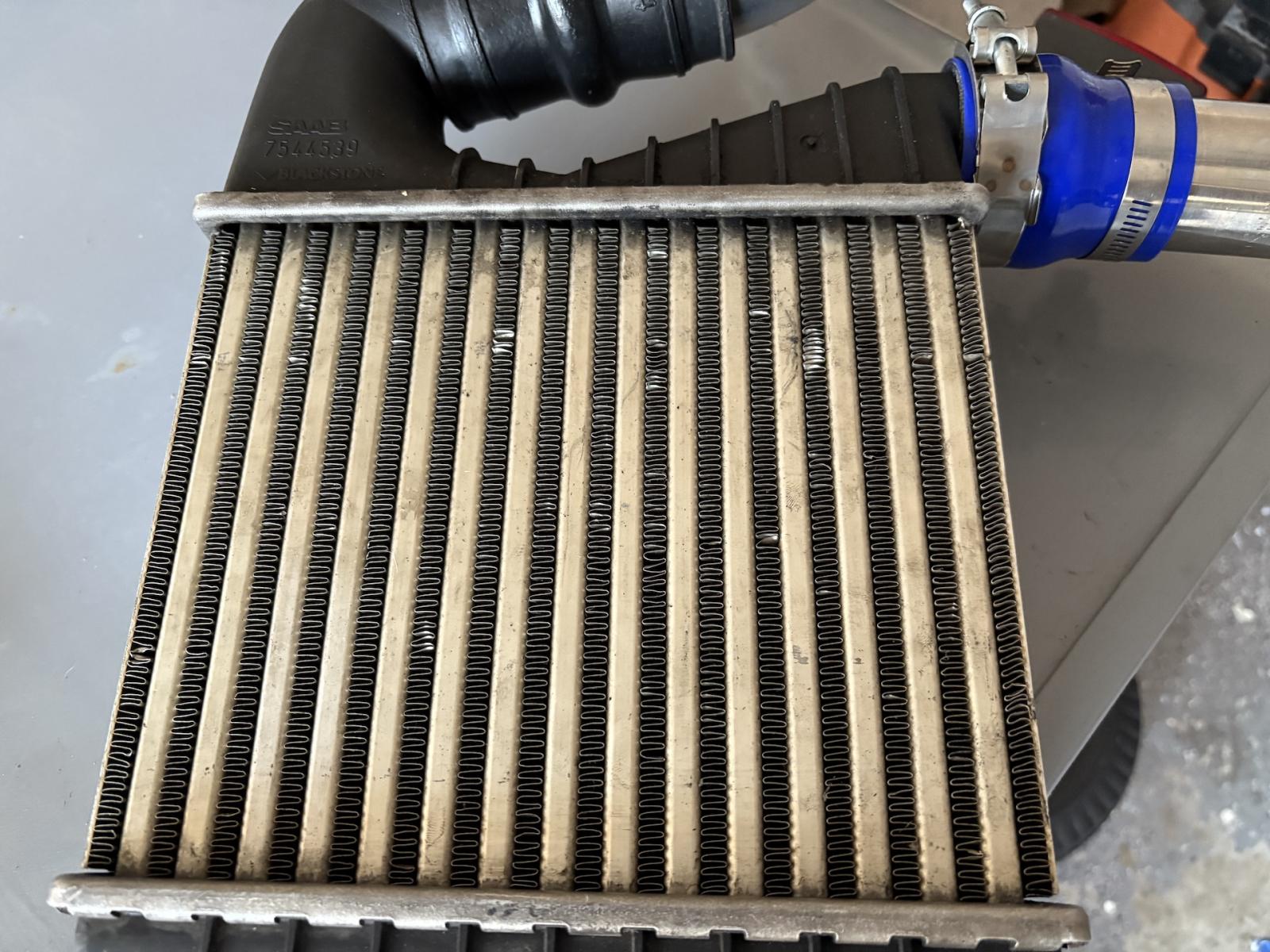

replacement intercooler
