 Posted: Tue May 01, 2018 10:46 am Post subject: Re: 1.8T conversion details? |
 |
|
hey Robbie, nice going..
one thing to note and you may already be there. but you will WANT a metal heat shield to interrupt the glowing infra red heat from shining on the engine lid..
that turbo and header WILL glow a nice bright red on the hills and interstate runs..
| robbiecanter wrote: |
| Keep it german.. the 1.8ts are great. I just finished my swap in a week and a half and only cost my $1500 including the motor. And, it fits under the engine lid. |
_________________
| Abscate wrote: |
| These are the reasons we have words like “wanker” |
|
|
| Back to top |
|
 |
robbiecanter
Samba Member
Joined: October 16, 2005
Posts: 72
Location: Gig Harbor, Wa.
|
| Posted: Tue May 01, 2018 10:56 am Post subject: Re: 1.8T conversion details? |
|
|
Good idea! I just got it running 2 weeks ago, but now I'm redoing all the brakes,CVS, hoses etc! So no real miles on it yet but that's a good tip! I don't need any fires!
_________________
52' Split
59' lowlight ghia
64' Bug-turbo
68' Notch
84' westfalia 1.8t
91' 2.9 vr6 coupe |
|
| Back to top |
|
|
Zeitgeist 13
Samba Member
Joined: March 05, 2009
Posts: 12175
Location: Port Manteau
|
| Posted: Tue May 01, 2018 10:56 am Post subject: Re: 1.8T conversion details? |
|
|
Nice! Another 15 degree install under the lid
_________________
Casey--
'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE. |
|
| Back to top |
|
|
robbiecanter
Samba Member
Joined: October 16, 2005
Posts: 72
Location: Gig Harbor, Wa.
|
| Posted: Tue May 01, 2018 11:03 am Post subject: Re: 1.8T conversion details? |
|
|

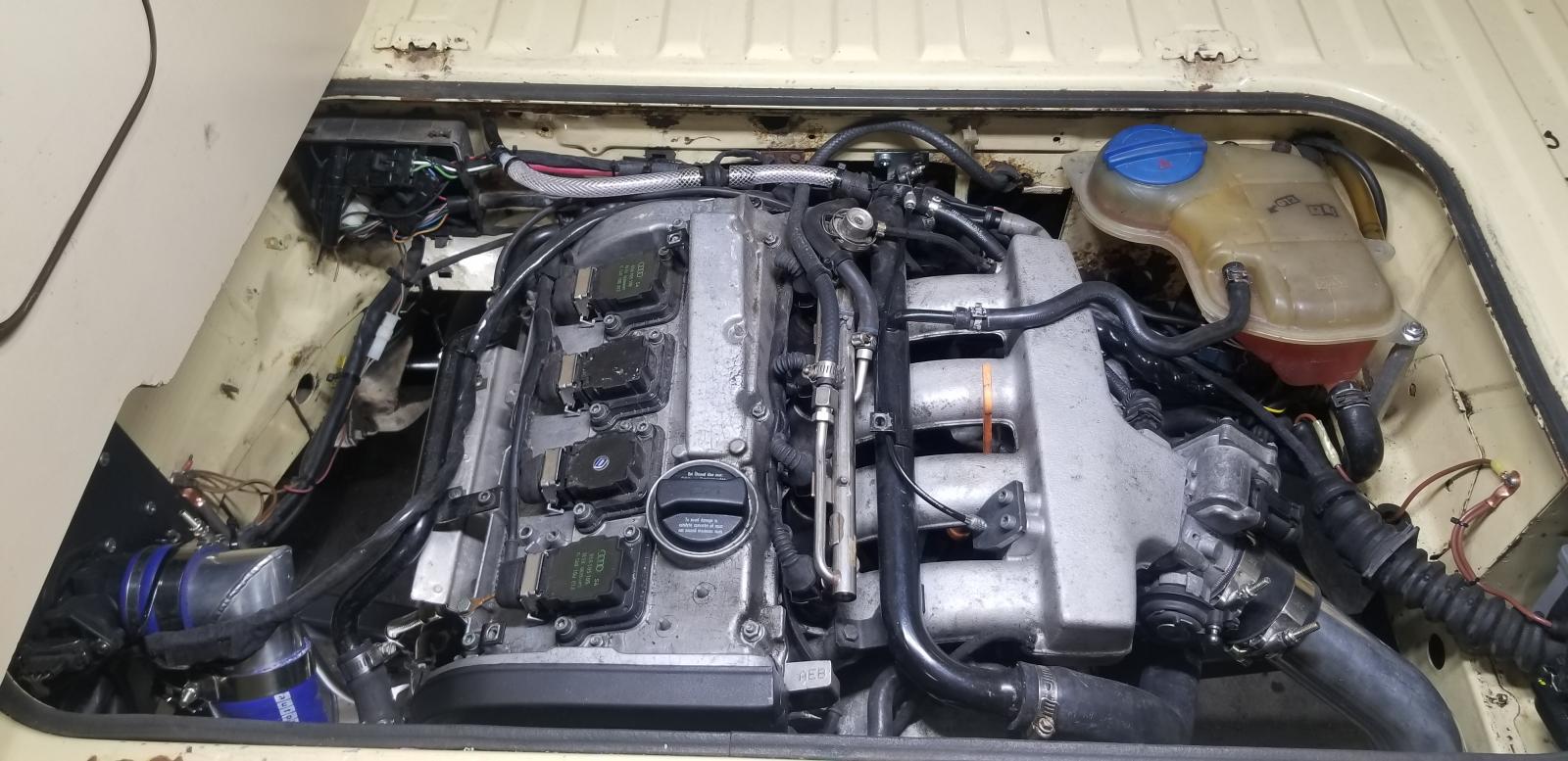

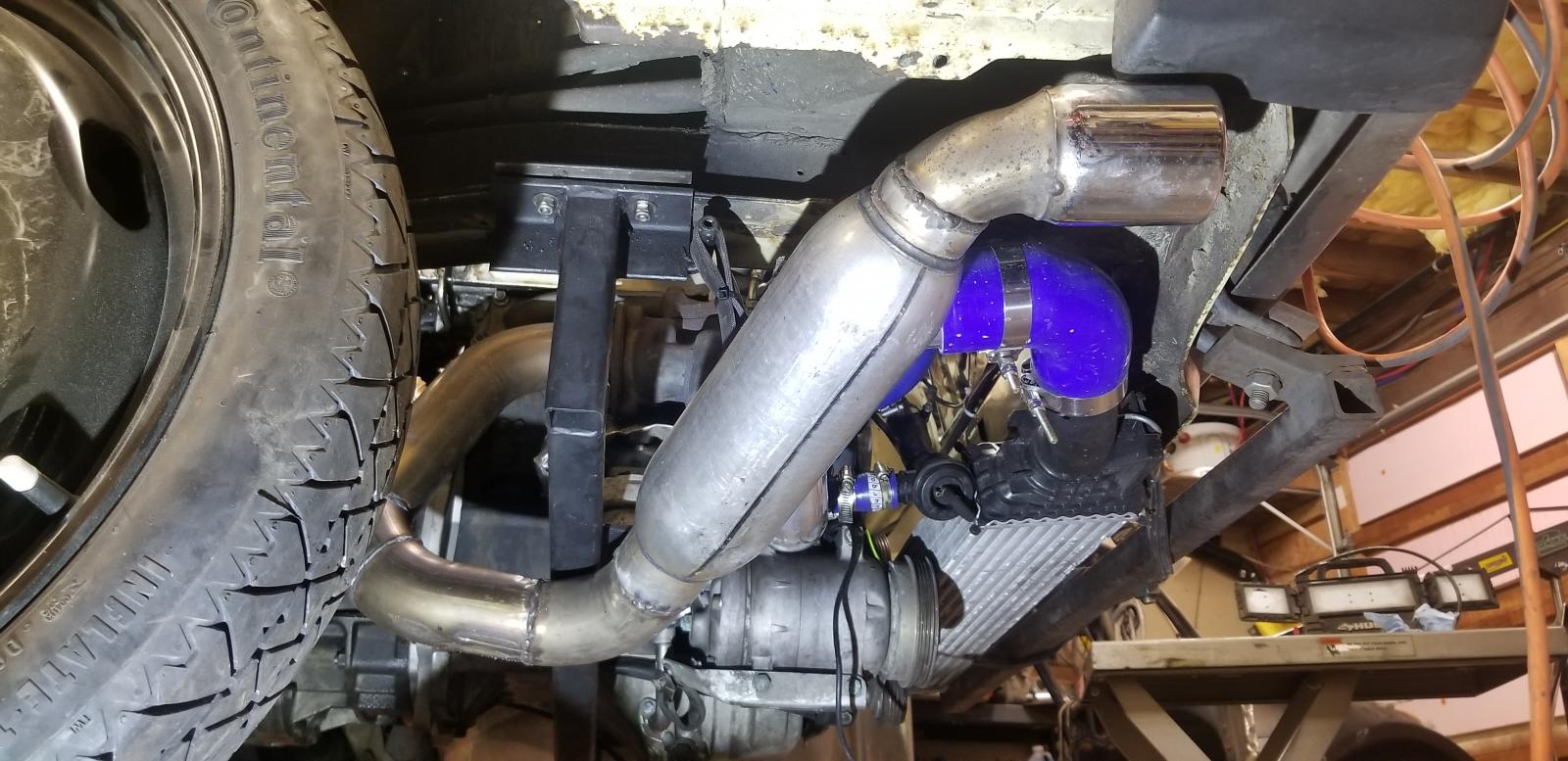

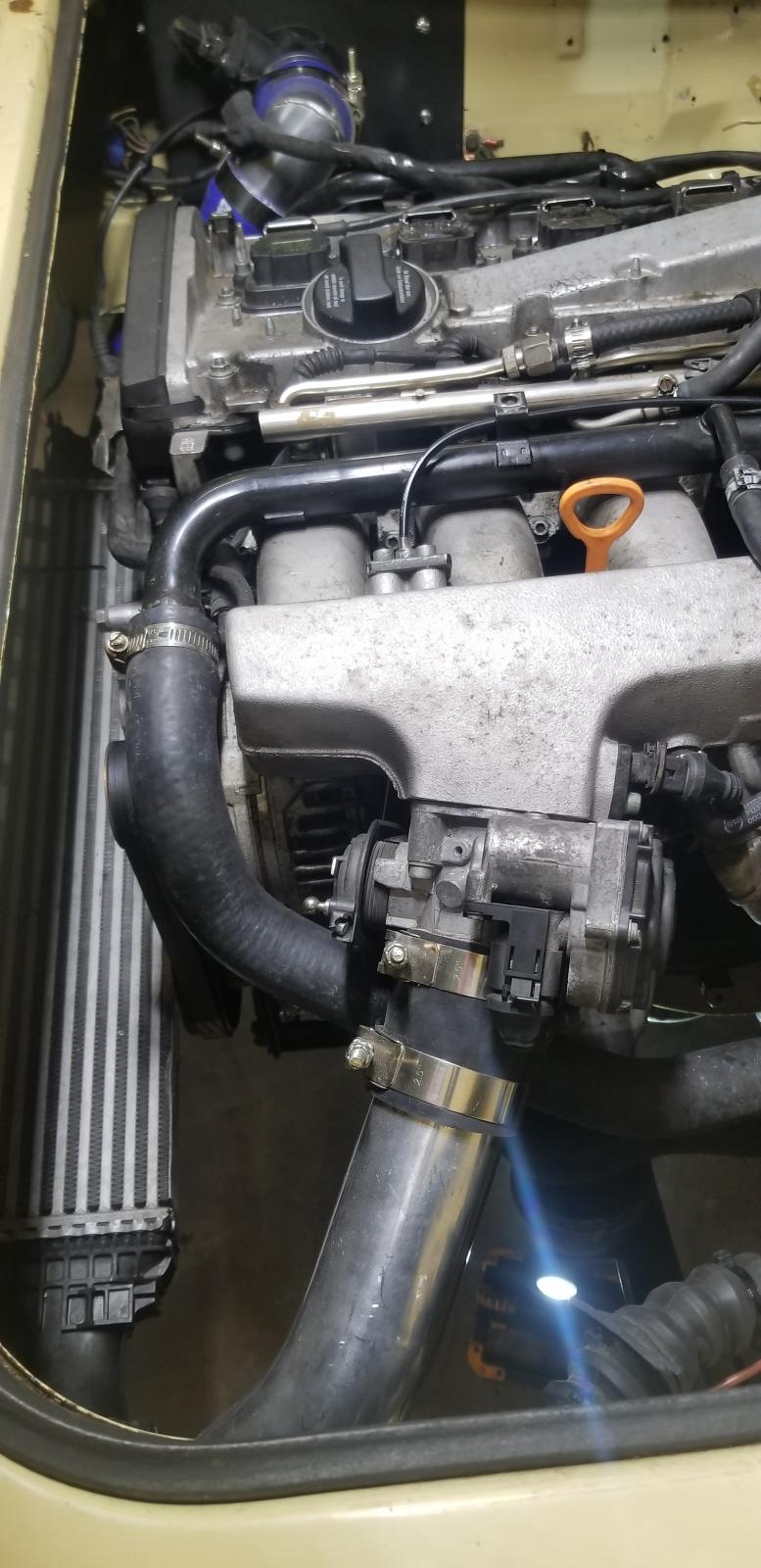

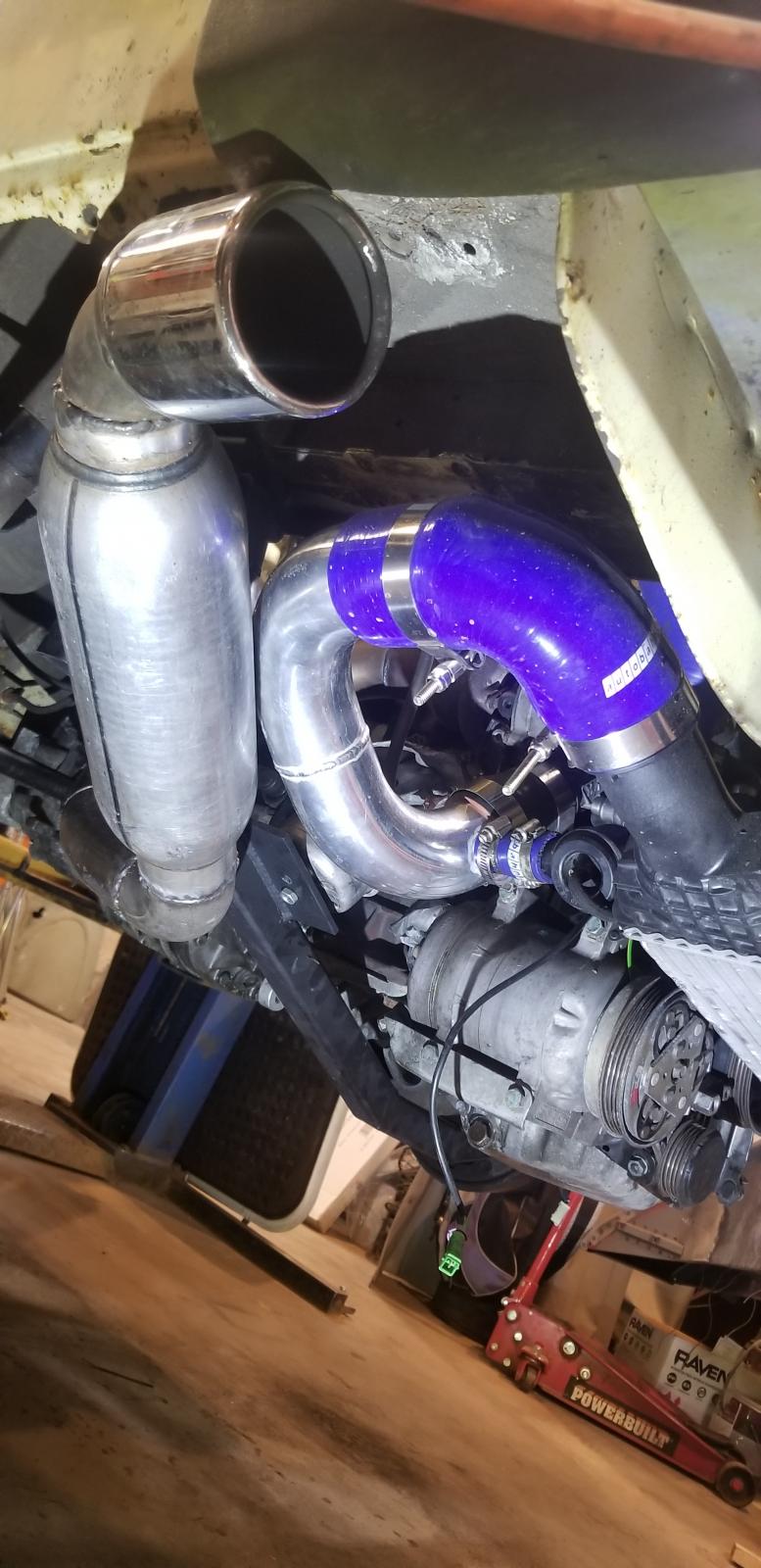

Thanks man! Here's a few more photos the way I did things. I used a a4 intercooler. I'm still going to either add a scoop to direct air, or bolt on 4 6" fans. Once I get some more miles on it and log IT temps, I'll make my decision.
_________________
52' Split
59' lowlight ghia
64' Bug-turbo
68' Notch
84' westfalia 1.8t
91' 2.9 vr6 coupe |
|
| Back to top |
|
|
robbiecanter
Samba Member
Joined: October 16, 2005
Posts: 72
Location: Gig Harbor, Wa.
|
| Posted: Tue May 01, 2018 11:18 am Post subject: Re: 1.8T conversion details? |
|
|
| danfromsyr wrote: |
hey Robbie, nice going..
one thing to note and you may already be there. but you will WANT a metal heat shield to interrupt the glowing infra red heat from shining on the engine lid..
that turbo and header WILL glow a nice bright red on the hills and interstate runs..
| robbiecanter wrote: |
| Keep it german.. the 1.8ts are great. I just finished my swap in a week and a half and only cost my $1500 including the motor. And, it fits under the engine lid. |
|

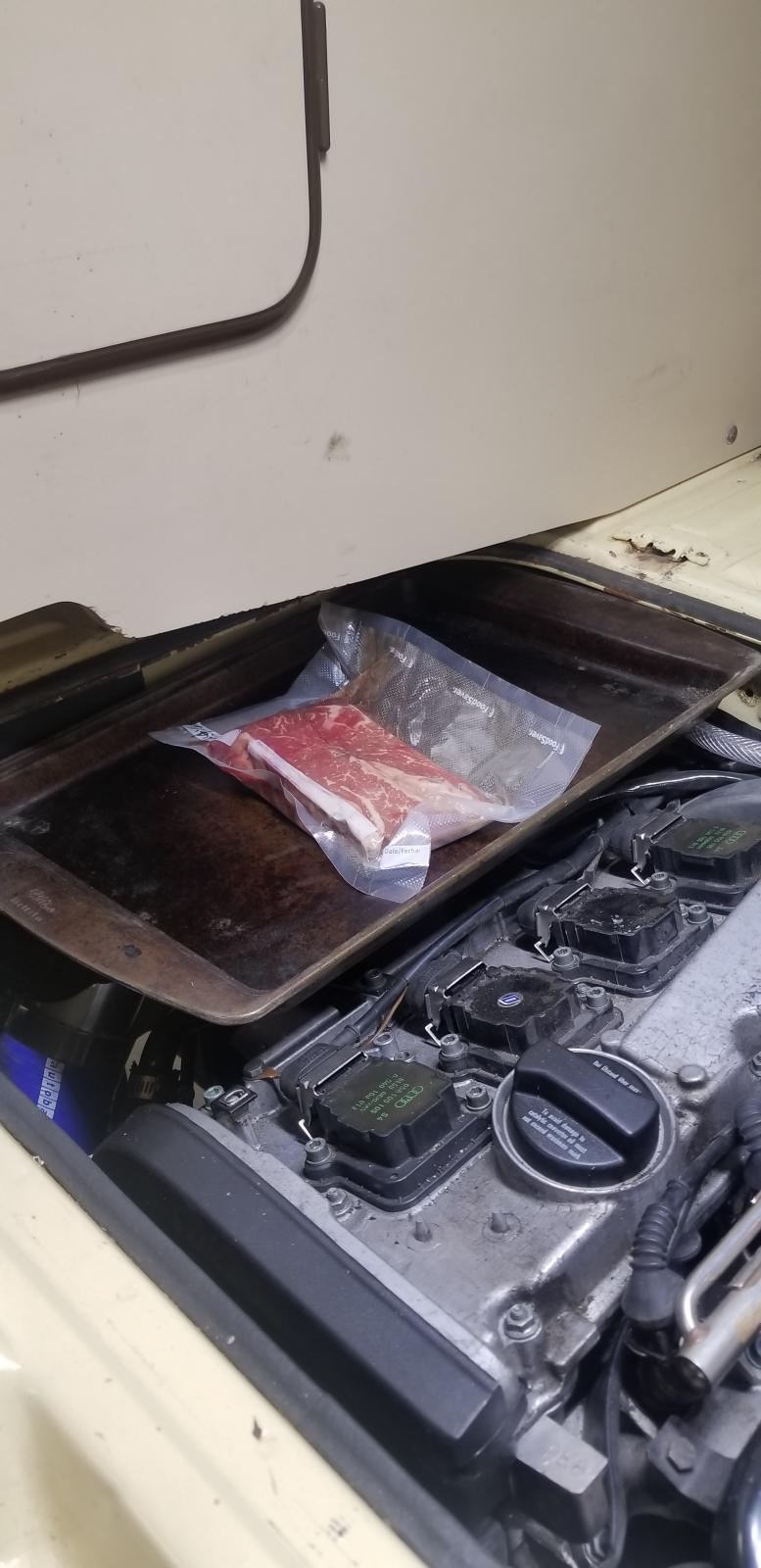

Got it! I can cook and drive!
_________________
52' Split
59' lowlight ghia
64' Bug-turbo
68' Notch
84' westfalia 1.8t
91' 2.9 vr6 coupe |
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15407
Location: Syracuse, NY
|
| Posted: Tue May 01, 2018 11:24 am Post subject: Re: 1.8T conversion details? |
|
|
love seeing another AEB DIY 1.8T out there.. it's an underdog in the swap game..
yer also going to want to get that tailpipe to exit out from under the van.. that'll heat up (and fume) the compartment in traffic..
also log your IATs and I don't think (IMHO) that you're going to be happy with an air/air intercooler there.. but that's all personal and subjective what makes one person happy and another not..
but I run an Air/water exchanger. sure more complicated but keeps my IATs very stable and never more than 30* over ambient.
had a friend with air/air and fans would heat soak on longer hills and occasionally go into a limp mode.
_________________
| Abscate wrote: |
| These are the reasons we have words like “wanker” |
|
|
| Back to top |
|
|
robbiecanter
Samba Member
Joined: October 16, 2005
Posts: 72
Location: Gig Harbor, Wa.
|
| Posted: Tue May 01, 2018 11:34 am Post subject: Re: 1.8T conversion details? |
|
|
Ya it's really in r&d mode right now. I might end up switching to a PWR water to air like I have in my bug, but time will tell! And, this one was free sooo... haha
_________________
52' Split
59' lowlight ghia
64' Bug-turbo
68' Notch
84' westfalia 1.8t
91' 2.9 vr6 coupe |
|
| Back to top |
|
|
Zeitgeist 13
Samba Member
Joined: March 05, 2009
Posts: 12175
Location: Port Manteau
|
| Posted: Tue May 01, 2018 12:22 pm Post subject: Re: 1.8T conversion details? |
|
|
Yeah, I hear ya. When I drove the van to a recent gtg, I told everyone it was in Beta-mode. That helps explain away all the dangling wires and instrument pod that's just resting in place
_________________
Casey--
'89 Bluestar ALH
'01 Weekender --> full camper
NEAT, no ICE. |
|
| Back to top |
|
|
robbiecanter
Samba Member
Joined: October 16, 2005
Posts: 72
Location: Gig Harbor, Wa.
|
| Posted: Tue May 01, 2018 12:41 pm Post subject: Re: 1.8T conversion details? |
|
|
| Zeitgeist 13 wrote: |
| Yeah, I hear ya. When I drove the van to a recent gtg, I told everyone it was in Beta-mode. That helps explain away all the dangling wires and instrument pod that's just resting in place |

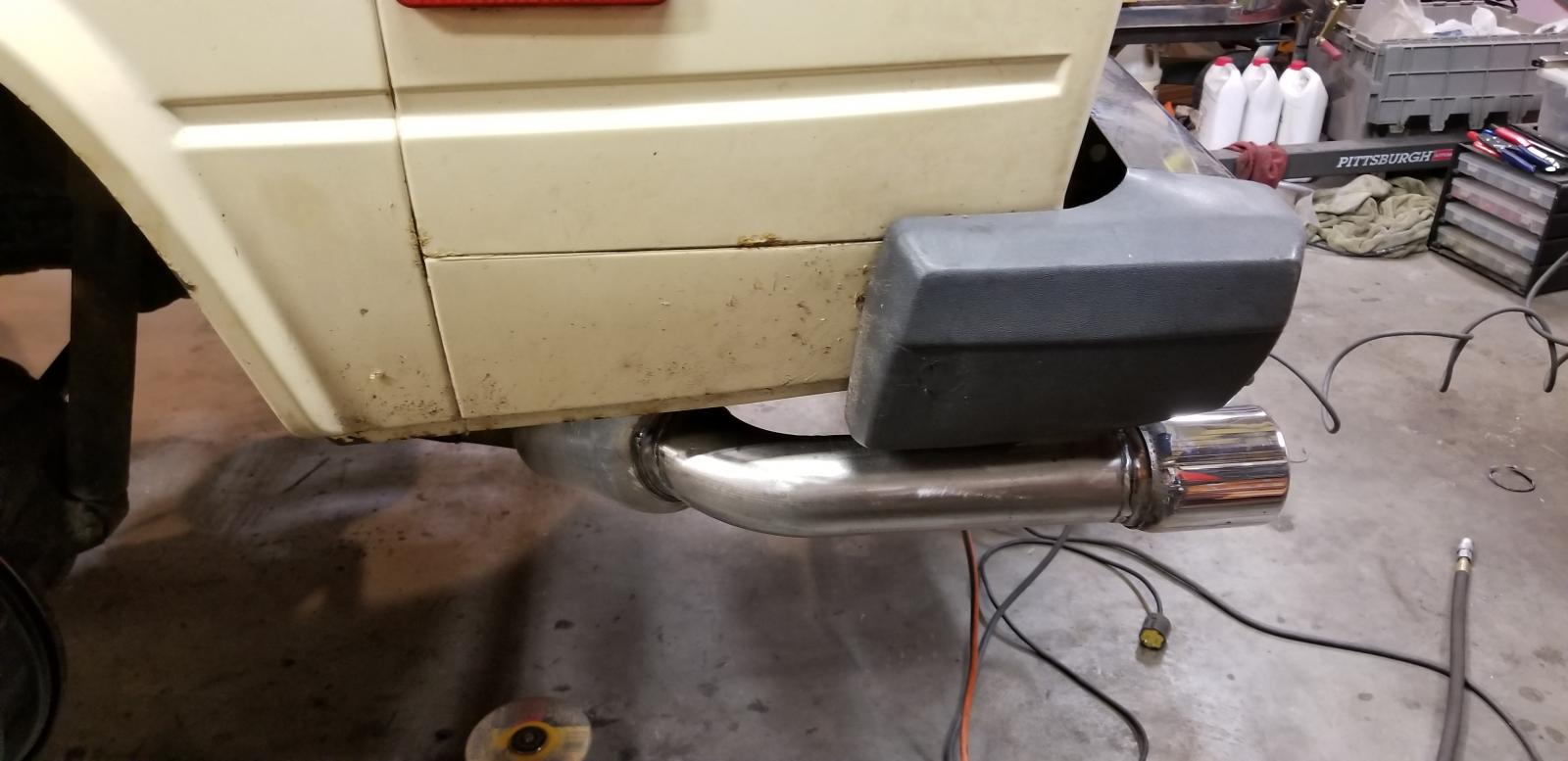

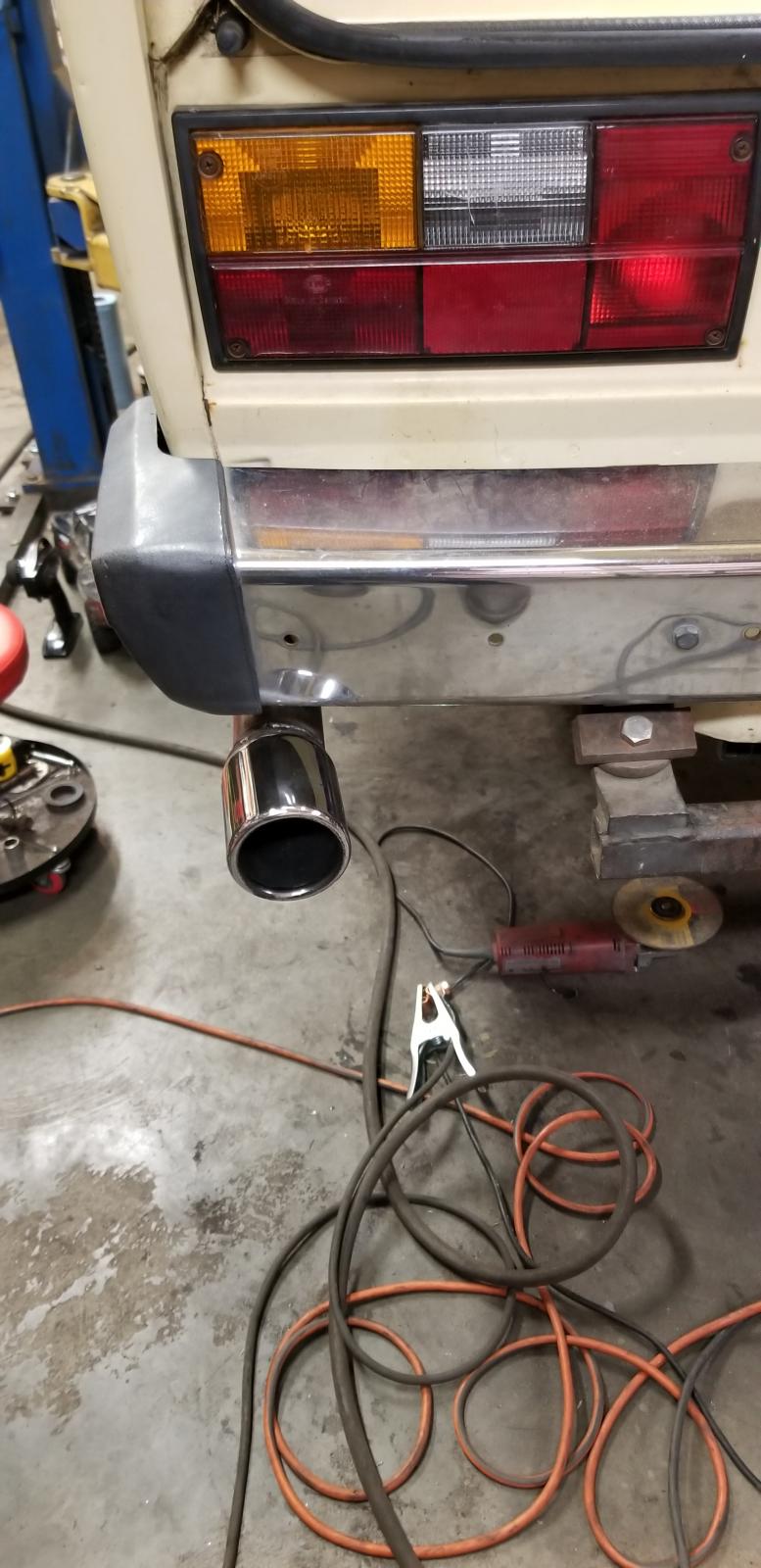

Hahaha exactly. I literally had to replace everything that could/did wear out on this westy. Brakes, brake hoses, coolant/heater hose, slave cylinder, front heater fan, CVS, etc so it's been a long month... but I took your advice and just extended the exhaust tip another foot with some SS I had laying around.
_________________
52' Split
59' lowlight ghia
64' Bug-turbo
68' Notch
84' westfalia 1.8t
91' 2.9 vr6 coupe |
|
| Back to top |
|
|
pechaaa
Samba Member
Joined: July 05, 2017
Posts: 39
Location: Europe, Latvia
|
| Posted: Tue Sep 01, 2020 10:31 pm Post subject: Re: 1.8T conversion details? |
|
|
| Quote: |
| //You make a good point Mark. That would be a heavy load to run the Coil Packs off the ignition switch, which could shorten the switches life. Here is a diagram showing how I have decided to eventually modify mine by adding one more relay to isolate the Fuel Pump. An alternate method would be to replace the power steering relay with a higher amperage one, and group the three loads on it (MAF, Coils, Injectors). But these 30A relays are only around $6.00 each, so I'll just add one.// |
What's the final wiring diagram then? |
|
| Back to top |
|
|
pechaaa
Samba Member
Joined: July 05, 2017
Posts: 39
Location: Europe, Latvia
|
| Posted: Tue Sep 08, 2020 10:43 pm Post subject: Re: 1.8T conversion details? |
|
|
| Boys? |
|
| Back to top |
|
|
pechaaa
Samba Member
Joined: July 05, 2017
Posts: 39
Location: Europe, Latvia
|
| Posted: Sun Jan 03, 2021 1:45 am Post subject: Re: 1.8T conversion details? |
|
|
Getting there.
|
|
