Timwhy
Samba Member
Joined: January 01, 2009
Posts: 4093
Location: Maine
|
 Posted: Wed Oct 27, 2021 4:48 am Post subject: Re: $99 NAPA Awning- Copy of ARB? |
 |
|
| Xevin wrote: |
| Timwhy wrote: |
| Xevin wrote: |
Thanks guys.
What I really want to know. How is the fit of Rocky Mountain, GW, or North Westy brackets (Non drilling style) with the Napa awning? Are they compatible? “Plug and play?” Some mods needed? If I’m going to throw down the $ for brackets. I want to know what I’m getting into. Thanks again for the feedback. Looking forward to mounting this up soon. |
Both the GW and the RMW brackets will have to be drilled for the awning to bolt up.
|

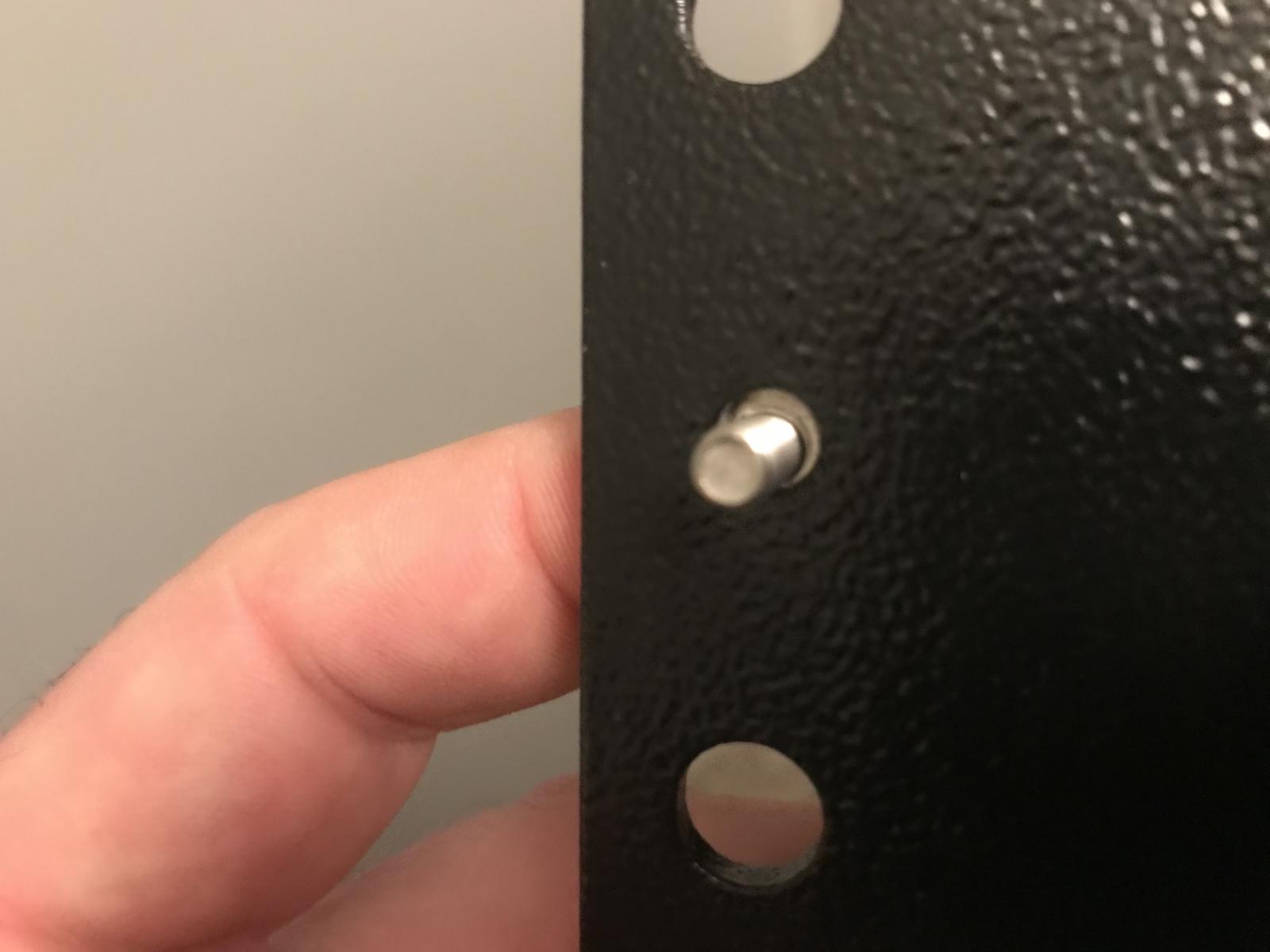

Probably overthinking this. I picked up some #10-24 x 1/2 fasteners. Boy they seem small to support this awning. There’s seems to be a lot of float/play/slop in the predrilled hole on the RM bracket. Is this normal to help align the screw with the jam nut in the track? Should I use the larger top holes on top of the bracket with thicker bolts or the second set of holes with the fasteners I have. Before I start drilling. I want to get this right.
Thanks for any advice |
I have extra bolts and jam nuts that I used but do not have the packaging they came in. Will take them to Lowes today and see what exactly they are. There was no slop in the brackets with what I used.
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS
http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary
http://www.youtube.com/user/TIMWHY2?feature=mhee |
|
| Back to top |
|
 |
Timwhy
Samba Member
Joined: January 01, 2009
Posts: 4093
Location: Maine
|
| Posted: Wed Oct 27, 2021 7:54 am Post subject: Re: $99 NAPA Awning- Copy of ARB? |
|
|
| Timwhy wrote: |
| Xevin wrote: |
| Timwhy wrote: |
| Xevin wrote: |
Thanks guys.
What I really want to know. How is the fit of Rocky Mountain, GW, or North Westy brackets (Non drilling style) with the Napa awning? Are they compatible? “Plug and play?” Some mods needed? If I’m going to throw down the $ for brackets. I want to know what I’m getting into. Thanks again for the feedback. Looking forward to mounting this up soon. |
Both the GW and the RMW brackets will have to be drilled for the awning to bolt up.
|
Probably overthinking this. I picked up some #10-24 x 1/2 fasteners. Boy they seem small to support this awning. There’s seems to be a lot of float/play/slop in the predrilled hole on the RM bracket. Is this normal to help align the screw with the jam nut in the track? Should I use the larger top holes on top of the bracket with thicker bolts or the second set of holes with the fasteners I have. Before I start drilling. I want to get this right.
Thanks for any advice |
I have extra bolts and jam nuts that I used but do not have the packaging they came in. Will take them to Lowes today and see what exactly they are. There was no slop in the brackets with what I used. |
https://www.homedepot.com/p/Everbilt-5-16-in-18-x-.../204825772
LOWES doesn't carry them anymore.
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS
http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary
http://www.youtube.com/user/TIMWHY2?feature=mhee
Last edited by Timwhy on Wed Oct 27, 2021 1:21 pm; edited 1 time in total |
|
| Back to top |
|
|
tristessa
Samba Member
Joined: April 07, 2004
Posts: 3993
Location: Portland, OR
|
| Posted: Wed Oct 27, 2021 10:40 am Post subject: Re: $99 NAPA Awning- Copy of ARB? |
|
|
| Xevin wrote: |
Probably overthinking this. I picked up some #10-24 x 1/2 fasteners. Boy they seem small to support this awning.
Thanks for any advice |
Dude. Talk to your local VW hardware store guys, either me or Sluggo. I need to come torture you with beer sometime soon anyway.
#10-24 ain't gonna cut it. 1/4"-20 or M6x1.0 is the absolute smallest I'd use for something like this, and even that would kinda sketch me out if I was only using two brackets, especially if the brackets are only clamped to the gutter. I used 5/16"-18 with my ARB-clone awning, but I made my own mounting brackets and was able to make the holes in the sizes and places that I needed. Brackets clamp the gutter and also bolt to the body with threaded nut-serts installed in drilled/primed/painted holes. |
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8743
|
| Posted: Wed Oct 27, 2021 10:54 am Post subject: Re: $99 NAPA Awning- Copy of ARB? |
|
|
| tristessa wrote: |
| Xevin wrote: |
Probably overthinking this. I picked up some #10-24 x 1/2 fasteners. Boy they seem small to support this awning.
Thanks for any advice |
Dude. Talk to your local VW hardware store guys, either me or Sluggo. I need to come torture you with beer sometime soon anyway.
#10-24 ain't gonna cut it. 1/4"-20 or M6x1.0 is the absolute smallest I'd use for something like this, and even that would kinda sketch me out if I was only using two brackets, especially if the brackets are only clamped to the gutter. I used 5/16"-18 with my ARB-clone awning, but I made my own mounting brackets and was able to make the holes in the sizes and places that I needed. Brackets clamp the gutter and also bolt to the body with threaded nut-serts installed in drilled/primed/painted holes. |
Buddy. I went to Winks hardware. I gave them the specs from a screen shot of these Lowe’s links. I then returned them for M8 x 16. To long. Back to Winks I go.
_________________
Keep on Busin'
| 67rustavenger wrote: |
GFY's Xevin and VW_Jimbo!  |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
My God! Xevin and I 100% agree  |
|
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8743
|
| Posted: Wed Oct 27, 2021 11:18 am Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|

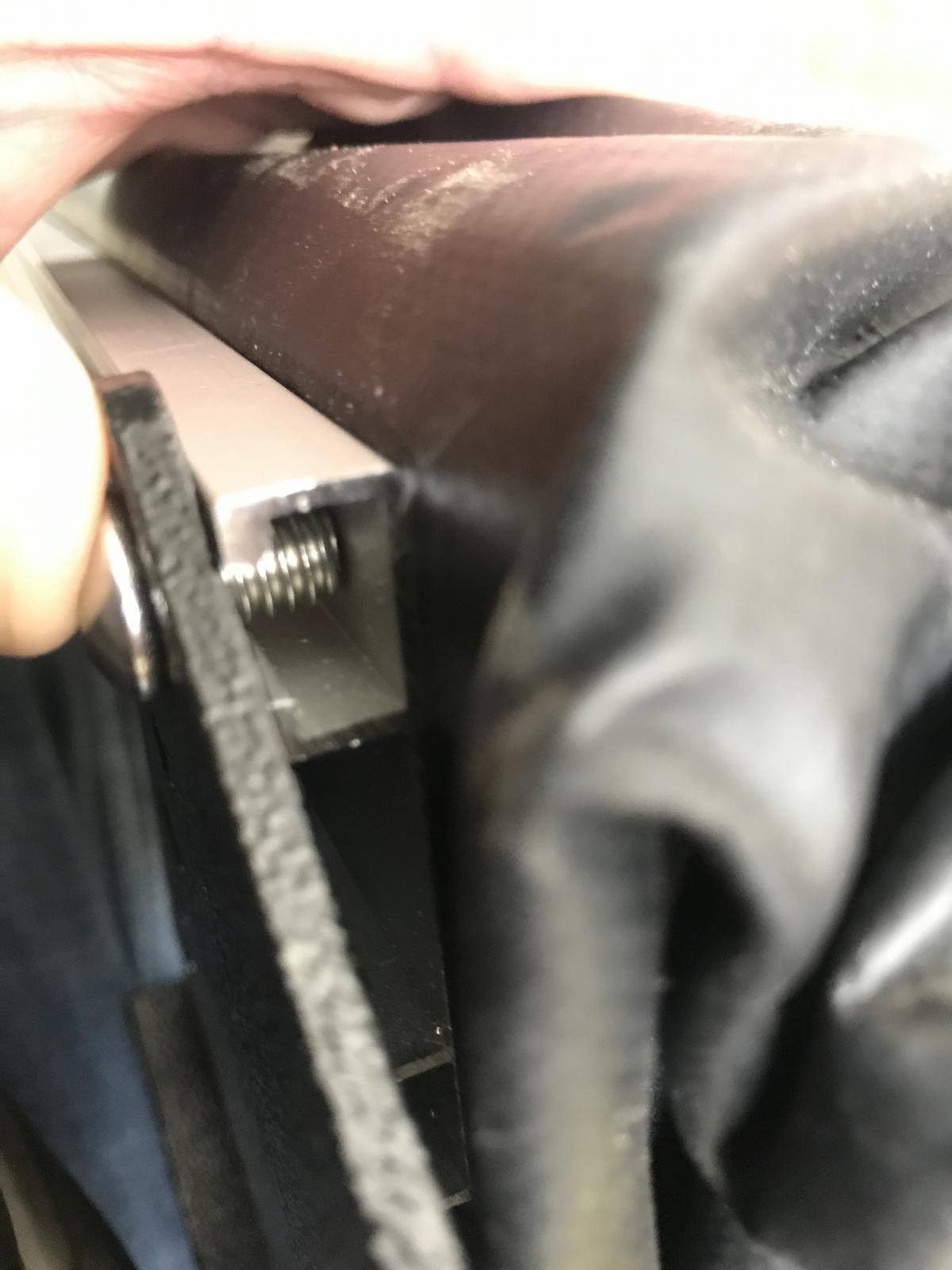

I also bought this 5/16. Down the street at A-Boy Fits perfectly. Stupid easy project being a time suck. Ugh!
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8743
|
| Posted: Thu Oct 28, 2021 4:57 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|

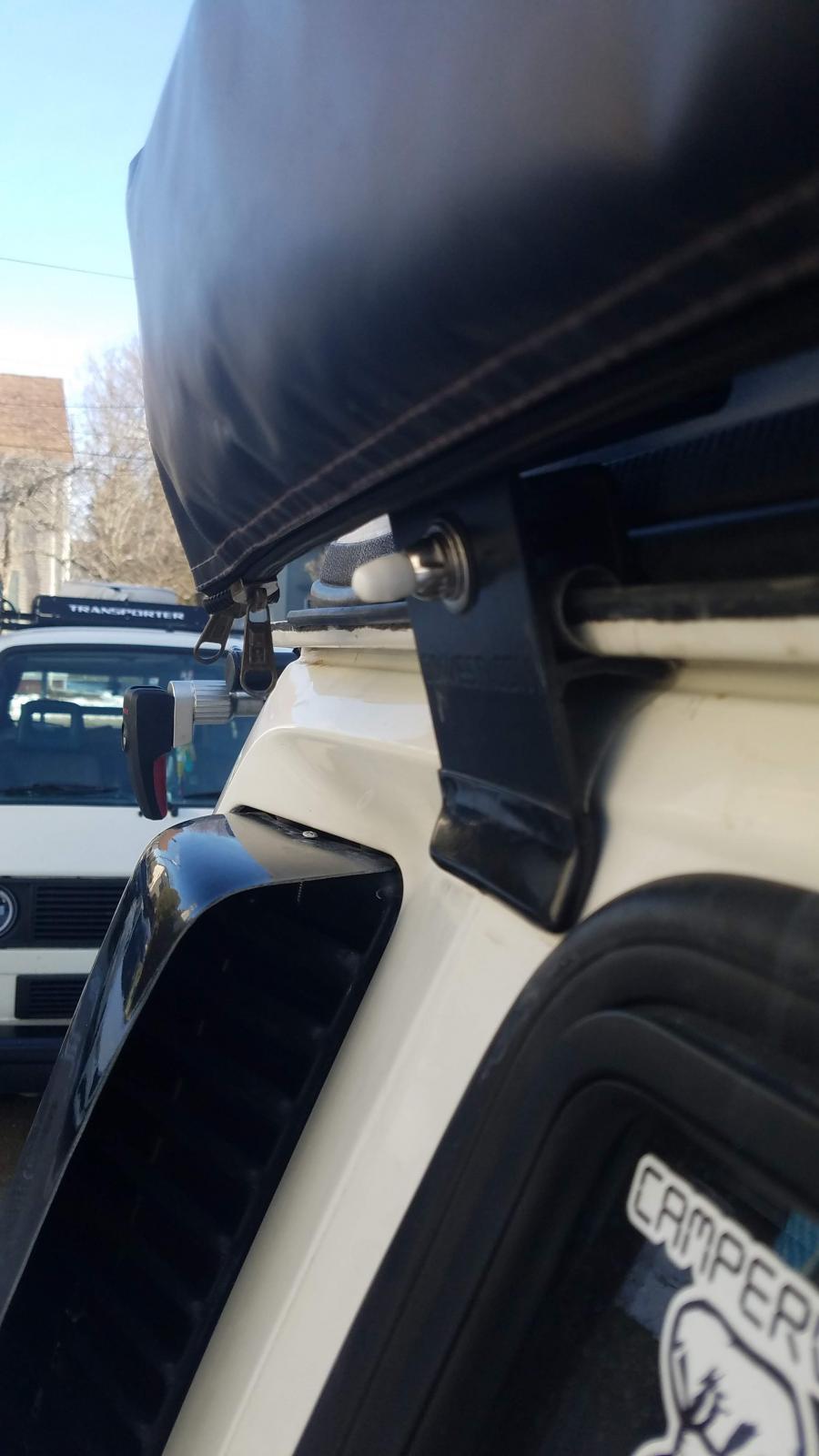

It’s on! Thanks to all, for your advice  Tristessa had me over to modify some stuff. That guy is one of a kind
Tritessa even brought me home a beer from the mother land. I’m a lucky dude.
And he suggested we should tidy up the bracket hardware with some acorns.
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
alexvbugman1
Samba Member
Joined: July 18, 2005
Posts: 37
Location: Crown Point, Indiana
|
| Posted: Thu Oct 28, 2021 6:51 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
I used North Westy brackets, worked perfectly.
|
|
| Back to top |
|
|
alexvbugman1
Samba Member
Joined: July 18, 2005
Posts: 37
Location: Crown Point, Indiana
|
| Posted: Thu Oct 28, 2021 7:00 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
|
|
| Back to top |
|
|
Sodo
Samba Member
Joined: July 06, 2007
Posts: 10675
Location: Western WA
|
| Posted: Thu Oct 28, 2021 7:10 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
_________________
'90 Westy EJ25, NEW oil rings (!) 2Peloquins, 3knobs, SyncroShop pressure-oiled pinion-bearing & GT mainshaft, filtered, cooled gearbox.
'87 Tintop w 47k 53k, '12 SmallCar EJ25, cooled filtered original gearbox
....KTMs, GasGas, SPOT mtb |
|
| Back to top |
|
|
alexvbugman1
Samba Member
Joined: July 18, 2005
Posts: 37
Location: Crown Point, Indiana
|
| Posted: Thu Oct 28, 2021 7:21 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
| Good to know |
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8743
|
| Posted: Thu Oct 28, 2021 7:39 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
| Alex Vena wrote: |
I used North Westy brackets, worked perfectly.
|
Good brackets. Does the pop top clear the hardware facing the roof?
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
Timwhy
Samba Member
Joined: January 01, 2009
Posts: 4093
Location: Maine
|
|
| Back to top |
|
|
revolution337
Samba Member
Joined: May 23, 2009
Posts: 399
Location: Pennsylvania
|
| Posted: Fri Oct 29, 2021 6:44 am Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
| Xevin wrote: |
| Alex Vena wrote: |
I used North Westy brackets, worked perfectly.
|
Good brackets. Does the pop top clear the hardware facing the roof? |
Looks like the van is a tin top, not a camper.
_________________
1982 Westfalia AEB 1.8t
2017 VW Golf Sportwagen
2001 Audi A4 4.2 V8 swapped
2000 BMW Z3 roadster
-Mark |
|
| Back to top |
|
|
alexvbugman1
Samba Member
Joined: July 18, 2005
Posts: 37
Location: Crown Point, Indiana
|
| Posted: Mon Nov 01, 2021 6:04 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
| Yes it’s a tin top |
|
| Back to top |
|
|
Tbob
Samba Member
Joined: May 26, 2007
Posts: 441
Location: Pensacola, Fl.
|
| Posted: Mon Nov 01, 2021 7:41 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
I used the Northwesty brackets. They appear to be a little shorter than the Rocky Mountain Westy brackets, making the pop top clearance tighter. I bought some 1/4 20 3/4 long stainless carriage bolts so I wouldn't have to redrill the stainless Northwesty mounts, but I had to modify the head of the carriage bolts by grinding 2 flats opposite of each other to allow the head of the carriage bolts to slide into the awning channel. I may have shortened the carriage bolts a few mm to make sure that it would clear the poptop, I cant remember. But it works perfectly and clears the poptop.
_________________
1969 Deluxe, owned since 1973
1973 Westfalia, owned since 1983
1980 Westfalia, watercooled conversion
1985 Westfalia, stock!
1986 Westfakia, Audi I-4 conversion
A couple of trucks and a couple of Jeeps |
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8743
|
| Posted: Mon Nov 01, 2021 8:54 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
| Alex Vena wrote: |
| Yes it’s a tin top |
I know. Was curious how the back of the brackets would clear a pop top safely.
Thank you for the tip on the zipper pulls. Makes sense.
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
Timwhy
Samba Member
Joined: January 01, 2009
Posts: 4093
Location: Maine
|
| Posted: Fri Nov 12, 2021 2:13 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
I needed a bit more height from my awning so I can use the ARB deluxe room without the ceiling hitting my head.
Took a measurement from the awning's C channel at the slider to the ground. 6'1", an inch shorter than me.
No wonder my head was hitting the ceiling but that sagging didn't help either.
Took the ceiling in two inches and that did help but it still was too low for me.
Today I completed a small project to make awning height extenders for my RMW brackets.
Just simple plate steel with some holes drilled it them to get and extra 1.75" more height.
I'll have to wait to see if we get a nice weather day to try out the fitment of the room.
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS
http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary
http://www.youtube.com/user/TIMWHY2?feature=mhee |
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8743
|
| Posted: Fri Nov 12, 2021 3:07 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|
Nice mod Timwhy. I used to be 6’2.” As I get older and my simple tasks take a long time, I keep shrinking. I should have plenty of head room during the next campout
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
DanHoug
Samba Member
Joined: December 05, 2016
Posts: 5780
Location: Bemidji, MN
|
| Posted: Sun Nov 21, 2021 3:53 pm Post subject: Re: $99 NAPA Awning- Copy of ARB? Note: 10/21 out of stock?? |
|
|

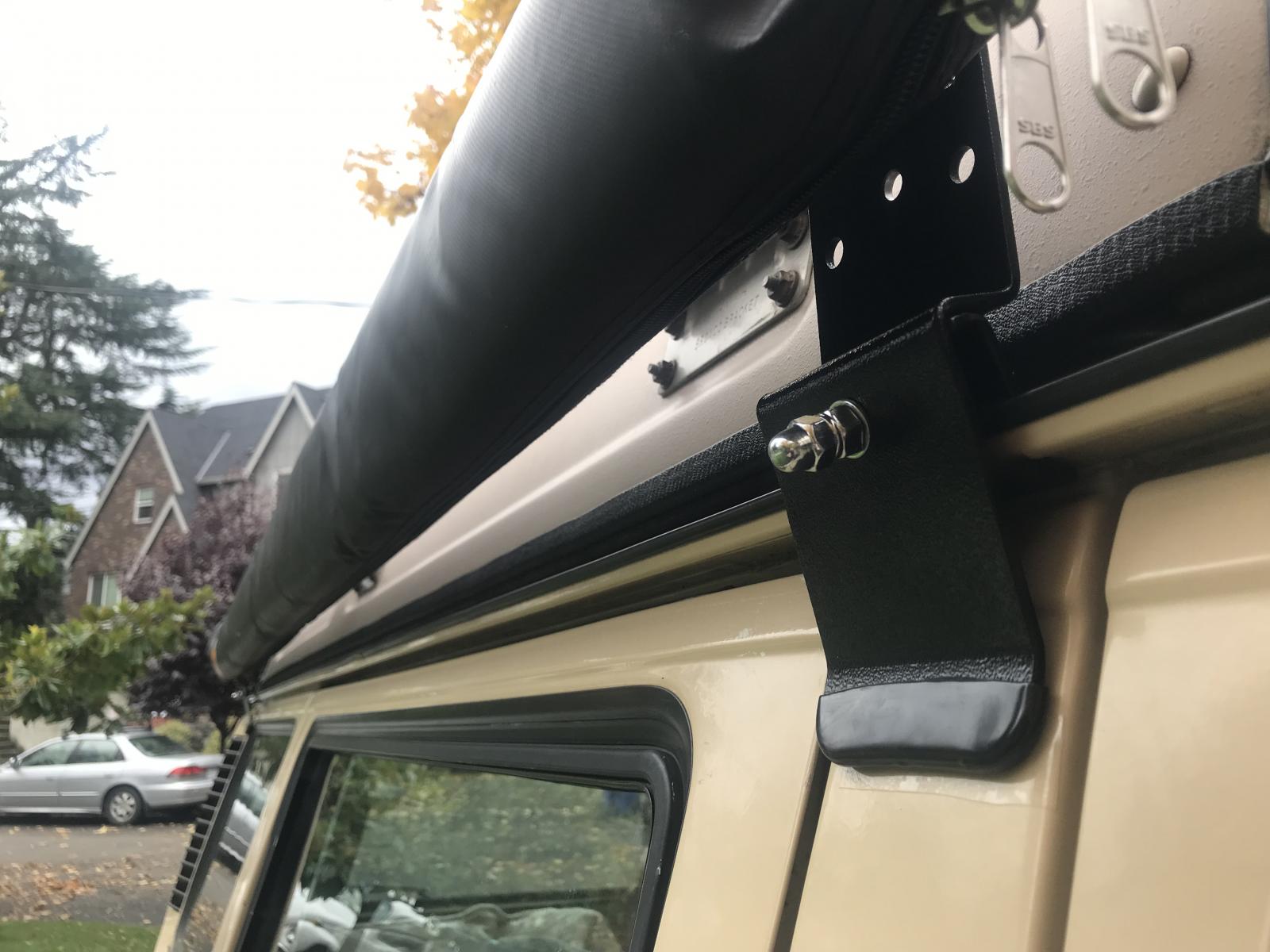

here's my take on the NAPA awning mount using the supplied brackets. wanted to use them the tall way for head clearance so they had to be re-drilled. mounted into drip tray in thick part.
after mounting, it worked but was somewhat 'bendy' from the long, tall arms. added a bracket of aluminum just hooked into the luggage rack and the front is rock solid. back end wobbles a bit but is totally fine. very stable while driving and deploying now.
_________________
-dan
60% of what you find on the internet is wrong, including this post.
'87 Westy & '89 Westy both 2.1 4spd
Past projects can be found at--
www.thefixitworkshop.com |
|
| Back to top |
|
|
Timwhy
Samba Member
Joined: January 01, 2009
Posts: 4093
Location: Maine
|
|
| Back to top |
|
|
|
