SoFlo1970BusTypeII
Samba Member
Joined: March 31, 2022
Posts: 8
Location: South
|
 Posted: Sat Apr 22, 2023 1:49 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
 |
|
| kreemoweet wrote: |
| SoFlo1970BusTypeII wrote: |
| After installing the early to late model throwout bearing conversion kit the throwout bearing body turns sideways when the clutch is depressed without the engine installed. |
It doesn't look to me like you have the correct TO shaft for the late-style bearing. The arms on that are quite different from the earlier style. Look at where the cutouts in the shaft arms are in the photo Glenn posted. |
We have the correct TO shaft as it is the only one that fits the bell housing we have. The later model TO shafts are thicker and do not fit into the openings. I appreciate the thought though. |
|
| Back to top |
|
 |
bnam
Samba Member
Joined: July 02, 2006
Posts: 3487
Location: El Dorado Hills CA/ Bangalore, India
|
| Posted: Sat Apr 22, 2023 5:16 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| SoFlo1970BusTypeII wrote: |
| mikeonthebike wrote: |
| The throwout bearing is not on the arms straight. The left side is too high and/or the right side is too low. You need to get that straightened out. See Glenn's picture. |
It is on the arm straight to begin with then it turns when the clutch is depressed. I really wish I could figure out how to upload the 3 second video that shows it turning. |
Post the video on YouTube and then put a link here.
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16660
Location: North Florida, USA
|
| Posted: Tue Apr 25, 2023 7:01 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| SoFlo1970BusTypeII wrote: |
| kreemoweet wrote: |
| It doesn't look to me like you have the correct TO shaft for the late-style bearing. |
We have the correct TO shaft as it is the only one that fits the bell housing we have. The later model TO shafts are thicker and do not fit into the openings. |
There are three types of TO bearing shafts. Two of them will fit your early style transmission.
'70-earlier
'71-'72
'72-later (larger diameter shaft)
The '70-earlier shaft is the only one that uses the older style TO bearing.
The '70-earlier and the '71-'72 shafts are interchangeable and will fit into the same transmission cases. Since you upgraded from an early type TO bearing you should have replaced the '70-earlier shaft with the '71-'72 shaft which will fit into the early transmission case but use the later type TO bearing.
The later two shafts use the later type TO bearings. You should think of the '71-'72 shaft as a transition shaft.

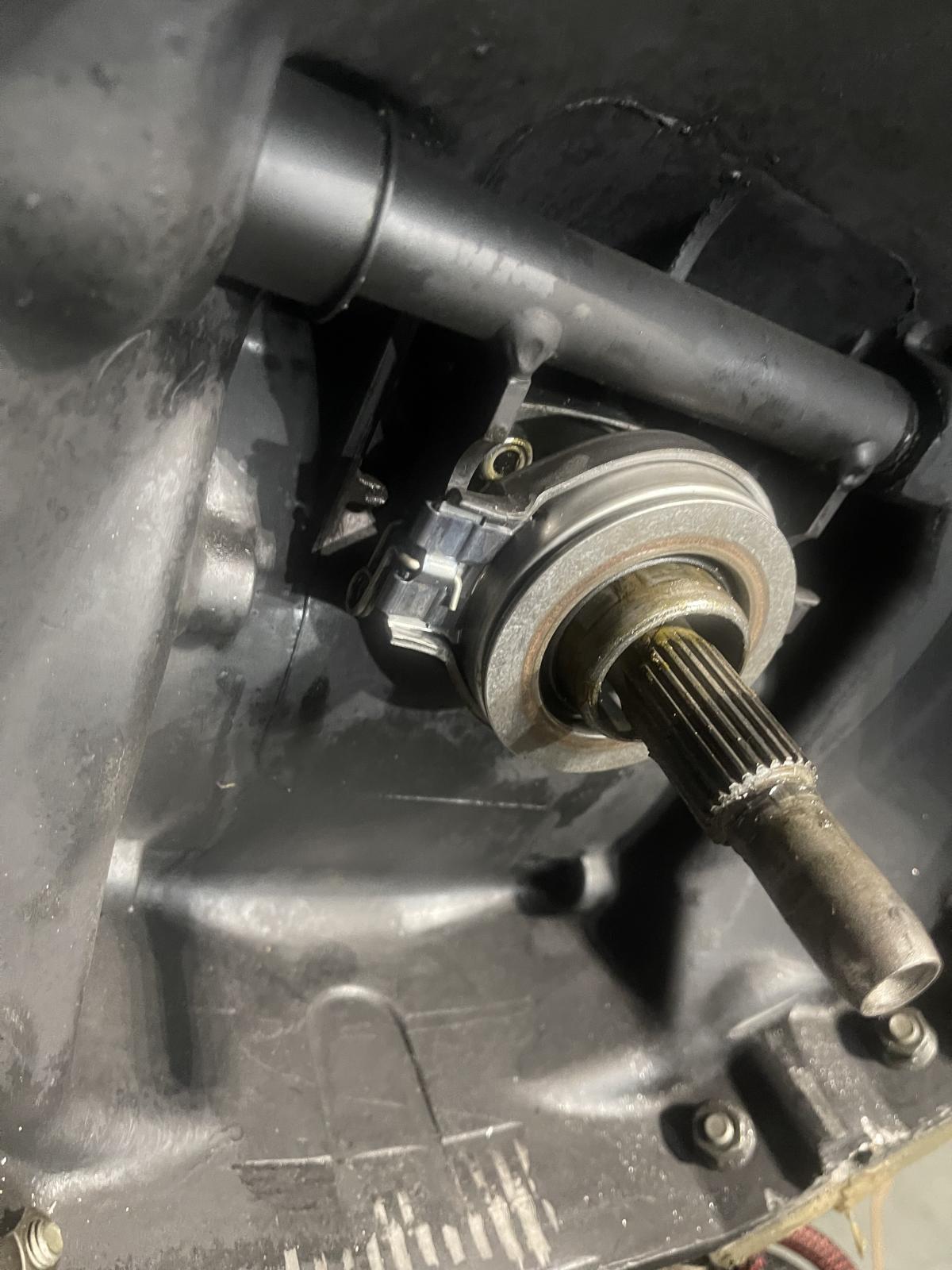

This pic from glutamodo shows the two types of TO bearings and how they mount to the shaft arms. You can see the round cylinders sticking out the sides of the early TO bearings fit into the cut outs in the arms.
Later TO bearings don't have these cut outs.
Here is a close up pic showing the small cut outs on the front side of the arms that the TO bearing clips snap into. The TO bearing rides on a curved surface on the arms.
Installed correctly, the clips should prevent the TO bearing from riding up the arms.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
| Back to top |
|
|
roger10101
Samba Member
Joined: September 26, 2006
Posts: 40
Location: Los Angeles
|
| Posted: Wed Dec 18, 2024 3:20 am Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
I have a problem with a squealing noise when I idle and press the clutch pedal. No centering ring on the pressure plate. Have a late style TOB with the sleeve. Any suggestions would be appreciated. TIA.
_________________
Have a 64 convertible bug getting body and paint. It’s been a year now as of 11/27/19. No body and paint. 9/21/2024 still no paint. Almost 5 years of free storage.
Also have a 59 convertible bug. 2387cc motor. 4.5s/deep 6s original. Pan powder coated. Benco transmission in the works. Disc breaks all around soon.9/21/2025 added folding Volmac shifter, Huls recliners, powder coated seat frames. |
|
| Back to top |
|
|
roger10101
Samba Member
Joined: September 26, 2006
Posts: 40
Location: Los Angeles
|
| Posted: Wed Dec 18, 2024 3:21 am Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| roger10101 wrote: |
| I have a problem with a squealing noise when I idle and press the clutch pedal. No centering ring on the pressure plate. Have a late style TOB with the sleeve. Any suggestions would be appreciated. TIA. |
_________________
Have a 64 convertible bug getting body and paint. It’s been a year now as of 11/27/19. No body and paint. 9/21/2024 still no paint. Almost 5 years of free storage.
Also have a 59 convertible bug. 2387cc motor. 4.5s/deep 6s original. Pan powder coated. Benco transmission in the works. Disc breaks all around soon.9/21/2025 added folding Volmac shifter, Huls recliners, powder coated seat frames. |
|
| Back to top |
|
|
busman78
Samba Member
Joined: August 17, 2004
Posts: 4658
Location: Oklahoma City, OK
|
| Posted: Wed Dec 18, 2024 4:57 am Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| Did you grease the pilot bearing? |
|
| Back to top |
|
|
goober
Samba Member
Joined: May 03, 2003
Posts: 1240
|
| Posted: Wed Dec 18, 2024 5:41 am Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| Does the TOB spin freely? |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33214
Location: Hot Arizona
|
| Posted: Wed Dec 18, 2024 7:11 am Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| roger10101 wrote: |
| I have a problem with a squealing noise when I idle and press the clutch pedal. |
That's typically an issue with the throwout bearing.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
roger10101
Samba Member
Joined: September 26, 2006
Posts: 40
Location: Los Angeles
|
| Posted: Wed Dec 18, 2024 12:28 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| busman78 wrote: |
| Did you grease the pilot bearing? |
Did not. Probably the problem?
_________________
Have a 64 convertible bug getting body and paint. It’s been a year now as of 11/27/19. No body and paint. 9/21/2024 still no paint. Almost 5 years of free storage.
Also have a 59 convertible bug. 2387cc motor. 4.5s/deep 6s original. Pan powder coated. Benco transmission in the works. Disc breaks all around soon.9/21/2025 added folding Volmac shifter, Huls recliners, powder coated seat frames. |
|
| Back to top |
|
|
roger10101
Samba Member
Joined: September 26, 2006
Posts: 40
Location: Los Angeles
|
| Posted: Wed Dec 18, 2024 12:29 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| goober wrote: |
| Does the TOB spin freely? |
Spins freely.
_________________
Have a 64 convertible bug getting body and paint. It’s been a year now as of 11/27/19. No body and paint. 9/21/2024 still no paint. Almost 5 years of free storage.
Also have a 59 convertible bug. 2387cc motor. 4.5s/deep 6s original. Pan powder coated. Benco transmission in the works. Disc breaks all around soon.9/21/2025 added folding Volmac shifter, Huls recliners, powder coated seat frames. |
|
| Back to top |
|
|
roger10101
Samba Member
Joined: September 26, 2006
Posts: 40
Location: Los Angeles
|
| Posted: Wed Dec 18, 2024 12:30 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| Cusser wrote: |
| roger10101 wrote: |
| I have a problem with a squealing noise when I idle and press the clutch pedal. |
That's typically an issue with the throwout bearing. |
New bearing. Should I purchase a different brand?
_________________
Have a 64 convertible bug getting body and paint. It’s been a year now as of 11/27/19. No body and paint. 9/21/2024 still no paint. Almost 5 years of free storage.
Also have a 59 convertible bug. 2387cc motor. 4.5s/deep 6s original. Pan powder coated. Benco transmission in the works. Disc breaks all around soon.9/21/2025 added folding Volmac shifter, Huls recliners, powder coated seat frames. |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33214
Location: Hot Arizona
|
| Posted: Wed Dec 18, 2024 1:46 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| roger10101 wrote: |
| Cusser wrote: |
| roger10101 wrote: |
| I have a problem with a squealing noise when I idle and press the clutch pedal. |
That's typically an issue with the throwout bearing. |
New bearing. Should I purchase a different brand? |
That's what I would do.
| busman78 wrote: |
| Did you grease the pilot bearing? |
The pilot bearing turns on the transmission shaft whether the clutch pedal is pushed down or not.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
roger10101
Samba Member
Joined: September 26, 2006
Posts: 40
Location: Los Angeles
|
| Posted: Thu Dec 19, 2024 5:16 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| Cusser wrote: |
| roger10101 wrote: |
| Cusser wrote: |
| roger10101 wrote: |
| I have a problem with a squealing noise when I idle and press the clutch pedal. |
That's typically an issue with the throwout bearing. |
New bearing. Should I purchase a different brand? |
That's what I would do.
| busman78 wrote: |
| Did you grease the pilot bearing? |
The pilot bearing turns on the transmission shaft whether the clutch pedal is pushed down or not. |
I noticed at the center of the pressure plate where the ring would go has uneven wear. Shining in some areas and not on other areas. I created this when I took off the center ring on the pressure plate. I did not remove it from the inner side where the spring holds it. I removed it from the outside. I believe that’s the issue.
Should I try and even them out or just purchase a new pressure plate?
_________________
Have a 64 convertible bug getting body and paint. It’s been a year now as of 11/27/19. No body and paint. 9/21/2024 still no paint. Almost 5 years of free storage.
Also have a 59 convertible bug. 2387cc motor. 4.5s/deep 6s original. Pan powder coated. Benco transmission in the works. Disc breaks all around soon.9/21/2025 added folding Volmac shifter, Huls recliners, powder coated seat frames. |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16660
Location: North Florida, USA
|
| Posted: Thu Dec 19, 2024 8:31 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
Could your noise be coming from the engine and not the clutch?
Go around to the crank pulley end of the engine and pull/push on the pulley. If the crank end play is correct there should be no noticeable movement in the crank pulley. The 0.004" end play should be unnoticeable to the naked eye.
My old engine had enough end play that you could see the pulley movement and the engine rpms would change when you stepped in the clutch.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
| Back to top |
|
|
roger10101
Samba Member
Joined: September 26, 2006
Posts: 40
Location: Los Angeles
|
| Posted: Sat Dec 21, 2024 6:10 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| ashman40 wrote: |
Could your noise be coming from the engine and not the clutch?
Go around to the crank pulley end of the engine and pull/push on the pulley. If the crank end play is correct there should be no noticeable movement in the crank pulley. The 0.004" end play should be unnoticeable to the naked eye.
My old engine had enough end play that you could see the pulley movement and the engine rpms would change when you stepped in the clutch. |
I would like to thank everyone for your support. I was low on gear oil(1bottle until it leaked out of the filler ). Noise went away drastically. I’m going to cycle it on all gears this weekend. Still there but it went down on first and second. Tried it on 3rd and it was barely any sound of the squealing. Thanks again.
_________________
Have a 64 convertible bug getting body and paint. It’s been a year now as of 11/27/19. No body and paint. 9/21/2024 still no paint. Almost 5 years of free storage.
Also have a 59 convertible bug. 2387cc motor. 4.5s/deep 6s original. Pan powder coated. Benco transmission in the works. Disc breaks all around soon.9/21/2025 added folding Volmac shifter, Huls recliners, powder coated seat frames. |
|
| Back to top |
|
|
joetx
Samba Member
Joined: December 26, 2022
Posts: 5
Location: TX
|
| Posted: Wed Mar 26, 2025 10:55 am Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|

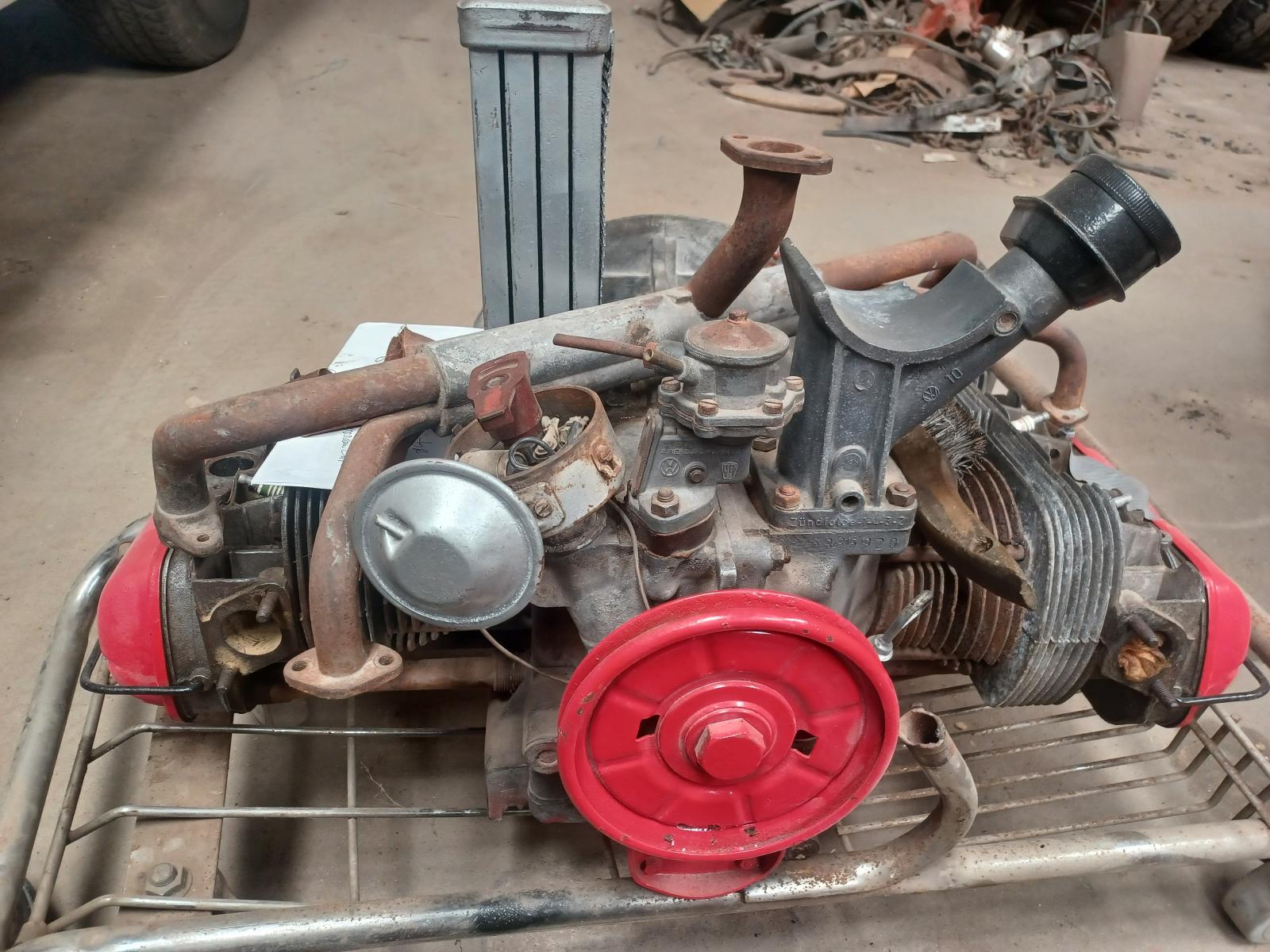

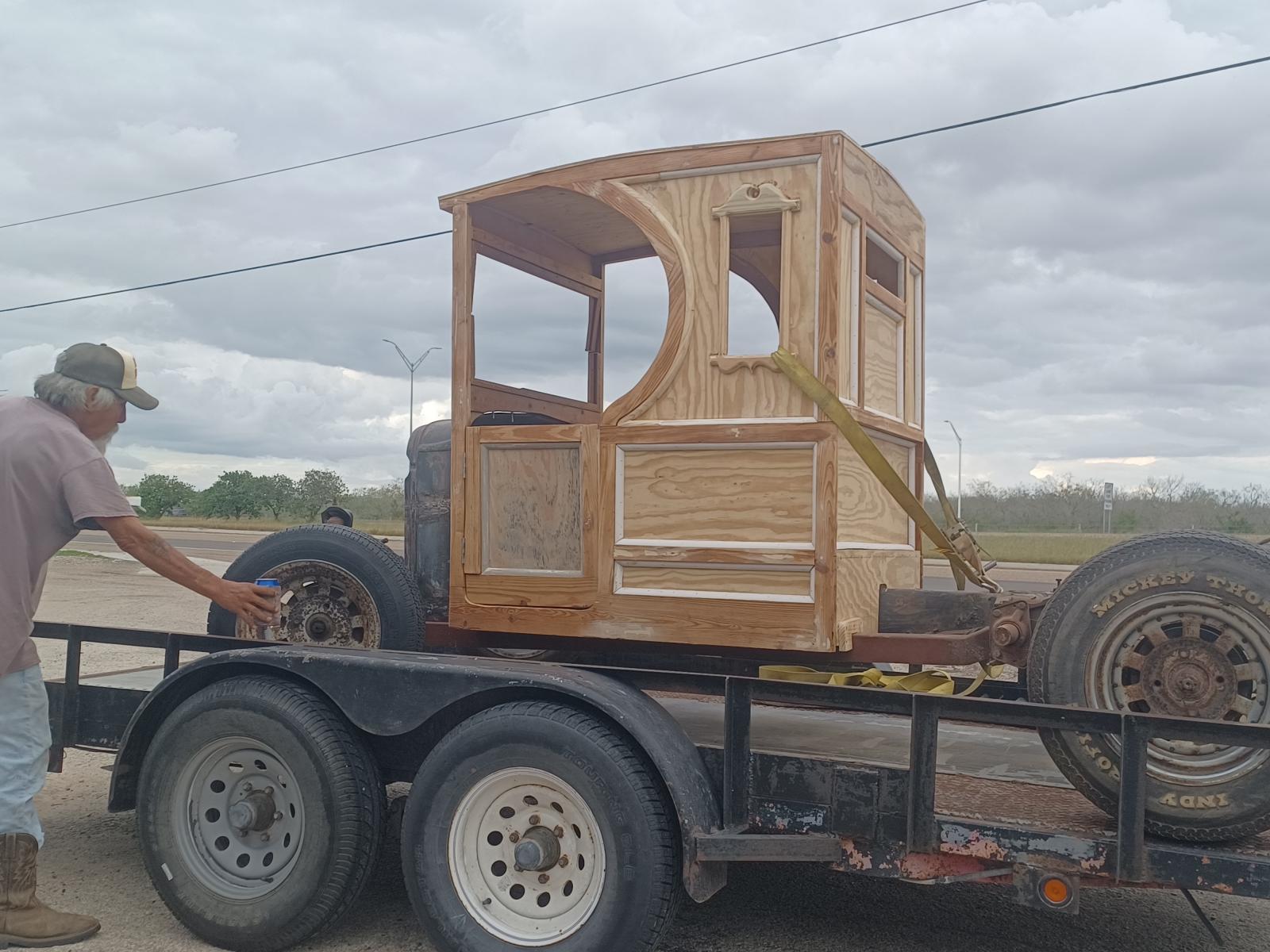

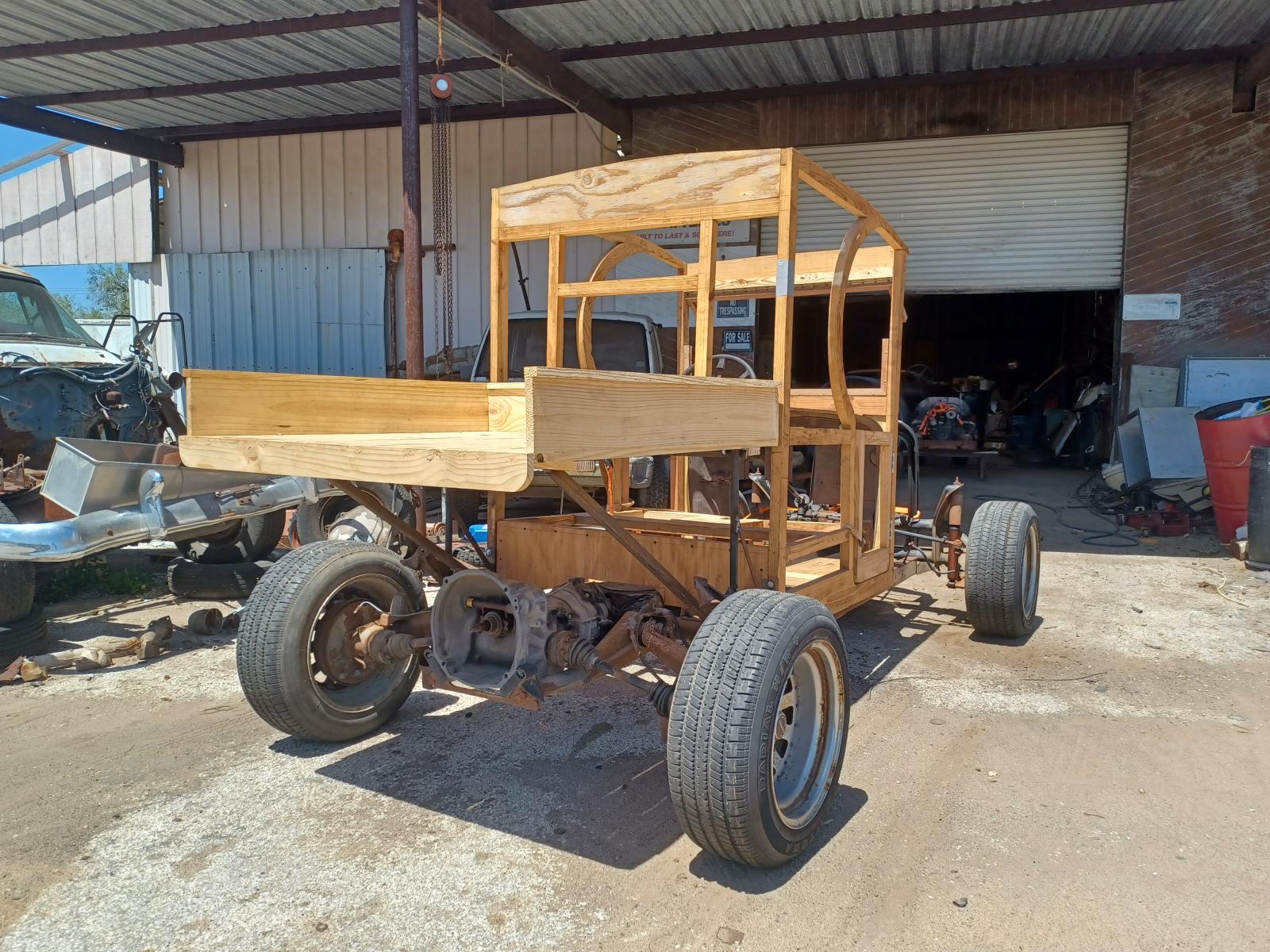

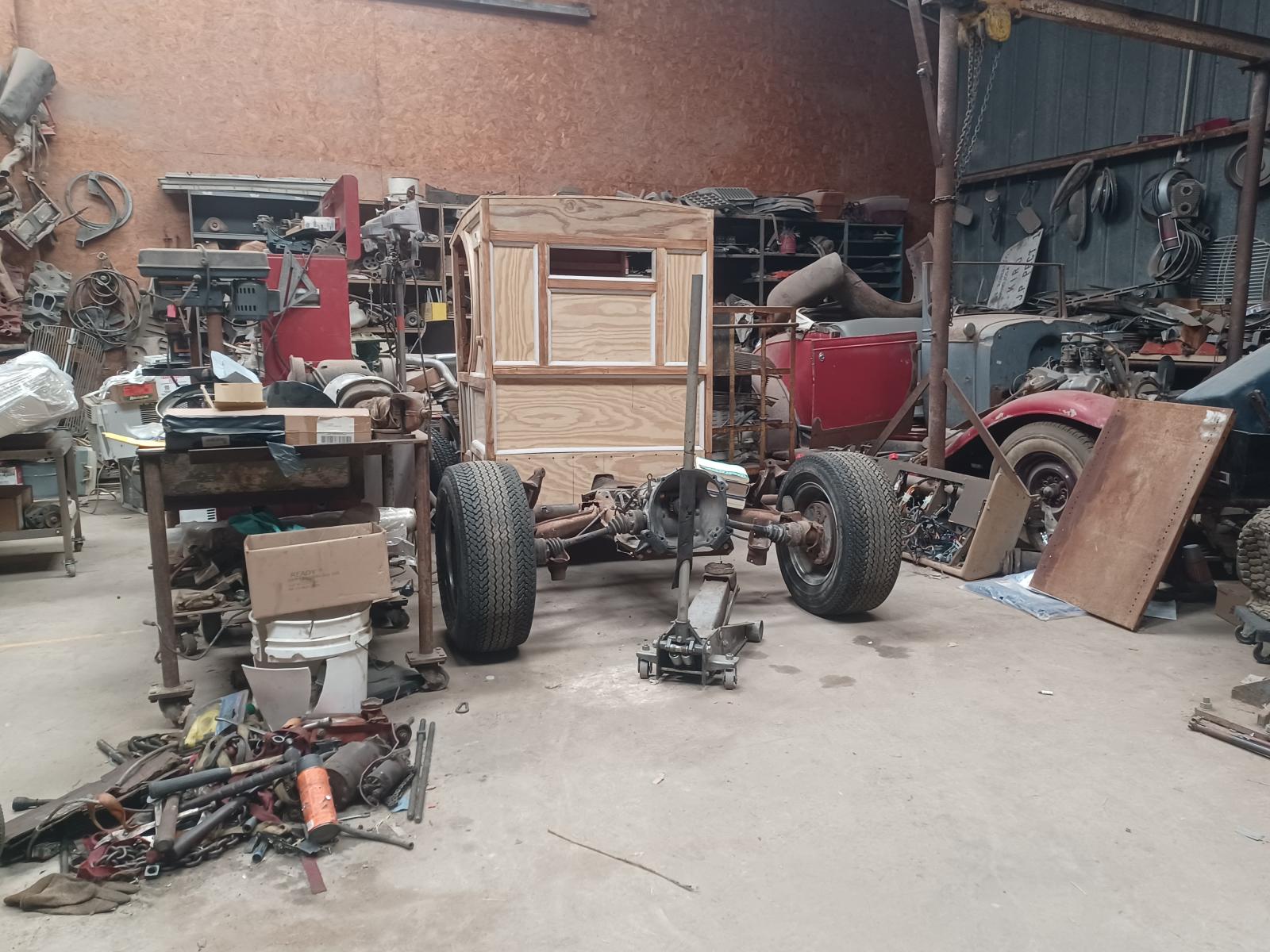

I have a project that won't run fast or far. Mostly around the ranch. So I have a '74 beetle pan/transaxle and a '62 1200 motor. Thinking of buying a '74 flywheel and a clutch kit and starter. Is there something else I need to contend with when mating this motor to the '74 uniy. Read something about that there is difference in rear main seals. Is there something I will have to do to mount this motor? Maybe change out the pilot bushing? Thanks for any help you can provide me. I do some mechanic work, but don't have experience with VW's so please be specific and patient with me
|
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26538
Location: Douglas, WY
|
| Posted: Wed Mar 26, 2025 11:32 am Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
Flywheel issue.
A 1962 40HP engine has a different shape to the end of the crankshaft. These used a paper or metal gasket around the dowel pins. Late in model year 1966 VW changed to a different shape to the end of the crankshaft and a flywheel with a rubber O-ring for sealing. You can't put a later O-ring flywheel onto a "step" crank unless machine work is done.
_________________
Andy T.
"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!" |
|
| Back to top |
|
|
joetx
Samba Member
Joined: December 26, 2022
Posts: 5
Location: TX
|
| Posted: Wed Mar 26, 2025 2:34 pm Post subject: Re: Clutches - what pressure plate with what throwout bearing |
|
|
| Not what I wanted to hear, but it is what it is!!! Thanks. |
|
