67dubcab
Samba Member
Joined: February 12, 2009
Posts: 214
Location: sebastopol C.A
|
 Posted: Mon May 19, 2014 10:22 pm Post subject: |
 |
|
I think nikke911 is the weight loss loser winner!
I have been bugging him to show more shots of his cage, I am planning something very much like it, toe bar, knee bar ect...
Harold, I think a build thread on The Samba would be excellent, 930 engine, 911 front rack, your d.c keeps getting faster and more refined (maybe not so much the 930 engine-more punk than refined)
_________________
Porsche powered mid-engine double cab build
http://www.thesamba.com/vw/forum/viewtopic.php?t=3...highlight= |
|
| Back to top |
|
 |
AirBus
Samba Member
Joined: February 04, 2008
Posts: 290
Location: Holland
|
| Posted: Tue May 20, 2014 12:00 am Post subject: |
|
|
| gumbajv wrote: |
For the guys who used a 911 steering rack, what did you use for tie rods?
|
I used the Turbo Rods.
| Quote: |
Turbo tie rods improve feedback and steering precision by replacing the rubber tie rod bushings with ball socket ends. Originally equipped on the 911 turbo, they can be installed on the normal 911/912.
We offer turbo tie rods in standard length for '69-'89 911 series cars, and a special extra-long version for '65-'68 911/912. The '65-'68 cars have a narrow steering rack which causes inadequate tie rod thread engagement without our extra long turbo tie rods.
|
I think you can also use them from another modern car. (much cheaper)
I also found this option, that looks very handy for my bagged bus: (Rod extender)
_________________
VW T1 1964 - Mouse Grey - Pearl White
Bagged, Porsche steeringrack/brakes..IRS, T1 1915cc |
|
| Back to top |
|
|
nikke911
Samba Member
Joined: March 12, 2011
Posts: 11
Location: Finland
|
| Posted: Tue May 20, 2014 12:10 pm Post subject: |
|
|
| Quote: |
I also found this option, that looks very handy for my bagged bus: (Rod extender)
|
That is actually a kit which is used when the spindle is raised on 911:s. Many different kits available from Rebel Racing or Elephant..
Takes the load of the rod and relocates the steering shaft to reduce bump-steer. |
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Mon Jun 02, 2014 11:29 am Post subject: |
|
|
Airbus, great set up. Looks like you did the full 911 front suspension.
It looked like the turbo tie rods would work so I ordered a set. Should be here by the end of the week. Also waiting for some other stuff. Should have the front end done by early next week.
I did some more adjustments with the Koni double adjustable front shocks and improved the ride. Was on the bouncy side. I softened the compression and stiffened the rebound. I'll stay with this set up.
I decided to part out the 3.2, intake, exhaust, long block etc. I'm also selling the custom muffler. Can't do much on the 3.0 turbo motor until I sell the 3.2 stuff.
I'm still debating about flairing the rear fenders to accept either 10x15's or 11x15 Fuchs w/270 tires. I have a pair of 9x15's w/215's and 11x15's w/270's. |
|
| Back to top |
|
|
AirBus
Samba Member
Joined: February 04, 2008
Posts: 290
Location: Holland
|
| Posted: Fri Jun 27, 2014 4:07 am Post subject: |
|
|
| gumbajv wrote: |
Airbus, great set up. Looks like you did the full 911 front suspension.
It looked like the turbo tie rods would work so I ordered a set. Should be here by the end of the week. Also waiting for some other stuff. Should have the front end done by early next week.
I did some more adjustments with the Koni double adjustable front shocks and improved the ride. Was on the bouncy side. I softened the compression and stiffened the rebound. I'll stay with this set up.
I decided to part out the 3.2, intake, exhaust, long block etc. I'm also selling the custom muffler. Can't do much on the 3.0 turbo motor until I sell the 3.2 stuff.
I'm still debating about flairing the rear fenders to accept either 10x15's or 11x15 Fuchs w/270 tires. I have a pair of 9x15's w/215's and 11x15's w/270's. |
Ha sorry it's just a internet picture to explain about the rod extenders.. I wish it was mine
I will post recent pics of my front setup asap..
_________________
VW T1 1964 - Mouse Grey - Pearl White
Bagged, Porsche steeringrack/brakes..IRS, T1 1915cc |
|
| Back to top |
|
|
gears
Samba Member
Joined: October 28, 2002
Posts: 4411
Location: Tamarack, Bend, Kailua
|
| Posted: Sun Jun 29, 2014 11:23 am Post subject: |
|
|
One of the best threads ever on Samba .. a number of you have awesome fabrication skills. (gumbajv .. I may have some of the 915 stuff you need. I've been slowly liquidating since retirement.)
I've watched Kenny Porter at the track. While his van isn't as high tech as what you guys are doing, man that van hauls ass .. the ultimate crowd pleaser.
_________________
aka Pablo, Geary
9.36 @ 146 in '86 Hot & Sticky
'90 Syncro Westy SVX
'87 Syncro GL 2.5
https://guardtransaxle.com |
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Mon Jun 30, 2014 9:02 am Post subject: |
|
|
Here's a link to steering conversion page:
http://there.dino.com/harold/nbus.php?page=steering
Stephen: The turbo motor wasn't in as good a shape as I thought (what's new).
I don't see the bus up and running until sometime in Sept. |
|
| Back to top |
|
|
Shoyrtt
Samba Member
Joined: August 21, 2010
Posts: 1142
Location: Redlands, CA
|
| Posted: Mon Jun 30, 2014 2:41 pm Post subject: |
|
|

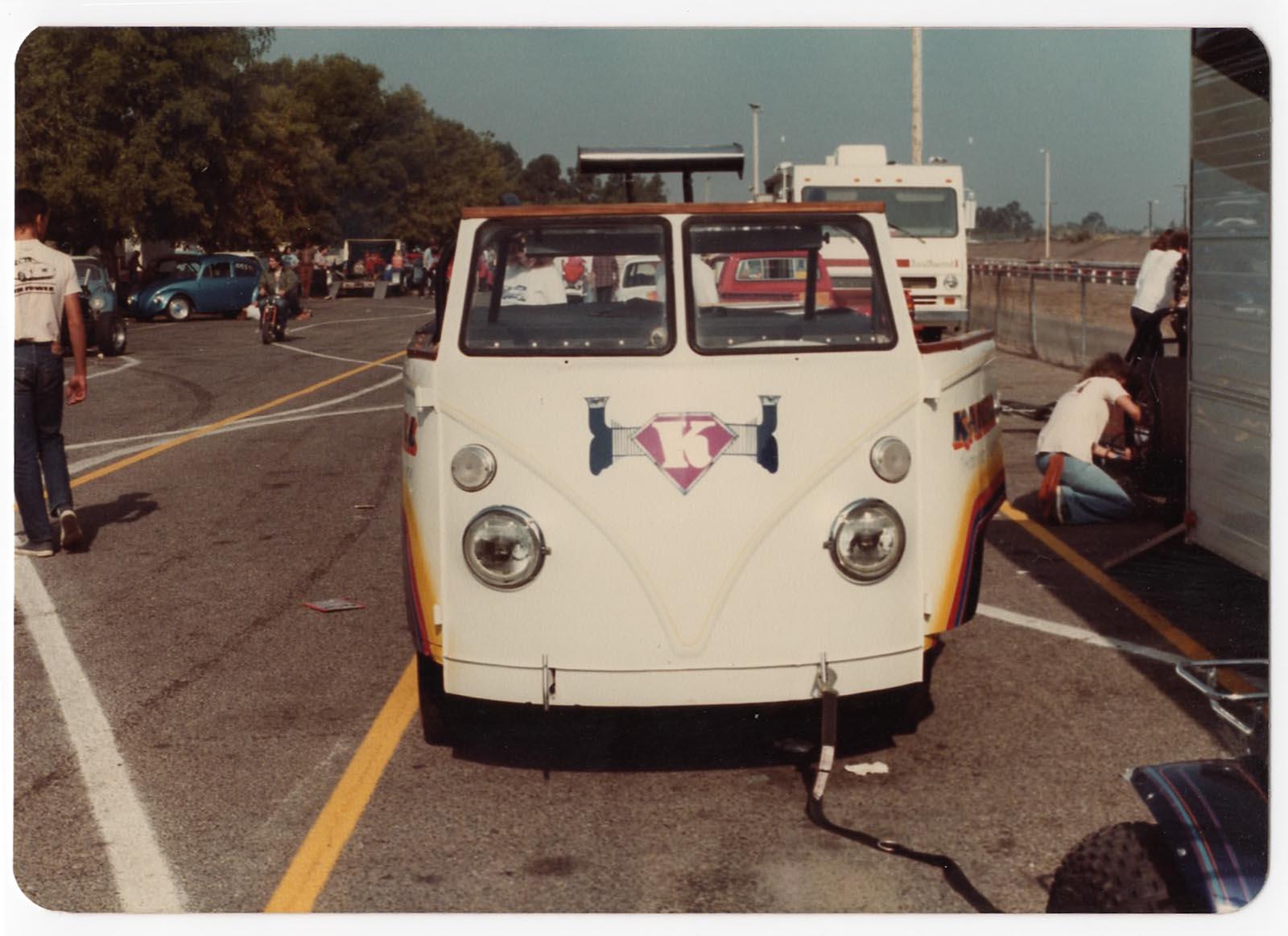

From the 81 Bug-In (OC raceway):
|
|
| Back to top |
|
|
Fish
Samba Member
Joined: December 05, 2000
Posts: 6022
Location: OB. It's beside the point.
|
| Posted: Tue Jul 01, 2014 10:08 pm Post subject: |
|
|
I remember seeing that bus wheelie down the track at OCIR. I've been waiting for someone to post a picture of it. Thanks Shoyrtt!
_________________
Prosit!
.·´¯`·.¸. , . .·´¯`·..><((((º>
.·´¯`·.¸. , . .·´¯`·..><((((º>
# 303 and #156
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Shoyrtt
Samba Member
Joined: August 21, 2010
Posts: 1142
Location: Redlands, CA
|
| Posted: Wed Jul 02, 2014 1:03 pm Post subject: |
|
|
| Fish wrote: |
| I remember seeing that bus wheelie down the track at OCIR. I've been waiting for someone to post a picture of it. Thanks Shoyrtt! |
I remember seeing it also in the early 80's. Very cool to see it wheelie!
Dave Kawell's site has a great article about the bus with all of it's history:
http://www.kawellracing.com/racebus.html |
|
| Back to top |
|
|
66uno
Samba Member
Joined: December 05, 2006
Posts: 603
Location: maryland
|
| Posted: Wed Jul 02, 2014 1:20 pm Post subject: |
|
|
Within the next few years, the fastest thing on the road will be electric. We are seeing the transition right now. . .the next generation of batteries will just speed things along.
Just my opinion, of course. Don't believe me just spend a few minutes on Youtube and see for yourself. |
|
| Back to top |
|
|
Fish
Samba Member
Joined: December 05, 2000
Posts: 6022
Location: OB. It's beside the point.
|
| Posted: Wed Jul 02, 2014 1:44 pm Post subject: |
|
|
| Shoyrtt wrote: |
| Fish wrote: |
| I remember seeing that bus wheelie down the track at OCIR. I've been waiting for someone to post a picture of it. Thanks Shoyrtt! |
I remember seeing it also in the early 80's. Very cool to see it wheelie!
Dave Kawell's site has a great article about the bus with all of it's history:
http://www.kawellracing.com/racebus.html |
Thank you for the link!
_________________
Prosit!
.·´¯`·.¸. , . .·´¯`·..><((((º>
.·´¯`·.¸. , . .·´¯`·..><((((º>
# 303 and #156
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
AirBus
Samba Member
Joined: February 04, 2008
Posts: 290
Location: Holland
|
| Posted: Fri Jul 18, 2014 6:59 am Post subject: |
|
|
external brake booster
Front
Rear
Steeringrack + airride + 944 brakes
Drives/brake perfect..
Have build a small supercharger on the 1600
_________________
VW T1 1964 - Mouse Grey - Pearl White
Bagged, Porsche steeringrack/brakes..IRS, T1 1915cc |
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Sat Jul 26, 2014 9:15 pm Post subject: |
|
|
| Very slick supercharger! |
|
| Back to top |
|
|
brettsvw
Samba Member
Joined: November 22, 2007
Posts: 2177
Location: Florida
|
|
| Back to top |
|
|
busworks
Samba Member
Joined: May 21, 2004
Posts: 202
Location: Moncks Corner,S.C.
|
| Posted: Sun Aug 03, 2014 6:50 am Post subject: |
|
|
| What's that supercharger off of? |
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Sun Oct 05, 2014 6:12 pm Post subject: |
|
|
The turbo motor is moving very slowly, parts still out being machined. Displacement got bumped up to 3.3, SC cams for better low end torque, ported heads, match ported injector blocks and cis intake. Also picked up a set of used headers w/heat. Turbo will be a Garrett GT35 for quick spool up.

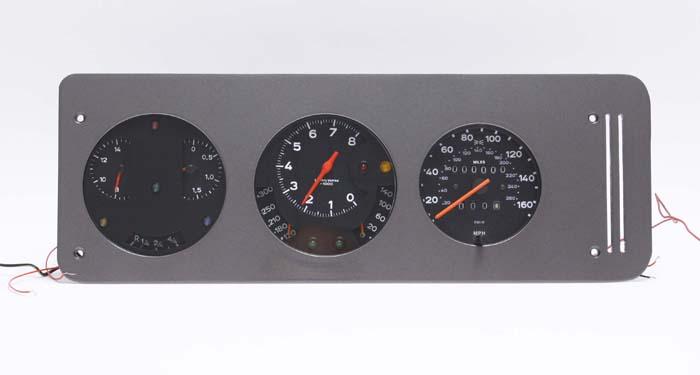

Meanwhile I made a new dash and gauges.
|
|
| Back to top |
|
|
Dogo
Samba Member
Joined: May 21, 2009
Posts: 252
Location: Canada
|
| Posted: Tue Oct 07, 2014 7:47 am Post subject: |
|
|
| brettsvw wrote: |
Is there a swaybar for a 4in narrowed bus beam?
Has anyone tried an aftermarket 3/4in type1 swaybar on a bus narrowed beam?
I do not want to buy one have it shipped and not work. |
Vintage Autohaus makes narrowed sway bar for bays. I don't know if they make them for split buses, but I would imagine they might. Worth giving them a call.
Don't bother with their "shop online" link. I don't think they ever got that going. Pity.
http://www.thesamba.com/vw/forum/viewtopic.php?t=1...start=4020
http://www.vintageautohaus.com/ |
|
| Back to top |
|
|
demon1018
Samba Member
Joined: September 12, 2009
Posts: 931
Location: crystal river, fl
|
| Posted: Tue Oct 07, 2014 3:30 pm Post subject: |
|
|
| is that a buggy rack and pinion? i was gonna use that when i was building mine until i found out that it is 1 turn lock to lock! ive already said it but again i used a chevy cavalier,sunbird rack from a 1988,89,90. it has the inner tie rods attached to the center of the rack ....the same place that the stock bus steering was at. and the pinion comes out to the driver side so the steering shaft form the bevel box to the rack is almost a strait shot. even that porsche rack is not center load and the bump steer will increase...that is just a fact..it might work but it wont work right. just trying to pass the info along. i search alot to figure that out |
|
| Back to top |
|
|
pineapple_express
Samba Member
Joined: January 25, 2010
Posts: 105
Location: HI>WA
|
| Posted: Thu Nov 13, 2014 1:52 pm Post subject: turbo barndoor bus aka bangbus |
|
|
Turbo your bus they said, it'll be fun they said
_________________
[Fiddy Whip] |
|
