PostPosted: Wed Oct 05, 2005 7:27 am    Post subject: Metal Dashboard - - ? Reply with quote

I got a question....I did a search but didn't find an exact answer, so pardon if it's a repeat.
Anyone have any luck stripping the plastic off the dashboard? I've seen a few busses where it's been done and I have 2 bay windows- just wondering what sort of mess it leaves behind.
Bob O
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dembus
Samba Member


Joined: February 02, 2005
Posts: 1272
Location: Fleming Island, Florida
dembus is offline

PostPosted: Wed Oct 05, 2005 8:25 am    Post subject: Reply with quote

I stripped this one because it was badly cracked but I still wanted to use the original dash from the 69. I saw one in a pic of a European/Comercial model and I think it looks awsome. I saw one painted black with the upper pad and sun deflector and one painted the same color as the interior metal with the black pad and black sun deflector. I will try to find the pic.
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Want a little peace of mind, grab the lowest branch and start to climb"
JJ Grey

69 Westy (R.I.P.)
68 Kombi
70 Westy
68 Beetle Sedan
69 Beetle Sedan
68 Deluxe
71 Deluxe
71 HT Westy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dembus
Samba Member


Joined: February 02, 2005
Posts: 1272
Location: Fleming Island, Florida
dembus is offline

PostPosted: Wed Oct 05, 2005 8:36 am    Post subject: Reply with quote

Here is a good example from the gallery.
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Want a little peace of mind, grab the lowest branch and start to climb"
JJ Grey

69 Westy (R.I.P.)
68 Kombi
70 Westy
68 Beetle Sedan
69 Beetle Sedan
68 Deluxe
71 Deluxe
71 HT Westy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Gary
Person of Interest


Joined: November 01, 2002
Posts: 17069
Location: 127.0.0.1
Gary is offline

PostPosted: Wed Oct 05, 2005 8:54 am    Post subject: Reply with quote

dembus wrote:
Here is a good example from the gallery.
Image may have been reduced in size. Click image to view fullscreen.


That looks really nice. Makes me re-think sending my dash off to get restored/recovered.
_________________
West Virginia State Board of Education v. Barnette, 319 U.S. 624 (1943)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jolo
Samba Member


Joined: June 02, 2004
Posts: 172
Location: Burlington
jolo is offline

PostPosted: Wed Oct 05, 2005 9:48 am    Post subject: Reply with quote

If I remember correctly, the european ones (or some of 'em) came from the factory with the metal dash.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
panasonic90
Samba Member


Joined: April 13, 2004
Posts: 612
Location: Under the Belgian rain
panasonic90 is offline

PostPosted: Wed Oct 05, 2005 10:16 am    Post subject: Reply with quote

What? your dashboards are not metallic? Laughing
_________________
"May the fweem be with you"
Obi Volks Kenobi
---------------------------------
74 bay ambulance
type 4 2lt carbs engine
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dembus
Samba Member


Joined: February 02, 2005
Posts: 1272
Location: Fleming Island, Florida
dembus is offline

PostPosted: Wed Oct 05, 2005 11:09 am    Post subject: Reply with quote

Here is another one. There are factory holes in the passenger side for switches for rt hand drive models. They could easily be plugged with something. I think it is a great way to utilize an original dash and not toss it in the trash. It only takes about a half hour to strip the padding, longer to strip adhesive and sand/paint. Fun project!
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Want a little peace of mind, grab the lowest branch and start to climb"
JJ Grey

69 Westy (R.I.P.)
68 Kombi
70 Westy
68 Beetle Sedan
69 Beetle Sedan
68 Deluxe
71 Deluxe
71 HT Westy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sxuxrxf
Samba Member


Joined: May 18, 2005
Posts: 1338
Location: Oceanside, CA
sxuxrxf is offline

PostPosted: Wed Oct 05, 2005 11:17 am    Post subject: Reply with quote

There was a recent thread about this. From what I have seen, European models may have come with the steel dash with no padding. If you look close at the Bentley manual, you'll see the white westy with a steel dash.
Warning: before you decide to strip the vinyl and foam from your dash look at the backside near the corners. There are vertical slotted holes in the american dashes under the air vents. The cut out areas will need to be filled. I converted my first bus by getting a used dash from the junkyard. This allowed me to strip, fill holes and paint while still driving my bus daily. It's an easy swap (couple of hours) if you're ready ahead of time. To fill the slots you'll need to weld in new metal or use a lot of bondo!
(pic above was added while I was writing-good timing!)
_________________
(ignore the X's )


Last edited by sxuxrxf on Wed Oct 05, 2005 11:19 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
zabo
Samba Member


Joined: May 24, 2005
Posts: 1199
Location: ATL
zabo is offline

PostPosted: Wed Oct 05, 2005 11:18 am    Post subject: Reply with quote

open glove boxes look like the only downside
_________________
1960 6 volt sedan- 1978 adventurewagen
–wanted bill spreen atlanta dealer tag frame
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sxuxrxf
Samba Member


Joined: May 18, 2005
Posts: 1338
Location: Oceanside, CA
sxuxrxf is offline

PostPosted: Wed Oct 05, 2005 11:21 am    Post subject: Reply with quote

The glove box bolts right back on, regardless of padding. With the door on it looks just like the gauge panel.
_________________
(ignore the X's )
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stevemariott
Samba Member


Joined: November 09, 2003
Posts: 1100
Location: Portland, OR
stevemariott is offline

PostPosted: Wed Oct 05, 2005 11:25 am    Post subject: Reply with quote

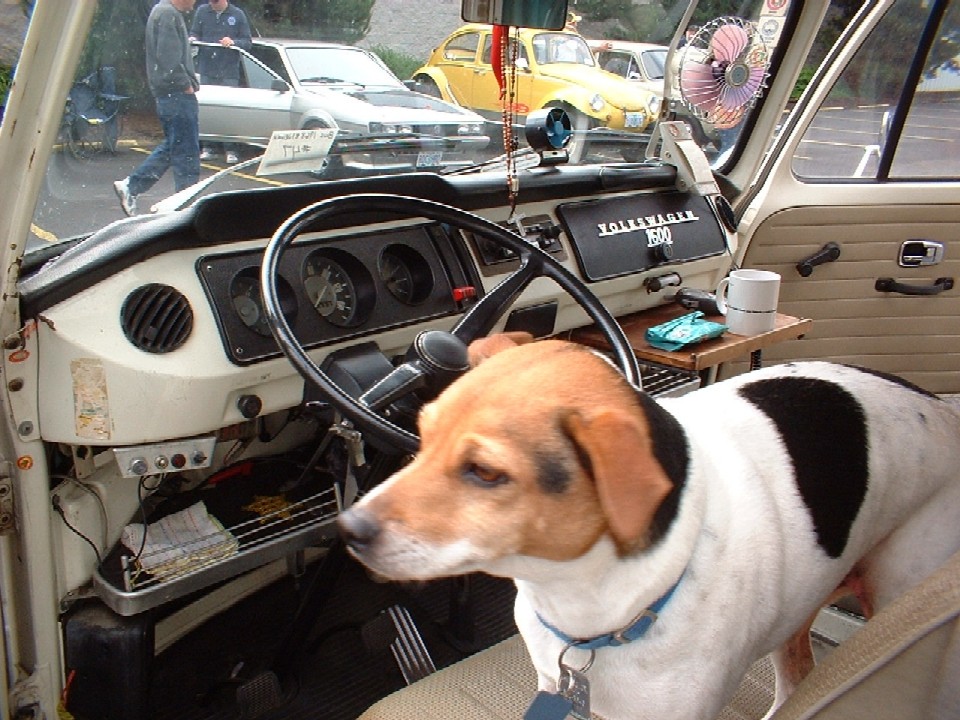

You can still use the glovebox door on a stripped dash, they were not always equipped with them on the euro dashes though. Here's one I shot locally:

Image may have been reduced in size. Click image to view fullscreen.


The early dashes don't have those vertical slots, but the later ones do. Various other holes still remain however - one in the center under the radio, a few others on the pass. side, etc.
_________________
1963 Manx copy
1968 Bus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
panasonic90
Samba Member


Joined: April 13, 2004
Posts: 612
Location: Under the Belgian rain
panasonic90 is offline

PostPosted: Wed Oct 05, 2005 11:26 am    Post subject: Reply with quote

Now seriously, all european bays have steel dashboard. I believe that early bays came with the dashboard in the same color as the body, while late bays had a black slightly rough finish. I could be wrong here, these are just my observations.
_________________
"May the fweem be with you"
Obi Volks Kenobi
---------------------------------
74 bay ambulance
type 4 2lt carbs engine
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stevemariott
Samba Member


Joined: November 09, 2003
Posts: 1100
Location: Portland, OR
stevemariott is offline

PostPosted: Wed Oct 05, 2005 11:30 am    Post subject: Reply with quote

Yep, I gather the same thing. For that matter, all the American ones have steel dashes too... underneath the wonderful vinyl and foam padding Wink
_________________
1963 Manx copy
1968 Bus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
steponmebbbboom
Samba Member


Joined: May 01, 2004
Posts: 6390

steponmebbbboom is offline

PostPosted: Wed Oct 05, 2005 3:51 pm    Post subject: Reply with quote

The padding was added for North american markets to meet safety standards for lowspeed collision.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Gary
Person of Interest


Joined: November 01, 2002
Posts: 17069
Location: 127.0.0.1
Gary is offline

PostPosted: Wed Oct 05, 2005 8:28 pm    Post subject: Reply with quote

steponmebbbboom wrote:
The padding was added for North american markets to meet safety standards for lowspeed collision.


Oh, those whacky Americans. 2mph collisions would require padding Rolling Eyes
_________________
West Virginia State Board of Education v. Barnette, 319 U.S. 624 (1943)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
steponmebbbboom
Samba Member


Joined: May 01, 2004
Posts: 6390

steponmebbbboom is offline

PostPosted: Wed Oct 05, 2005 8:30 pm    Post subject: Reply with quote

FMVSS and CMVSS to be precise. Good for 15mph.

Thanks for stopping by. Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
clyde68
Samba Member


Joined: August 09, 2005
Posts: 62
Location: EXETER,DEVON,ENGLAND
clyde68 is offline

PostPosted: Thu Oct 06, 2005 8:29 am    Post subject: Reply with quote

Ive been told that only 68 buses came with colour coded dash. Ive got a lhd 69 westy and am thinking of looking for a spare dash to strip and paint while still keeping my original for the future, in case i ever need to sell it. Anyone got one in the uk they want to sell?
