 Posted: Sat Nov 16, 2013 2:51 pm Post subject: Can you ID these parts |
 |
|
These are parts that were in a box that came with my 76 tin top. I assume they are Bus parts, but not sure. Thanks for the assist.

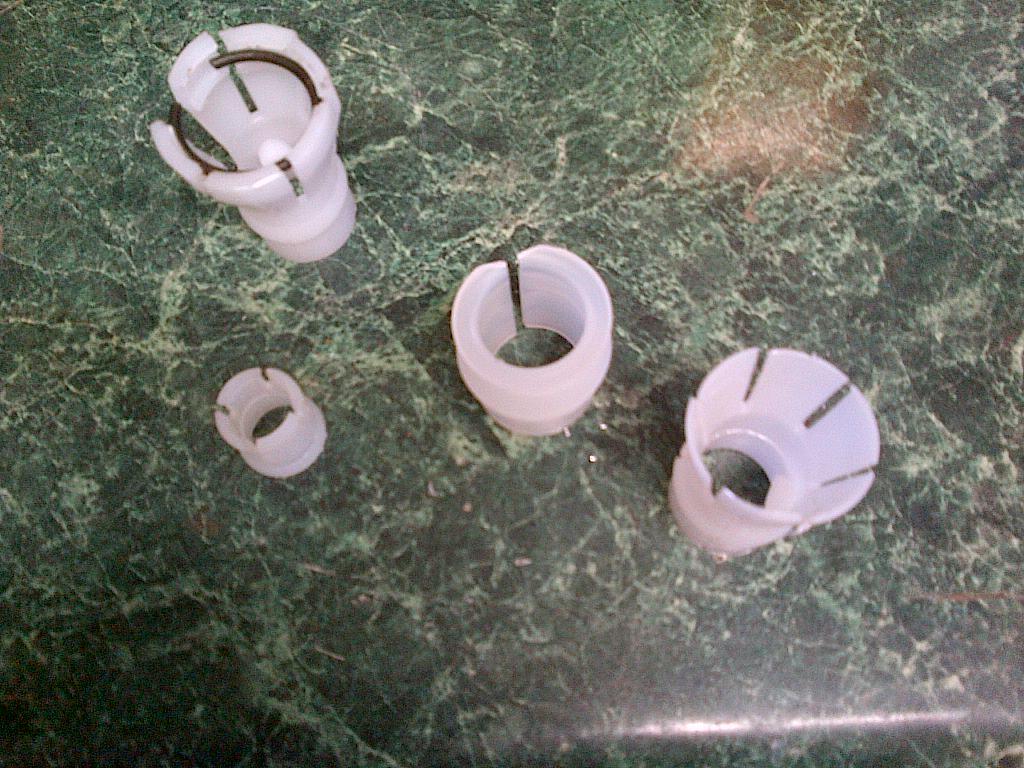

#1:

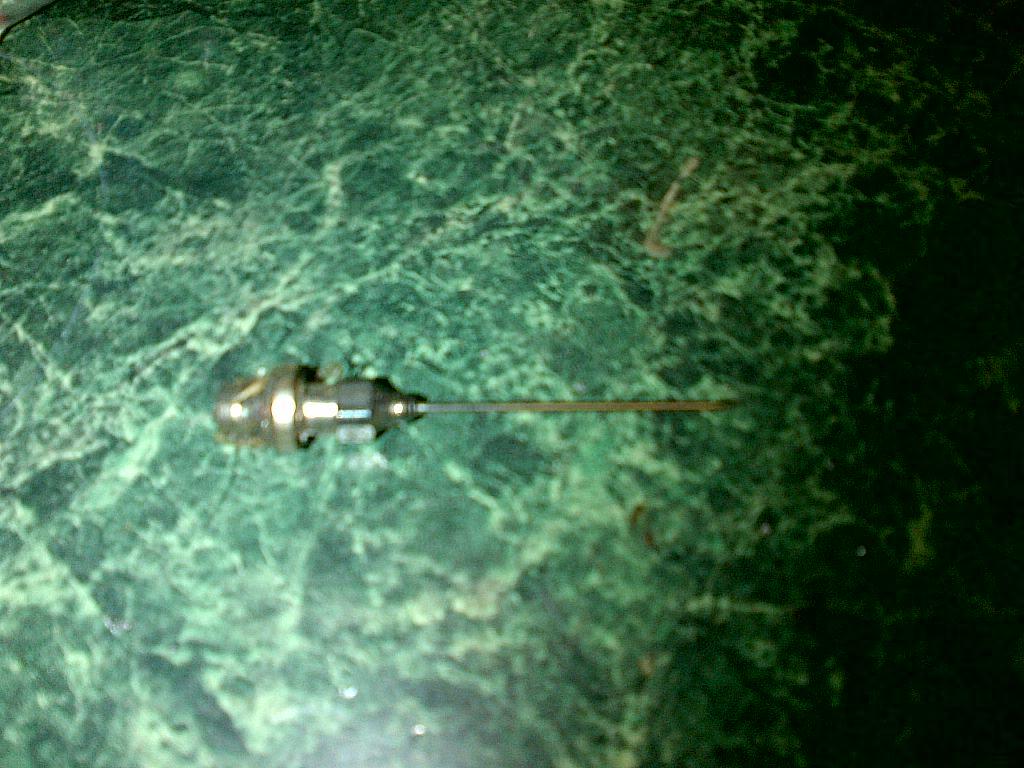

#2:
#3:
#4:
#5:
#6:
_________________
'76 VW Campmobile
'98 VW Passat
'69 Piper Comanche |
|
| Back to top |
|
 |
rustbus
Samba Member
Joined: June 18, 2009
Posts: 2079
Location: alberta
|
| Posted: Sat Nov 16, 2013 2:52 pm Post subject: |
|
|
the first are bushings for the gear shift rod. need to remove the engine and transmission to get all of those in.
i've never seen the rest. last one is a coil bracket but not genuine VW
_________________
May of '72 Deluxe.  2.0L L-Jet CS & 091 trans conversion
my Bus thread |
|
| Back to top |
|
|
bowtiebug
Samba Member
Joined: March 17, 2013
Posts: 902
Location: North Texas
|
| Posted: Sat Nov 16, 2013 3:08 pm Post subject: |
|
|
#1 shift rod bushings - as stated above
#2 cant make out pic to blurry
#3 is part of a exhaust clamp - missing hoop with nuts
#4 appear to be drum brake springs
#5 no idea
#6 None OEM coil bracket - as stated above
_________________
http://www.etsy.com/shop/AlphaKnots |
|
| Back to top |
|
|
fleff
Samba Member
Joined: November 25, 2007
Posts: 119
Location: Texas
|
| Posted: Sat Nov 16, 2013 3:33 pm Post subject: |
|
|
Wow, that was fast. #2 is a Zirc fitting with a "syringe" on the inside. Not sure what that would be used for.
_________________
'76 VW Campmobile
'98 VW Passat
'69 Piper Comanche |
|
| Back to top |
|
|
my59
Samba Member
Joined: August 13, 2003
Posts: 4007
Location: connecting the dots
|
| Posted: Sat Nov 16, 2013 4:35 pm Post subject: |
|
|
| fleff wrote: |
| Wow, that was fast. #2 is a Zirc fitting with a "syringe" on the inside. Not sure what that would be used for. |
For shoving grease into fittings with rubber cover- like ball joints.
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, '77 Benz 300D, and a 74 MG Midget. |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42915
Location: at the beach in Northern Wokistan
|
| Posted: Sat Nov 16, 2013 7:11 pm Post subject: |
|
|
| my59 wrote: |
| fleff wrote: |
| Wow, that was fast. #2 is a Zirc fitting with a "syringe" on the inside. Not sure what that would be used for. |
For shoving grease into fittings with rubber cover- like ball joints. |
It could be that but the photo is poor. Also looks a bit like the end of an adjustable throttle linkage.
The rubber thing looks like some kind of a trans buffer screwed onto some miscellaneous parts. |
|
| Back to top |
|
|
udidwht
Samba Member
Joined: March 06, 2005
Posts: 3804
Location: Seattle, WA./ HB, Ca./ Shizuoka, Japan
|
| Posted: Sat Nov 16, 2013 9:01 pm Post subject: |
|
|
| my59 wrote: |
| fleff wrote: |
| Wow, that was fast. #2 is a Zirc fitting with a "syringe" on the inside. Not sure what that would be used for. |
For shoving grease into fittings with rubber cover- like ball joints. |
Or CV joints as well (boot on installed).
_________________
1972 Westy Hardtop/Type-4 2056cc
96mm Biral AA P/C's~7.8:1CR
Headflow Masters New AMC 42x36mm heads w/Porsche swivel adjusters
71mm Stroke
73 Web Cam w/Web solids
Dual 40mm IDF Webers - LM-2 - 47.5 idles/125 mains/190 air corr./F11 tubes/28mm Vents - Float height 10.45mm/Drop 32mm
Bosch SVDA w/Pertronix module (7.5 initial 28 total @ 3400rpm)
Bosch W8CC plugs
Pertronix Flamethrower 40K coil
S&S 4-1 w/Walker QP 17862
3 rib 002 Trans
185R14 Hankook tires |
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13620
Location: West Coast, USA
|
| Posted: Sat Nov 16, 2013 9:35 pm Post subject: |
|
|
| udidwht wrote: |
| my59 wrote: |
| fleff wrote: |
| Wow, that was fast. #2 is a Zirc fitting with a "syringe" on the inside. Not sure what that would be used for. |
For shoving grease into fittings with rubber cover- like ball joints. |
Or CV joints as well (boot on installed). |
Bingo.
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
Road trip reports and tech blog:
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53169
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Nov 16, 2013 10:25 pm Post subject: |
|
|
Difficult to say without anything for scale in the pic but the springs look a little like the ones at the forward end of the parking brake handle.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
sodbuster
Samba Member
Joined: August 08, 2004
Posts: 1134
Location: wherever my baywindow takes me.
|
| Posted: Sun Nov 17, 2013 2:44 pm Post subject: |
|
|
| Only the two large "shuttlecock" shift bushings will work on your bus. The smallest bushing (i call it a "top hat" bushing.) fits early baywindow models. '68 up to I think '73. (feel free to correct me on the '73 if need be.) the midsize split bushing fits all bugs as well as buses 1967 and older. except for the very old old buses that required no front bushing at all. |
|
