Recommended tool to remove oil pressure spring plug

[50Splitman]

I've tried some larger screwdrivers, but I can't budge the oil pressure spring plug on my 25hp engine. Is there a recommended tool I can use to fit into the slotted plug to remove it? I'm thinking a drag link socket like this, but not sure if anyone has any better ideas or experience:

https://www.amazon.com/Stanley-Proto-J5444A-2-Inch...amp;sr=8-2

[busdaddy]

The drag link socket will be better than a screwdriver, but for really stuck ones I use a great big cold chisel that I custom ground the tip for an exact fit in the plug's slot, you can turn it with a crescent wrench or vise grips, and pound on it at the same time. I sized it so it was a slight interference fit in the slot.
Any cheapo one will do, mine came from the bargain bin at a discount tool store, it waas too soft to use as a chisel, but perfect for relief plugs.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[mg50]

[50Splitman]

Custom grinding a cold chisel is a creative solution for sure - I'll look into that. I can't try and approach hitting the slot from the side as I can't get an angle, so I'll look at either the socket or modified cold chisel unless someone else has a different idea. Thanks!

[wagen19]

[Zwitterkafer]

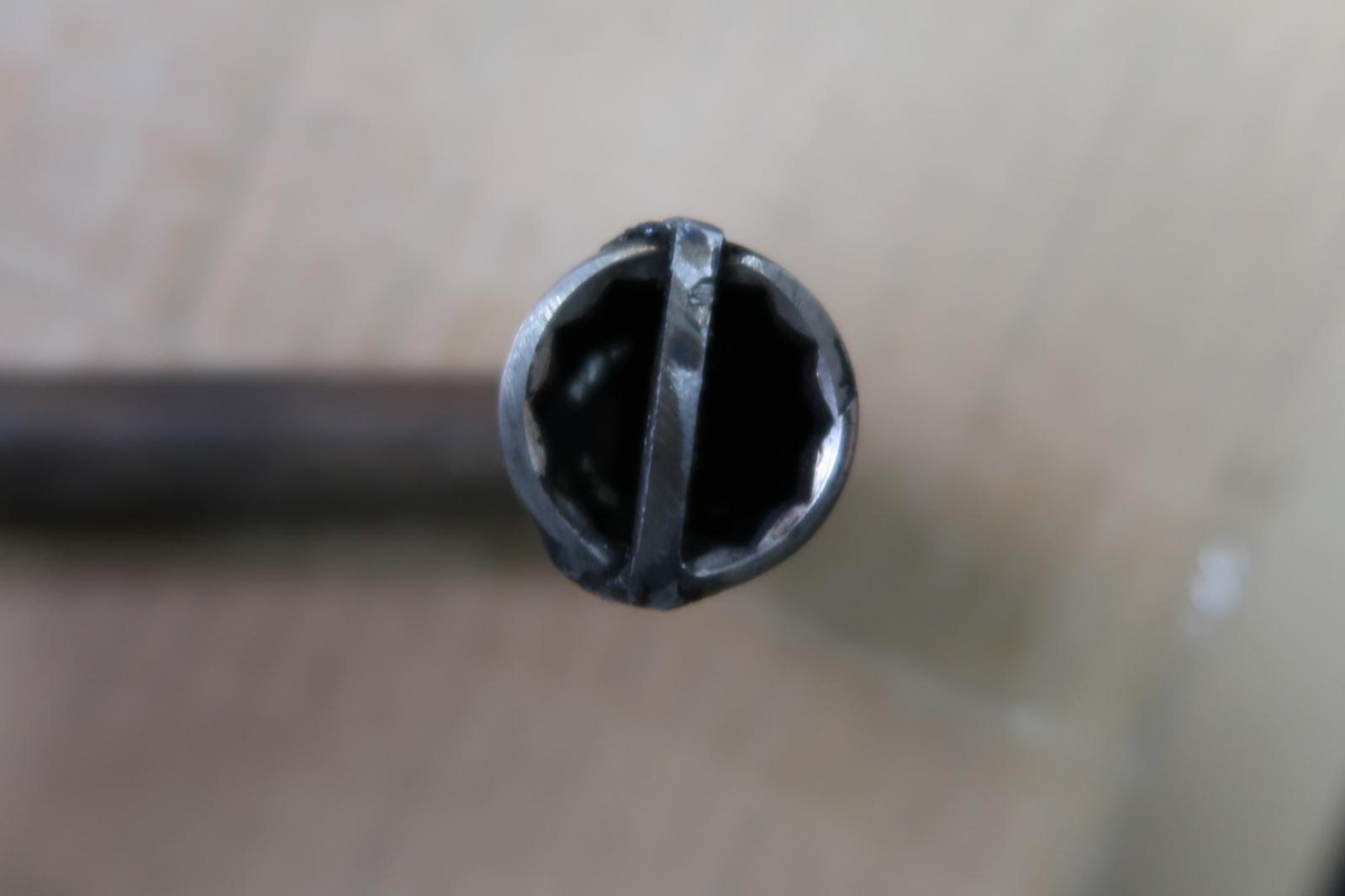

If the plug is to be reused and not marred, I use a small piece of rectangular steel, thickness = plug slot width, and length = point-to-point fit in an appropriate sized socket.
_________________
"Criticism comes easier than Craftsmanship"
- Zeuxius, 400 BC

[sweden]

I made this for many years and it´s allway work.

_________________
Me and my sons cars Typ1 -49 -50 -51 -52 -52 -53 -53 -54 -55 -55 -56 -56 -57 -58 cab -64 cab
T3 TriStar airride with Audi 1,8T engine and Porsche 996 gearbox.

[50Splitman]

Cool idea. I ordered the drag link socket from Amazon and I’ll see if that works. If it doesn’t, then I’ll make a custom tool similar to the ideas you have all shared. Thanks for all the feedback

[50Splitman]

UPDATE - this drag link socket worked perfectly: https://www.amazon.com/Stanley-Proto-J5444A-2-Inch...amp;sr=8-2

I was able to successfully remove and install the plug and replace the spring and plunger.

[busdaddy]

Good news!, thanks for following up.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[Robert Chambers]

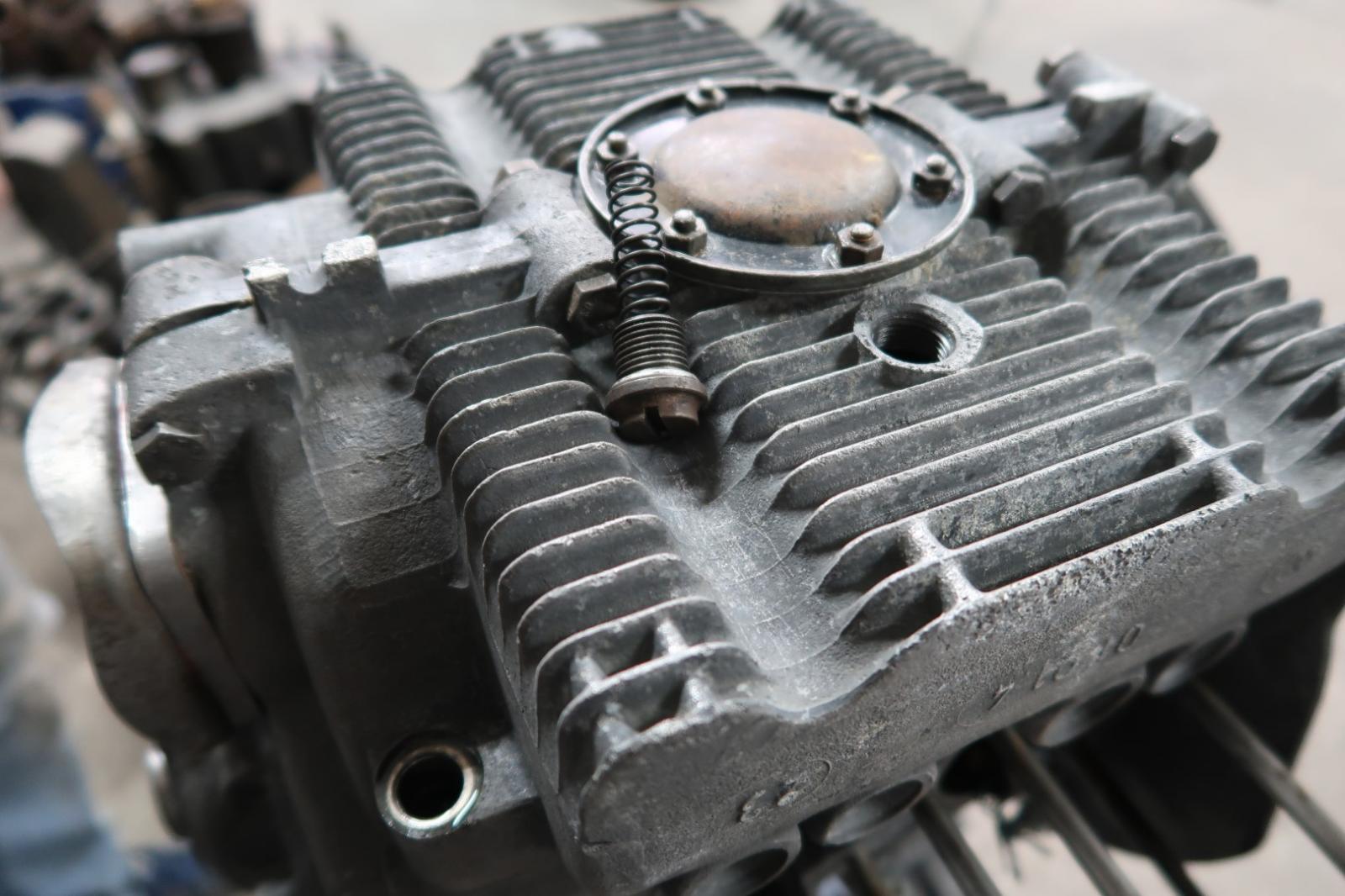

I just use a blade socket if needed to turn it loose and pull it out with a strong magnet! It works 99% of the time.
_________________
'63 OG 117 Herbie Replica
'56 Euro Oval Deluxe
'52 Standard Zwitter
'63 OG 117

[Glenn]

The $0.10 solution
