| Author |
Message |
Buba
Samba Member
Joined: February 23, 2003
Posts: 383
Location: Argentina
|
 Posted: Fri Sep 22, 2006 6:36 am Post subject: Barndoor engine number question |
 |
|
Hi, Can you confirm me if ALL barndoor's engine number comes with the dash (-) between the 20 and the rest of the number?
Can a 1952 engine comes without the dash?
Thanks
_________________
52 Ambulance
57 SC
57 Oval
60 SO23
60 Bug |
|
| Back to top |
|
 |
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4216
Location: England
|
| Posted: Fri Sep 22, 2006 9:53 am Post subject: |
|
|
51
54
55
55 (20-1072530)
_________________
-StockRocks- |
|
| Back to top |
|
|
Anchovy
Samba Member
Joined: August 05, 2000
Posts: 2976
Location: San Diego, CA
|
| Posted: Fri Sep 22, 2006 1:35 pm Post subject: |
|
|
It looks like there is a dash before the "20", after the "20" and at the end of the number on all examples.
Notice the "2982" below the number on my '54. I think this was stamped in by the guys that rebuilt it in February of 1982. Anybody seen this before? |
|
| Back to top |
|
|
Buba
Samba Member
Joined: February 23, 2003
Posts: 383
Location: Argentina
|
| Posted: Fri Sep 22, 2006 2:02 pm Post subject: |
|
|
Thanks for your information, then always there are a dash before and after the 20.
Greetings from Argentina
_________________
52 Ambulance
57 SC
57 Oval
60 SO23
60 Bug |
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4216
Location: England
|
| Posted: Fri Sep 22, 2006 3:54 pm Post subject: |
|
|
jeff

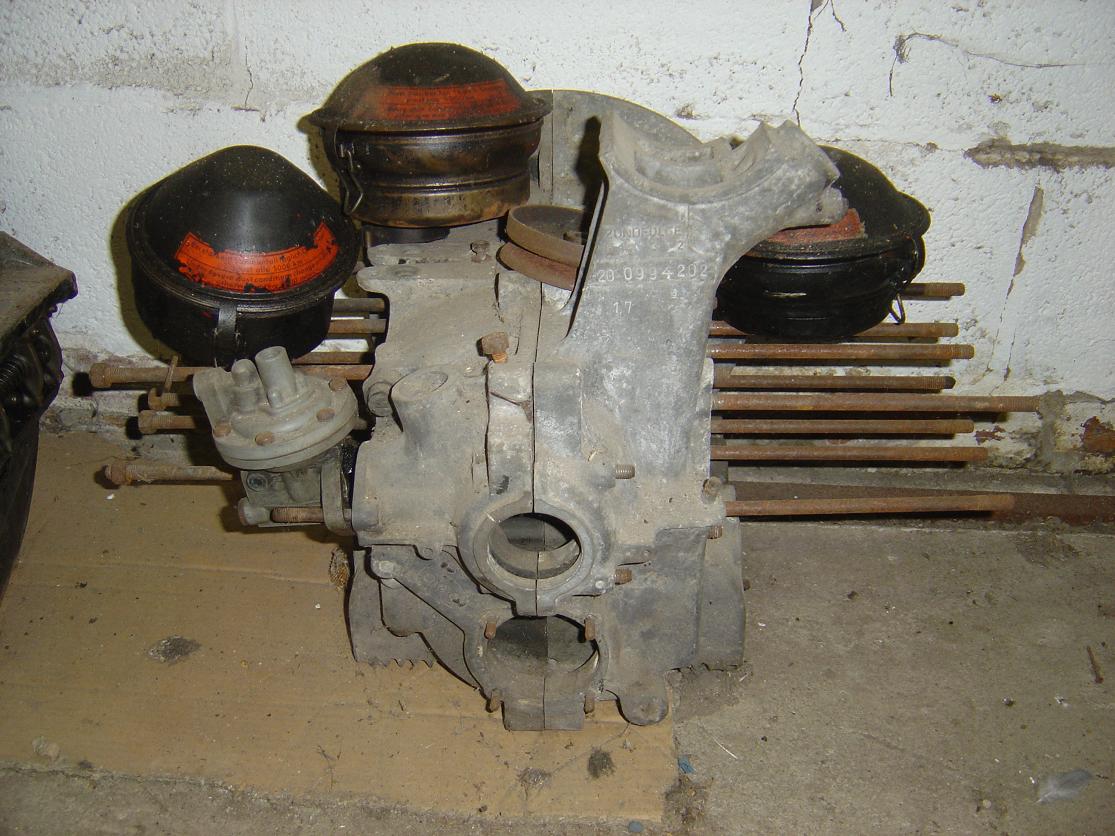

cos of your website pic, i had a closer look at my block the other day
it does have another four digit number
it is lower down than yours
& i think it reads top to btm, not left to right
it wasnt a 29 number
i think it started 24**, something like 2457
& what's the '17' for??
mark's 51 has a small 4-digit number too - 2527?
http://www.thesamba.com/vw/classifieds/detail.php?id=289790
and a 27....
(actually, my number may have been 2527...)
your numbers look too neat!
one conscientious factory worker?
_________________
-StockRocks- |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10798
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Fri Sep 22, 2006 9:49 pm Post subject: |
|
|

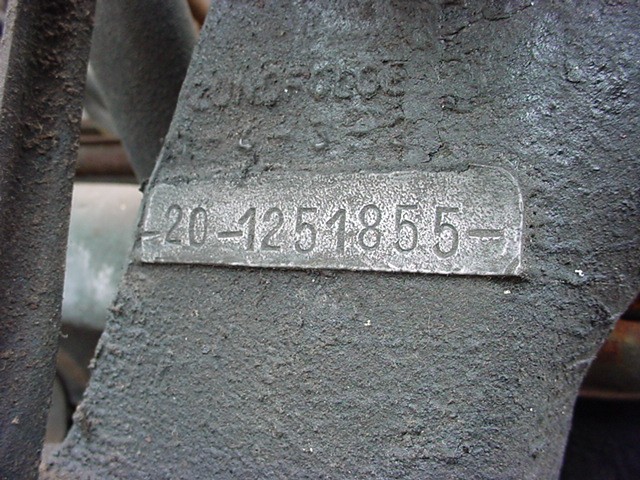

the "-20-" prefix was used up until the end of 1955 calendar year. post barndoor wolfsburg busses up to the end of 12/55 also have 20- numbered cases. the first pic in this thread is a pic i took of an 11/55 engine i have.
i saw a service bulletin that says the 1- (type 1) and 20- prefixes were to be dropped after 12/31/55.
i see those "small" numbers on alot of different parts, not just cases. maybe they are casting lot numbers? i have always wondered what they meant, and have never found a definitive answer. |
|
| Back to top |
|
|
janerick3
Samba Member
Joined: June 04, 2006
Posts: 1896
Location: Colorado
|
| Posted: Sat Sep 23, 2006 8:06 am Post subject: |
|
|
I think the small 4-digit numbers are inspector stamps.
_________________
Thanks,
Jan K. |
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4216
Location: England
|
| Posted: Sun Sep 24, 2006 6:22 am Post subject: |
|
|
| RockStock wrote: |
i had a closer look at my block the other day
it does have another four digit number
it is lower down than yours
& i think it reads top to btm, not left to right
it wasnt a 29 number
i think it started 24**, something like 2457 |
it's 2571, written on its side
_________________
-StockRocks- |
|
| Back to top |
|
|
Anchovy
Samba Member
Joined: August 05, 2000
Posts: 2976
Location: San Diego, CA
|
| Posted: Wed Sep 27, 2006 11:29 pm Post subject: |
|
|
| The little 4 digit number is interesting and must be a factory thing rather than a rebuild stamp like I had thought it might be. |
|
| Back to top |
|
|
musclebus
Samba Member
Joined: February 23, 2006
Posts: 171
Location: UK, Dorset, BD Heaven and Hell
|
| Posted: Thu Sep 28, 2006 2:06 am Post subject: |
|
|
Hi  , my 54' BD engine has four larger digits stamped under the engine number........ 0 666
_________________
www.musclebus.co.uk
Check out our last remaining Klassicfab panels in stock |
|
| Back to top |
|
|
|
