 Posted: Mon Nov 13, 2006 6:43 am Post subject: Painting a barndoor panel van? |
 |
|
I'm very close to sending my bus off for paint, after a small hitch in the summer...
Can anyone tell me, where on a barndoor panel van would the paint stop and 'primer' colour start, what lipping... I know its anal but I want to get it right.. Got any pics of OG..
Also would the chassis, engine bay, inside the front wheel arches, inside the cargo doors and engine lid have been body or primer coloured. I take it fuel tanks and spare wheel trays were black?
I've seen many buses that are different.. but want to know what would have been factory.
Also would the cab area have had a roof lining, or cardboard, same material as the door cards?
Any ideas
Cheers
Deano
_________________
56 RHD UK Oval
58 RHD Oz Microbus |
|
| Back to top |
|
 |
RickC
Samba Member
Joined: August 04, 2001
Posts: 125
Location: Monterey County, CA
|
| Posted: Mon Nov 13, 2006 11:46 pm Post subject: |
|
|
Good work Deano. Things are going fast for the '54. Here's a pic of the engine bay in my '54 216. The whole chassis, cargo interior, and the inside the deck lid are gray. Most of the gas tanks are a "different" color gray ... one with more blue in it. It can get confusing. If I can get organized, I'll get some "lipping" pics of the panel, for you. For the primer gray, I use a proper urethane single stage with flattening agent. Works well. NO roof lining ... The entire cab area, including the cab divider, are painted the body color.
Cheers,
RickC
_________________
Rick Clark in Monterey County, CA USA
... where the surf is happening and the lightweights are standing on the beach, checkin' it out... |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12626
|
| Posted: Tue Nov 14, 2006 5:28 am Post subject: Re: Painting a barndoor panel van? |
|
|
on the og paint 54 kombi I had:
dash and cab area were painted dove blue, including the inside of the roof.
Gray kick and door panels, never had roof panels
cargo area (inside kombi behind bulkhead) gray
Inside of engine compartment was dove blue.
tire tray black
gas tank grey
|
|
| Back to top |
|
|
Anchovy
Samba Member
Joined: August 05, 2000
Posts: 2987
Location: San Diego, CA
|
| Posted: Tue Nov 14, 2006 12:10 pm Post subject: |
|
|
| RickC wrote: |
Good work Deano. Things are going fast for the '54. Here's a pic of the engine bay in my '54 216. The whole chassis, cargo interior, and the inside the deck lid are gray. Most of the gas tanks are a "different" color gray ... one with more blue in it. It can get confusing. If I can get organized, I'll get some "lipping" pics of the panel, for you. For the primer gray, I use a proper urethane single stage with flattening agent. Works well. NO roof lining ... The entire cab area, including the cab divider, are painted the body color.
Cheers,
RickC |
Hey Rick, your engine compartment looks sharp. I like to see it "primered" like original. Too often you see the ENTIRE engine compartment painted the body color when it originally wasn't, even on deluxes.
A couple questions on your engine. Shouldn't the generator nut be painted and shouldn't the coil strap have a slotted hole in it? |
|
| Back to top |
|
|
BeaterBarndoor
Samba Member
Joined: December 15, 2000
Posts: 839
Location: North Carolina
|
| Posted: Tue Nov 14, 2006 12:53 pm Post subject: |
|
|
| Anchovy wrote: |
. Too often you see the ENTIRE engine compartment painted the body color when it originally wasn't, even on deluxes.
|
i personally think this is a hit or miss thing. sometimes the compartment was painted the color,sometimes left alone. im pretty sure when i was doing my deluxe,underneath the plush carpet and pimp sea blue paint,i found red throughout ,which is why i painted mine red.same with kombis. i was pretty confident kris' kombi should have been blue inside. i just checked my standard and it is original light beige. and going through the gallery i see krushers is blue as well as johnnys when greg owned it. |
|
| Back to top |
|
|
Anchovy
Samba Member
Joined: August 05, 2000
Posts: 2987
Location: San Diego, CA
|
| Posted: Tue Nov 14, 2006 1:34 pm Post subject: |
|
|
| BeaterBarndoor wrote: |
| i personally think this is a hit or miss thing. sometimes the compartment was painted the color,sometimes left alone. im pretty sure when i was doing my deluxe,underneath the plush carpet and pimp sea blue paint,i found red throughout ,which is why i painted mine red.same with kombis. i was pretty confident kris' kombi should have been blue inside. i just checked my standard and it is original light beige. and going through the gallery i see krushers is blue as well as johnnys when greg owned it. |
I think you are right about the variability of the paint in the engine compartment. My '54 deluxe engine compartment was originally painted red over about 80% of the compartment. You could see a large patch of gray primer above the engine. It looked like the painter didn't crouch down and spray up at that area. This "holiday" is what we tried to duplicate on the restoration. A lot of "human factor" on the early paint jobs.
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71653
Location: Phoenix 602
|
|
| Back to top |
|
|
Anchovy
Samba Member
Joined: August 05, 2000
Posts: 2987
Location: San Diego, CA
|
| Posted: Tue Nov 14, 2006 2:34 pm Post subject: |
|
|
| Damn Ev, you didn't have to pull the motor just so we could have a good look. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71653
Location: Phoenix 602
|
|
| Back to top |
|
|
Anchovy
Samba Member
Joined: August 05, 2000
Posts: 2987
Location: San Diego, CA
|
| Posted: Tue Nov 14, 2006 3:26 pm Post subject: |
|
|
| Ev, in some of the photos it looks like the gussets near the apron are painted blue. Are they? Is there overspray around them or does it look like they were masked off? |
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4225
Location: England
|
| Posted: Tue Nov 14, 2006 3:58 pm Post subject: barndoor deluxe engine bay paint |
|
|
| Anchovy wrote: |
| BeaterBarndoor wrote: |
| i personally think this is a hit or miss thing. sometimes the compartment was painted the color,sometimes left alone. im pretty sure when i was doing my deluxe,underneath the plush carpet and pimp sea blue paint,i found red throughout ,which is why i painted mine red.same with kombis. i was pretty confident kris' kombi should have been blue inside. i just checked my standard and it is original light beige. and going through the gallery i see krushers is blue as well as johnnys when greg owned it. |
I think you are right about the variability of the paint in the engine compartment. My '54 deluxe engine compartment was originally painted red over about 80% of the compartment. You could see a large patch of gray primer above the engine. It looked like the painter didn't crouch down and spray up at that area. This "holiday" is what we tried to duplicate on the restoration. A lot of "human factor" on the early paint jobs.
|
yes, i agree with mark

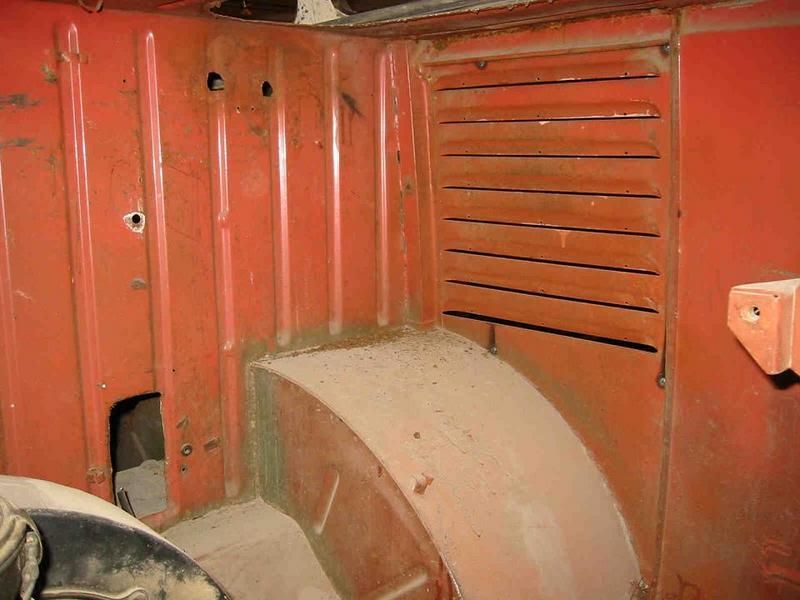

most of the rest of the deluxe 'overspray' seems to follow pretty standard patterns (ie cab area, bulkhead, b-posts, door inners), but it seems the engine bay either got painted or it didnt

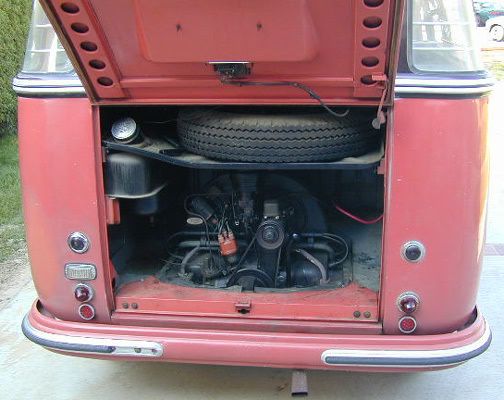

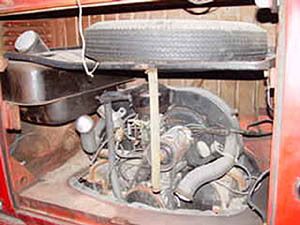

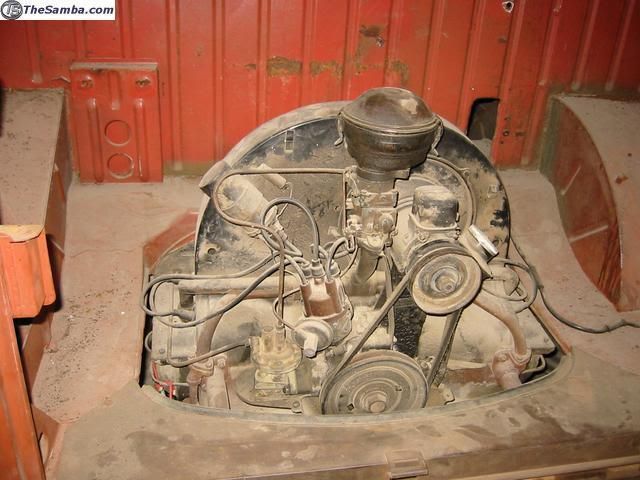

heres some examples, all og paint (at least in the engine bay) i believe. compare 'em
the ex bret 53 dlx
wisks 54. pretty untouched is my bet
anchovy's 54
my feb 55
_________________
-StockRocks- |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71653
Location: Phoenix 602
|
| Posted: Tue Nov 14, 2006 4:15 pm Post subject: |
|
|
| Anchovy wrote: |
| Ev, in some of the photos it looks like the gussets near the apron are painted blue. Are they? Is there overspray around them or does it look like they were masked off? |

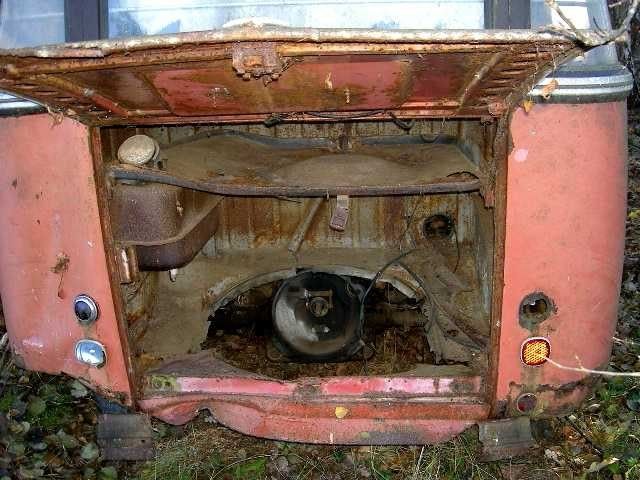

It's hard to tell because of surface rust but it looks like overspray. Weird that the right side is full painted and the left side is all primer. Maybe because of the truck-only gas line?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Barndoor Mafia
Il Capo
Joined: August 23, 2001
Posts: 6195
Location: EUSKAL HERRIA
|
| Posted: Tue Nov 14, 2006 6:01 pm Post subject: Re: barndoor deluxe engine bay paint |
|
|
This is BAD ASS!!!! Straight BOOTY!!!!
|
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10254
Location: Petaluma, CA
|
| Posted: Tue Nov 14, 2006 10:44 pm Post subject: |
|
|
| EverettB wrote: |

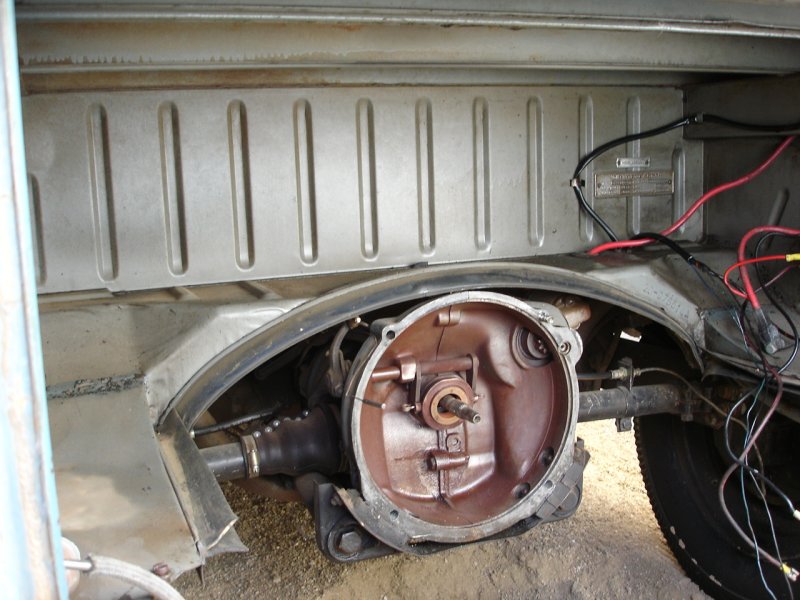

Just so I can post too... my truck is in the original primer:
|
Make sure you replace that throwout bearing. |
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10254
Location: Petaluma, CA
|
| Posted: Tue Nov 14, 2006 10:46 pm Post subject: Re: barndoor deluxe engine bay paint |
|
|
Jeff, I thought your engine compartment was primered originally? |
|
| Back to top |
|
|
54DoubleDoor
Samba Member
Joined: December 08, 2003
Posts: 128
Location: Hampshire, UK
|
| Posted: Wed Nov 15, 2006 1:30 am Post subject: |
|
|
Cheers for that...
So what would be everyones opinion for a stock panel van... primered? with the valance painted body coloured all over..
_________________
56 RHD UK Oval
58 RHD Oz Microbus |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12626
|
| Posted: Wed Nov 15, 2006 7:41 am Post subject: |
|
|

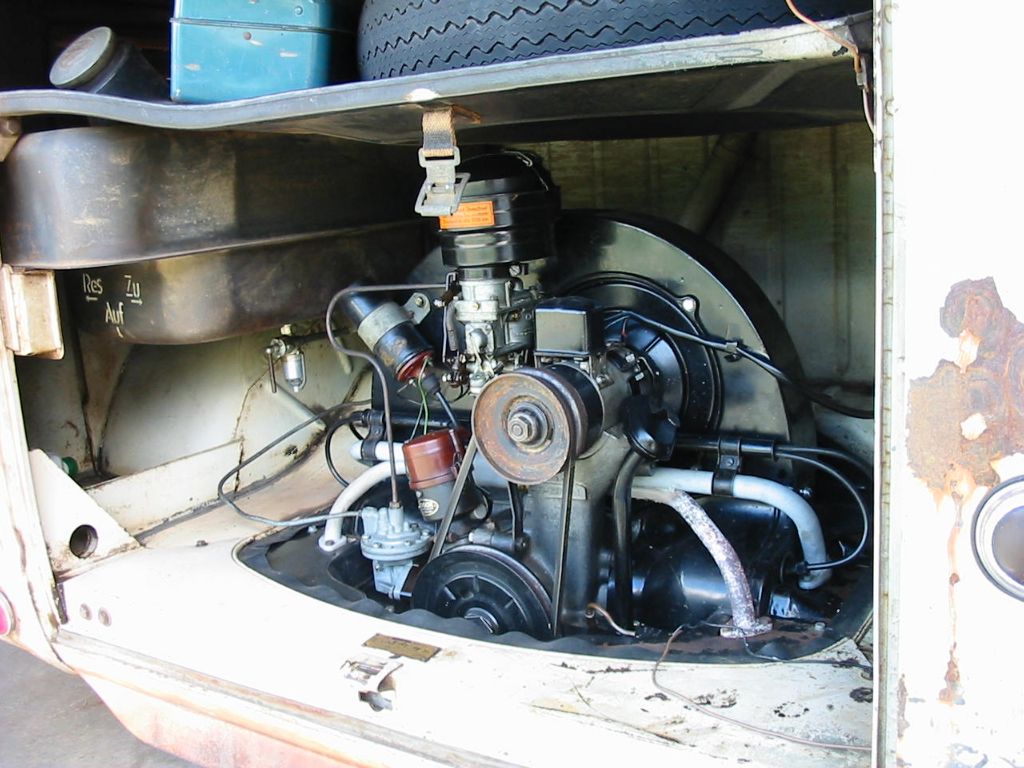

June '53 standard,
engine compartment panted lower body color.
I can't find a pic, but the 54 kombi (VIN 105 3xx) I used to have, the engine compartment was painted with tarry undcoating. Cleaned that off to find nice bright strong dove blue protected from the elements for decades.
IF I rub to clean the 53's engine compartment, the paint will rub off.
I thought maybe the standard paint is weaker, or mauybe what it was exposed to over the years (sat in an acid rain area which killed apple trees) or ? |
|
| Back to top |
|
|
54DoubleDoor
Samba Member
Joined: December 08, 2003
Posts: 128
Location: Hampshire, UK
|
| Posted: Wed Nov 15, 2006 8:27 am Post subject: |
|
|
I see the tank is black on the 53 too?.. or is that a dark grey... looks OG though..
_________________
56 RHD UK Oval
58 RHD Oz Microbus |
|
| Back to top |
|
|
52panelvan
Samba Member
Joined: June 07, 2006
Posts: 350
|
| Posted: Wed Nov 15, 2006 9:23 am Post subject: |
|
|
Tanks black on mine too, cant say where the top coat and primer start and finish as im back to thinking it was delivered in primer. Will double check though.
cheers |
|
