PostPosted: Tue Feb 20, 2007 9:01 am    Post subject: My lighting project (Pics) Reply with quote

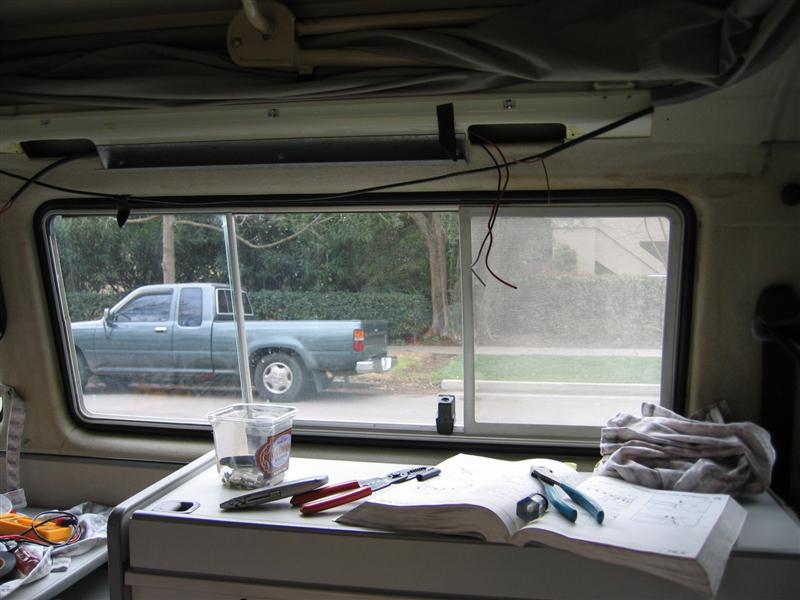

Thought I would share my latest project. I bought 2 fluorescent fixtures from Arizona Wind and Sun, 8 Watt thin lights, $29. each. http://store.solar-electric.com/tl-171.html These seem to be the exact same ones I've seen others selling for $50. each. I had to remove the shelf over the galley to get access to the wiring:

Image may have been reduced in size. Click image to view fullscreen.


Thats my daily driver in the background, 93' Toyota truck, 250K miles, only thing I've done to it is replace the clutch and a power steering hose!

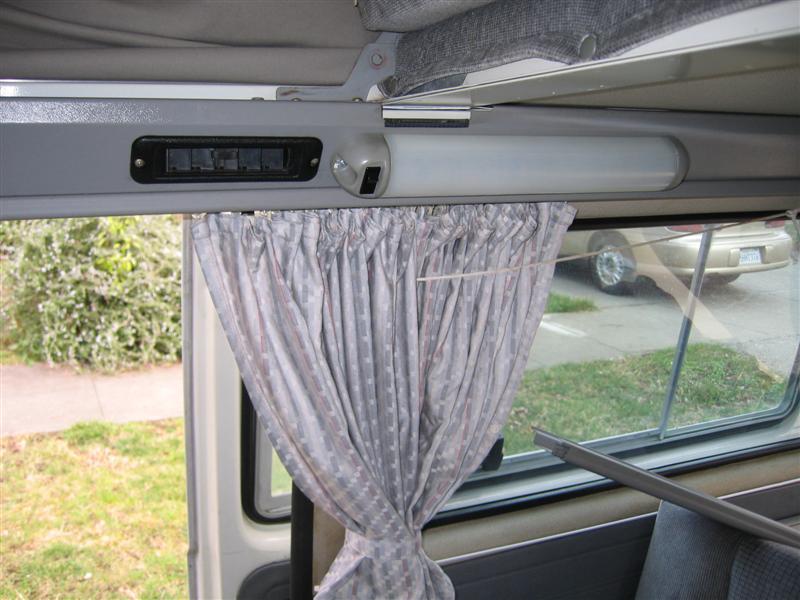

I moved the stock light, which is fitted with LED bulbs from superbrightleds.com
http://www.superbrightleds.com/cgi-bin/store/comme...;next=50to the PAX side of the van so that at night I can reach in and have a light to turn on without getting into the van:

Image may have been reduced in size. Click image to view fullscreen.

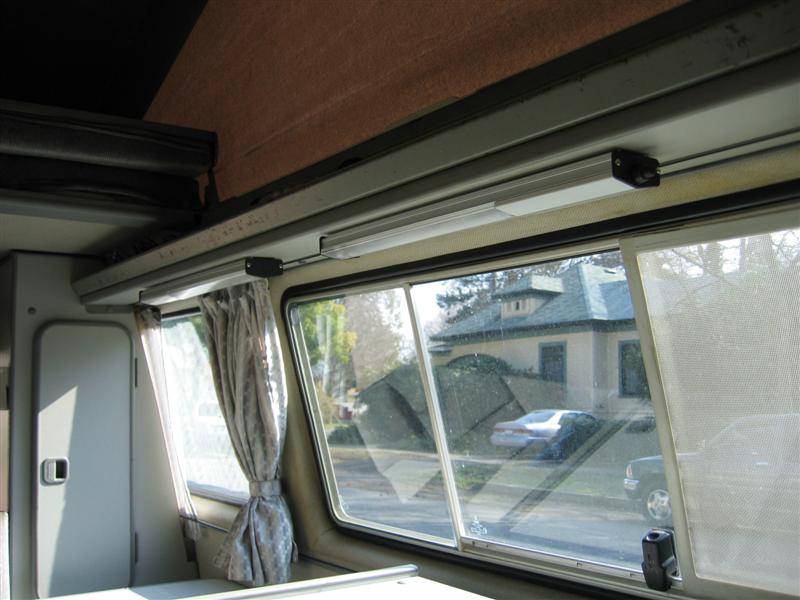

Here is the two new fixtures mounted over the galley, I positioned the switch on the forward light towards the driver so that I can reach back and turn on one of the lights from the drivers seat:

Image may have been reduced in size. Click image to view fullscreen.

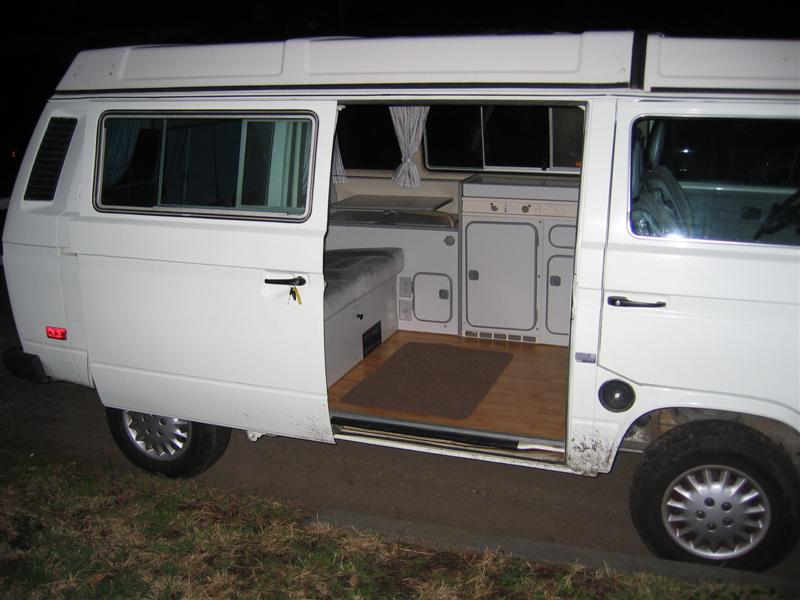

I tried to take one of those cool night photos that I've seen others take but it didn't come out that great:

Image may have been reduced in size. Click image to view fullscreen.

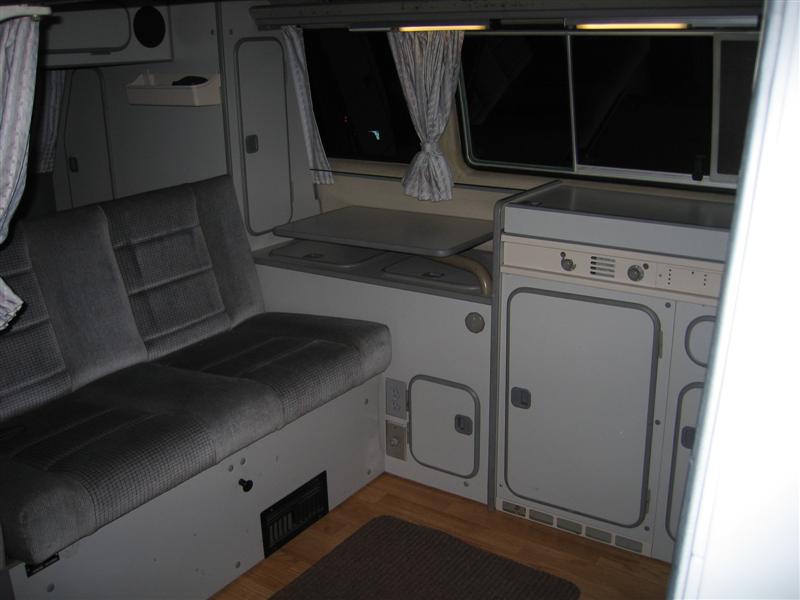

Here's another view:
Image may have been reduced in size. Click image to view fullscreen.


It was kind of a lot of work for what it was as I had to pull wire for the relocated stock light around the back of the van, though the body into the shelf area and then connect it all up. I left some wires in the rear so that I can add a light in the back so that when I open the hatch at night I have a light back there but I haven't decided what to use yet, any suggestions?

Thanks for checking it out!

Kevin
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
atarasi
Samba Member


Joined: October 19, 2004
Posts: 282
Location: Seattle, WA
atarasi is offline

PostPosted: Tue Feb 20, 2007 1:30 pm    Post subject: Reply with quote

check your messages....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
24inchstance
Samba Member


Joined: March 01, 2005
Posts: 133
Location: Santa Cruz, Ca
24inchstance is offline

PostPosted: Tue Feb 20, 2007 5:42 pm    Post subject: Reply with quote

I got a hold of a few factory lights and installed them in these places..
[img]
Image may have been reduced in size. Click image to view fullscreen.
[/img]
I use a red cinema gel over this one for night time submarine lighting. Great for when you wake up in the middle of the night or if youre twisting up a hogs leg and want to be incognito.



[img]
Image may have been reduced in size. Click image to view fullscreen.

I put this in the back for reading and loading stuff in and out at night. Also shines directly over the engine compartment for nightime repairs.



[/img]
Image may have been reduced in size. Click image to view fullscreen.

This ones on the inside of the sliding door. Cant believe there was never a light put here.
Back to top
View user's profile Send private message Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9658
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Tue Feb 20, 2007 7:22 pm    Post subject: Reply with quote

Quote:
Here is the two new fixtures mounted over the galley, I positioned the switch on the forward light towards the driver so that I can reach back and turn on one of the lights from the drivers seat:


...and tear your rotator cuff. Careful. My father-in-law just did exactly that, reaching into the backseat while driving. He'll never row his cataraft again (which means I get it!).
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Rodknock
Samba Member


Joined: April 06, 2006
Posts: 516
Location: Boulder CO
Rodknock is offline

PostPosted: Tue Feb 20, 2007 7:30 pm    Post subject: Reply with quote

Nice job with the lights. I was thinking of getting a couple of simple battery powered LED lights and putting them in strategic places, like over the sink and rear hatch. This would be instead of pulling wire and taking the interior apart. Given how few hours per year I would actually run the lights, seems the new LED technology would do the trick. Did you guys think of going this route?
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Tue Feb 20, 2007 10:43 pm    Post subject: Reply with quote

I think using battery powered led lights would be a good way to go. The batteries would proably last plenty long and no drain on your house batt.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
tikibus
Samba Member


Joined: July 07, 2006
Posts: 834
Location: Rochester, NY
tikibus is offline

PostPosted: Wed Feb 21, 2007 11:23 am    Post subject: Reply with quote

Nice job Kevinbassplayer!

I'm still in the "wow, look at that more Rust!" with Tiki. But Seeing your work and 24inchstance's work ( close the curtains and get some under water sounds before twistin'!)
I'm getting inspired. It is getting close to Welding time..

LED with its LOW draw is the cats Meow. Picked up some single 1.5w super bright White LED's to play with. One lights up my living room!
Did a test on a 5 LED set up and kept it lit for 1 week on 3 AAA batteries, still were shining.

I'll post pic's with Tiki's cancer. 23 years of salt baths... F-me.
_________________
Happy Trails!
Mark
______________
Founding member of the Empire State VW Camping Club.
http://www.empirevwcamping.org/
1984 Westy - Tiki
1997 Honda Civic -The Green Hornet
1971 Volvo P-1800E- needs TLC
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Wed Feb 21, 2007 2:36 pm    Post subject: Reply with quote

[/img]
Image may have been reduced in size. Click image to view fullscreen.


I'm so bummed after seeing this picture about where I mounted my pax side light! (see my photo below) I wish I would have mounted it more in the middle of the door and it wouldn't have been any more work Sad I figure it's too late to move it now since I would have 3 holes (2 screw holes and the 1/2" wire hole) to deal with. Oh well, I guess one advantage is that I can reach up and turn it off while laying in bed! and I can still turn it on when I open the slider. I just found a similar 8W floresent on e-bay for only $14 and ordered it for the rear. I'm also planning on getting a small combo red/white led round light I've seen around to place on the headliner in the cockpit between the driver and pax seats. I just love little projects like this! New shocks are next and then hopefully I'll have the cash for 15" wheels before summer when I will take the trip ship to British Columbia for a month.

Image may have been reduced in size. Click image to view fullscreen.
[/img]
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
1621
Samba Member


Joined: May 15, 2006
Posts: 2174

1621 is offline

PostPosted: Thu Feb 22, 2007 7:08 pm    Post subject: Reply with quote

Kevin,

Before adding the red/white light to the headliner consider simply adding an overhead light from a late model Jetta, Passat, etc. Brent Weide www.weidefamily.net/vanagon/ has a great write up on how to do this, very simple and turns out great. I did it on my 85 (even color matched it brown to match the interior) and it looks stock and works exactly how I would want it to, including the 10 second delay after shutting the door and the passenger side map light. It took me about 15 minutes to install. I think there's even a gray light housing to match your Westy's interior. I don't have any pictures currently and his site seems to have some issues right now, but definitely consider this option.

Lundy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Fri Feb 23, 2007 11:22 am    Post subject: Reply with quote

Thanks for the tip, sound's like something I would want to do. I'll have to see if my local yard has one.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Tomswesty
Samba Member


Joined: July 06, 2005
Posts: 194
Location: Moscow, ID
Tomswesty is offline

PostPosted: Fri Feb 23, 2007 3:36 pm    Post subject: Reply with quote

The Passat light works great. I put one in mine right between the front seats and its nice to have the 10 sec delay. Check Ebay too you can pick them up for under $10. I got one for $1.00. Nice to have the extra light for sure.

Good luck......
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Wed May 16, 2007 10:37 pm    Post subject: Reply with quote

Just another link for the archives
Interior LED lights
http://www.thesamba.com/vw/forum/viewtopic.php?t=228739
Back to top
View user's profile Send private message Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 301
Location: SW Oregon
snoop is offline

PostPosted: Sat Sep 01, 2007 8:23 pm    Post subject: Reply with quote

Question for Kevin or Chewy (24)...or others in the know:

Which wire that runs through the channel above the sliding door is ground? I'm thinking that it's the black w/light blue stripe and that the rest (browns and greens with stripes) are all hot, but before I start chopping wires and multi-metering I thought I'd check with some of you westy surgeons who've done this operation already.

Plan is to tap into the appropriate wires and add an 8w fluorescent to that channel, Chewy-style.

Thanks,

Mike
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Mon Sep 03, 2007 11:36 am    Post subject: Reply with quote

I ran new wiring to the passenger side for the movement of the stock light so as to tie it into the other to that side so I don't know Embarassed As you have probably already figured out, brown is the color for most of the ground wires.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 301
Location: SW Oregon
snoop is offline

PostPosted: Thu Sep 06, 2007 6:27 pm    Post subject: Reply with quote

Hey thanks Kevin. I always repeat the mantra...brown is ground. I've checked the Bentley, looks like just like what I'm seeing...the passenger side channel is ground-wire free...guess I'll pull a pair like you did.

Thanks again.
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
papawhisky
Samba Member


Joined: April 05, 2007
Posts: 186

papawhisky is offline

PostPosted: Fri Sep 07, 2007 11:20 am    Post subject: Reply with quote

Thanks for sharing the project pics and URLs. I am interested in changing my interior lighting (using original incandescent now) to something that produces less heat. I was in the Keys this summer and the additional heat generated by the stock lights was killing me. Do the LEDs produce less heat?

Papawhisky
88 Westy
Back to top
View user's profile Send private message Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Fri Sep 07, 2007 2:45 pm    Post subject: Reply with quote

Led's basically produce no heat but the quality of light is not as good. I highly recommend the 8w floresent lights that I installed in the pictures, they produce very little heat and the light quality is great.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 301
Location: SW Oregon
snoop is offline

PostPosted: Thu Sep 20, 2007 8:05 pm    Post subject: Reply with quote

Yo fellas, got er' done...

The slider light:

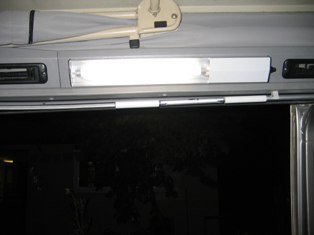

Image may have been reduced in size. Click image to view fullscreen.

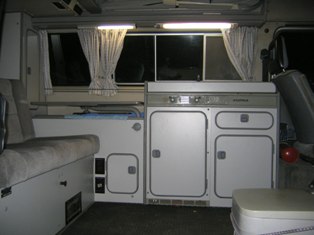

The party and galley lights:
Image may have been reduced in size. Click image to view fullscreen.

As always, thanks fellow Sambanistas for the inspiration (for the illumination!).

Peace out.
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1040
Location: Nor-Cal (Chico California)
kevinbassplayer is offline

PostPosted: Fri Sep 21, 2007 9:45 am    Post subject: Reply with quote

Nice work, looks awesome! You're going to love having the lighting options when you're camping, I know I dig my set-up!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dragonfire709
Samba Member


Joined: July 13, 2005
Posts: 154
Location: Hampshire, UK
dragonfire709 is offline

PostPosted: Sat Sep 22, 2007 4:36 am    Post subject: Reply with quote

Hi Kevin-hope your good.

Your lighting set up inspired me to put another one above the sliding door on mine. Very simple to do, and makes such a big difference! I dont know why Westfalia didnt put one there in the first place!!
