| Author |
Message |
KH114
Samba Member
Joined: August 22, 2005
Posts: 41
Location: Kent WA
|
 Posted: Thu Apr 05, 2007 9:36 pm Post subject: Generator |
 |
|
| Replaced the generator in my 73 standard, ran fine. Parked it for about a week. Now the generator light comes on, and when I checked the generator, sparks are coming out of the opening where the copper coil and the brush touches it. Wired exactly the way the old one came out and polarized it by grounding the field wire and touching the battery wire to the D+ wire at the rgulator. Any suggestions? |
|
| Back to top |
|
 |
rumplestilskin
Samba Member
Joined: January 13, 2007
Posts: 963
Location: los banos,CA
|
| Posted: Thu Apr 05, 2007 9:47 pm Post subject: |
|
|
| u are getting a ground some where . I.G.the wire or the coil is touching a piece of metal it should not be |
|
| Back to top |
|
|
Bugs'n'Pugs
Samba Member
Joined: July 18, 2004
Posts: 1453
Location: Charleston, South Carolina USA
|
| Posted: Fri Apr 06, 2007 9:58 am Post subject: Speedy Jim's Aircooled Electrical Hints |
|
|
| KH114 wrote: |
| Replaced the generator in my 73 standard, ran fine. Parked it for about a week. Now the generator light comes on, and when I checked the generator, sparks are coming out of the opening where the copper coil and the brush touches it. Wired exactly the way the old one came out and polarized it by grounding the field wire and touching the battery wire to the D+ wire at the rgulator. Any suggestions? |
Have you been to Speedy Jim's Aircooled Electrical Hints?
Testing the Generator:

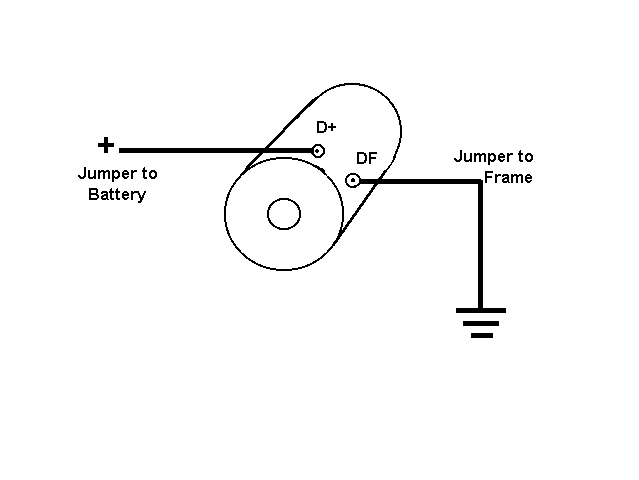

Polarizing the Generator:
It sounds like you did everything corrently.
_________________
1978 Super Beetle Convertible (Project)
Post a Photo in the Forums
Rescue Man's Best Friend |
|
| Back to top |
|
|
73 Bug
Samba Member
Joined: March 30, 2007
Posts: 25
Location: Bay Area, Calif.
|
| Posted: Fri Apr 06, 2007 11:21 am Post subject: |
|
|
I have a 73 standard and I'm sure it has an alternator, not generator. The way I've always determined the difference:
Generator right above belt pully.
Alternator is above and to the right of the belt pully. |
|
