I'm upgrading the AC on my '84 Vanagon to a '90 AC unit and looking at the changes to the radiator fan and seeing two different types. Obviously, w/AC and w/o AC.
I am curious if the Fan Shroud has changed from 1984 style to what is used on the 1990 Vanagon.
Does the Syncro use the same fan shroud?
Thanks |
|
| Back to top |
|
 |
Ahwahnee
Samba Member
Joined: June 05, 2010
Posts: 10294
Location: Mt Lemmon, AZ
|
| Posted: Sat May 10, 2014 8:21 pm Post subject: |
|
|
| When I had my 84's A/C rebuilt by a competent shop they (among other things) went with the later 3-speed fan and shroud). They counseled that this was worth doing for better cooling. |
|
| Back to top |
|
|
Steve M.
Samba Member
Joined: July 30, 2013
Posts: 6933
Location: Fort Lauderdale, Fl.
|
| Posted: Sat May 10, 2014 8:30 pm Post subject: |
|
|
| Ahwahnee wrote: |
| When I had my 84's A/C rebuilt by a competent shop they (among other things) went with the later 3-speed fan and shroud). They counseled that this was worth doing for better cooling. |
Oh yeah, need the 3 speed fan, but is the shroud the same for the 3 speed fan? |
|
| Back to top |
|
|
insyncro
Banned
Joined: March 07, 2002
Posts: 15086
Location: New York
|
| Posted: Sun May 11, 2014 6:41 am Post subject: |
|
|
| Steve M. wrote: |
| Ahwahnee wrote: |
| When I had my 84's A/C rebuilt by a competent shop they (among other things) went with the later 3-speed fan and shroud). They counseled that this was worth doing for better cooling. |
Oh yeah, need the 3 speed fan, but is the shroud the same for the 3 speed fan? |
No, the AC fan is larger in diameter and the AC fan shroud is needed for that fan.
Any late model, AC equipped parts van will have the needed shroud.
I have them, but they have all been LineX coated after being bead blasted. |
|
| Back to top |
|
|
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10461
Location: Orbiting San Diego
|
| Posted: Sun May 11, 2014 8:29 am Post subject: |
|
|
The later larger fan motor is single speed motor. The extra speeds are done with external wiring and a big resistor. Sometimes it is wired up as a 2 speed and more often as a 3 speed, depending on the resistor. When used for A/C is it wired for 3 speeds with a 2 speed resistor for the 2 lower speeds. If you want to safely add it to an earlier van you need to do some wiring because it takes more amps. The shroud is different, as mentioned.
Mark |
|
| Back to top |
|
|
insyncro
Banned
Joined: March 07, 2002
Posts: 15086
Location: New York
|
| Posted: Sun May 11, 2014 8:47 am Post subject: |
|
|
| crazyvwvanman wrote: |
The later larger fan motor is single speed motor. The extra speeds are done with external wiring and a big resistor. Sometimes it is wired up as a 2 speed and more often as a 3 speed, depending on the resistor. When used for A/C is it wired for 3 speeds with a 2 speed resistor for the 2 lower speeds. If you want to safely add it to an earlier van you need to do some wiring because it takes more amps. The shroud is different, as mentioned.
Mark |
Absolutely.
The fan resistors are a bugger to find new.
The Eurovan resistor is sold by VC and a few new ends are needed for the swap.
The wiring is a sub harness IIRC.
They can be had. |
|
| Back to top |
|
|
Ahwahnee
Samba Member
Joined: June 05, 2010
Posts: 10294
Location: Mt Lemmon, AZ
|
| Posted: Sun May 11, 2014 10:27 am Post subject: |
|
|

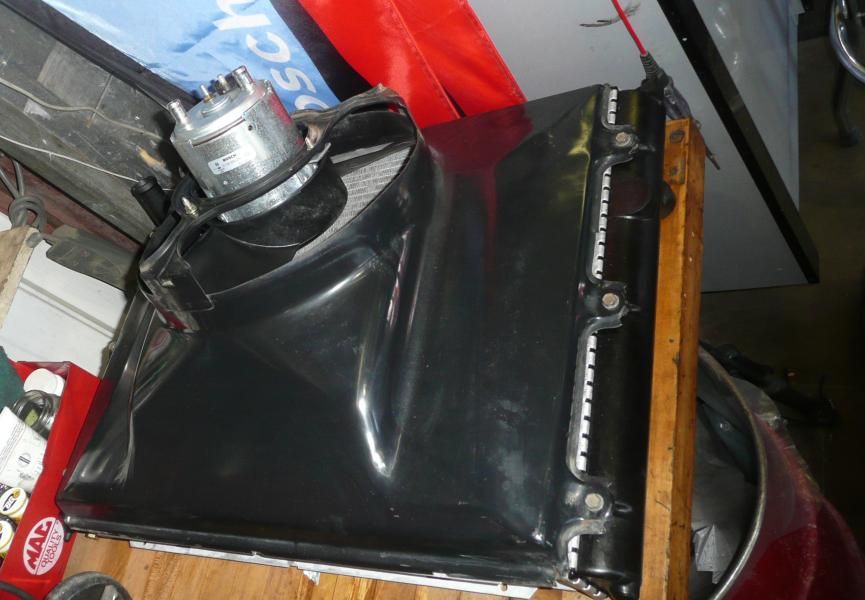

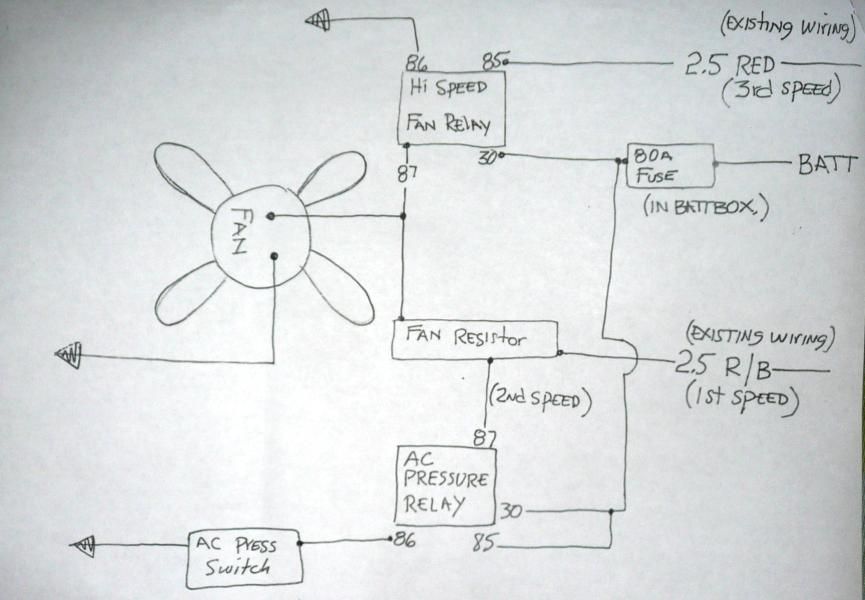

In case it is of use, the shroud & motor used on my 84 and the wiring diagram:
|
|
| Back to top |
|
|
Steve M.
Samba Member
Joined: July 30, 2013
Posts: 6933
Location: Fort Lauderdale, Fl.
|
| Posted: Sun May 11, 2014 9:46 pm Post subject: |
|
|
Thanks for all the good info guys.
My schedule just got turned upside down again so no idea when I can get time to work this mod with the later style AC fan.
Ahwanee - that is an 80A fuse I'm seeing in your schematic?
- what is the Amperage of the "High Speed Fan Relay"? |
|
