PostPosted: Thu Aug 02, 2007 3:03 pm    Post subject: 2 Alternator's 69 bus Reply with quote

I have totally restored my 69 bus everything and done it ALL myself. Just never been good with the Electric part of it, But did it. Having a few problems.

2nd battery on 2nd alternator not charging.
Belt turns no slipping.
4 spots on the back of Alt. for wires. big post for wire going to battery.
and 3 other wires, one red one, a brown one, one brown with white stripe.
Labeled
post B
small red wire S
brown wire F
and brown w/ white stripe is L
besides the post wire going to the battery where do the other 3 wires go?

I have nothing going to the red or the brown w/ white stripe wires and the other brown wire is hooked to a L.E.D light going to the coil hooked to the neg.- side with the condensor and the other green wires.
Battery not charging are all the wires hooked up correct?
Still tring to figure out how to post pics.[/url]


Last edited by vwjoe on Thu Aug 02, 2007 4:21 pm; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Randy in Maine
Samba Member


Joined: August 03, 2003
Posts: 34890
Location: The Beach
Randy in Maine is offline

PostPosted: Thu Aug 02, 2007 3:33 pm    Post subject: Reply with quote

I am kind of new here.

Could you explain to me why you think you need 2 alternators?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Professor Dred
Samba Member


Joined: May 26, 2007
Posts: 258
Location: St. Petersburg, Florida
Professor Dred is offline

PostPosted: Thu Aug 02, 2007 4:06 pm    Post subject: Reply with quote

Applause Never seen two alternators... but I suppose its possible to charge two batteries....but unnecessary strain on the engine.

Maybe you need one of those battery switching thingy's....forget what its called.


Last edited by Professor Dred on Thu Aug 02, 2007 4:07 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Karl
Samba Member


Joined: January 29, 2001
Posts: 6170
Location: Coos Bay, Oregon
Karl is offline

PostPosted: Thu Aug 02, 2007 4:07 pm    Post subject: Reply with quote

Sounds like you have a Motorola alternator from a bug??

If yes, you need the harness AND voltage regulator from the bug it came out of.

http://www.oldvolkshome.com/7374altvr.pdf

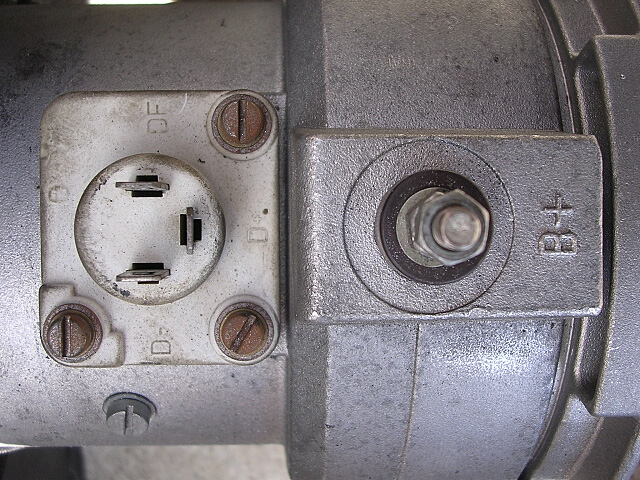

Here is the top of the Motorola alternator w/external regulator:
Image may have been reduced in size. Click image to view fullscreen.


Does your alternator resemble this?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
agreendaya
Samba Member


Joined: November 16, 2006
Posts: 1302
Location: Winthrop, MA USA
agreendaya is offline

PostPosted: Thu Aug 02, 2007 6:51 pm    Post subject: Reply with quote

Get a dual battery relay from busdepot.com. That's where I got mine. $25, and (I would guess) a bit less strain on your engine. How 'bout some pics of that...where is there room for two alternators?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14655
Location: Arizona
Desertbusman is offline

PostPosted: Fri Aug 03, 2007 4:00 am    Post subject: Reply with quote

Sure would like to see pics of your setup. If there's room for a compressor, there's room for another alternator. Do you have a double crank pulley and 2 belts?
_________________
71 Superbug
71 Westy
