 Posted: Thu Apr 01, 2010 11:19 pm Post subject: intermittent wiper relay |
 |
|
Recently ordered an intermittent wiper relay from Busdepot[111955531]. Looks like a flasher relay, but I,m not sure where to install it. Are these adaptable to the electrical system of a bay window?

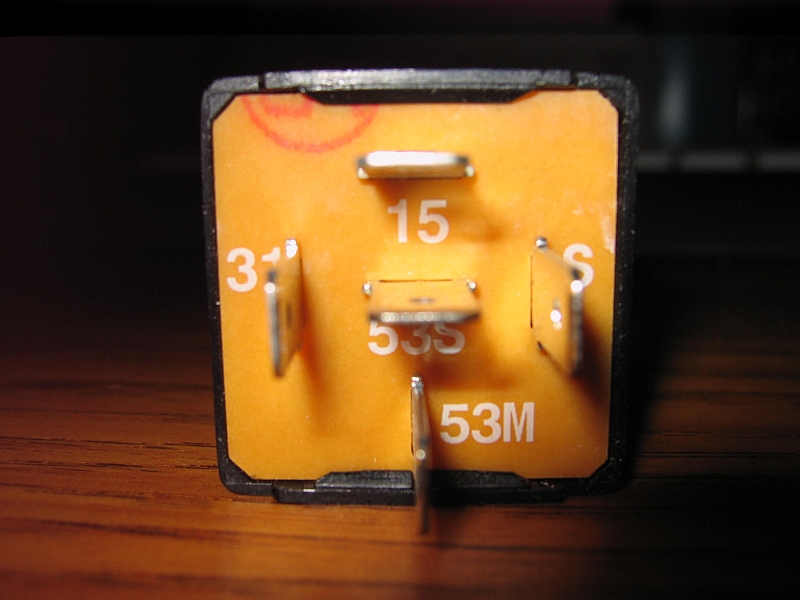

EDIT: some pix of the relay.
_________________
 > 78Grµn Westfalia `Donkey`
.
It may be bigger than you and it may be bigger than me, but it’s not bigger than you AND me; can you dig it?
Last edited by timo78 on Fri Apr 02, 2010 7:36 pm; edited 1 time in total |
|
| Back to top |
|
 |
JeffnDes1977
Samba Member
Joined: March 28, 2007
Posts: 191
|
| Posted: Fri Apr 02, 2010 6:23 am Post subject: |
|
|
Do you have a pic? I could not find one.
_________________
1977 Bay 2.0 FI
1968 Sandrail/ woods buggy project
1970 Sandrail
19?? Sandrail project - soon to be for sale!
1960 Beetle - My first car! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53194
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Apr 02, 2010 8:53 am Post subject: |
|
|
Search intermittant or interval with Naskeet as the submitter............if you dare
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
buggin74vw
Samba Member
Joined: June 20, 2007
Posts: 99
Location: Hanover, Pa
|
| Posted: Fri Apr 02, 2010 9:24 am Post subject: some advice |
|
|
| Quote: |
| ok u have the right relay. but it didn't come in many busses at all. i have a 78 champagne edition with intermittent wipers that i was trying to adapt to my 79 westy. it has that relay on the bottom of the fuse box where the other relays are. should be a blank spot or 2 there for yours to pop right in. the top pic is the wiring harness that goes from the bottom of the wiper switch(steerin column) to the wiper motor(white plug) the other wires which are not on a stock bus (5 of them?) go to this relay in the fuse box. Only problem is you will need the wiper switch from a bus that had intermitent cause the internal contacts are different and to activate the intermittent part u pull the switch towards yourself one click. |
| Quote: |
| i probably confused you more than u were before. just wanted to show you how the factory did it in the late 70s. im sure there are many other ways and options to do this. |
|
|
| Back to top |
|
|
jmstu76
Samba Member
Joined: March 01, 2004
Posts: 1281
Location: Edmond Oklahoma
|
| Posted: Fri Apr 02, 2010 2:49 pm Post subject: |
|
|
Don't you need a 4 position switch as found in the champagne buses, not just the off, low, high switch everyone else has?
_________________
James
'76 Deluxe Sage Green Westy
2258 cc GD case 78mm CW crank, 2.0 H-beam rods 5,325” 22mm pin, JE forged pistons with 15cc dish, JE rings, type 11 clearanced oil pump, CB Eagle 2205 Type-2 “Torque Special” hydraulic cam with matched lifters fed by CB Dual Weber 40 IDF MX with 6” foam air filters, currently 55 idle, 130 main, 200 air correction, 32 mm venturis. 27in General Grabber AT2 All Terrains, Berg Shifter, stock '76 exhaust HPC Ceramic Coated. 11/18/2020 |
|
| Back to top |
|
|
VDubTech
Samba Member
Joined: December 29, 2002
Posts: 9156
Location: Syracuse, NY
|
| Posted: Fri Apr 02, 2010 2:58 pm Post subject: |
|
|
| jmstu76 wrote: |
| Don't you need a 4 position switch as found in the champagne buses, not just the off, low, high switch everyone else has? |
Yes.
_________________
First Trip in the RustyBus:
http://www.thesamba.com/vw/forum/viewtopic.php?t=279077&highlight=
| borninabus wrote: |
| a measurement of your rod would be extremely useful. |
| notchboy wrote: |
| my dad wasnt a belittling cock when he tought me how to wrench on cars. |
| EverettB wrote: |
One photo = good for reference.
10 photos = douchebaggery |
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53194
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Apr 02, 2010 3:32 pm Post subject: |
|
|
Most 75+ switches are already 4 position, there's a small tab of plastic on the outer column housing that stops it from going past off to the delay position. You still have to add a wire to the harness that plugs into it though.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
timo78
Samba Member
Joined: July 03, 2009
Posts: 931
Location: Overcast and Loving it
|
| Posted: Fri Apr 02, 2010 5:52 pm Post subject: |
|
|
Is the wiring proper on a 78 to use the relay or does it require additional wiring? I'll take a peek in the morning, but any advice is appreciated.
_________________
> 78Grµn Westfalia `Donkey`
.
It may be bigger than you and it may be bigger than me, but it’s not bigger than you AND me; can you dig it? |
|
| Back to top |
|
|
dwill49965
Samba Member
Joined: August 08, 2005
Posts: 1405
Location: Dartmouth, Nova Scotia
|
| Posted: Fri Apr 02, 2010 6:54 pm Post subject: |
|
|
I don't know how this particular intermittent relay hooks up, but last year I installed an older style after market intermittent relay switch on my '78 - and it was dead simple. 4 wires to hook up, only two into the stock harness, right under the steering column - no need to mess with the connector at the wiper motor. I'll post pics later - including the early '80's style Canadian Tire packaging.
_________________
Darryl
--------------
'78 Westy, Boston Bob built 2.0 L, FI, MSD 6A |
|
| Back to top |
|
|
timo78
Samba Member
Joined: July 03, 2009
Posts: 931
Location: Overcast and Loving it
|
| Posted: Fri Apr 02, 2010 7:38 pm Post subject: |
|
|
..bump > now w/ pics
_________________
> 78Grµn Westfalia `Donkey`
.
It may be bigger than you and it may be bigger than me, but it’s not bigger than you AND me; can you dig it? |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53194
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Apr 02, 2010 8:41 pm Post subject: |
|
|
The wiring for it won't be there unless your bus is a champagne or some Euro delivered special model.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
|
| Back to top |
|
|
timo78
Samba Member
Joined: July 03, 2009
Posts: 931
Location: Overcast and Loving it
|
| Posted: Sat Apr 03, 2010 10:38 pm Post subject: |
|
|
After a daring slog through several documents. Faced with a daunting task of digesting: dialogue, discussion, and diatribe. I finally struck some samba gold ...... the solution
 FTW> Fellow sambanista Dodgy's outstanding intermittent wiper wiring diagram
supplied here
http://www.thesamba.com/vw/forum/viewtopic.php?p=3165217#3165217
_________________
> 78Grµn Westfalia `Donkey`
.
It may be bigger than you and it may be bigger than me, but it’s not bigger than you AND me; can you dig it? |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53194
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Apr 04, 2010 6:57 am Post subject: |
|
|
Nice work Timo, you're a brave man!
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4759
Location: Seattle
|
| Posted: Sun Sep 04, 2011 1:52 pm Post subject: |
|
|
So this intermittent setup works ONLY if you have a wiper switch with the two rows of contacts? (CE?) I just wondered if there was a way to do this with a stock bus switch.
If it can't work then I will look into switching around the switch parts with some 914 stuff as they look the same except for the stalk that is longer. Swapping the stalk looks possible and then I could have a switch that has the intermittent wiring and contacts.
_________________
70 Ghia Black convert-9/69 build date-stock w/133k 1600 SP-barn find now with a rebuilt tranny and engine
77 Westy 2.0L w/Ljet, Camper Special engine-95hp and with LSD!(sold)
76 Porsche 914 2.1L L20c, 120hp Djet (sold)
87 Syncro Westy Titan Red 2.1L 2 knob 100k miles |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53194
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Sep 04, 2011 2:19 pm Post subject: |
|
|
| busdaddy wrote: |
| Most 75+ switches are already 4 position, there's a small tab of plastic on the outer column housing that stops it from going past off to the delay position. You still have to add a wire to the harness that plugs into it though. |
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Sun Sep 04, 2011 2:31 pm Post subject: |
|
|
| busdaddy wrote: |
| Most 75+ switches are already 4 position, there's a small tab of plastic on the outer column housing that stops it from going past off to the delay position. You still have to add a wire to the harness that plugs into it though. |
I remember back in the 70's when I found out about that in the rabbits I did the delay mod in alot of those back then.
_________________
where its cold and snowy |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4759
Location: Seattle
|
| Posted: Sun Sep 04, 2011 3:22 pm Post subject: |
|
|
| busdaddy wrote: |
| busdaddy wrote: |
| Most 75+ switches are already 4 position, there's a small tab of plastic on the outer column housing that stops it from going past off to the delay position. You still have to add a wire to the harness that plugs into it though. |
|
Got that and since there isn't an extra contact inside that is why I was looking at my stash of 914 wiper switches. Some have the extra contact as 914's did have a "Flick wipe" or "intermittent" wiper setup. The switch body is the same just a different stalk. Guess I'll pull out the switches to see how easy it is to swap in.
_________________
70 Ghia Black convert-9/69 build date-stock w/133k 1600 SP-barn find now with a rebuilt tranny and engine
77 Westy 2.0L w/Ljet, Camper Special engine-95hp and with LSD!(sold)
76 Porsche 914 2.1L L20c, 120hp Djet (sold)
87 Syncro Westy Titan Red 2.1L 2 knob 100k miles |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4759
Location: Seattle
|
| Posted: Sun Sep 04, 2011 4:38 pm Post subject: |
|
|

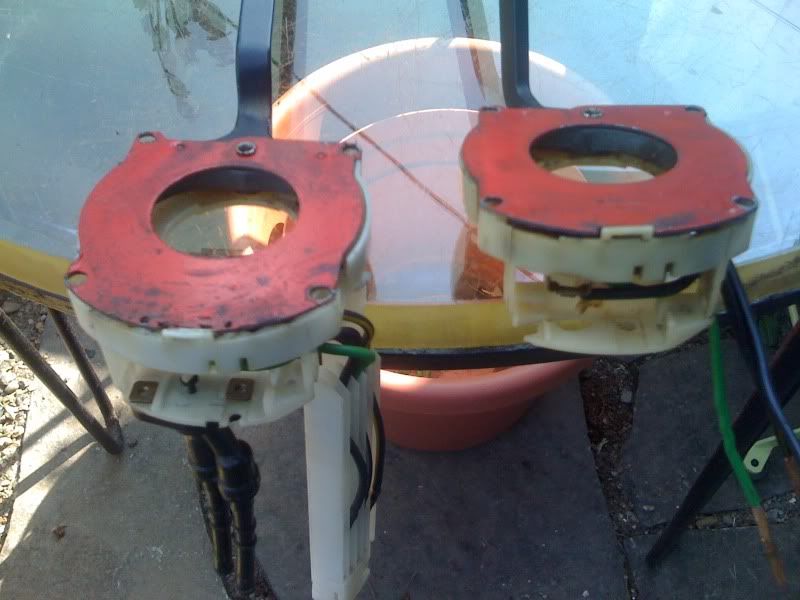

Ok, here is a pic of a late bay wiper switch and a late 914 switch. The bodies are the same, everything is the same except for the stalk which can be swapped in. The 914 one is on the right.
I'll give it a try..
_________________
70 Ghia Black convert-9/69 build date-stock w/133k 1600 SP-barn find now with a rebuilt tranny and engine
77 Westy 2.0L w/Ljet, Camper Special engine-95hp and with LSD!(sold)
76 Porsche 914 2.1L L20c, 120hp Djet (sold)
87 Syncro Westy Titan Red 2.1L 2 knob 100k miles |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4759
Location: Seattle
|
| Posted: Mon Sep 05, 2011 9:20 pm Post subject: |
|
|

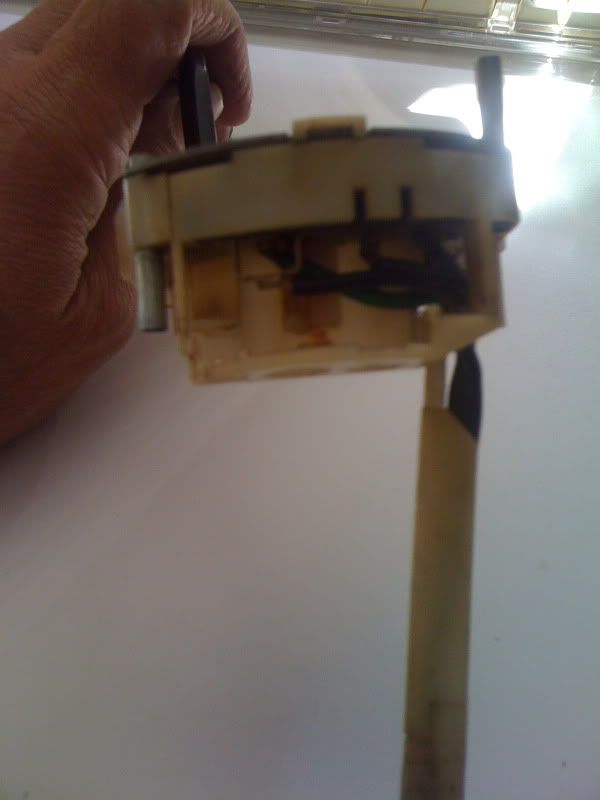

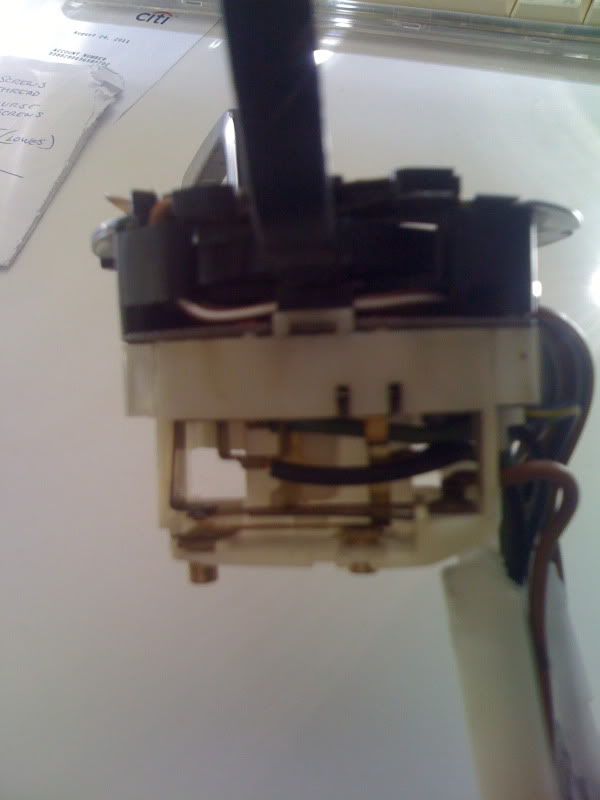

dug out a 914 74 switch and a 75 wiper switch with the extra contacts for electric washer pump. Note both have the extra position contact for a intermittent relay. I'll swap over the stalk from a bus switch and see how it works. Dunno if I have two 75 switches so I can use that one and also have electric washer too.
