What else to do while replacing a front heater core?
Page: 1, 2, 3, 4, 5  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
BoneStock67
Samba Member


Joined: January 27, 2006
Posts: 439
Location: New Jersey
BoneStock67 is offline

PostPosted: Mon Nov 19, 2007 11:23 am    Post subject: What else to do while replacing a front heater core? Reply with quote

So I'm getting ready to replace the front heater core and blower on my '86 weekender. What other preventative maintenance/restoration things do people recommend doing up there while I have the dash out?
_________________
1986 Wolfsburg Westfalia Weekender 2.1L stock
1967 Beetle, now becoming my daily driver again, after a long rest in the garage

"There are two possible outcomes: if the result confirms the hypothesis, then you've made a measurement. If the result is contrary to the hypothesis, then you've made a discovery.” -Enrico Fermi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dogpilot
Samba Member


Joined: October 03, 2005
Posts: 4205
Location: Flagstaff, AZ
Dogpilot is offline

PostPosted: Mon Nov 19, 2007 1:19 pm    Post subject: Reply with quote

Clean up the grounds on the pillar. Clean out the squirter lines. Lube the Windshield wiper system. Replace the foam on the heater box flappers. Install insulation on the forward nose section for noise. Install any extra electrical lines for future goodies, like aux battery cig plugs or stereo systems. Find all the pennies you lost.
_________________
Geology with a Syncro rocks!
86 Syncro Westy AKA "The Bughunter"
98 Disco I
08 Range Rover SC
08 VW Rabbit S
1951 O-1G
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
psych-illogical
Samba Member


Joined: October 14, 2004
Posts: 1181
Location: AZ
psych-illogical is offline

PostPosted: Mon Nov 19, 2007 2:51 pm    Post subject: Reply with quote

I went ahead and replaced my 24 year old wiper shafts while I was in there.
_________________
83 1/2 Westy waterboxer
'57 Beetle-sold Sad
Coupla '81 BMW motorcycles (R80G/S; R100RS)
'96 BMW R1100GS
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joetiger Premium Member
Samba Member


Joined: January 27, 2005
Posts: 5062
Location: denver
joetiger is offline

PostPosted: Mon Nov 19, 2007 3:05 pm    Post subject: Reply with quote

Here's some good step-by-step info on the removal process:

http://www.vanagonauts.com/Heater-Blower-R&-R118.htm
_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'04 GTI 1.8T
'04 Golf R32

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond

Available Now! Vanagon to Louisiana--A Two-Lane Reckoning Through Past and Present

www.josephtrussell.com
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
BoneStock67
Samba Member


Joined: January 27, 2006
Posts: 439
Location: New Jersey
BoneStock67 is offline

PostPosted: Mon Nov 19, 2007 4:41 pm    Post subject: Reply with quote

Thanks, guys!
That's exactly the kind of wisdom I'm looking for.

BTW, here's another good r&r on the same topic, from the same site:
http://www.vanagonauts.com/%5B70.5-%5DInstrument-Panel---Dashboard-(T-J-Hannink)117.htm
_________________
1986 Wolfsburg Westfalia Weekender 2.1L stock
1967 Beetle, now becoming my daily driver again, after a long rest in the garage

"There are two possible outcomes: if the result confirms the hypothesis, then you've made a measurement. If the result is contrary to the hypothesis, then you've made a discovery.” -Enrico Fermi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skaaudivw
Samba Member


Joined: April 12, 2006
Posts: 316
Location: wesT hartford, ct
skaaudivw is offline

PostPosted: Mon Nov 19, 2007 5:36 pm    Post subject: Reply with quote

I'm tackling the same project. My fan is shot so new heater core is going in also. Winter comes and so do the projects.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
shizzon
Samba Member


Joined: July 25, 2006
Posts: 596
Location: Boulder, CO
shizzon is offline

PostPosted: Sun Nov 25, 2007 9:24 pm    Post subject: Reply with quote

So I removed my dash today, and will be replacing my front heater core and blower motor very soon... I keep seeing people posting saying "fix the foam on the heater flaps" with foam you get from home depot. ...Are people meaning Frost King type insulation, or can you just buy the foam? If so, can anyone tell me exactly what kind of foam to use?

Also, once you have foam, how does one actually replace the foam thats there? It didn't seem obvious when I looked at it yesterday.

Finally, what about lubing the windshield wipers? What specifically should be lubed?

Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
McVanagon
Samba Member


Joined: February 19, 2007
Posts: 1684
Location: Northern part of the Virginia
McVanagon is offline

PostPosted: Mon Jan 07, 2008 5:53 am    Post subject: Reply with quote

I just finished this project. Saturday I removed the dash and the heaterbox and cleaned it up, replaced the fan and the flapperfoam. Sunday I did another thing or two, then put it all back together. I have a few observations.

1) It is a lot easier the second time around.

2) You don’t have to remove the dash to replace the windshield squirters. You can wiggle them out, and replace them with new. (a heat gun is nice to make 20yr old plastic lines a little softer to slip the nozzles off/on)

3) The number of stereo installs that have lived in a 20yr dash leave a bit of wiring mess.

4) The tip of the shearbolts comes right off; right after you put your vice-grips away and realize you forgot the washers. Why did I use them again?

5) The heaterbox is a great hiding place for pennies, confetti, watch batteries, and little dash lightbulbs.

6) Replacing the “to-the-back” vent flap foam is a pain the butt, since you do them in place. I read that someone removed it, but I didn't want to hack up the box.

7) If you stick the foam on (2.5"x .25", made by 3M)******edit - it's 1.25" wide, oops***** without cutting the 6-8 holes for the retainers, a hot awl from the backside opening in the flap makes the cutest little holes, in the right place, too……

8 ) Are those dangly fresh-air flaps removeable?

9) I was “blown away” by the difference the new foam made. While the new fan is not any stronger, the new flapperfoam allows all of it to be focused on a single place. Defroster is like a hurricane compared to what it was before.

Photo album
http://picasaweb.google.com/Oodacmekim/HeaterMotor#
_________________
'69 Mike
'85 GL
'87 Wolfsburg Hardtop


Last edited by McVanagon on Thu Jan 29, 2009 3:19 am; edited 2 times in total
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
lovedavdubs
Samba Member


Joined: April 30, 2004
Posts: 1597
Location: New York, NY.
lovedavdubs is offline

PostPosted: Mon Jan 07, 2008 11:43 am    Post subject: Reply with quote

How about some sound deadening on the front panel?

Image may have been reduced in size. Click image to view fullscreen.


Before

Link


After


Link

_________________
82 Air-cooled Westy (Lola)...My other vehicle is a subway.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 15119
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Mon Jan 07, 2008 12:05 pm    Post subject: Reply with quote

great time for headlight relays..
_________________
Abscate wrote:
These are the reasons we have words like “wanker”
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
earlywesty
Samba Member


Joined: May 03, 2004
Posts: 2356
Location: In the woods, Ontario
earlywesty is offline

PostPosted: Mon Jan 07, 2008 6:39 pm    Post subject: Gotta take my dash out this week too.... Reply with quote

I have to pull the dash to find a mouse nest on the 91 Multivan I just bought. I suspect it will be found near the fan as the van is also intermittent. I guess this is a good time to kill two birds with one stone...

How much are the fans and cores? I was considering doing both since I am going to all the trouble of getting in there. I can't see any other way off getting a mouse nest out of the front duct work. It smells awful. I shut the front air flow off completely and the smell dissipates some, however relying on the rear heater in Canada won't cut it, not to mention no defrost...

I will lube the wiper linkage too... Any other suggestions>

Eric
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
McVanagon
Samba Member


Joined: February 19, 2007
Posts: 1684
Location: Northern part of the Virginia
McVanagon is offline

PostPosted: Mon Jan 07, 2008 7:21 pm    Post subject: Re: Gotta take my dash out this week too.... Reply with quote

buseric wrote:
How much are the fans and cores?


Fans are $80-100
Front cores are rediculou$
_________________
'69 Mike
'85 GL
'87 Wolfsburg Hardtop
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
brooklynvan
Samba Member


Joined: February 08, 2006
Posts: 342
Location: Brooklyn NY
brooklynvan is offline

PostPosted: Mon Jan 07, 2008 8:11 pm    Post subject: Reply with quote

McVanagon-
do you have a # for the 3M foam you used?
I have a spare core on my bench I'm going to rebuild then put in since I park on the street, and need to pull the dash and do all the work in a short time frame.
_________________
1990 Vanagon "Plain Jane" Bostig in the Back
TRADED: 1967 Panel for 1976 BMW 2002
SOLD: 1984 Sunroof Vanagon with EJ22
RIP 1986 Saab turbo
and my daily commuter: a Bicycle
Back to top
View user's profile Send private message Visit poster's website Instagram Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Mon Jan 07, 2008 9:56 pm    Post subject: Reply with quote

<<I have a spare core on my bench I'm going to rebuild then put in since I park on the street>>

Interesting.

How does one go about rebuilding a front core?

I'm all ear's on this caper Harry---
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
McVanagon
Samba Member


Joined: February 19, 2007
Posts: 1684
Location: Northern part of the Virginia
McVanagon is offline

PostPosted: Tue Jan 08, 2008 3:17 am    Post subject: Reply with quote

brooklynvan wrote:
McVanagon-
do you have a # for the 3M foam you used?


No, I sure dont.....sorry. I threw away the packaging... I bought the roll at Advanced Auto for about $12, and the instructions would have helped me attach a cab to a truck bed. The dimensions were 1.25" wide, and 0.25" thick. It was self-adhesive, and I had a plastic film on the other side that I had to peel off.
The 1.25" width was just about perfect.
Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Mike
'85 GL
'87 Wolfsburg Hardtop


Last edited by McVanagon on Tue Jan 08, 2008 6:23 pm; edited 1 time in total
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
BoneStock67
Samba Member


Joined: January 27, 2006
Posts: 439
Location: New Jersey
BoneStock67 is offline

PostPosted: Tue Jan 08, 2008 7:23 am    Post subject: Reply with quote

Great pix, McV; thanks.
Although I started this thread six weeks ago, I STILL haven't done the front core (but I did do the rear core, which started leaking and thus moved up in the urgency rankings), so I for one am still very interested in the great info that continues to come out here.
_________________
1986 Wolfsburg Westfalia Weekender 2.1L stock
1967 Beetle, now becoming my daily driver again, after a long rest in the garage

"There are two possible outcomes: if the result confirms the hypothesis, then you've made a measurement. If the result is contrary to the hypothesis, then you've made a discovery.” -Enrico Fermi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Tue Jan 08, 2008 7:49 am    Post subject: Reply with quote

Good info on the 3-M foam tape---

Here's another one of them jobs you don't wanna cut corner's on.

Do not buy the Ace is the place or the brand X sealing gasket material when your having a hard time locating the right stuff.

The adhesive on the back side of the cheap stuff is garbage and will not stick to the heater door's very long.

The 3-M foam tape will stay on the door's a long time without rolling off.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
McVanagon
Samba Member


Joined: February 19, 2007
Posts: 1684
Location: Northern part of the Virginia
McVanagon is offline

PostPosted: Tue Jan 08, 2008 9:15 am    Post subject: Reply with quote

Terry Kay wrote:
Good info on the 3-M foam tape---

Here's another one of them jobs you don't wanna cut corner's on.

Do not buy the Ace is the place or the brand X sealing gasket material when your having a hard time locating the right stuff.

The adhesive on the back side of the cheap stuff is garbage and will not stick to the heater door's very long.

The 3-M foam tape will stay on the door's a long time without rolling off.


True, that stuff was sticky. Make a mistake, and you'll be scraping, sanding, and using googone. Even though this tape was clearly adhesive, I would have never trusted it alone without those retaining clip-plates.

***edit*** I stopped by the store on the way home and got the foam info.... as well as upload a few photos.
Image may have been reduced in size. Click image to view fullscreen.

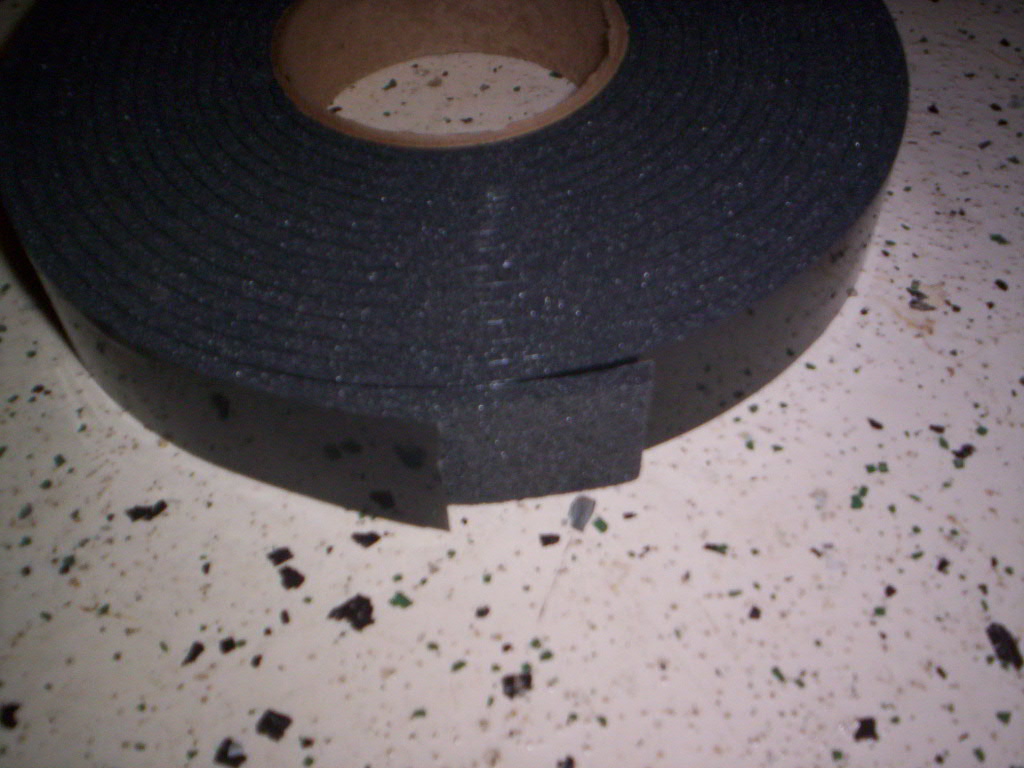

3M Pickup Camper Tape
Part # 03420
1 1/4"x 3/16"x 10 yards.

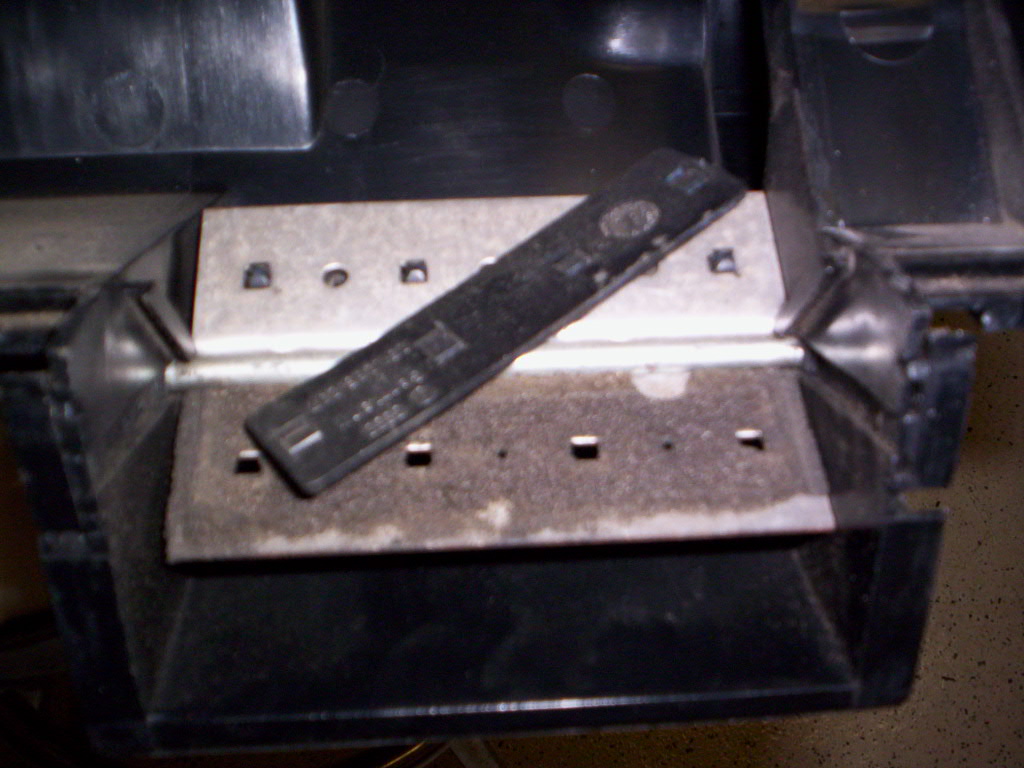

What's left of the factory foam.
Image may have been reduced in size. Click image to view fullscreen.

Remove foam clip, I mean.... dust clip.
Image may have been reduced in size. Click image to view fullscreen.

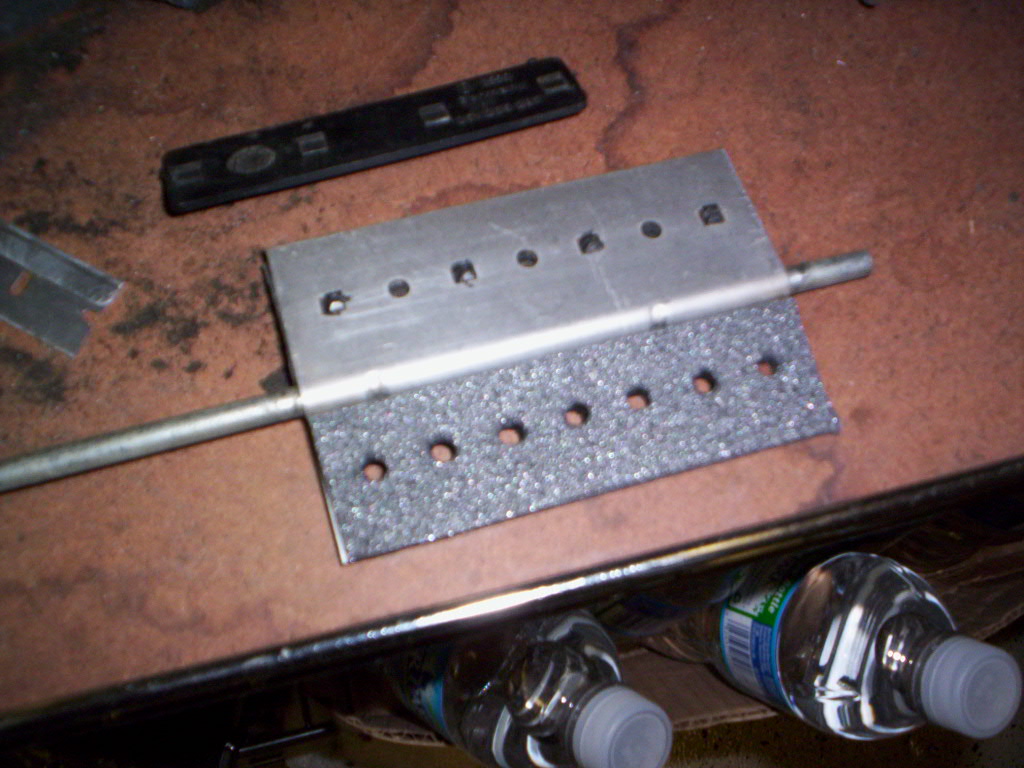

After sticking the tape to the flap, trimming it, and peeling the plastic off, I heated up the tip of an awl, and stuck it though from the other side...I actually threw this one from the other side of the garage. I was getting pretty good by the second set of flaps. Bullseye!
Image may have been reduced in size. Click image to view fullscreen.

Once the smoke cleared, this is what the other side looked like... Neat, and no cutting or measuring involved. Just put the retainer back in.
Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Mike
'85 GL
'87 Wolfsburg Hardtop
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
earlywesty
Samba Member


Joined: May 03, 2004
Posts: 2356
Location: In the woods, Ontario
earlywesty is offline

PostPosted: Wed Jan 09, 2008 1:25 pm    Post subject: Can you cheat to tell if the heater has been serviced? Reply with quote

I don't know if my heater housing has been opened up... Is there anyway to peek and see if it has clips. I have never had the dash out so I am not sure how hidden the heater housing is....

I would like to know if I need to buy the 11 clips or not..... Can you peer through the ashtray or glovebox or something if you take them out?

Thanks,

Eric
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
McVanagon
Samba Member


Joined: February 19, 2007
Posts: 1684
Location: Northern part of the Virginia
McVanagon is offline

PostPosted: Wed Jan 09, 2008 2:02 pm    Post subject: Re: Can you cheat to tell if the heater has been serviced? Reply with quote

buseric wrote:
I don't know if my heater housing has been opened up... Is there anyway to peek and see if it has clips. I have never had the dash out so I am not sure how hidden the heater housing is....

I would like to know if I need to buy the 11 clips or not..... Can you peer through the ashtray or glovebox or something if you take them out?

Thanks,

Eric


Eric,

Here is a photo album from Ken. I borrowed a few photos from it (since I don't have any where I am right now)
http://picasaweb.google.com/Madsen.Ken/HeaterBlowerReplacement

I highlighted the seam red. You may (or may not) have to break this seam, depending if it has already been done. If you take the glovebox and the lower center panel off, you will be able to see part of the heater box. (I highlighted Ken's defroster flapper control lever in blue, for reference).

Trace as much of the seam as you can with your eyes and fingers. There should be some clips along the seam, clamping the two halfs together. I believe there are two in the front between the heat vents, and at least two or three you will be able to see from the passenger floor, looking up. Don't be misled by the clips holding the ends of the control cables down.....

Good luck!

Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Mike
'85 GL
'87 Wolfsburg Hardtop
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5  Next
Page 1 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
