Rear bumper splash pans FAQ
Page: 1, 2  Next
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
MadMax78
Samba Member


Joined: May 26, 2007
Posts: 511
Location: The Netherlands
MadMax78 is offline

PostPosted: Tue Nov 20, 2007 7:05 pm    Post subject: Rear bumper splash pans FAQ Reply with quote

I have seen rear bumper splash pans a few times in the classifieds. A few questions came to mind.

Does anyone know why these were sold and to what busses they were fitted? As factory or deal option? What is there purpose? Simply preventing your bumper from being filled with road debris?

Just curious...
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
brenthughes
Samba Member


Joined: February 13, 2007
Posts: 105

brenthughes is offline

PostPosted: Tue Nov 20, 2007 7:39 pm    Post subject: Reply with quote

The splash pans were on bay and split busses. In addition to what their name implies, they stiffen the wrap around portion of the bumper.

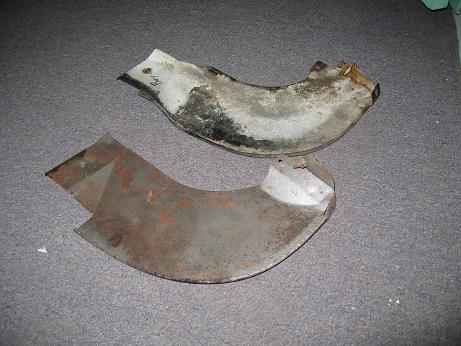

There are slight differences between the two:

Image may have been reduced in size. Click image to view fullscreen.


The one on the top is a Bay passenger side splash pan, and the one on the bottom is a Split passenger side splash pan. The mounting points are similiar. The Bay version has elongated holes allowing for adjustment. The Split version's side bracket is above and below the pan itself. Also notice the cutout for the bumper bracket is larger on the split version.

I am guessing they were factory installed.

Brent Hughes
_________________
68 Beetle
68 Double Cab
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 40677
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is online now

PostPosted: Tue Nov 20, 2007 9:09 pm    Post subject: Reply with quote

Factory standard on all type 2's until 72, I wish my 72 had come with them, the sandblasted area just above the bumper on the rear end of an otherwise great OG paintjob sucks.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vw76westy
Samba Member


Joined: May 06, 2007
Posts: 1561
Location: so cal
vw76westy is offline

PostPosted: Tue Nov 20, 2007 9:36 pm    Post subject: Reply with quote

When you say bay window
You mean 68-72 right
Or do they have these for 73-79 bumpers
I have also been curious about these for a while
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
foxtail1
Samba Member


Joined: February 04, 2008
Posts: 706
Location: graham
foxtail1 is offline

PostPosted: Sat Nov 01, 2008 5:57 am    Post subject: Splash shields Reply with quote

If anyone needs the seals for them I have ones that I make and fit real nice...

Email me [email protected]
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Brionp
Samba Member


Joined: March 18, 2009
Posts: 456

Brionp is offline

PostPosted: Mon Dec 17, 2012 7:43 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1971 7 seat Deluxe Station Wagon
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vw76westy
Samba Member


Joined: May 06, 2007
Posts: 1561
Location: so cal
vw76westy is offline

PostPosted: Mon Dec 17, 2012 9:47 pm    Post subject: Reply with quote

wow, this thread was so old
i barely knew what splash guards were
when posted
_________________
order your BAY WINDOW T-SHIRT here http://www.thesamba.com/vw/classifieds/detail.php?id=1526918

quote from bay window bus buyers guide........
The Type 4 engine is considered by many to be VW's finest air-cooled motor,
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
CoastalAirCooledVW
Samba Member


Joined: September 02, 2012
Posts: 1882
Location: Mckinleyville, CA (Humboldt County)
CoastalAirCooledVW is offline

PostPosted: Mon Dec 17, 2012 9:52 pm    Post subject: Reply with quote

vw76westy wrote:
wow, this thread was so old
i barely knew what splash guards were
when posted

It's better to revive than repost
_________________
1966 Velvet Green Standard
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
old DKP driver
Samba Member


Joined: March 30, 2005
Posts: 3802
Location: Los Gatos,Ca.
old DKP driver is offline

PostPosted: Mon Dec 17, 2012 10:26 pm    Post subject: splash guards Reply with quote

Busdaddy,Not sure why your 72 didn't come with splash guards when my
72 Kombi production date: 03/72 has them.
_________________
V.W.owner since 1967
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
nodrenim
Samba Member


Joined: October 06, 2006
Posts: 843
Location: Dobson, North Carolina
nodrenim is offline

PostPosted: Tue Dec 18, 2012 5:41 am    Post subject: Reply with quote

busdaddy, check the lower outer corner to see if you have a bulge with a hole there. If so you are missing the splash guards that came on 72 bays, and ended with the intro of the 73 bays. If you do not have the bulge, then somewhere in history your panels have been modified. Peace,
Back to top
View user's profile Send private message Classifieds Feedback
gator
Samba Member


Joined: August 12, 2004
Posts: 455
Location: Tookiedoo, South Carolina
gator is offline

PostPosted: Tue Dec 18, 2012 7:51 am    Post subject: Reply with quote

I have two rear bumpers, both from 1968 busses, which have this type of support rather than the splash pans.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Is this unusual?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 40677
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is online now

PostPosted: Tue Dec 18, 2012 8:05 am    Post subject: Reply with quote

allthewayalive wrote:
Is this unusual?

Somewhat, that's what's on my 72 and from the sandblasting on the corner paint and OG one owner unmolestedness of the rest of the bus I'm confident they were there from new or very close to it, no marks on the rear brackets where the pans would have been bolted either. That's the same bracket that's welded to the front ends of the pans, just loose.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GetPsycho
Samba Member


Joined: February 14, 2004
Posts: 1441
Location: The Frayed Ends of Sanity
GetPsycho is offline

PostPosted: Tue Dec 18, 2012 1:03 pm    Post subject: Reply with quote

So, just how important are they?
I've been thinking of losing mine.
They fill up with snow in the winter.
_________________
SOME MORNINGS IT'S JUST NOT
WORTH CHEWING THROUGH THE
LEATHER STRAPS!!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 40677
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is online now

PostPosted: Tue Dec 18, 2012 2:47 pm    Post subject: Reply with quote

If the pans are missing rocks bounce off the inside of the bumper and sandblast the back of the bus below the tail lights, if the brackets are missing the ends of the bumper wiggle up and down and eventually crack the bumper near the rear mounts.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
larryducas
Samba Member


Joined: October 25, 2011
Posts: 228
Location: Fallbrook, CA
larryducas is offline

PostPosted: Tue Dec 18, 2012 8:47 pm    Post subject: Reply with quote

busdaddy wrote:
If the pans are missing rocks bounce off the inside of the bumper and sandblast the back of the bus below the tail lights, if the brackets are missing the ends of the bumper wiggle up and down and eventually crack the bumper near the rear mounts.


ditto

I ran mine without for 6 months till I found them in the parts pile from PO. bumper used to be a noodle. now you can stand on bumper. big difference, no longer vibrates up and down several inches at idle. I would not run without them, even if I had to fab some kind of brace. to me the bumper stiffening is more important than the splash guard feature.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
rneithammer
Samba Member


Joined: November 09, 2007
Posts: 197
Location: Media, PA, USA
rneithammer is offline

PostPosted: Tue Apr 09, 2013 3:10 pm    Post subject: Reply with quote

Anyone know of a vendor that sells seal for the splash guards?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 40677
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is online now

PostPosted: Tue Apr 09, 2013 3:13 pm    Post subject: Reply with quote

Wolfsburg west.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Trevor P
Samba Member


Joined: January 21, 2004
Posts: 721
Location: Saskatoon, SK, Canada
Trevor P is offline

PostPosted: Mon Sep 15, 2014 8:19 pm    Post subject: Reply with quote

Anyone know if the 72 splash pans are a one year only thing like the brackets and bumper? I have a 72 bumper with the correct early bumper brackets fitted to my 70 (had to re drill bumper obviously). The splash pans that came with the bumper don't seem to line up correctly. Do I need 68-71 pans?
_________________
53 Barndoor singlecab
53 Canadian standard oval
57 Oval, 2332 & Berg 5
63 Beetle
70 911T
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 40677
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is online now

PostPosted: Mon Sep 15, 2014 9:16 pm    Post subject: Reply with quote

Yes, 72 pans are shorter to work with the wider frame rails, they have an oval depression over the bumper bracket if you want to spot the difference easily.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Trevor P
Samba Member


Joined: January 21, 2004
Posts: 721
Location: Saskatoon, SK, Canada
Trevor P is offline

PostPosted: Mon Sep 15, 2014 9:53 pm    Post subject: Reply with quote

Thanks. So these should be the right ones then?
http://www.thesamba.com/vw/classifieds/detail.php?id=1690900
_________________
53 Barndoor singlecab
53 Canadian standard oval
57 Oval, 2332 & Berg 5
63 Beetle
70 911T
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
