PostPosted: Sun Nov 25, 2007 10:01 pm    Post subject: VDO Placement? Reply with quote

Just wondering if people could post pics of where they have their VDO or similar gauges on the dash? Especially if you have a tachometer. What do you think are a essential if any: oil temp, oil pressure, CHT etc?

The PO for mine put them under the dash off the steering wheel and I really can't see them easily.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
pb24ss
Samba Member


Joined: June 30, 2005
Posts: 1665
Location: sitting around the fire with the bluegrass band - colorado
pb24ss is offline

PostPosted: Sun Nov 25, 2007 10:09 pm    Post subject: Reply with quote

if you're installing a VDO tach install it in the clock hole if you don't have a clock. it's a perfect fit. make sure you get the retaining ring for it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Randy in Maine
Samba Member


Joined: August 03, 2003
Posts: 34890
Location: The Beach
Randy in Maine is offline

PostPosted: Mon Nov 26, 2007 3:00 am    Post subject: Reply with quote

I put my VDOs under the radio.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MadMax78
Samba Member


Joined: May 26, 2007
Posts: 511
Location: The Netherlands
MadMax78 is offline

PostPosted: Mon Nov 26, 2007 3:57 am    Post subject: Reply with quote

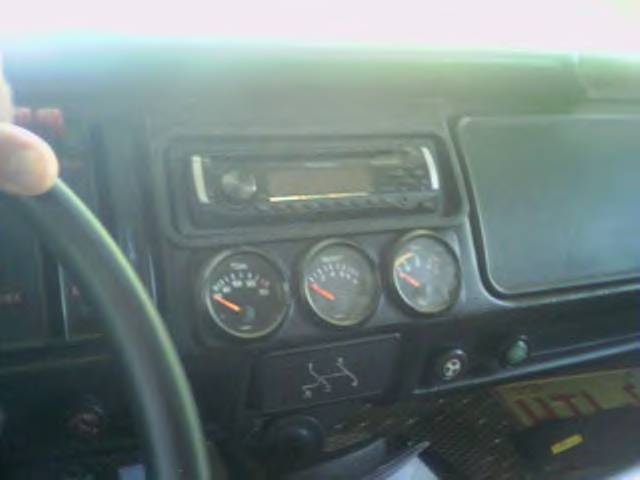

Tach mounted

Image may have been reduced in size. Click image to view fullscreen.

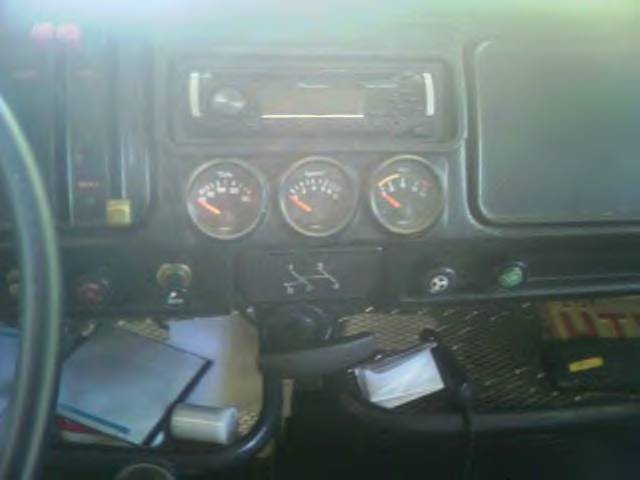

VDO's under the radio (oil temp, oil pressure, ammeter) ammeter has been replaced with a voltmeter.

Image may have been reduced in size. Click image to view fullscreen.


CHT in a pod, only the pod can be seen in this image. Made the picture before I got the gauge.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
NASkeet
Samba Member


Joined: April 29, 2006
Posts: 2371
Location: South Benfleet, Essex, UK
NASkeet is offline

PostPosted: Mon Nov 26, 2007 7:41 am    Post subject: Re: VDO Placement? Reply with quote

trnelson73 wrote:
Just wondering if people could post pics of where they have their VDO or similar gauges on the dash? Especially if you have a tachometer. What do you think are a essential if any: oil temp, oil pressure, CHT etc?

The PO for mine put them under the dash off the steering wheel and I really can't see them easily.


Image may have been reduced in size. Click image to view fullscreen.


I have my radio/cassette unit beneath the dashboard, where it's easier to reach!
_________________
Regards.

Nigel A. Skeet

Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper

Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)

http://www.vwt2oc.net
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Tri-Bus
Samba Member


Joined: November 29, 2005
Posts: 732
Location: Butler PA
Tri-Bus is offline

PostPosted: Mon Nov 26, 2007 10:25 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Here is my set up Vdo Tach in the clock hole ( Bus Boys adapter) and Temp, oil pressure, and battery out of a 914 in another Bus Boys face plate

( radio trim, late model Beetle to cover P.O. hack job )
_________________
73 Westy

A VW team with a triathlon problem, or something like that....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jeff Geisen
Samba Chaplain


Joined: December 21, 2004
Posts: 1712
Location: N.W. Georgia
Jeff Geisen is offline

PostPosted: Mon Nov 26, 2007 11:17 am    Post subject: Reply with quote

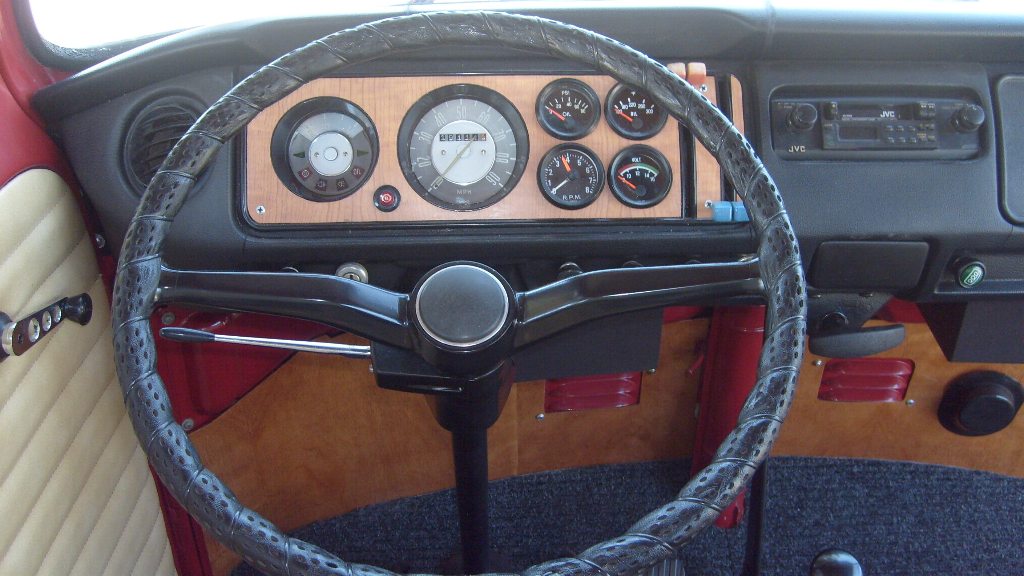

I have the tach in the blank on the right side of the spedometer, OP, OT and volts under the radio. I have a rubber triple hole VDO holder under the dash, between the steering column and the E brake with a vacuum, amps and a clock.

I'm a gauge freak....
_________________
I Corinthians 4

I actually drive my bus and single cab. They run and drive great, and I maintain them myself. I don't merely own type IIs, I travel all over in them. Really, check my instagram link or gallery.

71 Westy rag top, 69 single cab Both driven daily
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
chrisradioman
Samba Member


Joined: September 20, 2007
Posts: 4873
Location: Swansea (Sunny Penllergaer) Wales UK
chrisradioman is offline

PostPosted: Mon Nov 26, 2007 12:35 pm    Post subject: Reply with quote

Mine under the radio, there was a nasty mark there anyway, but now its gone:-
Very Happy Bought some guages on eBay last week VDO ones originally fitted in an Audi.
Image may have been reduced in size. Click image to view fullscreen.

This is how they came
Image may have been reduced in size. Click image to view fullscreen.

Marked out the dash
Image may have been reduced in size. Click image to view fullscreen.

Drilled it out
Image may have been reduced in size. Click image to view fullscreen.

Fitted & so is my Becker Sat Nav
_________________
http://www.vintagevwweddings.co.uk/contact.html
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
mygreenbus
Samba Member


Joined: February 14, 2007
Posts: 1154
Location: Palm Coast, FL
mygreenbus is offline

PostPosted: Mon Nov 26, 2007 1:41 pm    Post subject: Reply with quote

Mine is Ditto MadMax78 and nvwainfo. Also used the Bus Boys adaptor, really looks good.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
bus kid
Samba Member


Joined: June 15, 2007
Posts: 250
Location: under something air cooled
bus kid is offline

PostPosted: Mon Nov 26, 2007 10:10 pm    Post subject: Reply with quote

thats some bad ass diamond plate:!:

Image may have been reduced in size. Click image to view fullscreen.

_________________
1969 Deluxe you'll hear me!
[img]
________________________________________
Big Blue runs on gas not Friendship,
so pay up or get out!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Tri-Bus
Samba Member


Joined: November 29, 2005
Posts: 732
Location: Butler PA
Tri-Bus is offline

PostPosted: Mon Nov 26, 2007 10:21 pm    Post subject: Reply with quote

bus kid wrote:
thats some bad ass diamond plate:!:

Image may have been reduced in size. Click image to view fullscreen.


Thanks, the rear hatch inside is done with it too, next will be the sides of the walkthru and the back of the z-bed

I might also make some trim for the bottom of the doors when i make or buy new door panels
_________________
73 Westy

A VW team with a triathlon problem, or something like that....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NOVA Bus
Samba Member


Joined: April 18, 2005
Posts: 513
Location: Herndon, VA
NOVA Bus is offline

PostPosted: Mon Nov 26, 2007 11:24 pm    Post subject: Reply with quote

Looks like everyones utilizing the same spots for triple gauges.

Image may have been reduced in size. Click image to view fullscreen.


I'm looking for space to place the CHT, maybe use a single pod under dash.
_________________
********************************
1977 Transporter / Weekender
- GE engine, L-Jetronic w/ hyd. lifters
- Brown Beige plaid P27 Interior (ED)
http:/[url=http://www.vw-mplate.com/mplate-29638.png]Click to view image
Camper Interior donor:
[/URL]/www.vw-mplate.com/mcode.php?lang=EN&id=721 (M-Code for interior).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NOVA Bus
Samba Member


Joined: April 18, 2005
Posts: 513
Location: Herndon, VA
NOVA Bus is offline

PostPosted: Mon Nov 26, 2007 11:29 pm    Post subject: Reply with quote

bump
_________________
********************************
1977 Transporter / Weekender
- GE engine, L-Jetronic w/ hyd. lifters
- Brown Beige plaid P27 Interior (ED)
http:/[url=http://www.vw-mplate.com/mplate-29638.png]Click to view image
Camper Interior donor:
[/URL]/www.vw-mplate.com/mcode.php?lang=EN&id=721 (M-Code for interior).


Last edited by NOVA Bus on Sun Dec 16, 2007 4:10 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14655
Location: Arizona
Desertbusman is offline

PostPosted: Tue Nov 27, 2007 2:40 am    Post subject: Reply with quote

NOVA Bus wrote:
Looks like everyones utilizing the same spots for triple gauges.


Here's where mine are.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
autiger78
Samba Member


Joined: September 25, 2007
Posts: 411
Location: Auburn, AL
autiger78 is offline

PostPosted: Tue Nov 27, 2007 5:46 am    Post subject: Reply with quote

Desertbusman wrote:
NOVA Bus wrote:
Looks like everyones utilizing the same spots for triple gauges.


Here's where mine are.

Image may have been reduced in size. Click image to view fullscreen.


Still my favorite...really nice job here!
_________________
Wanted - Dormobile Roof Parts!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
caldwell54
Samba Member


Joined: March 09, 2002
Posts: 78

caldwell54 is offline

PostPosted: Tue Nov 27, 2007 6:25 am    Post subject: Reply with quote

Does anyone have pictures of putting the 3 VDO gauges in a pod under
the dash between steering wheel and e-brake ? Can you see the gauges
in that location while driving ? I will also be adding VDOs to my 78 Westy
but am relunctant to drill out the dash.

Thanks
Dean
_________________
1978 Dakota Beige Westy Deluxe
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NASkeet
Samba Member


Joined: April 29, 2006
Posts: 2371
Location: South Benfleet, Essex, UK
NASkeet is offline

PostPosted: Tue Nov 27, 2007 7:29 am    Post subject: VDO Placement? Reply with quote

autiger78 wrote:
Desertbusman wrote:
NOVA Bus wrote:
Looks like everyones utilizing the same spots for triple gauges.


Here's where mine are.

Image may have been reduced in size. Click image to view fullscreen.


Still my favorite...really nice job here!


That looks nice Desertbusman, how did you do it?

On the RHD, Australian, British, Japanese(?), South African, New Zealand & other specification, 1968~79 VW Type 2s, the clock position is close to the ventilation outlet & cab door, rather than the heater & ventilation control levers, so I don't know whether that would be practical for us.

At sometime in the future, I had in mind to fabricate completely new, main & supplementary instrument panels, using only 80mm & 52mm VDO Cockpit gauges, some of which are still in my pending-projects box. This would enable me to fit into the dashboard, somewhere between 10 to 12 instruments, including two Lucas, 60mm diameter, 8-segment warning-light clusters.
_________________
Regards.

Nigel A. Skeet

Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper

Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)

http://www.vwt2oc.net


Last edited by NASkeet on Wed Nov 28, 2007 7:32 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
trnelson73
Samba Member


Joined: February 22, 2006
Posts: 76
Location: Whittier, CA
trnelson73 is offline

PostPosted: Tue Nov 27, 2007 7:04 pm    Post subject: Under dash Reply with quote

I like under the radio pics for the OP, OT, and CHT. If I get a tach, I think the best place would be on the dash above the speedometer, since I have the clock installed. It depends if I can find one with a covered back so the wire isn't visible. I don't like where they are now but I'll wait a bit before changing them. I can't see them without leaning forward while driving.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Desertbusman
Samba Member


Joined: June 03, 2005
Posts: 14655
Location: Arizona
Desertbusman is offline

PostPosted: Wed Nov 28, 2007 1:17 am    Post subject: Reply with quote

Thanks Autiger.

Nigel-
Without a clock, the existing console has a lot of structure that isn't doing anything and can be cut away. And new structural pieces can be fabricated and fitted to strengthen the console and provide for the gauge mountings. Plexiglass and epoxies. The new face is the laminate skin off of some Westy cabinetry. I'll probably end up doing a matching insert for the glove box door and the lower dash switch recesses.

With the gauges straight forward they are easier to monitor than if they are over in the center of the dash, but it's probably no big deal. With Polly's bus, she didn't want a radio so we put 3 gauges in the radio recess. With both busses I just had a thing against cutting the dash.
_________________
71 Superbug
71 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NASkeet
Samba Member


Joined: April 29, 2006
Posts: 2371
Location: South Benfleet, Essex, UK
NASkeet is offline

PostPosted: Wed Nov 28, 2007 6:51 am    Post subject: Reply with quote

[quote="chrisradioman"]Bought some guages on eBay last week VDO ones originally fitted in an Audi.[quote]

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Chris.

Did you also retrieve the Audi's 50~170 C oil-temperature sender for the 50~170 C oil-temperature gauge, which I believe has different temperature vs resistance characterisics to that of the various, commonly available 50~150 C oil-temperature senders, which are sold by many after-market retailers?
_________________
Regards.

Nigel A. Skeet

Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper

Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)

http://www.vwt2oc.net
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5  Next
Page 1 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
