 Posted: Tue Nov 27, 2007 12:42 pm Post subject: Early Wheel Cylinders |
 |
|
Ok this topic has been up quite a few times ( I know I spent hours reading search results)
I have a bunch of NOS type three wheel cylinders, Yes I mean New Old Stock not Neat Old SHit! still in original boxs etc etc.
Although through all the searching I have not come up with what part numbers fit what years, I even checked the 1500 clubs parts book.
So these are the part numbers I have,
311 611 062A
311 611 061A
311 611 062B
311 611 062
311 611 061
311 611 069B
I have quite a few of these cylinders and even more that I have not listed the part numbers yet cause I have to pull them out of the stash.
Any reference as to what years these fit and application etc etc would be appreciated, I had them all written down with what years they fit but lost the list and google results are all in german.
Thanks
_________________
| EverettB wrote: |
| Hondaz rulez my lifez |
SBSeven 1 YR and still going
59 Kombi laying beam
64 type 34 |
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71522
Location: Phoenix 602
|
| Posted: Tue Nov 27, 2007 1:00 pm Post subject: |
|
|
311 611 061 Cylinder 20.64 - Front, left
To chassis # 27 849, Notchback, Type 34
311 611 061A Cylinder 22.2 - Front, left
To chassis # 27849, Squareback
Chassis # 27 850 to 221 974, All Models
311 611 061B Cylinder 22.2 - Front, left
Chassis # 222 945 to 483 592, All models
311 611 061C Cylinder 22.2 - Front, left
Chassis # 315 000 001 to 315 220 883, All models
--------------------------------
311 611 062 Cylinder 20.64 - Front, right
To chassis # 27 849, Notchback, Type 34
311 611 062A Cylinder 22.2 - Front, right
To chassis # 27849, Squareback
Chassis # 27 850 to 221 974, All Models
311 611 062B Cylinder 22.2 - Front, right
Chassis # 222 945 to 483 592, All models
311 611 062C Cylinder 22.2 - Front, right
Chassis # 315 000 001 to 315 220 883, All models
--------------------------------
113 611 057B Cylinder 22.2 - Rear
To chassis # 76 299, Notchback, Type 34
311 611 067 Cylinder 22.2 - Rear
Chassis # 76 300 to 221 974, Notchback, Type 34
311 611 067B Cylinder 22.2 - Rear
Chassis # 221 975 to 483 592, Notchback, Type 34
311 611 067C Cylinder 22.2 - Rear
Chassis # 315 000 001 to 315 220 883, Notchback, Type 34
From Chassis # 316 000 001, All models
361 611 067 Cylinder 23.8 - Rear
Chassis # 221 975 to 483 592, Squareback
361 611 067A Cylinder 23.8 - Rear
Chassis # 365 000 001 to 365 220 883, Squareback
311 611 069 Cylinder 25.4 - Rear
To chassis # 76 299, Squareback
311 611 069B Cylinder 25.4 - Rear
Chassis # 76 300 to 221 974, Squareback
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
67stang302
SBS Hit Squad
Joined: February 08, 2005
Posts: 1236
|
| Posted: Tue Nov 27, 2007 1:22 pm Post subject: |
|
|
Thanks Everett I was searching for a list like that for hours!
I must suck at the internet
_________________
| EverettB wrote: |
| Hondaz rulez my lifez |
SBSeven 1 YR and still going
59 Kombi laying beam
64 type 34 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71522
Location: Phoenix 602
|
|
| Back to top |
|
|
vwfye
Samba Member
Joined: April 15, 2000
Posts: 7751
|
| Posted: Tue Nov 27, 2007 2:07 pm Post subject: |
|
|
now that is dedication! you need a clapping hands emoticon!
just found it...
_________________
64 No'back Speedster "Pearl"
LME "Little Giant Killer 3"
1974 Ghia "PUK" |
|
| Back to top |
|
|
67stang302
SBS Hit Squad
Joined: February 08, 2005
Posts: 1236
|
| Posted: Tue Nov 27, 2007 2:13 pm Post subject: |
|
|
| EverettB wrote: |
| Not really, I typed it all in from my parts book when you asked. |
Thank you very much I have saved this info for future reference.
_________________
| EverettB wrote: |
| Hondaz rulez my lifez |
SBSeven 1 YR and still going
59 Kombi laying beam
64 type 34 |
|
| Back to top |
|
|
Partsrparts61
Samba Member
Joined: March 11, 2014
Posts: 2
Location: Faire Oakwood
|
| Posted: Thu Apr 03, 2014 1:12 pm Post subject: Chassis codes? |
|
|
do the Vinn's go from 8 digit to 9 digits down the production years? Sorry if this is an obvious 'new member' question im kinda trying to understand the system better
Ex:
311 611 062A Cylinder 22.2 - Front, right
To chassis # 27849, Squareback
Chassis # 27 850 000 to 221 974 000, All Models |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71522
Location: Phoenix 602
|
| Posted: Thu Apr 03, 2014 4:47 pm Post subject: |
|
|
In 1965 the VIN #s started having the model and year as a prefix, as well as started over each model year from 1.
So the first 1965 Squareback would be 365 000 001
36 = Squareback
5 = 1965
000 001 = #1 off the 1965 production line.
The first 1966 Fastback would be 316 000 001
31 = Notchback/Fastback
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71522
Location: Phoenix 602
|
| Posted: Wed Sep 04, 2024 9:13 pm Post subject: Re: Early Wheel Cylinders |
|
|
More info with photo representation:
| ALLWAGONS wrote: |

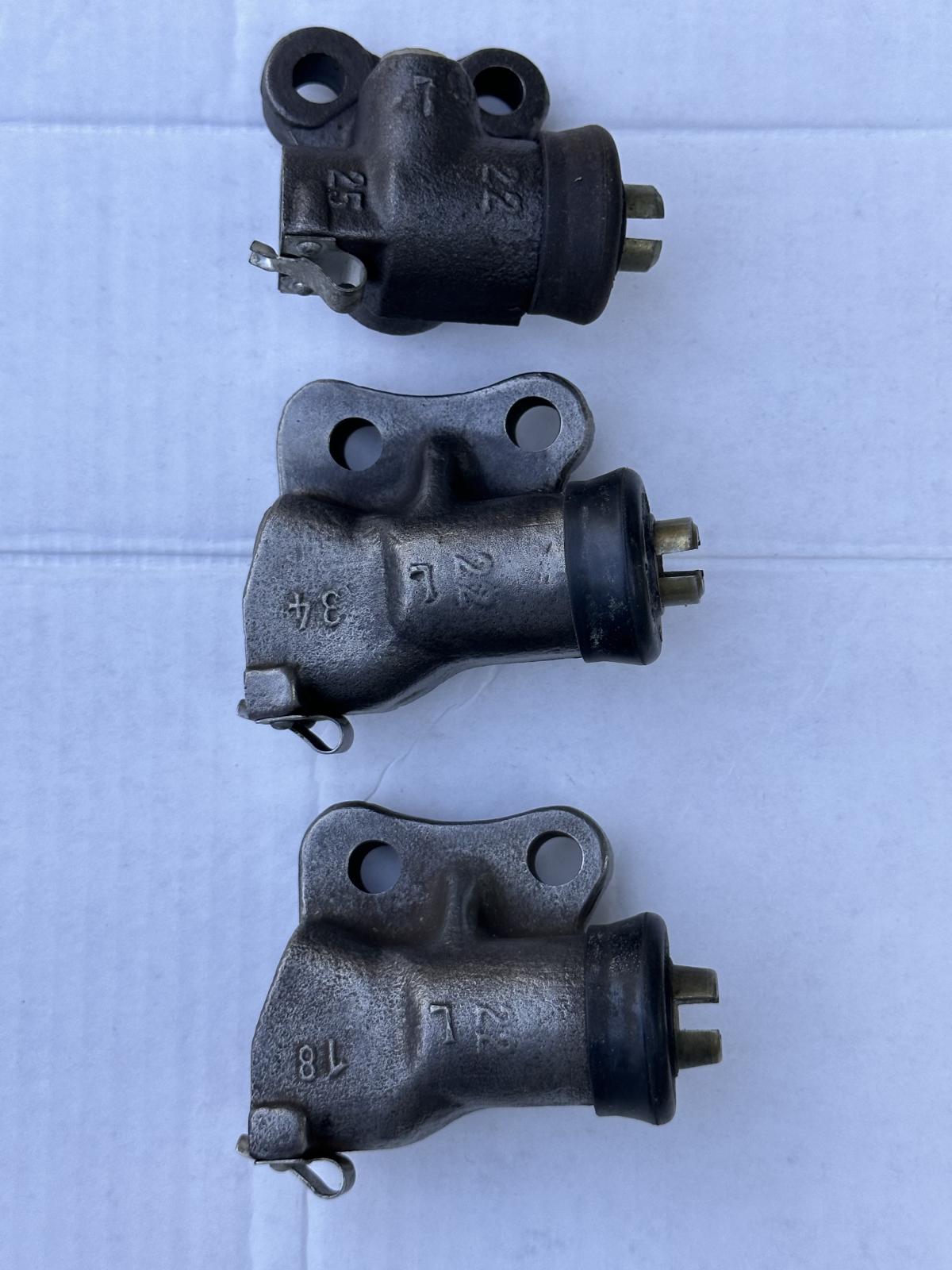

Here they are in order. Note the larger slot on cylinder C. This should be added to the sticky.
A
B
C
311 611 061A - Cylinder 22.2 - Front wheel brake, left.
Up to Chassis No. 27 849
Model: 361
From Chassis No. 27 850 up to 221 974
311 611 061B - Cylinder 22.2 - Front wheel brake, left.
From Chassis No. 222 975 up to 483 592
311 611 061C - Cylinder 22.2 - Front wheel brake, left.
From Chassis No. 315 000 001 up to 315 220 883 |
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
ALLWAGONS
Samba Member
Joined: June 03, 2000
Posts: 4621
Location: Pasadena CA/DTLA soon China
|
| Posted: Sat Sep 07, 2024 6:24 pm Post subject: Re: Early Wheel Cylinders |
|
|
Housings are almost identical, slot in cylinder increased
‘62-‘64 B 3.8 mm
‘65 C 5.3 mm
_________________
I'd be UNSTOPPABLE if not for Law Enforcement and PHYSICS.
I recycle old cars and parts, other than when I rot, that's as Green as I am going to get.
Thanks to my Tesla driving neighbors, I feel more relaxed driving my SUBURBAN and old VW's.
Everything sounds good on paper! |
|
