 Posted: Sat Dec 01, 2007 8:01 pm Post subject: '55-'60? steering lock question |
 |
|
Does anyone have a factory installed early steering lock? I'm curious how large the gap is inbetween the top of the steering lock and the bottom of the bracket that holds the column to the dash.
Anyone have a technical bullitin on installing these early locks?
Is the collar for the steering column shaft the same as the later ones? What about the hole in the column itself? Same size?
What would the delete plug for the ignition switch look like? Clear plastic like the 60'ies busses or maybe a black rubber plug?
I'm getting ready to cut up my column this week to install it so any help is appreciated.
Last edited by campingbox on Mon Dec 03, 2007 10:35 am; edited 2 times in total |
|
| Back to top |
|
 |
dstefun
Samba Member
Joined: February 20, 2002
Posts: 3338
Location: Sacratomato
|
| Posted: Sat Dec 01, 2007 11:05 pm Post subject: Re: '55-'60? steering lock question |
|
|
| campingbox wrote: |
| Is the collar for the steering column shaft the same as the later ones? |
There's only one locking collar listed in the 58-67 parts book ..... |
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10263
Location: Petaluma, CA
|
| Posted: Sun Dec 02, 2007 10:34 am Post subject: Re: '55-'60? steering lock question |
|
|
| dstefun wrote: |
| campingbox wrote: |
| Is the collar for the steering column shaft the same as the later ones? |
There's only one locking collar listed in the 58-67 parts book ..... |
the 63 edition book (which is the one you mean) lists:
211 415 521 B Locking sleeve - steering ignition lock
This means there was an A version and a number-suffixless version, and the one listed is actually the third version of the part.
The 58 edition parts list shows
211 415 521 A Locking shell - Steering lock
the '56 edition lists:
211 415 521 Locking sleeve - Steering lock
211 415 521 A Locking shell - Steering lock
The later lists often omit earlier versions
I know what the B version of the lock collar looks like, but do not know the A or plain versions, nor the differences. |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12662
|
| Posted: Sun Dec 02, 2007 11:13 am Post subject: |
|
|

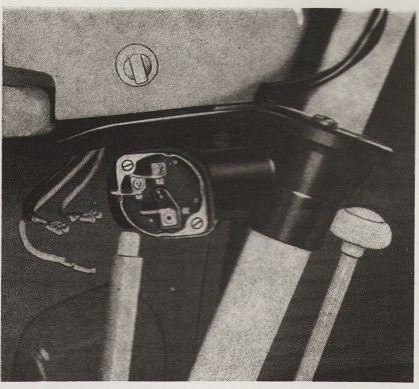

Here is a another photo from the gallery showing a early bus steering lock, turned round 180* from normal position. This bus was described as a '59:
