 Posted: Sat Mar 24, 2018 12:41 pm Post subject: Where is my 2nd and 4th gear? |
 |
|
Hi. I have been trying to put together this 84 1.9 manual. It has 4 gear. I am able to put her in 1st, 3rd and reverse. I have overhauled the shift base, replaced the worn tabs on the ears with the gowesty stuff that you epoxy it etc. The rubber billows, the lever replaced and since i have the other gears, i suspect the linkage problem. How should i approach to this issue? Thanks.
AS OF 04-01-18 THE PROBLEM IS SOLVED. thanks
Last edited by westina on Tue Apr 03, 2018 3:30 pm; edited 1 time in total |
|
| Back to top |
|
 |
JudoJeff
Samba Member
Joined: May 24, 2013
Posts: 1179
Location: Near Springfield, MA
|
| Posted: Sat Mar 24, 2018 1:21 pm Post subject: Re: Where is my 2nd and 4th gear? |
|
|
It is linkage, you may have attached linkage at the rear to wrong side of transmission. It goes on the more front mounting point. If you watch the cup as a friend shifts, you’ll see it can’t move all the way.
_________________
________________________________________
1989 Vanagon GL Westfalia Camper, Burned up on 7/31/16.
1987 Vanagon GL Westfalia Camper, Bostig & Rebuilt, sold
1986 Vanagon GL Westfalia Camper, Bostig Sold May 10, 2021
1999 Ford GTRV Westfalia camper (30% bigger Westy layout) |
|
| Back to top |
|
|
kbeefy
Samba Member
Joined: March 10, 2006
Posts: 600
Location: Central Oregon
|
| Posted: Sat Mar 24, 2018 1:21 pm Post subject: Re: Where is my 2nd and 4th gear? |
|
|
Sounds like the throw is a bit out of adjustment. Can you engage those gears (at the transmsision) with the shift linkage disconnected?
_________________
86 syncro CHC, NorthWesty subbie 2.5, decoupler, locker, custom interior, 225/75r16 Duratrack's on CLK's, Toyo cabin heater, ARB fridge, 300w Zamp Solar, Gowesty bumpers/skid/rails, Fiama awning
'86 Syncro Westy. Stock for now.
2000 F350 7.3 CC LB 11' Northland Cabover
2006 Subbie OBXT
2002 Tacoma DoubleCab 4x4
1969 Mustang Basket Case 351c/FMX/9
http://kbeefy.blogspot.com/ |
|
| Back to top |
|
|
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10364
Location: Orbiting San Diego
|
| Posted: Sat Mar 24, 2018 1:23 pm Post subject: Re: Where is my 2nd and 4th gear? |
|
|
Here is the usual cause. At the transmission, the bushing plate is bolted to the wrong side of the 2 bolt ears on the side of the tranny. This makes it so a curved part of the long shift rod tries to go through the bushing when you are trying for 2 and 4 and it won't go all the way.
Mark |
|
| Back to top |
|
|
JudoJeff
Samba Member
Joined: May 24, 2013
Posts: 1179
Location: Near Springfield, MA
|
| Posted: Sat Mar 24, 2018 1:29 pm Post subject: Re: Where is my 2nd and 4th gear? |
|
|
It is linkage, you may have attached linkage at the rear to wrong side of transmission. It goes on the more front mounting point. If you watch the cup as a friend shifts, you’ll see it can’t move all the way.
_________________
________________________________________
1989 Vanagon GL Westfalia Camper, Burned up on 7/31/16.
1987 Vanagon GL Westfalia Camper, Bostig & Rebuilt, sold
1986 Vanagon GL Westfalia Camper, Bostig Sold May 10, 2021
1999 Ford GTRV Westfalia camper (30% bigger Westy layout) |
|
| Back to top |
|
|
candyman
Samba Trout Slayer
Joined: December 20, 2003
Posts: 2717
Location: Missoula MT
|
| Posted: Sat Mar 24, 2018 7:25 pm Post subject: Re: Where is my 2nd and 4th gear? |
|
|
| JudoJeff wrote: |
| It is linkage, you may have attached linkage at the rear to wrong side of transmission. It goes on the more front mounting point. If you watch the cup as a friend shifts, you’ll see it can’t move all the way. |
^^ this, happens a lot |
|
| Back to top |
|
|
westina
Samba Member
Joined: October 01, 2017
Posts: 368
Location: Beacon/NY
|
| Posted: Sat Mar 24, 2018 7:35 pm Post subject: Re: Where is my 2nd and 4th gear? |
|
|
| crazyvwvanman wrote: |
Here is the usual cause. At the transmission, the bushing plate is bolted to the wrong side of the 2 bolt ears on the side of the tranny. This makes it so a curved part of the long shift rod tries to go through the bushing when you are trying for 2 and 4 and it won't go all the way.
Mark |
You are probably right cause i remember when i was trying to put everything back together, there was a part, a metal piece that shift rod is going through and this part was needed to bolt on somewhere on the transmission. I scratched my head trying to figure out which way it should go.
https://www.youtube.com/watch?v=U0_Jyn1Yrv8
please watch the 6.00 of the video. Is that the point we are talking about? I am away from my van now but i can check in the morning. |
|
| Back to top |
|
|
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10364
Location: Orbiting San Diego
|
| Posted: Sat Mar 24, 2018 9:16 pm Post subject: Re: Where is my 2nd and 4th gear? |
|
|
That video shows it installed on the wrong side of the 2 tranny bolt hole ears. The plate needs to be on the side closest to the front of the van.
Mark |
|
| Back to top |
|
|
westina
Samba Member
Joined: October 01, 2017
Posts: 368
Location: Beacon/NY
|
| Posted: Sun Mar 25, 2018 5:06 am Post subject: Re: Where is my 2nd and 4th gear? |
|
|
| Ok thanks. I ll take a look today. |
|
| Back to top |
|
|
Multiman mv
Samba Member
Joined: January 24, 2017
Posts: 988
Location: Martha's Vineyard, Ma
|
| Posted: Mon Mar 26, 2018 3:01 am Post subject: Re: Where is my 2nd and 4th gear? |
|
|
| How did you make out? I’m assuming the linkage was bolted to the wrong side like mentioned above. I hope you’ve fixed the problem. If not, sometimes just having the shifter base out of alignment is enough (especially if coupled with the spline joint being out of alignment also) to cause the linkage to not be able to find second gear and reverse. Ask me how I know. There are plenty of articles and videos on how to properly tweak the system from the shifter all the way back to the shift lever on the transmission and especially the spline joint. Also, make sure your stick shift is properly set in the shift box before tightening the spline joint. I may be wrong but I think in an 84 the shifter needs to be set to 19mm from the passenger side of the shift box and half way from front to back while shift lever at the transmission is in neutral (straight up and down.) I don’t have my Bentley but someone else could correct me if I’m wrong or confirm that measurement if needed. Hopefully you are busy motoring down the road already. Good luck. |
|
| Back to top |
|
|
westina
Samba Member
Joined: October 01, 2017
Posts: 368
Location: Beacon/NY
|
| Posted: Mon Mar 26, 2018 4:45 am Post subject: Re: Where is my 2nd and 4th gear? |
|
|
| Multiman mv wrote: |
| How did you make out? I’m assuming the linkage was bolted to the wrong side like mentioned above. I hope you’ve fixed the problem. If not, sometimes just having the shifter base out of alignment is enough (especially if coupled with the spline joint being out of alignment also) to cause the linkage to not be able to find second gear and reverse. Ask me how I know. There are plenty of articles and videos on how to properly tweak the system from the shifter all the way back to the shift lever on the transmission and especially the spline joint. Also, make sure your stick shift is properly set in the shift box before tightening the spline joint. I may be wrong but I think in an 84 the shifter needs to be set to 19mm from the passenger side of the shift box and half way from front to back while shift lever at the transmission is in neutral (straight up and down.) I don’t have my Bentley but someone else could correct me if I’m wrong or confirm that measurement if needed. Hopefully you are busy motoring down the road already. Good luck. |
I wish. Day started with an outing to the local breakfast joint and ended up in a mall:) Happy wife but no progress on the project. Beside this little issue, bunch other needs to be adressed. Bought her here on samba last year and towed from TX to NY. Entire fuel, ignition system, radiator etc. replaced. Body work started, paint job will follow. I don't think i ll be on the road anytime soon. |
|
| Back to top |
|
|
westina
Samba Member
Joined: October 01, 2017
Posts: 368
Location: Beacon/NY
|
| Posted: Fri Mar 30, 2018 7:04 am Post subject: Re: Where is my 2nd and 4th gear? |
|
|
[img][/img]

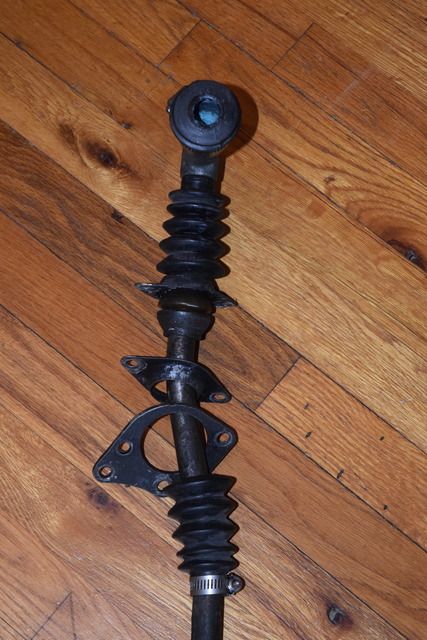

Hi. I have removed the rod yesterday. comparing it to few other illustrations, it appears that i have installed the cups that holds the bushing on the wrong side. I think they should have installed on the other side.
Also, how is the position of the bend looks? Is the hump supposed to be horizontal like this? Thanks |
|
| Back to top |
|
|
westina
Samba Member
Joined: October 01, 2017
Posts: 368
Location: Beacon/NY
|
| Posted: Mon Apr 02, 2018 8:08 am Post subject: Re: Where is my 2nd and 4th gear? |
|
|
| i took apart the rod and switched the location of the bushing and the 2 metal pieces to the other side of the hanger and now i have the 2nd and 4th gear. Thanks for the help. |
|
| Back to top |
|
|
Jake de Villiers
Samba Member
Joined: October 24, 2007
Posts: 5930
Location: Tsawwassen, BC
|
| Posted: Mon Apr 02, 2018 10:02 am Post subject: Re: Where is my 2nd and 4th gear? |
|
|
| westina wrote: |
| i took apart the rod and switched the location of the bushing and the 2 metal pieces to the other side of the hanger and now i have the 2nd and 4th gear. Thanks for the help. |
Awesome! Maybe change the title to 'Solved'?
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7.5 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com |
|
| Back to top |
|
|
westina
Samba Member
Joined: October 01, 2017
Posts: 368
Location: Beacon/NY
|
| Posted: Tue Apr 03, 2018 3:28 pm Post subject: Re: Where is my 2nd and 4th gear?SOLVED |
|
|
| Jake de Villiers wrote: |
| westina wrote: |
| i took apart the rod and switched the location of the bushing and the 2 metal pieces to the other side of the hanger and now i have the 2nd and 4th gear. Thanks for the help. |
Awesome! Maybe change the title to 'Solved'? |
|
|
