How to install shock mount rear engine cage?

'69 baja

I just bought this http://www2.cip1.com/ProductDetails.asp?ProductCode=ACC%2DC10%2D1107
bumper.I have the trans mounts on but i cant figure out how to mount the shock tower mounts,i have searched around but found no pic or install guide.Thanks
_________________
He just got the HP to IQ ratio wrong

'69-'07 Baja Fireblade

Jason C · Posted: Thu Jan 10, 2008 5:52 pm Post subject:

Yeah, those are kind of a pain. You have to bend the flat part of the tube over, so it will face back when it's bolted to the top of the shock. I tried bolting it on then hammering it back, but the angle is weird and it wasn't working. I found it was easier to put them in a vise and get the angle close and then keep tweeking them until they fit.
_________________
Throw me a bone here. All I wanted were
sharks with friggen laser beams attached to their heads.

64 Bug

po7g · Posted: Thu Jan 10, 2008 5:53 pm Post subject:

can you take pics of it on your car so we can get an idea what it looks like

'69 baja · Posted: Thu Jan 10, 2008 6:43 pm Post subject:

Thanks but where and how does it mount on the shock tower,and wow they dont make anything for bajas easy.
_________________
He just got the HP to IQ ratio wrong

'69-'07 Baja Fireblade

2gr8dgs · Posted: Thu Jan 10, 2008 6:49 pm Post subject:

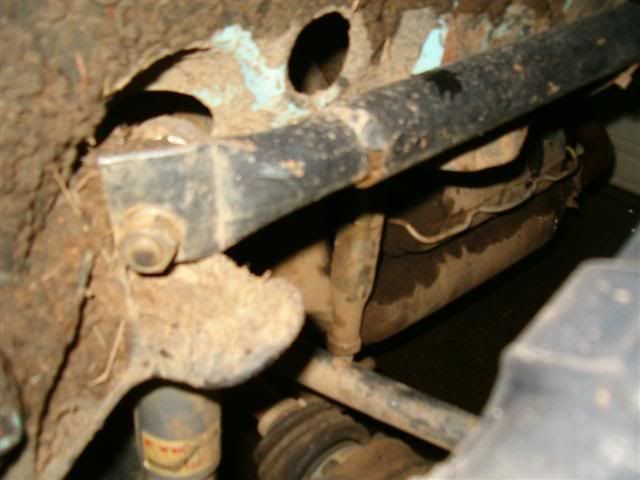

not the best pics, this is how i did it, hope this gives you an idea, [img]

Image may have been reduced in size. Click image to view fullscreen.

[img]

[/img]

Jason C · Posted: Thu Jan 10, 2008 7:13 pm Post subject:

They mount like 2gr8dgs does, except I drilled through both the tubes and bolted the brackets to the bumper instead of welding them.
_________________
Throw me a bone here. All I wanted were
sharks with friggen laser beams attached to their heads.

64 Bug

'69 baja · Posted: Fri Jan 11, 2008 12:06 am Post subject:

I just figured out the guy gave me the firewall mounts,ill have to take them back.I knew something was wrong with them,this is also my first baja so i couldnt tell which i needed.Thanks
_________________
He just got the HP to IQ ratio wrong

'69-'07 Baja Fireblade

CopperBaja · Posted: Fri Jan 11, 2008 11:06 am Post subject:

Is this one better or worse than the others?
Mine (I think) attaches to the framehorns on the bottom....I can't find a decent pic of it right now...

The top of mine:

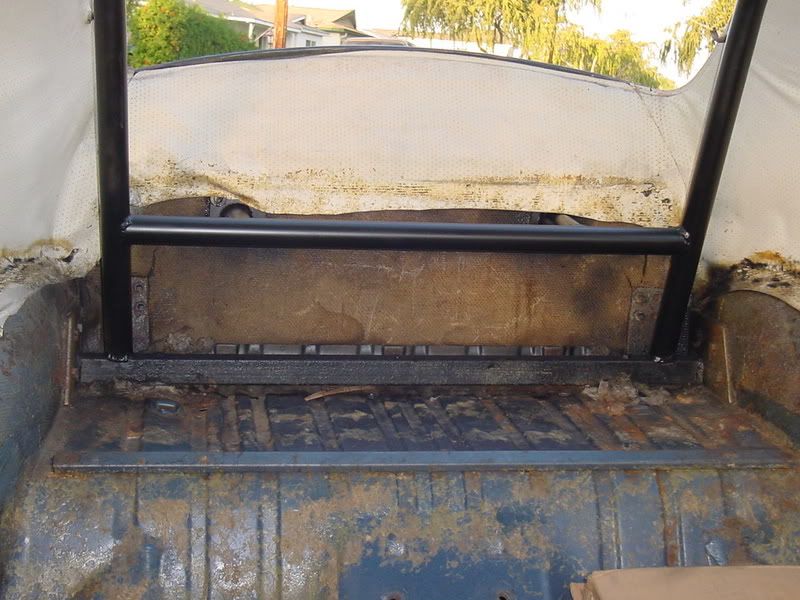

Ties into the rear of my cage:

_________________
Look at my for sale ads. Cool

68 Baja on STFU
68 Baja on Samba

Jason C · Posted: Fri Jan 11, 2008 11:19 am Post subject:

Bottom

_________________
Throw me a bone here. All I wanted were
sharks with friggen laser beams attached to their heads.

64 Bug

runslikeapenguin · Posted: Fri Jan 11, 2008 12:02 pm Post subject:

dude should have gotten the firewall mount one, these are hell to get on and off,
_________________
never forget 1-31-07

CopperBaja · Posted: Fri Jan 11, 2008 7:02 pm Post subject:

'69 baja · Posted: Fri Jan 11, 2008 9:12 pm Post subject:

Thanks i got the mounts and installed them,not bad went on good with a little persuasion(hammer).I was just confused at the fact that i had the wrong mounts.luckily i had to remove the shock bolt because the bolt was so loose it was about to fall out Shocked

.
_________________
He just got the HP to IQ ratio wrong

'69-'07 Baja Fireblade

CopperBaja · Posted: Mon Jan 14, 2008 2:52 pm Post subject:
