Rear Tire Carrier
Page: 1, 2  Next
Forum Index -> Thing/Type 181 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
kuhl 181
Samba Member


Joined: August 01, 2007
Posts: 69

kuhl 181 is offline

PostPosted: Mon Dec 31, 2007 8:33 pm    Post subject: Rear Tire Carrier Reply with quote

Does anyone have any good pics or dimensions of bracket that bolts to Decklid? I resently purchased a used carrier for a excellent price ,but he didn't have this bracket. Any help would be greatly appreciated, please send to: [email protected]
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Chris181
Samba Member


Joined: April 05, 2004
Posts: 90
Location: French riviera
Chris181 is offline

PostPosted: Tue Jan 01, 2008 6:21 am    Post subject: Reply with quote

Hello and happy new year !! Very Happy
you have this ===> http://www.thethingshop.com/detail.asp?PRODUCT_ID=181STC
_________________
__________________________________________
Chris.

http://vwandco.wifeo.com/
Thing '73 IRS conversion
Eurovan VR6 LPG
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kuhl 181
Samba Member


Joined: August 01, 2007
Posts: 69

kuhl 181 is offline

PostPosted: Tue Jan 01, 2008 8:08 am    Post subject: Reply with quote

Thanx, That gives me a pretty good idea on what I need.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Fun 181
Zu Geil!


Joined: October 20, 2006
Posts: 1003
Location: Connecticut
Fun 181 is offline

PostPosted: Tue Jan 01, 2008 8:38 am    Post subject: Reply with quote

I just installed the Thing Shop tire carrier last Summer. I had a friend who is a welder help me. Good thing I asked him for help because some modification was needed. We also fabricated some extra support. My spare is REALLY heavy.

I'll take some detailed pics and post them - hopefully today.
_________________
Ian Epperson wrote:
Holy poop, that's full of awesome!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thingnut
Samba Member


Joined: November 26, 2007
Posts: 25
Location: Vidor< Texas
thingnut is offline

PostPosted: Tue Jan 01, 2008 7:58 pm    Post subject: Reply with quote

You definitely need extra support. I have one on the rear of the 74 I just bought and the metal is cracked on the body at both brackets and will have to be welded and repaired on mine.
Back to top
View user's profile Send private message Classifieds Feedback
Tim10
Samba Member


Joined: April 06, 2004
Posts: 1433
Location: Minneapolis
Tim10 is offline

PostPosted: Tue Jan 01, 2008 8:29 pm    Post subject: Reply with quote

I have one that hasn't been installed yet.

Would be willing to lend it.
_________________
Dub Infested- PART WI$H LI$T-CLICK
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Fun 181
Zu Geil!


Joined: October 20, 2006
Posts: 1003
Location: Connecticut
Fun 181 is offline

PostPosted: Tue Jan 01, 2008 9:43 pm    Post subject: Reply with quote

Pics - as promised...
A good view of the inside of the swing arm
Image may have been reduced in size. Click image to view fullscreen.


A side view - closed
Image may have been reduced in size. Click image to view fullscreen.


Outside of the deck lid
Image may have been reduced in size. Click image to view fullscreen.


Steel reinforcement plates added to the inside of the deck lid
Image may have been reduced in size. Click image to view fullscreen.


The position of the bolts on the inside of the body/engine compartment - just missed the seams!
Image may have been reduced in size. Click image to view fullscreen.


Another view of the arm bracket
Image may have been reduced in size. Click image to view fullscreen.


Unhinged
Image may have been reduced in size. Click image to view fullscreen.


I've only had it on for less than 6 months, but haven't had any problems. At a show this Summer I saw one Thing with a lot of damage done due to the carrier. As I said, that spare is REALLY heavy. The Thing Shop tire carrier isn't that well designed - compared to Jeep tire carriers - and definitely needs added support behind the deck lid.

I hope this helps.
_________________
Ian Epperson wrote:
Holy poop, that's full of awesome!


Last edited by Fun 181 on Tue Jan 01, 2008 10:19 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tim10
Samba Member


Joined: April 06, 2004
Posts: 1433
Location: Minneapolis
Tim10 is offline

PostPosted: Tue Jan 01, 2008 9:55 pm    Post subject: Reply with quote

Good point on the quality..

I've seen about 3 of them up close.. many of the welds are shabby (on most)

I have a hunch many are meant to be show and not supportive.

Thanks for the great pix.
_________________
Dub Infested- PART WI$H LI$T-CLICK
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kuhl 181
Samba Member


Joined: August 01, 2007
Posts: 69

kuhl 181 is offline

PostPosted: Wed Jan 02, 2008 3:38 am    Post subject: Reply with quote

Thanks Everyone & thanks for pics Fun 181. I'll reinforce mine also, since I'll be building it from scatch I may extend my down to the bumper with a Quik pin to releave the load on the decklid and it's hinges. Once again thanks again.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rene p. l.
Samba Member


Joined: September 27, 2002
Posts: 280
Location: YQB, Québec, Canada
rene p. l. is offline

PostPosted: Wed Jan 02, 2008 11:29 am    Post subject: Reply with quote

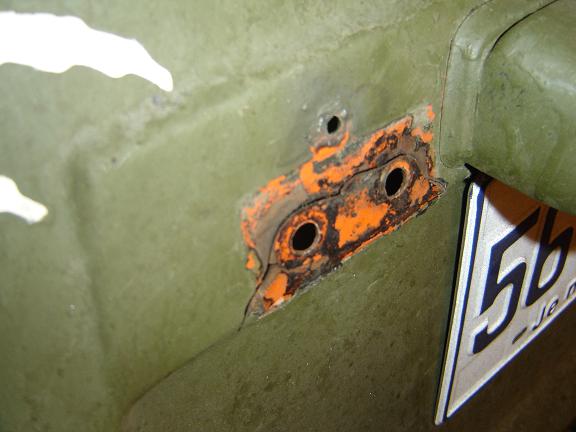

You need to remove some load from the decklid or cracks will appear...

Here is what I've found when I remove mine...

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
xeno
Samba Member


Joined: July 26, 2006
Posts: 653
Location: Mile High
xeno is offline

PostPosted: Fri Jan 04, 2008 8:43 pm    Post subject: Reply with quote

Yea mine has the OG rear tire carrier. It to was cracked and rewelded on the engine hatch - back in the late 80's

X

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lukesky
Samba Member


Joined: July 12, 2006
Posts: 246
Location: See The Rabbits, IA
lukesky is offline

PostPosted: Mon Jan 14, 2008 9:21 pm    Post subject: Reply with quote

Does anyone out there have the spare on the front or the hood? Thing Shop says their hood mount should only be used for off-road; anyone know why? I like the look, but you'd probably need another hood prop to hold the weight if you were going to use the newly found space in the trunk.
_________________
You get what you get, and you don't throw a fit.
-Gabi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xeno
Samba Member


Joined: July 26, 2006
Posts: 653
Location: Mile High
xeno is offline

PostPosted: Fri Jan 18, 2008 1:45 am    Post subject: Reply with quote

lukesky wrote:
Does anyone out there have the spare on the front or the hood? Thing Shop says their hood mount should only be used for off-road; anyone know why? I like the look, but you'd probably need another hood prop to hold the weight if you were going to use the newly found space in the trunk.


Probably because of this.

http://www.dmv.ca.gov/pubs/vctop/d12/vc26708.htm

It's like that in most states.

X
Back to top
View user's profile Send private message Gallery Classifieds Feedback
uberautowerks
Samba Member


Joined: October 17, 2005
Posts: 1600
Location: Longmont Co
uberautowerks is offline

PostPosted: Fri Jan 30, 2009 11:00 pm    Post subject: Reply with quote

On a customers car, At 6' 2" I can see over his spare just fine. My 5' 5" wife about can't. Also your right, forget about opening the hood with the tire on there. Oh and you can't fold down the windshield.
_________________
--- The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair.
- Douglas Adams -
---
'74 Thing (White)
'71 Single cab (White too)
'70 Weekender (White three)
'05 Evolution VIII (White also!!!)
'68 F-250 (White over black)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
vwthingboy
Samba Member


Joined: August 27, 2004
Posts: 83
Location: NY, NY
vwthingboy is offline

PostPosted: Sat Jan 31, 2009 10:37 am    Post subject: Reply with quote

This carrier was a unique one that surfaced at the German Motor works show 2005 and got posted in the Gallery.

It attaches to the bumper and one spot on the deck lid:
Image may have been reduced in size. Click image to view fullscreen.

https://www.thesamba.com/vw/gallery/pix/206844.jpg
and open:
Image may have been reduced in size. Click image to view fullscreen.

https://www.thesamba.com/vw/gallery/pix/206886.jpg

I like how the license plate holder is in the spare,
and the angle of the tire seems to match the decklid angle.
Nice work, and I assume it must be a custom one-off.
Looks like the car previously had the TS tire carrier, btw.
I know, it's not an ideal setup for engine access,
but maybe the owner puts a cushion on there and sits native-american style. Rolling Eyes
_________________
Duffer 2005-2012
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Fun 181
Zu Geil!


Joined: October 20, 2006
Posts: 1003
Location: Connecticut
Fun 181 is offline

PostPosted: Sat Jan 31, 2009 10:46 am    Post subject: Reply with quote

lukesky wrote:
Does anyone out there have the spare on the front or the hood?


More info on mounting a tire on the hood can be found here...
http://www.thesamba.com/vw/forum/viewtopic.php?t=259676

As far as the Thing Shop rear tire carrier goes, I would also like to mention that you really need to factor in the weight of the tire on the carrier BEFORE you mount and secure the decklid bracket. The supplied paper template from the Thing Shop isn't 100% accurate so mounting the swing arm before you mount the decklid bracket is the best way to go. The tire weighs a lot and really effects how the swing arm latches to the decklid.

Also, (if you don't live in Arizona or southern California) you'll want to consider replacing the hardware that the Thing Shop supplies with stainless steel nuts and bolts. The supplied hardware developed surface rust mere weeks after I installed it (you can see the surface rust in the above photos - note that my Thing is kept in a garage year round). I have since replaced everything with stainless steel and it looks great.
_________________
Ian Epperson wrote:
Holy poop, that's full of awesome!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Foxx
Uncle Meat


Joined: August 27, 2001
Posts: 4897
Location: at the computer,.......DUH!
Foxx is offline

PostPosted: Sat Jan 31, 2009 10:51 am    Post subject: Reply with quote

rene p. l. wrote:
You need to remove some load from the decklid or cracks will appear...

Here is what I've found when I remove mine...

Image may have been reduced in size. Click image to view fullscreen.

cut a backing plate outta steel and that will reinforce that and spread the load over a wider area for the underside.
_________________
Frank
OG JHC
59 panel





Sarcasm is the body's natural defense against stupidity. i seem to use a lot.
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
Fun 181
Zu Geil!


Joined: October 20, 2006
Posts: 1003
Location: Connecticut
Fun 181 is offline

PostPosted: Sat Jan 31, 2009 10:52 am    Post subject: Reply with quote

vwthingboy wrote:
This carrier was a unique one that surfaced at the German Motor works show 2005 and got posted in the Gallery.

Image may have been reduced in size. Click image to view fullscreen.


I know, it's not an ideal setup for engine access,
but maybe the owner puts a cushion on there and sits native-american style. Rolling Eyes


Ha! Yeah, I spotted these pics a while back and thought the same thing about accessing the engine. Having to work around the tire and carrier would be a real hassle. However, it seems like it offers better structural support than the Thing Shop's. Like I said before, it isn't well designed to support such a heavy load.
_________________
Ian Epperson wrote:
Holy poop, that's full of awesome!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
spaeth
Samba Member


Joined: January 05, 2005
Posts: 355

spaeth is offline

PostPosted: Sat Jan 31, 2009 10:49 pm    Post subject: Reply with quote

The other issue with the tire carriers, is that unless you are very careful how you close them, it is very easy to dent the deck lid. Most cars I have seen with carriers have some kind of dent on that receiving end. I am not seeing that on the pictures of the cars shown here. I have had a factory one sitting in my garage forever but have always been afraid damaging the car. I would love the extra space up front though.

Craig
Back to top
View user's profile Send private message Classifieds Feedback
Rev. Scott
Samba Member


Joined: June 04, 2006
Posts: 770
Location: Philo, Ca.
Rev. Scott is offline

PostPosted: Fri Feb 06, 2009 11:06 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


all mounted up! the "template" is obviously just a reference! not settled on the license plate mount just yet...but for now it works!

...now i should get a spare that holds air, yes?!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Thing/Type 181 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
