 Posted: Wed Jan 28, 2015 7:15 am Post subject: How have people modified their body for shocks on 4in beam? |
 |
|
I have read a bunch of threads where it says that modified shock towers works on a 4in narrowed beam without body mods as long as the car has been in no accidents. I've got my car stripped to bare metal and don't see there being any signs of previous body damage and my 4in beam has flat steel plate shock towers but without the towers either going out 1/2in on each side or the body going in 1/2in on each side that beam ain't gonna fit. I also know people are going to say that I don't need shocks, but I'd still rather have them. I did read in a few threads though where people notched their body, but I couldn't find pics to get a better idea of what I needed to do. I'd prefer not to hammer the body in.
_________________
Tennessee, Tennessee, ain't no place I'd rather be |
|
| Back to top |
|
 |
raycer60
Samba Member
Joined: January 15, 2013
Posts: 167
Location: H Town Texas
|
| Posted: Wed Jan 28, 2015 9:34 am Post subject: |
|
|
Pictures I have saved. Not my car.
[img]
[img][/img]
_________________
59 De Luxe Sedan with grafted ragtop |
|
| Back to top |
|
|
ThingBeast
Samba Member
Joined: January 30, 2012
Posts: 363
Location: Texas
|
| Posted: Wed Jan 28, 2015 11:29 am Post subject: |
|
|
| I got my 4" narrowed beam from CIP1. I did have to use a mallet to get the beam in there, but it was only very slightly. The shock towers do rest on the body, but no harm done. I haven't got any squeaks form metal to metal interference either. |
|
| Back to top |
|
|
CHUBB805
Samba Member
Joined: February 08, 2013
Posts: 25
Location: CA
|
| Posted: Wed Jan 28, 2015 12:17 pm Post subject: |
|
|
| Did you build the beam yourself or have it built? If we're only talking a 1/4" needed to make it go in, I would consider "influencing" the towers outward slightly before cutting or modifying the body itself. |
|
| Back to top |
|
|
Kloster
Samba Member
Joined: March 07, 2012
Posts: 48
Location: riverdale, ca.
|
| Posted: Wed Jan 28, 2015 1:05 pm Post subject: |
|
|
| I have a 4 in narrowed beam from airkewld it fits perfect. |
|
| Back to top |
|
|
ThingBeast
Samba Member
Joined: January 30, 2012
Posts: 363
Location: Texas
|
| Posted: Wed Jan 28, 2015 6:11 pm Post subject: |
|
|
| I bought mine from CIP1. You are correct in that it's only a little bit of "influence" to get it in. Airkewld is the bomb tho. A bit more expensive, but definitely worth the cost. |
|
| Back to top |
|
|
IntrstlarOvrdrve
Samba Member
Joined: November 25, 2003
Posts: 209
|
| Posted: Mon Feb 09, 2015 4:01 pm Post subject: |
|
|
I forgot I started this topic until I got to looking at my car today
I bought my beam from a vendor here on thesamba, littlebuggie. It's not close to fitting at all, I would have to modify the body 1/2in inward on both sides to get it in there.
_________________
Tennessee, Tennessee, ain't no place I'd rather be |
|
| Back to top |
|
|
Danpa
Samba Member
Joined: August 21, 2007
Posts: 1311
Location: Valparaiso, in
|
| Posted: Mon Feb 09, 2015 8:58 pm Post subject: |
|
|
The body is back off now, getting prepped for paint but, my 4" narrowed beam didn't even come close to touching.

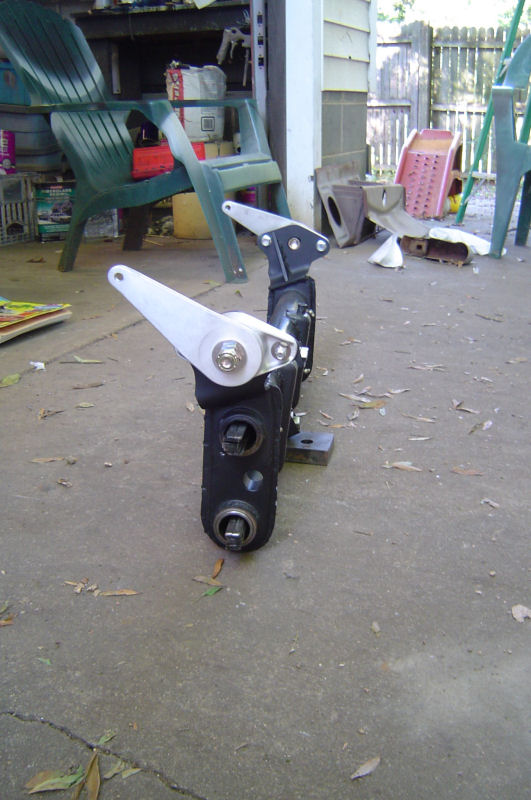

This might be the reason though...
Dan
|
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 9338
Location: Canada
|
| Posted: Mon Feb 09, 2015 10:52 pm Post subject: |
|
|
Where did you get those friction shocks Danpa. Those are exactly what I've been looking for, for a buggy project.
brad |
|
| Back to top |
|
|
Danpa
Samba Member
Joined: August 21, 2007
Posts: 1311
Location: Valparaiso, in
|
| Posted: Tue Feb 10, 2015 2:50 am Post subject: |
|
|
I made them at work. Pretty simple, some scrap stainless steel and a few pieces of heavy leather combined with the 3/8 black pipe for the links.
I admit, I have to shorten the levers a little, they barely come in contact with the tie rods when you turn the wheels at full lock.
Dan |
|
| Back to top |
|
|
vaughn bros.
Samba Member
Joined: October 13, 2003
Posts: 2398
Location: Hickory, NC
|
| Posted: Wed Apr 15, 2015 8:21 am Post subject: |
|
|

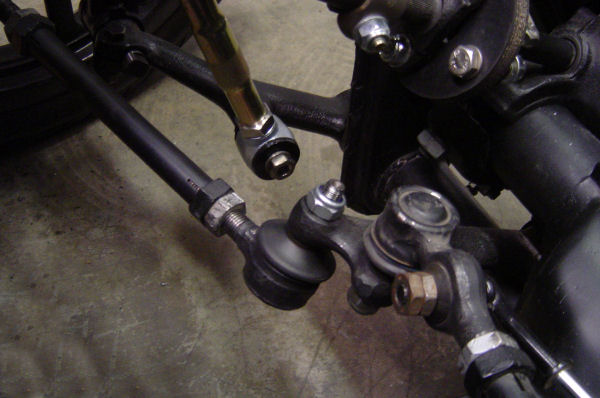

I dig your friction shock setup. I ran in to the same problems with the tie rods at full lock was too close to the "Push Rod". After fiddling with different length rods  and adding my own stops that gave me just fractions more clearance, it all worked out.
|
|
