PostPosted: Wed Jan 16, 2008 8:09 pm    Post subject: H4 lights in a Vanagon Reply with quote

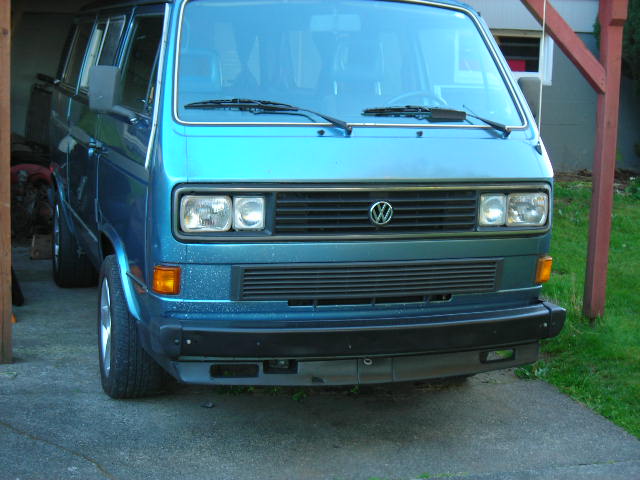

Iv come up with an almost easy way to upgrade the lighting problems on the later model vanagon.

So here are a few pics. Im loking for an intrest level?? Is it worth the space to post? This set up can use the square sealed beams form almost any auto parts store .
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Waldemar Sikorski
Samba Member


Joined: June 24, 2005
Posts: 573
Location: EU
Waldemar Sikorski is offline

PostPosted: Wed Jan 16, 2008 8:13 pm    Post subject: Reply with quote

I'm interested.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
larrytrk
Samba Member


Joined: July 22, 2007
Posts: 377
Location: Central NJ & MA
larrytrk is offline

PostPosted: Wed Jan 16, 2008 9:06 pm    Post subject: Reply with quote

+1
_________________
It's all in your mind.
I Hate BAMBI!
87 Westy full camper "Bluie" aka-"busturd"
JUST SOLD HER, WESTYLESS!
Good by cruel world!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
brooklynvanagon
Samba Member


Joined: September 05, 2007
Posts: 177

brooklynvanagon is offline

PostPosted: Wed Jan 16, 2008 9:16 pm    Post subject: Reply with quote

yes!
Back to top
View user's profile Send private message Classifieds Feedback
allsierra123
Samba Member


Joined: August 19, 2006
Posts: 1462
Location: Tecate, Baja California MX
allsierra123 is offline

PostPosted: Wed Jan 16, 2008 9:52 pm    Post subject: Reply with quote

So are you making a kit or are we about to pay for information?im interested as well.
_________________
95 GMC Yukon 6.5 TD 2 Door Tow pig/ Daily driver.
91 Vanagon GL. 1.9TD Conversion Sold
81 Vw rabbit 1.6 Diesel. Sold
Back to top
View user's profile Send private message Classifieds Feedback
a914622
Samba Member


Joined: July 29, 2004
Posts: 835
Location: Westend of HWY2 , Wash
a914622 is offline

PostPosted: Wed Jan 16, 2008 10:01 pm    Post subject: Reply with quote

No pay or kit.
Ill go to the junkyard and take pics of how i did it, what i used , and were to trim. More of a step by step how to. Not in including the h4 lights i only had 20 or 25 bucks into it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
allsierra123
Samba Member


Joined: August 19, 2006
Posts: 1462
Location: Tecate, Baja California MX
allsierra123 is offline

PostPosted: Wed Jan 16, 2008 10:02 pm    Post subject: Reply with quote

Good to know. It would save tons of money on pricey lights.
_________________
95 GMC Yukon 6.5 TD 2 Door Tow pig/ Daily driver.
91 Vanagon GL. 1.9TD Conversion Sold
81 Vw rabbit 1.6 Diesel. Sold
Back to top
View user's profile Send private message Classifieds Feedback
K58
Samba Member


Joined: July 01, 2006
Posts: 1173
Location: Santa Barbara
K58 is offline

PostPosted: Wed Jan 16, 2008 10:04 pm    Post subject: Reply with quote

absoloutely
I'd like to use Cibie's in there
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Paintedbus
Samba Member


Joined: September 14, 2003
Posts: 679
Location: salem, ma
Paintedbus is offline

PostPosted: Wed Jan 16, 2008 11:52 pm    Post subject: Reply with quote

i am also interested. please share!
_________________
Champagne Edition Roadtrip monster "Juakali"

~"Paintedbus" Ken~
The Mobile Muralist
WWW.PAINTEDBUSART.COM
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
big swifty
Samba Member


Joined: August 21, 2007
Posts: 246
Location: Formally in Republic of VT; now in Hollywood, FL
big swifty is offline

PostPosted: Thu Jan 17, 2008 7:42 am    Post subject: Reply with quote

Do Tell!
_________________
Evan
1987 Vanagon Syncro // Westfalia pop-top graft // Factory new ALH. 11mm IP. AFN 110 RC 2,3,4 // S7 turbo// Titan P502's
2013 Golf 4d TDI. No mods. Yet.
[1991 Jetta coupe TD. Giles Superpump. Custom tall 5 speed. SOLD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinbassplayer
Samba Member


Joined: June 15, 2006
Posts: 1041
Location: Nor-Cal
kevinbassplayer is offline

PostPosted: Thu Jan 17, 2008 8:15 am    Post subject: Reply with quote

Hell yes!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Tank83
Samba Member


Joined: October 13, 2006
Posts: 115
Location: Germany - near Heilbronn
Tank83 is offline

PostPosted: Thu Jan 17, 2008 8:32 am    Post subject: Reply with quote

what type has these lights been before? i also have h4, but original vw.
Back to top
View user's profile Send private message Classifieds Feedback
Waldemar Sikorski
Samba Member


Joined: June 24, 2005
Posts: 573
Location: EU
Waldemar Sikorski is offline

PostPosted: Thu Jan 17, 2008 9:54 am    Post subject: Reply with quote

Tank83 wrote:
what type has these lights been before? i also have h4, but original vw.


You're lucky. European spec lenses are much better. At $150.00 per light this is a bargain.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
K58
Samba Member


Joined: July 01, 2006
Posts: 1173
Location: Santa Barbara
K58 is offline

PostPosted: Thu Jan 17, 2008 5:58 pm    Post subject: Reply with quote

Tank83 wrote:
what type has these lights been before? i also have h4, but original vw.

I have them too...nothing to brag about and definitely not worth paying more for
They have an average beam pattern which is typical of Hella H4's
If only VW had used sealed beams in a normal style headlight bucket that could be easily swapped out for real H4's
NO, they had to be their eccentric Euroselves and give us some whacky configuration that requires special expensive plastic mounts that break at will Laughing
I'm guessing that's what a914622 has come up with...
Headlight buckets from another vehicle that fit the Vanagon
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
a914622
Samba Member


Joined: July 29, 2004
Posts: 835
Location: Westend of HWY2 , Wash
a914622 is offline

PostPosted: Thu Jan 17, 2008 9:16 pm    Post subject: Reply with quote

Ok its on..
Ill go to the juck yard and get the goods. There is no welding. Look back on sunday and Ill try to have one done with pics and all. The last one only took 30 min.
fyi
I did see a set of vanagon h4s when i was in Canada, but didnt see a hole lot of improvment over the stockers. The light setup im running will light up a good 300 yards on high.

see ya sunday
Back to top
View user's profile Send private message Gallery Classifieds Feedback
a914622
Samba Member


Joined: July 29, 2004
Posts: 835
Location: Westend of HWY2 , Wash
a914622 is offline

PostPosted: Sat Jan 19, 2008 11:52 pm    Post subject: Reply with quote

Ok I couldn’t find a saab 900 in the pick-a-part yard . GO figure. I pulled the passenger side off to get some pics. When I was looking to do this I wanted to be able to go back to the stockers if It didn’t work, so no welding or cutting the stock vw stuff.
These little gems are what makes it all posable. The one on the right is the way you will find it on the saab,the one on the left is how im using them.
Image may have been reduced in size. Click image to view fullscreen.

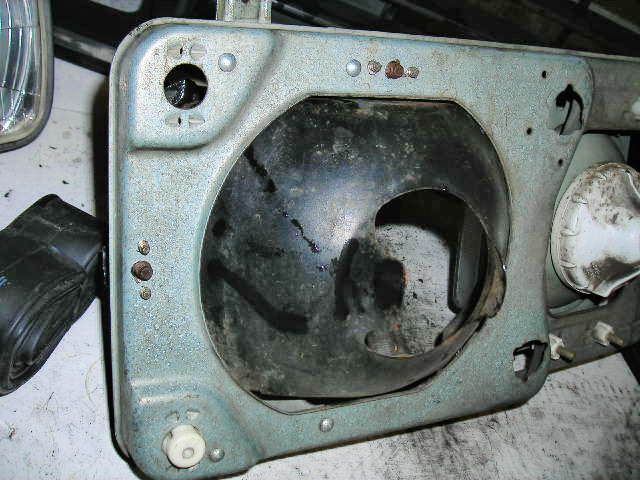

You can see the bucket looks like it was made for the vanagon. You need to drill 3 holes for each adjuster, 1 a little bigger than the adjuster screw and 2 small to screw the screws thru.
Image may have been reduced in size. Click image to view fullscreen.

The adjuster on the outside is in the middle (up down) and against the fold .
Image may have been reduced in size. Click image to view fullscreen.

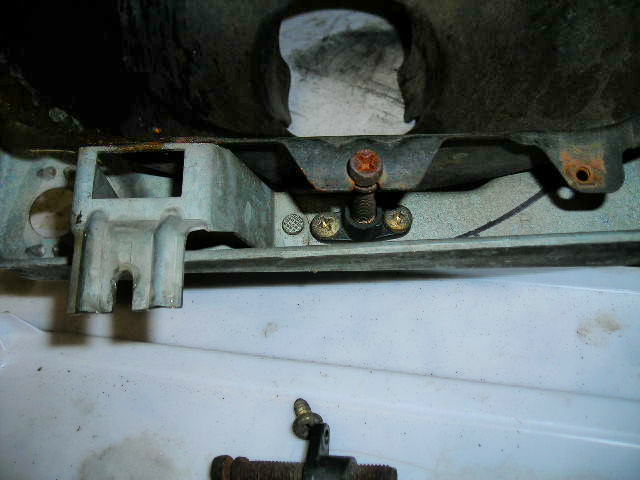

This is the bottom adjuster, I tried to line it up with the rivet.
Image may have been reduced in size. Click image to view fullscreen.

The bucket needs to have the ears trimmed off to fit the vw carrier.
Image may have been reduced in size. Click image to view fullscreen.

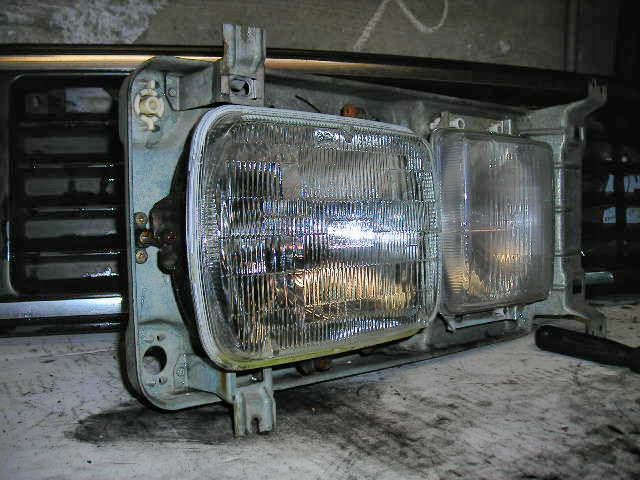

Sealed beam from any auto parts under 20.00
Image may have been reduced in size. Click image to view fullscreen.

The spring keeps tension on the bucket.
Image may have been reduced in size. Click image to view fullscreen.

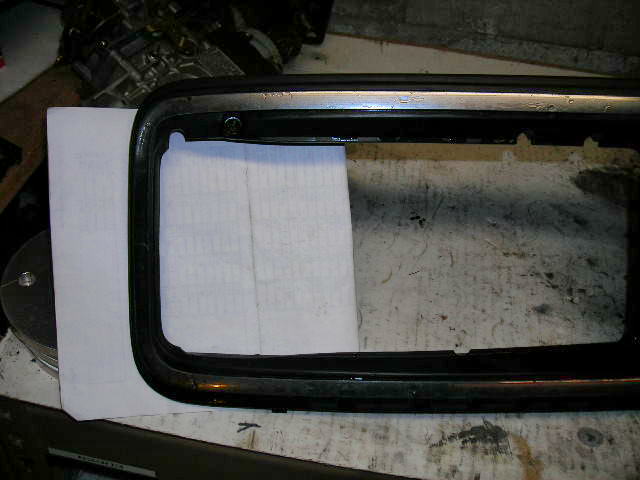

You do need to trim the stock plastic. I used a sheetrock knife and a file. Go slow.
Image may have been reduced in size. Click image to view fullscreen.

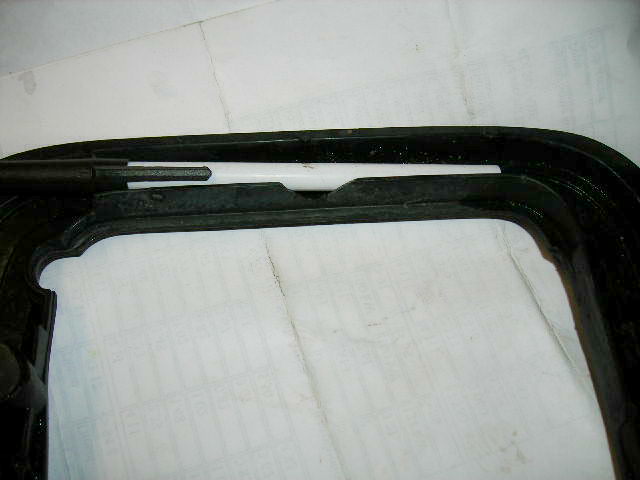

The inside also needs to be trimmed to fit the out side adjuster. The pen is just to get it to take.
Image may have been reduced in size. Click image to view fullscreen.

This is from about 2 van lengths back low beam.55w/60w bulbs(same w as stock) The sign is about 4 feet high.
Image may have been reduced in size. Click image to view fullscreen.

And high beam.
Image may have been reduced in size. Click image to view fullscreen.

Good luck and thanks for looking jcl
Back to top
View user's profile Send private message Gallery Classifieds Feedback
K58
Samba Member


Joined: July 01, 2006
Posts: 1173
Location: Santa Barbara
K58 is offline

PostPosted: Sun Jan 20, 2008 12:27 am    Post subject: Reply with quote

nice idea
your lights look like they could use a little adjustment
http://www.danielsternlighting.com/tech/aim/aim.html
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Boogievan
Samba Member


Joined: October 15, 2007
Posts: 152
Location: Port Orchard, WA.
Boogievan is offline

PostPosted: Sun Jan 20, 2008 1:22 am    Post subject: Reply with quote

Oh man, that is so rad!
I'm really pissed of at my headlights right now, (mostly because the adjusters disintegrated when i tried to re-aim them to compensate for the crappiness of available replacement bulbs) so this is perfect!
Nice work!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5374
Location: PNW
Christopher Schimke is offline

PostPosted: Sun Jan 20, 2008 10:26 am    Post subject: Reply with quote

That really is a great mod. Good job!

For anyone considering this modification, Ford used headlight adjusters that are similar to the SAAB's and you can buy them brand new from autobody aftermarket clip companies.

http://autobodyclips.com/index.php?Search=headlight&PageNo=3

The corosponding headlight buckets that Ford used are very similar to the SAAB versions so they should work just as well. Many Ford trucks used the same 6054 based headlights.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
brooklynvanagon
Samba Member


Joined: September 05, 2007
Posts: 177

brooklynvanagon is offline

PostPosted: Thu Jan 24, 2008 7:32 am    Post subject: Reply with quote

Looks cleaner than.... http://members.aol.com/jmdavi/Headlights.html
