CLK Wheels and Hi Lift Jack?
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
beach_creature
Samba Member


Joined: April 11, 2014
Posts: 282

beach_creature is offline

PostPosted: Mon Apr 01, 2019 4:56 pm    Post subject: CLK Wheels and Hi Lift Jack? Reply with quote

Looking for advice.

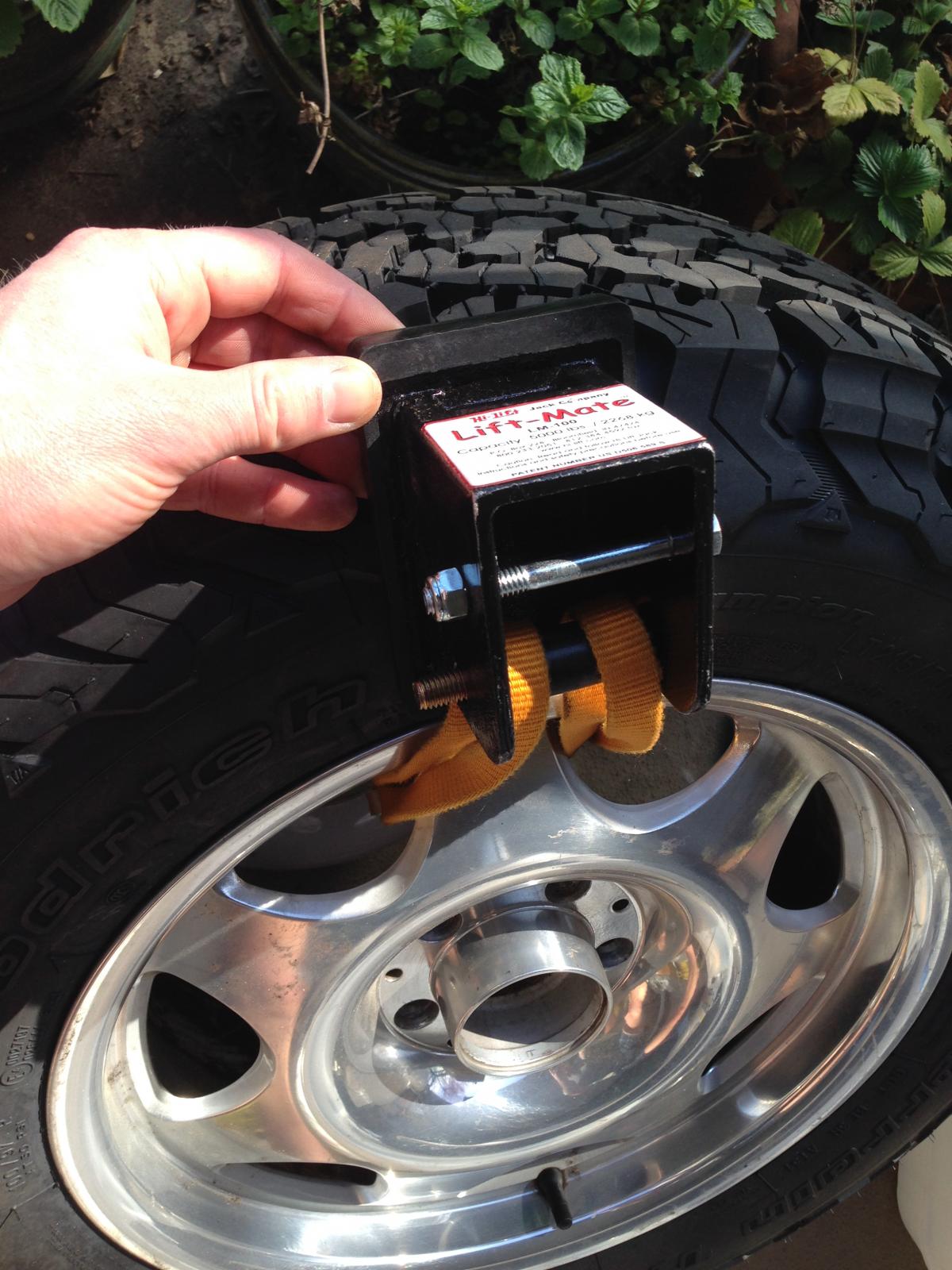

I have a Hi Lift - Lift Mate, used to jack up vehicles by their wheels. It doesn't seem to be compatible as is with the CLK wheels.
But using a climbing sling, I can run it through one or two spokes. The sling is rated to 22 kN or about 10 000 lbs. I would use two slings thus making it 20,000 lbs.

Would the CLK wheels withstand lifting the vehicle like this? I wouldn't want to damage the wheels, or have them break while lifting.
Placing behind two spokes is less force on the wheel, but then increases the angle of the sling and then the sling is not as strong.
Using one spoke, has a good angle for sling strength, but more force on one spoke.

What do people think about this?

Is this safe?


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
beach_creature
Samba Member


Joined: April 11, 2014
Posts: 282

beach_creature is offline

PostPosted: Mon Apr 01, 2019 5:00 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

Lift Mate in action.


Image may have been reduced in size. Click image to view fullscreen.

_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SCM
Samba Member


Joined: January 26, 2011
Posts: 2325
Location: Bozeman MT
SCM is offline

PostPosted: Mon Apr 01, 2019 5:21 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

Are the wheelís spikes rounded enough to not worry about cutting the webbing?

How would change a flat tire using the jack that way?
_________________
'91 Westfalia GL Automatic w/Peloquin
2.3L GoWesty Engine
Back to top
View user's profile Send private message Gallery Classifieds Feedback
beach_creature
Samba Member


Joined: April 11, 2014
Posts: 282

beach_creature is offline

PostPosted: Mon Apr 01, 2019 5:46 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

The spokes are pretty smooth and should not cut the sling.

This would only be for lifting a wheel to fill underneath it in recovery situations. I have the GW hi lift adapter for the stock jack location for a tire change.
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9660
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Tue Apr 02, 2019 3:18 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

With the dynamic loading webbing can take, you're fine, you're just static lifting.
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 9334
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Tue Apr 02, 2019 3:50 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

The Fuchs rims are forged, so I assume they're stronger than regular cast aluminum rims.
_________________
Casey--
Seven VW vans from T1 through T4 since 1985
Volkswagens powered by Volkswagen
Respect the marque
Back to top
View user's profile Send private message Gallery Classifieds Feedback
beach_creature
Samba Member


Joined: April 11, 2014
Posts: 282

beach_creature is offline

PostPosted: Tue Apr 02, 2019 4:41 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

And any thoughts on lifting from One spoke versus Two spokes?
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SyncroHead
Samba Member


Joined: May 23, 2005
Posts: 411
Location: Southern California
SyncroHead is offline

PostPosted: Tue Apr 02, 2019 8:03 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

I'm concerned that there may not be enough clearance behind the spokes and in front of the brakes to get the strap through there.

I'd say if you can actually get it through with the wheels on the van, go for it.

Jim
_________________
Check out www.SyncroSafari.org and www.Vanagons.org
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1444
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Tue Apr 02, 2019 8:22 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

What do people think about this?


Think it has limited uses and would see action "maybe" twice in my life time.

I grew up on the beach and never needed anything like that w the exception of the one time my Rabbit got stuck. by the time we got it out the water was up to the windows. Ok so I needed one of these once in 15 years.
_________________
Its a slow ride. Take it easy

A big thanks to John Muir without whom I would never have made it this far.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 3485
Location: Seattle
jimf909 is offline

PostPosted: Tue Apr 02, 2019 9:30 pm    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

AZ Landshaper wrote:
...by the time we got it out the water was up to the windows. Ok so I needed one of these once in 15 years.


That deserves an accompanying photo!
_________________
Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
markswagen
Samba Member


Joined: January 28, 2018
Posts: 380
Location: san diego
markswagen is offline

PostPosted: Wed Apr 03, 2019 7:09 am    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

Why not use something like this, they work very well, and weigh a LOT less than the high lift Jack's, easy to use, especially in sand or soft ground.

https://www.ebay.com/itm/New-Arrival-4Ton-Exhaust-...ect=mobile
_________________
markswagen {mobile mechanic} san diego area all early VW's cared for.

619 201 0310
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
raoul mitgong
Samba Member


Joined: July 05, 2009
Posts: 1307
Location: Denver, CO
raoul mitgong is offline

PostPosted: Wed Apr 03, 2019 8:20 am    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

Just be sure to retire that sling from your climbing rack. Shocked
-d
_________________
84 Westy with a 2.1 (Groover)
86 Tintop Syncro (Crow)
86 Tintop Syncro to Westy project (Tom Servo)
91 Westy (Only the top 12 inches of this van (a burn victim))
Back to top
View user's profile Send private message Gallery Classifieds Feedback
beach_creature
Samba Member


Joined: April 11, 2014
Posts: 282

beach_creature is offline

PostPosted: Wed Apr 03, 2019 10:35 am    Post subject: Re: CLK Wheels and Hi Lift Jack? Reply with quote

Ya I was going to get new slings for the wheels. That sling in the photo I only use to sort my draws.

As far as the exhaust jack goes...
https://m.youtube.com/watch?v=T5I4gae00Ho
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
