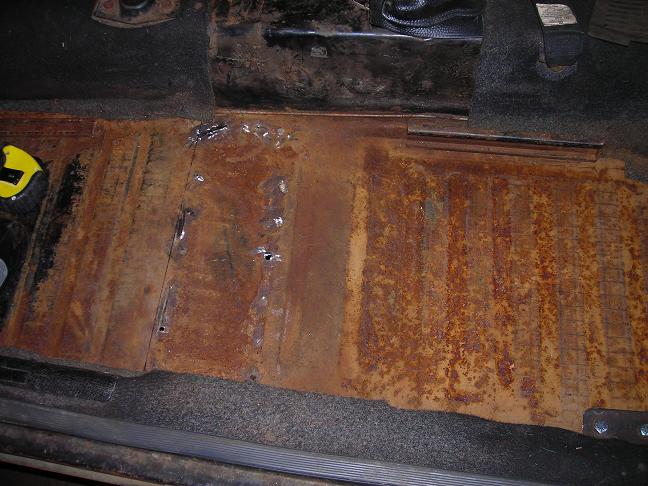

Ok, so I had a couple different topics covering my build, and I decided to try to put my build into one thread, starting from the beginning. Here's what I started with:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

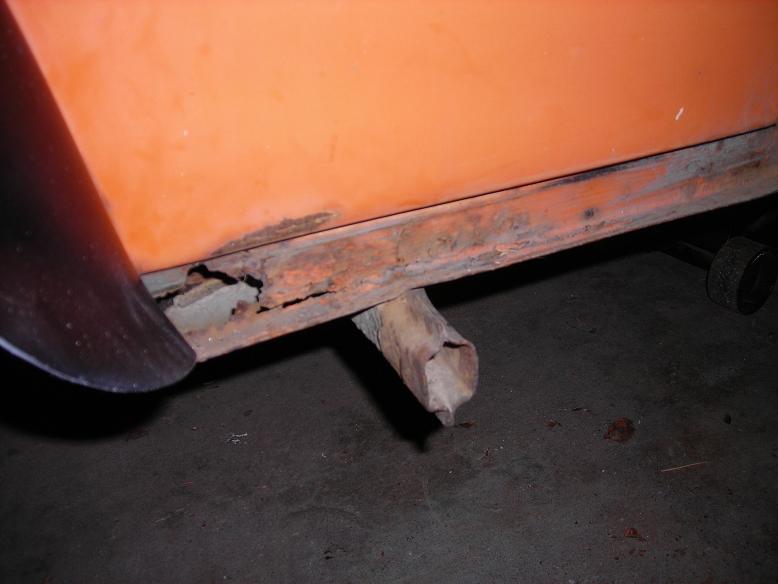

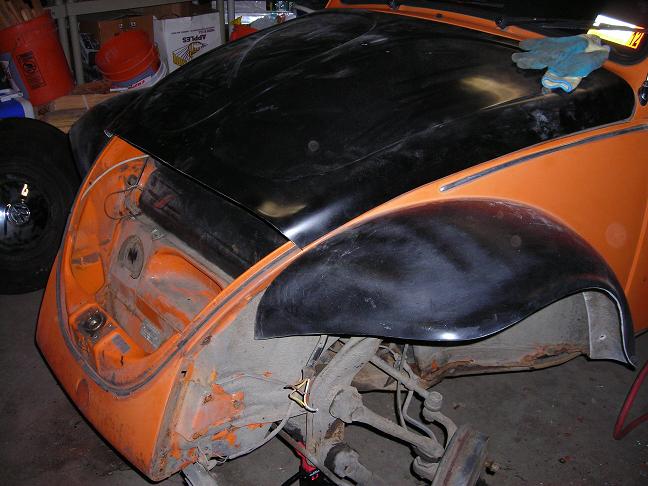

Now, lest you say "Why did you cut it up?", let me assure you that it has a LOT of rot:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I have double tubes bumpers, side bars, a bugeye kit, and new tires and rims. I sent the bumpers and side bars out to be powder coated while I installed the baja kit, tires and exhaust.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

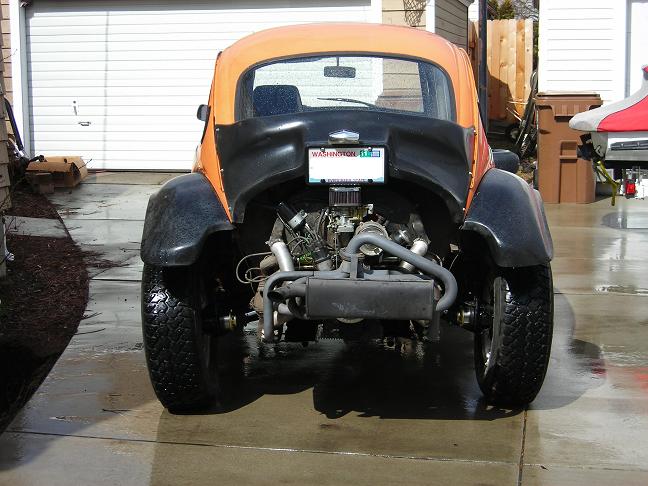

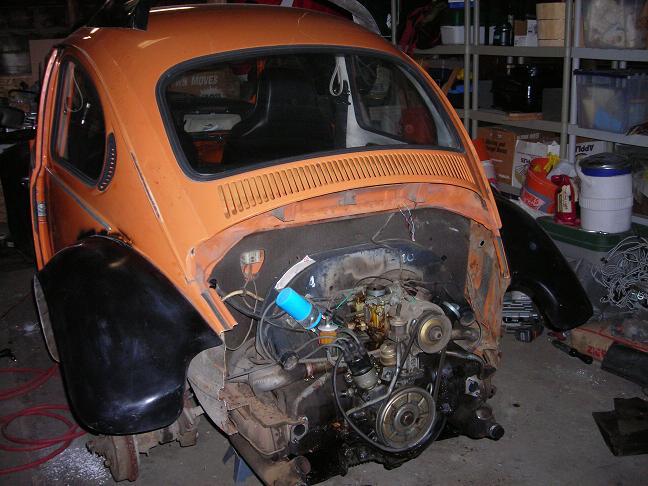

So this is what it looked like once the initial conversion was complete.

Image may have been reduced in size. Click image to view fullscreen.


As you can see, I'm still waiting on the bumpers and sidebars from the powder coaters. In the interim, winter arrived!!

Image may have been reduced in size. Click image to view fullscreen.


So I drove it like that for couple months while I collected the parts to do the front end. Since it's going to be 90% daily driver and 10% logging roads and fire trails, I elected to stay basically stock, with the addition of adjusters and disk brakes.

Image may have been reduced in size. Click image to view fullscreen.


I also wanted to put in a rollcage, so I got a six-point cage from Chirco. It took some tweaking and adjusting, but it is basically just bolted in right now. I am happy with how it turned out, and I am going to use it for upper shock mounts when I do the back end.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I will be adding to it as I go forward, and will ultimately weld it all together. So then I did the front end:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


You can see here how the passenger side hangs lower than the drivers side. And you can see the KYB's that I currently have. Once I got it back together and the weight on it, the passenger side sits about an inch higher.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


You can see that the front, with no adjustment, now sits higher than the rear. At this point, I am thinking it needs to loosen up cuz I haven't driven it much since, we'll see how it settles out. On to the back end. For that, I decided to go with boxed stock arms, T2 CV's/flanges/stub axles, and all new brakes. I stripped out all the original stuff, leaving on the frame horns and late model trans mount.

Image may have been reduced in size. Click image to view fullscreen.


I went with urethane tranny mounts all the way around, and had to replace the nose cone and cradle in order to get the urethane mounts to fit my 74.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

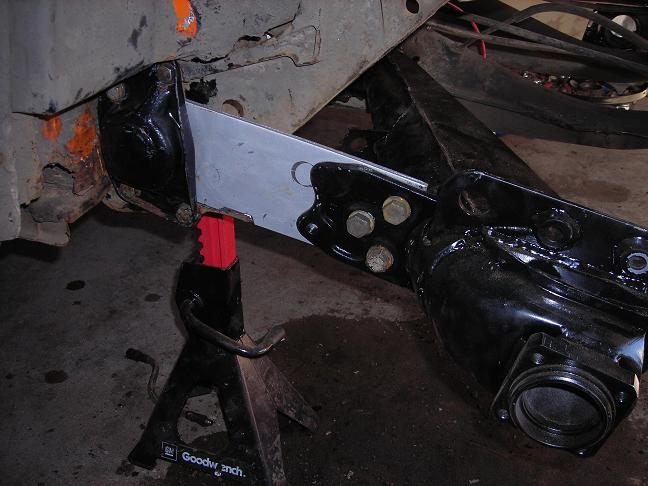

I used HD spring plates with about a 3/8 notch and 26mm torsion bars.

Image may have been reduced in size. Click image to view fullscreen.


The boxed stock arms have double shock mounts, and are installed with urethane bushings as well.

Image may have been reduced in size. Click image to view fullscreen.


The T1 tranny went back in, with T2 drive flanges and a strap.

Image may have been reduced in size. Click image to view fullscreen.


I got the stub axles and brake assemblies back in

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


and then put in the new cv's and drive axles

Image may have been reduced in size. Click image to view fullscreen.


My current angle is ~15*, so I should be in good shape. And as you can see, I've got some positive camber. I'm not sure what I can do about that. And, even with the motor back in, it's still riding on the stops. I hope it settles out some. So here's what it looks like now, with the suspension work mostly done.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Now I've got to replace the front shocks, so I can crank the front end up a little, I've got to get rear shocks installed after I fashion upper mounts, and I scored some poly seats that I am going to install. Stay tuned!!
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CopperBaja
Samba Member


Joined: March 29, 2005
Posts: 1725
Location: Santucky, CA LaJolla of EastCounty
CopperBaja is offline

PostPosted: Fri Apr 04, 2008 12:23 pm    Post subject: Reply with quote

Nice work! Very Happy
_________________
Look at my for sale ads. Cool
68 Baja on STFU
68 Baja on Samba
Back to top
View user's profile Send private message Gallery Classifieds Feedback
seabeebuggy
Samba Member


Joined: October 03, 2005
Posts: 2395
Location: NM, CA, UT and now NV
seabeebuggy is offline

PostPosted: Fri Apr 04, 2008 12:30 pm    Post subject: Reply with quote

Looks good. When is the paint job? I know how much Baja people like the 2 tone. Laughing
_________________
Seabee turbo buggy build
(Quote Runslikeapenguin said)
so to everyone else whos not a retarded butt pirate marine with an tacky ugly ass car covered in auto zone bolt and stick on s**t. (end quote)

A better place to talk offroad
Back to top
View user's profile Send private message Classifieds Feedback
pafree
Samba Member


Joined: August 16, 2005
Posts: 2298
Location: dayton, the one in texas
pafree is offline

PostPosted: Fri Apr 04, 2008 1:06 pm    Post subject: Reply with quote

i enjoyed reading and seeing your build. now you just need a link from each picture on detailed instructions on how you did each part of your car. then we could refer newbies to your project.

just for size reference, what size tires are you running front and back and do you have trouble with rubbing on the front, bottom fender well during turning?

has the baja world come up with a class for this car? i run a car like this. it is not a sand buggy nor high jumper. maybe it could be a full body woods buggy class or fire road runner.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Fri Apr 04, 2008 2:44 pm    Post subject: Reply with quote

The paint job is gonna wait until after I swap the body. As I said previously, my orange body has a lot of rot. The heater channels are gone, the inner fender wells are rotted, and the body just forward of the torsion housing is rotted out. So, I traded a bunch of the old parts that came off my car to a guy who has a 74 standard that he's parted out, selling a lot of the sheet metal, motor, trans and pan. He's left with the body, which has almost no rust, and the interior is about the same as mine. So, next week I am going to roll it over here (it's still on the pan), unbolt the body, rig a couple hoists from my garage rafters, lift it and roll the pan back out and tow it back to him. The only thing I hafta decide is if I want to put a lift kit in when I put the new body on. Anyone have any thoughts?

As for the tires, they are 235/75/15's all the way around. They are mounted on 6-inch rims up front and 8's out back. I did have a problem with them rubbing, but when I put the new front end in I adjusted the stops on the pitman arm so they won't hit. Doesn't turn quite as tightly, but it doesn't rub, either.
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
HamburgerBrad
Je suis Napoléon!


Joined: February 21, 2003
Posts: 6957
Location: SoCal
HamburgerBrad is offline

PostPosted: Fri Apr 04, 2008 2:59 pm    Post subject: Reply with quote

pafree wrote:
has the baja world come up with a class for this car? i run a car like this. it is not a sand buggy nor high jumper. maybe it could be a full body woods buggy class or fire road runner.

everybody is obsessed with classes. that's just a mostly stock baja bug. As far as I'm concerned you should only call your car a "Class anything" if you actually plan on racing.
_________________
OGST | CU05 | OGJHC
1970 baja|1953 oval


Wanted: two beat up, ugly, curb rashed 6" phone dial wheels
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
CopperBaja
Samba Member


Joined: March 29, 2005
Posts: 1725
Location: Santucky, CA LaJolla of EastCounty
CopperBaja is offline

PostPosted: Fri Apr 04, 2008 3:22 pm    Post subject: Reply with quote

HamburgerBrad wrote:
everybody is obsessed with classes. that's just a mostly stock baja bug. As far as I'm concerned you should only call your car a "Class anything" if you actually plan on racing.


Well said, Brad!
_________________
Look at my for sale ads. Cool
68 Baja on STFU
68 Baja on Samba
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Fri Apr 04, 2008 5:05 pm    Post subject: Reply with quote

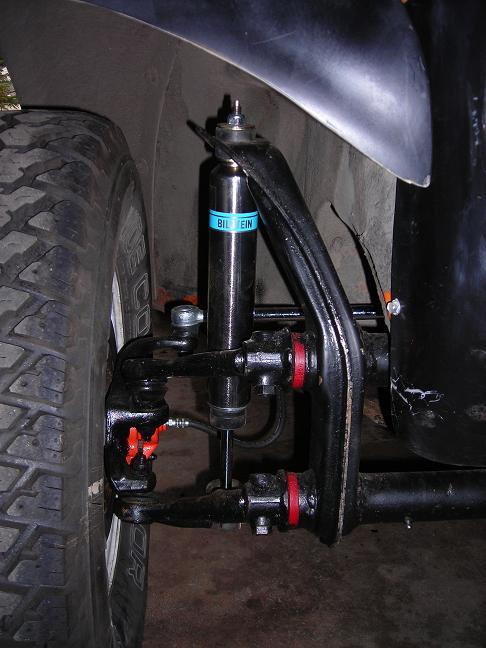

Got my front shocks installed. I went with Class 11 Bilsteins, they are definitely beefier than the KYB's that were there. And look cooler, too!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Also got the seats installed. Pulled the old front towers out, got a few holes to weld up and eventually I'll wire wheel and undercoat the pan.

Image may have been reduced in size. Click image to view fullscreen.

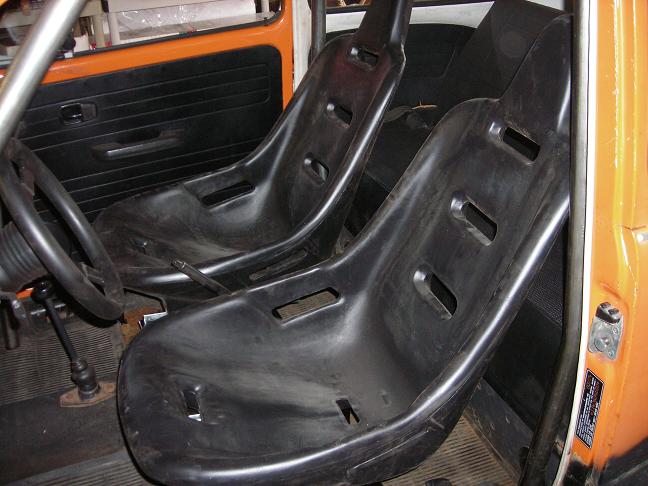

I scored these poly seats on clearance at the local Schuck's, and got tilt mounts and sliders.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I bolted the mounts to the pan, and then trimmed the rubber mats to fit around them.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

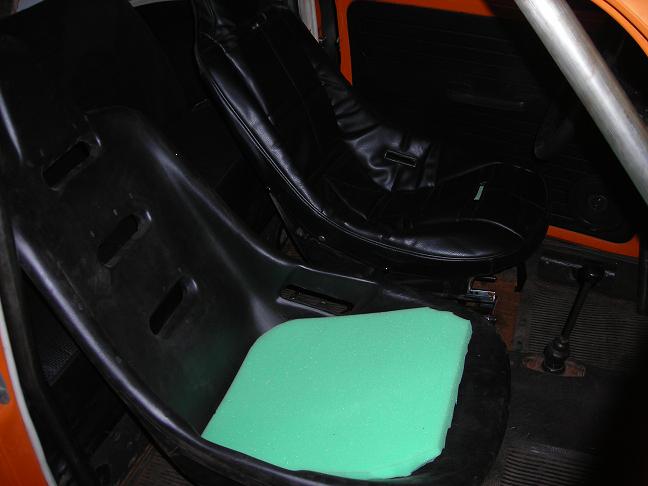

I got some 2-inch high density foam padding, and trimmed it to fit. Hafta finish installing the snaps, and I think I might add some 1-inch padding on the back. The covers are not very well padded.

Image may have been reduced in size. Click image to view fullscreen.


Unfortunately I have drill this weekend, so that's about all I'll get done til Monday. My Weber progressive needs some tweaking, I've got new jets to see if I can get it running better. It's running really rich, and backfires through the carb. Already been through the timing and ignition and adjustment, and it's still not quite right. I am hoping that a smaller jet in the idle circuit might help. I'd welcome any suggestions from folks that run the Weber.

_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CopperBaja
Samba Member


Joined: March 29, 2005
Posts: 1725
Location: Santucky, CA LaJolla of EastCounty
CopperBaja is offline

PostPosted: Sat Apr 05, 2008 1:53 pm    Post subject: Reply with quote

The body lift is all personal preference. Some like it, some don't. I'm on the side that likes it. That is, of course, why I installed mine. Cool
_________________
Look at my for sale ads. Cool
68 Baja on STFU
68 Baja on Samba
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Sat Apr 05, 2008 2:23 pm    Post subject: Reply with quote

Got any pics? I am curious to see what a bug that's had the suspension re-indexed looks like with a 3-inch lift. What I want to avoid is that redneck monster truck look where the truck sits so high it makes the tire/wheel combo look puny. I like having a big gap btw the fender and tire, but I don't wanna look stupid.
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CopperBaja
Samba Member


Joined: March 29, 2005
Posts: 1725
Location: Santucky, CA LaJolla of EastCounty
CopperBaja is offline

PostPosted: Sat Apr 05, 2008 2:52 pm    Post subject: Reply with quote

They're in my thread.

I haven't reindexed my torsions though....soon, I hope.

Here's my favorite.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Look at my for sale ads. Cool
68 Baja on STFU
68 Baja on Samba
Back to top
View user's profile Send private message Gallery Classifieds Feedback
X_BajaBug_X
Samba Member


Joined: September 18, 2007
Posts: 55
Location: Northern California
X_BajaBug_X is offline

PostPosted: Sat Apr 05, 2008 3:22 pm    Post subject: Reply with quote

neanders wrote:


I scored these poly seats on clearance at the local Schuck's, and got tilt mounts and sliders.

I bolted the mounts to the pan, and then trimmed the rubber mats to fit around them.

Image may have been reduced in size. Click image to view fullscreen.



How did you mount these to the pan? Just drill a hole and bolt them up, larger washers? Were the stock seat mounts on the pan in the way? I would like to put these in my bug but was wondering if the stock seat mounts would be in the way. And if the pan was too thin to support the weight in such a focused spots.
Back to top
View user's profile Send private message Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Sat Apr 05, 2008 3:44 pm    Post subject: Reply with quote

Yep, just bolted them through the pan using big-a$$ washers. Once I get the new body on, I'll weld bars from the heater channel to the tunnel, and then mounting tabs on the bars. As for getting the stock front mount out, I had to drill about a dozen spot welds all the way around each, and then there were four regular welds that I ground down with the grinder, and then pried the things out. Took about 15 min per side, and I am left with a couple holes on each side that I need to weld up. I'll do that when I pull the seats back out to put the new body on, and I'll wire-wheel and under coat the pan while the body is off.
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Sun Apr 06, 2008 6:45 am    Post subject: Reply with quote

Hey Jeff, I looked through your build but didn't see any profile shots of your bug w/ the lift kit. Can you post one?
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DesertBob
Samba Member


Joined: February 09, 2004
Posts: 1237
Location: Goodlettsville, Tennessee
DesertBob is offline

PostPosted: Sun Apr 06, 2008 8:19 am    Post subject: Reply with quote

Did you get the rear Bilsteins as well? What was the part number of your front shock. I am going to be getting the same for mine and was also wondering where you purchased them?
_________________
All it takes is a little imagination, some mechanical ability, and neighbors who mind their own business

74 Super Beetle (German Look Project)
Full Flow 1776 with 36 Dells, 4 wheel drilled and slotted disc brakes, Porsche 7x17 Turbo Twists, Topline Maxx Struts, Camber kit, 7/8" Front Sway bar, Rear Sway bar, Urethane bushings all around.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Sun Apr 06, 2008 10:05 am    Post subject: Reply with quote

I haven't got the rear Bilsteins yet. I'm waiting until I put the new body on and decide whether I'm gonna do the 3-inch lift or not. If I do that, I'll hafta modify my cage, which might change the upper shock mount and the length of the shocks. As for the front ones, they are the standard Class 11 Bilsteins for the cut and turned BJ front end. I got them from Chirco:

http://www.chircoestore.com/catalog/product_info.p...bp0tg0n722
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Mon Apr 07, 2008 7:20 am    Post subject: Reply with quote

Ok, I am going to tinker with the carb today to see if I can get it running better. I have a Weber Progressive, and I have had a hard time getting it running smooth. I have a DP 1600 with 009, Pertronix ignition, and I have checked the valves and timing (30* at full throttle). I get hesitation on acceleration, and backfiring through the carb. Matter of fact, the primary barrel has a lot of soot inside. Originally it was jetted with a 125 primary and a 130 secondary. I thought, due to the backfiring, that it was running rich, and so I tried tweaking the idle mixture screw. My understanding is that about 80% of the time I'll be running in the idle circuit. No luck. I have read a couple spots that backfiring through the carb is an indication that it's running too lean, so I swapped the 130 into the primary circuit and put the 125 in the secondary. Better, but still backfires through the carb. Do I need to go with an even larger primary? I have a 135, I guess I will try that, and then perhaps get something even larger for the secondary. I welcome any suggestions from folks who've had success with the Weber Progressive.
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hagermanfolley
Samba Member


Joined: August 03, 2005
Posts: 235
Location: Boise, ID
hagermanfolley is offline

PostPosted: Mon Apr 07, 2008 7:27 am    Post subject: Reply with quote

throw it away and get a zenith. I hated my progressive. Zenith's are a little hard to find though, but well worth it.
_________________
1970 Westy
Back to top
View user's profile Send private message Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Mon Apr 07, 2008 7:33 am    Post subject: Reply with quote

Not exactly the response I was looking for, but I'll keep it in mind! Very Happy I want to play with it some, and see if I can get it dialed in, before I move to something else. I will NOT go to duals, I've had bad experiences with both Kadron's and Dellortos in the past, and I don't want to deal with multiple carbs.
_________________
It's mine now and I want a BAJA!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neanders
Samba Member


Joined: November 12, 2007
Posts: 1144
Location: Spokane, WA
neanders is offline

PostPosted: Mon Apr 07, 2008 2:50 pm    Post subject: Reply with quote

Well, the 130 seems to be running pretty well. I might try the 135 at some point, but I think I'll stick with the 130 for now. I also did the $1.98 carb clean, so I think I'll put the 135 in the secondary and start driving it.

Now I gotta get some seatbelt mounting tabs welded to the cage so I can drive it legal again...
