Kush lock clutch disc breakdown
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Bujo
Samba Member


Joined: April 26, 2007
Posts: 8
Location: Wroclaw/Poland
Bujo is offline

PostPosted: Fri Aug 08, 2008 3:58 am    Post subject: Kush lock clutch disc breakdown Reply with quote

Hello All,

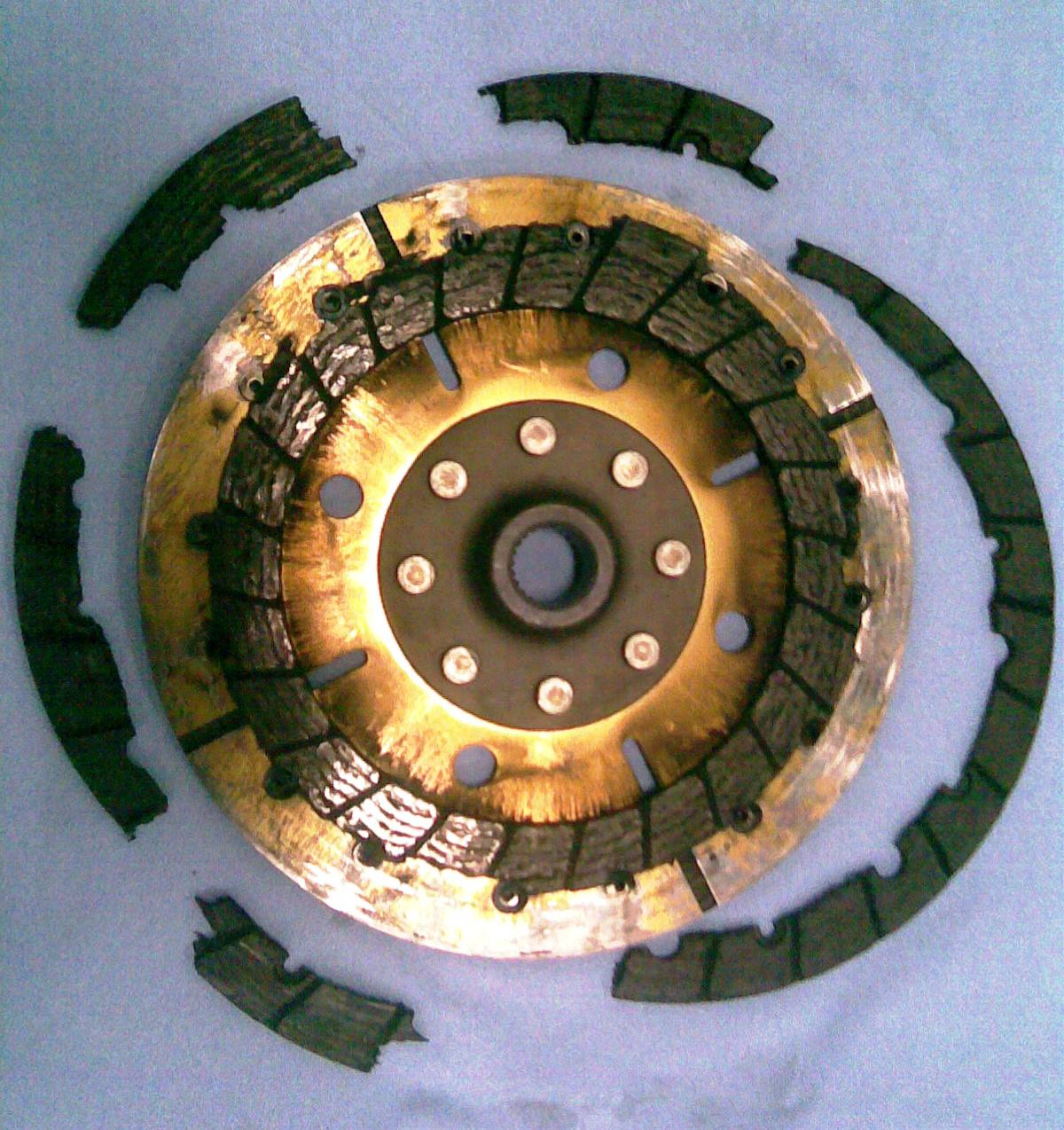

You can see clutch disc from my car after 2000 miles and some street races:

Image may have been reduced in size. Click image to view fullscreen.


Engine and drivetrain combo:

1776 ccm
CB Street Eliminator 42x37
Engle W120
9.0:1 CR
Dell'orto DRLA40

AT gearbox + KEP Stage 1

Car weight w. driver: 1700 lb

Now I'm looking for something "stronger". Do You have any idea ?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
junior55
Samba Member


Joined: October 01, 2006
Posts: 941

junior55 is offline

PostPosted: Fri Aug 08, 2008 5:10 am    Post subject: Reply with quote

Weird how it fractured all along the rivet line.
I dont use a cush-lok but isn't the lining supposed to be
bonded as well as riveted?

I don't see much of a bonding residue... the base plate is kind of clean?

Is kush-lok a China product.
(And) do you know that this particular disk was new and never soaked
overnight in solvent (or some bad condition like that. Oil etc..).

I think maybe a bad disk because its hard to mess one up that bad
no matter what brand.

You'll probably have no problem getting a free replacement,
BUT like always, do you want one?
And all the bullshit to replace it!

I have uses several Centerforce-Dualforce for street friendly use
yet they grip like mad with even a non-diaphram, even better w/ a stage 1.
Back to top
View user's profile Send private message Classifieds Feedback
The Noof
Samba Member


Joined: January 25, 2005
Posts: 4346

The Noof is offline

PostPosted: Fri Aug 08, 2008 6:56 am    Post subject: Reply with quote

Go Either stage II and a copperhead, or try again with a stage I and a copperhead if you feel a stage II is too much.I run a stage III in mine.
Back to top
View user's profile Send private message Classifieds Feedback
Art Thraen
Samba Member


Joined: January 19, 2004
Posts: 478
Location: Utah
Art Thraen is offline

PostPosted: Fri Aug 08, 2008 7:16 am    Post subject: Reply with quote

I have the copperheads if you need one... But Ill bet you need to have the flywheel resurfaced now..

Art @ ACE
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
veedubcrazy
Samba Member


Joined: February 14, 2005
Posts: 2094
Location: La Porte, Tx.
veedubcrazy is offline

PostPosted: Fri Aug 08, 2008 7:29 am    Post subject: Reply with quote

I find that interesting as I am going to install a Kush-Lok in my 2187 coupled with a KEP S1. I don't know whether to be concerned or not...
_________________
1967 Deluxe Sedan
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
A.J.Sims
Banned


Joined: December 11, 2003
Posts: 1016
Location: LowBugget.com 982 N Batavia A4 Orange Ca 92867
A.J.Sims is offline

PostPosted: Fri Aug 08, 2008 9:38 am    Post subject: Reply with quote

Simple, its not a real Kush-lok, cush-lock or whatever the names are now. Looks like the cheep low grade crap that’s floating around. I use the “Real” Racing Daikin disc not the street one with a stage 2 in our turbo street car, baja and my drag car. No problems at all. I have never used Arts disc but if Arts offering it then you know its top quality.
_________________
Have tech questions? Need real help? Give us a call.
www.Lowbugget.com
982 North Batavia A4, Orange Ca 92867.
68 drag bug 1915cc 10.50's @130mph
66 fastback 2387cc turbo street car
67 baja 2054cc turbo.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
YOGIVW
Samba Member


Joined: February 04, 2005
Posts: 243
Location: Olsztyn/POLAND
YOGIVW is offline

PostPosted: Fri Aug 08, 2008 10:55 am    Post subject: Reply with quote

Art Thraen wrote:
I have the copperheads if you need one... But Ill bet you need to have the flywheel resurfaced now..

Art @ ACE
Image may have been reduced in size. Click image to view fullscreen.


Art,
John from Aircooled net sels it and on his www there is:
"For high power applications (over 160hp)"
Bujo's engine is much less than that, is it OK to use it for a cars with 120-130PS?
Thank you
_________________
Pawel
Vw 1303 1979 Black&Beige convertible
VW T4 2001 Caravelle Business 2.8 V6
Westfalia James Cook 2.9TD
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
cherry55oval
Samba Member


Joined: January 07, 2008
Posts: 24
Location: HONOLULU
cherry55oval is offline

PostPosted: Fri Aug 08, 2008 11:39 am    Post subject: Re: Kush lock clutch disc breakdown Reply with quote

Bujo wrote:
Hello All,

You can see clutch disc from my car after 2000 miles and some street races:

Image may have been reduced in size. Click image to view fullscreen.


Engine and drivetrain combo:

1776 ccm
CB Street Eliminator 42x37
Engle W120
9.0:1 CR
Dell'orto DRLA40

AT gearbox + KEP Stage 1

Car weight w. driver: 1700 lb

Now I'm looking for something "stronger". Do You have any idea ?


mine had less than 200 miles on it and had more picies than yours. i should of took a picture of it.
Back to top
View user's profile Send private message Classifieds Feedback
Billyisgr8
Samba Member


Joined: September 11, 2004
Posts: 215

Billyisgr8 is offline

PostPosted: Fri Aug 08, 2008 2:47 pm    Post subject: Reply with quote

A.J.Sims wrote:
I use the “Real” Racing Daikin disc not the street one with a stage 2 in our turbo street car, baja and my drag car. No problems at all.



so how do you tell the difference between the regular daiken and the heavy duty racing daiken? I bought the racing daiken, and allways wondered how do I know the difference between the two if you only have the one in front of you? Is the part # stamped on the disk different?

Kevin
Back to top
View user's profile Send private message Gallery Classifieds Feedback
A.J.Sims
Banned


Joined: December 11, 2003
Posts: 1016
Location: LowBugget.com 982 N Batavia A4 Orange Ca 92867
A.J.Sims is offline

PostPosted: Fri Aug 08, 2008 6:04 pm    Post subject: Reply with quote

The street disc has “B503” part number on the center hub and racing one only has the “DK” emblem.
_________________
Have tech questions? Need real help? Give us a call.
www.Lowbugget.com
982 North Batavia A4, Orange Ca 92867.
68 drag bug 1915cc 10.50's @130mph
66 fastback 2387cc turbo street car
67 baja 2054cc turbo.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Bujo
Samba Member


Joined: April 26, 2007
Posts: 8
Location: Wroclaw/Poland
Bujo is offline

PostPosted: Sat Aug 09, 2008 4:10 am    Post subject: Reply with quote

Hello,

thank you for very helpful answers.
One more question. What do you think about KEP Heavy Duty Clutch Disc. Did somebody have some expirience with this?

Regards
_________________
VW 1300; open 2 seats body
http://images.thesamba.com/vw/gallery/pix/467548.jpg
Back to top
View user's profile Send private message Gallery Classifieds Feedback
