Exhaust question, will this work?

[yellow73kubel]

My Thing came with a full Beetle engine/exhaust, including the pea shooters. I do not like the tail pipes or ground clearance on this exhaust system, so I want to replace it with proper Thing stuff, without spending too much money (the challenge...).

I found the link on this forum to a 74 repro exhaust from CIP1 (http://www2.cip1.com/ProductDetails.asp?ProductCode=VWC-181-251-051-C), and want to know if this will work. The j-tubes already installed on my look to be in good shape, but are they compatible? How is the ground clearance on this system? I want it to tuck up behind the bumper, so it is doesn't get squished by anything.

If there is a better exhaust to do this, please let me know. I am not particularly interested in the Tri-Mill and S&S systems that leave the muffler well below the bumper.

Any help would be appreciated.

[edit] Also, if anyone has a picture of the back end of a '74 Thing with original exhaust, I would like to see it (can't seem to find any good pics with a quick search of the gallery).

[crofty]

http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?Vi...6&rd=1
_________________
Your Vanagon sucks, Stop waving at me.

[[email protected]]

Yes, you will get plenty of clearance with that one, it tucks between the engine and bumper, the one on ebay is aftermarket. the original had a vw emblem.
Mike

[yellow73kubel]

Not sure about the Ebay one, those tailpipes definitely don't look stock.

That style is definitely what I want though. I might look into it some more.

Also, would the Bug j-tubes fit a 74 exhaust?

[thinghunter]

The one on Ebay is your best bet if you don't want to spend much money which was one of your requirements. The tail pipes on the picture are on the wrong side, they should point up and therefore go through the holes in the bumper. And yes, the j-tubes would fit but you could not use the stock heater on a 74 with them so you would need heat exchangers unless you have a gas heater, don't plan on driving it when it's cold, live where you would never need a heater, or like to bundle up when you are driving.

[yellow73kubel]

"Too much money" meant more the $400 stock exhuasts, something in the $100-$200 range is ok for a brand new system (cheaper is better obviously).

It is going on a 73, so it will hopefully have a gas heater (haven't checked it out yet, since it is still very warm here).

[thinghunter]

There are alot of threads on here that have pros and cons of different Thing exhausts. Do a search for them and look through them and decide which type you'd like to have. Most all of them other than the stock/aftermarket stock look a likes have some sort of problem like making it harder to adjust valves.

[yellow73kubel]

[uberautowerks]

Keep in mind that the stock "Thing" muffler assembly is a factory modified Beetle muffler. So, except for the pea shooters the ground clearance is the same.
Now I've seen "monza" mufflers with the tips cut off and relocated through the bumper. The monza muffler sits at an angle and can help with "Departure angle" but the ground clearance to the bottom of the muffler is about the same.
This one is a bit better - http://www.thethingshop.com/detail.asp?PRODUCT_ID=181DH - but the large U bends still eat up clearance and divided system takes away bottom end torque.
_________________
--- The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair.
- Douglas Adams -
---
'74 Thing (White)
'71 Single cab (White too)
'70 Weekender (White three)
'05 Evolution VIII (White also!!!)
'68 F-250 (White over black)

[yellow73kubel]

Bumping this up with a slightly different question (instead of making a new thread).

I know some people on here have installed the Kymco Thing header system. I noticed some odd things about this company, and can't find their website. Any recent experiences with them? Their ads seem to be up-to-date, I just want to make sure before looking seriously at ordering from them.

The merged header looks like the best flexibility/performance, and the price isn't bad... A tuck-away muffler isn't too expensive for off-roading, plus, tossing on a stinger to show off at shows would be sweet.

Aside from this one, we were also considering the Monza idea. It is cheaper, but I think that cutting out the fiberglass-packed tips would make it a little noisy for general driving.

[Fun 181]

[Fun 181]

[caseydenise]

I like this setup. Where did you get it and how does it hold up in the NorthEast.
Thanks

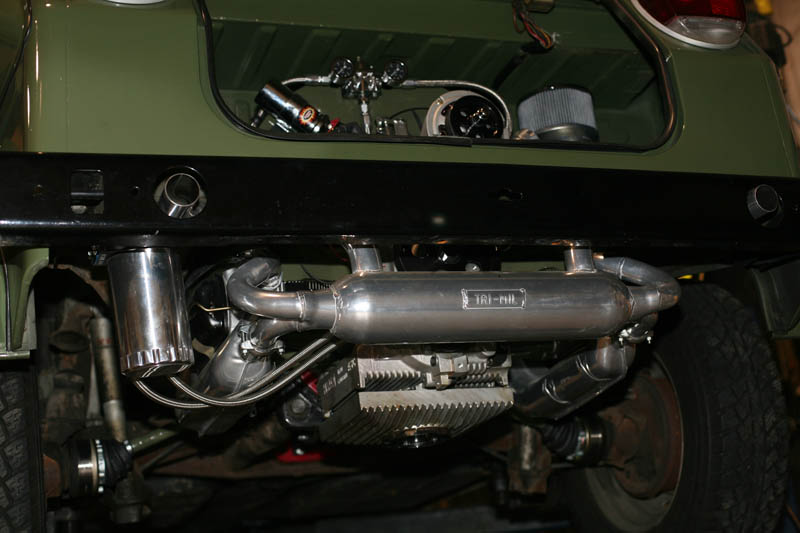

Here you can see my Tri-Mil exhaust is at the same height as the heater boxes. The bumper on the Thing is positioned at the middle of the engine case so the bottom of your engine is hanging below the bumper as well. Even with the addition of a sump and remote oil filter (about the same height as the outer CVs) I have never had any issues with clearance and have driven in the mud, over curbs, etc.

\
_________________
Central Jersey Volkswagen Society - President

[yellow73kubel]

[Fun 181]

[jbeilmann]

Hey "Fun 181"...I just bought a tri-mil exhaust & was planning to use j-tubes w/ it. Is that a problem? It looks like you used some type of heater boxes with yours. Where did you get them? John

[jbeilmann]

Also "Fun 181"...how loud is that exhaust & did it do much for your performance? Thanks...John

[Fun 181]

[yellow73kubel]

[jbeilmann]

Thanks for the replies fellas...I have also seen some mention of problems with j-tubes transfering heat to the heads. Is this a problem if I have the stock tin shielding?
