 Posted: Sun Oct 26, 2008 4:13 am Post subject: Air cleaner from 1953? |
 |
|

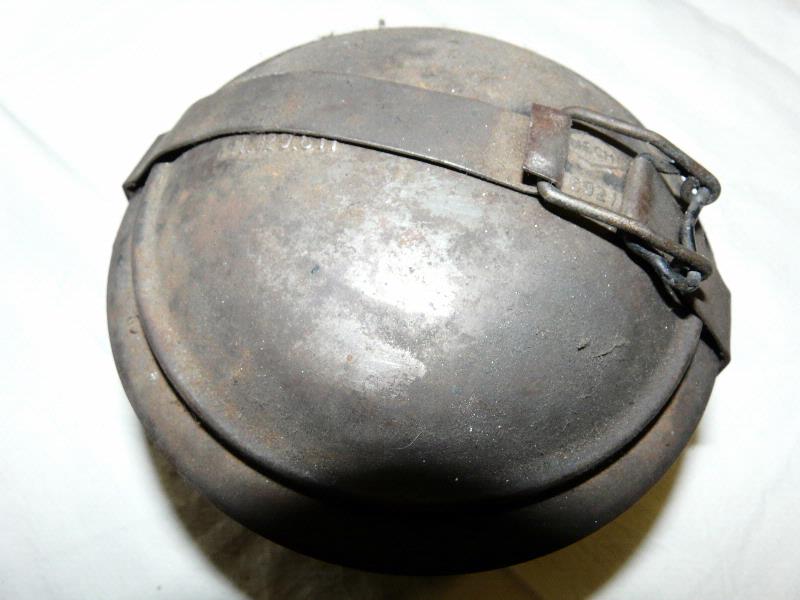

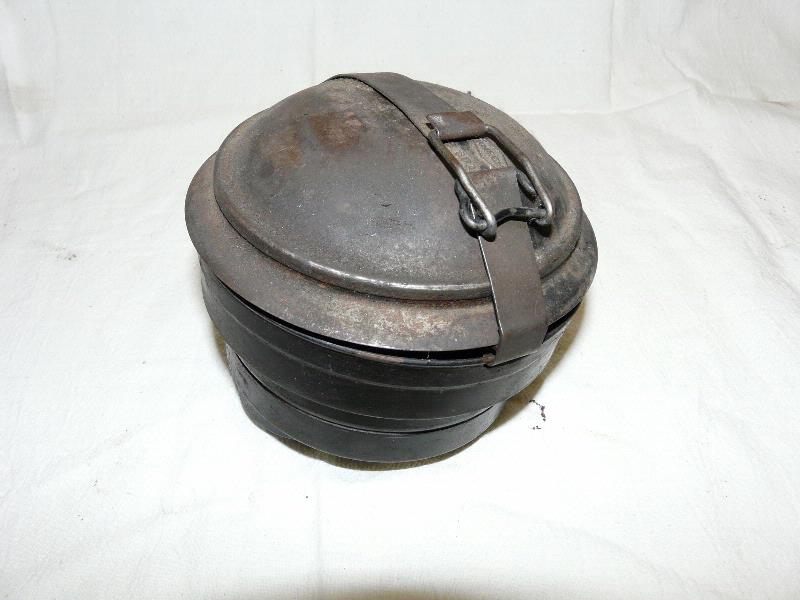

Is this aircleaner correct for 53 ??
Thanks in advance ?
|
|
| Back to top |
|
 |
IN2VWS
Samba Member
Joined: January 29, 2006
Posts: 2556
Location: Australia
|
| Posted: Sun Oct 26, 2008 4:15 am Post subject: |
|
|
That is good for 54/55 cars.
_________________
( ⫏ ⫐ )
(ọ\ ¡ /ọ)¹⁹⁵⁴ ¹⁹⁵¹ ¹⁹⁵⁸
(⦷ ⥢ Ĭ ⥤ ⦷) 𝗞_𝗔_𝗥_𝗠_𝗔_𝗡_𝗡 𝓖𝓱𝓲𝓪¹⁹⁵⁶
⨴⨵--⊗--⨴⨵ 𝕊ℙ𝟚¹⁹⁷³ |
|
| Back to top |
|
|
Heb623
Samba Member
Joined: October 01, 2005
Posts: 83
Location: Belgium
|
| Posted: Sun Oct 26, 2008 6:34 am Post subject: |
|
|
In Australia maybe, but in Belgium the one pictured is the one and only good one to put on a 1953 car!
 ET |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71934
Location: Phoenix 602
|
|
| Back to top |
|
|
tazm
Samba Member
Joined: June 10, 2001
Posts: 530
Location: Belgium
|
| Posted: Sun Oct 26, 2008 11:35 am Post subject: |
|
|
| Thanks John and Everett ! |
|
| Back to top |
|
|
passoa55
Samba Member
Joined: June 10, 2004
Posts: 576
Location: Belgium
|
| Posted: Sun Oct 26, 2008 11:46 am Post subject: |
|
|
53 bugs had them also, they used both T-aircleaner and strapcleaner.
_________________
1950 Hebmuller #458
1952 Azure blue crotch cooler ragtop
1953 original paint oval ragtop
1955 lowlight lizard green
1955 original paint oval
1956 1600 super V-sunroof Porsche
1958 lowlight ghia black
1967 SO42 westy
1969 original paint Westy
1970 one owner 1300L bug |
|
| Back to top |
|
|
tazm
Samba Member
Joined: June 10, 2001
Posts: 530
Location: Belgium
|
| Posted: Sun Oct 26, 2008 11:49 am Post subject: |
|
|
The left one is a 53 pascal the other one the same as mine is 54 |
|
| Back to top |
|
|
passoa55
Samba Member
Joined: June 10, 2004
Posts: 576
Location: Belgium
|
| Posted: Sun Oct 26, 2008 11:52 am Post subject: |
|
|
Thanks Guido!
I'm still learning every day!
I will check mine!
_________________
1950 Hebmuller #458
1952 Azure blue crotch cooler ragtop
1953 original paint oval ragtop
1955 lowlight lizard green
1955 original paint oval
1956 1600 super V-sunroof Porsche
1958 lowlight ghia black
1967 SO42 westy
1969 original paint Westy
1970 one owner 1300L bug |
|
| Back to top |
|
|
IN2VWS
Samba Member
Joined: January 29, 2006
Posts: 2556
Location: Australia
|
| Posted: Sun Oct 26, 2008 1:07 pm Post subject: |
|
|
| Heb623 wrote: |
In Australia maybe, but in Belgium the one pictured is the one and only good one to put on a 1953 car!
ET |
 no, not just in Australia. It was world wide.
_________________
( ⫏ ⫐ )
(ọ\ ¡ /ọ)¹⁹⁵⁴ ¹⁹⁵¹ ¹⁹⁵⁸
(⦷ ⥢ Ĭ ⥤ ⦷) 𝗞_𝗔_𝗥_𝗠_𝗔_𝗡_𝗡 𝓖𝓱𝓲𝓪¹⁹⁵⁶
⨴⨵--⊗--⨴⨵ 𝕊ℙ𝟚¹⁹⁷³ |
|
| Back to top |
|
|
53 0val
Samba Professor
Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
|
| Posted: Sun Oct 26, 2008 1:53 pm Post subject: |
|
|
| Heb623 wrote: |
In Australia maybe, but in Belgium the one pictured is the one and only good one to put on a 1953 car!
ET |
Not a chance............
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do |
|
| Back to top |
|
|
tazm
Samba Member
Joined: June 10, 2001
Posts: 530
Location: Belgium
|
| Posted: Sun Oct 26, 2008 2:04 pm Post subject: |
|
|
When did they start to use the 54 model??
I found out that the oil bath aircleaner already was used from 20/8/52 on some models! So they are also correct for a zwitter
Edit
I found some pictures from that 53 air cleaner , but only in a bus not in a beetle, could it be that they where specific for a bus ! |
|
| Back to top |
|
|
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4226
|
| Posted: Sun Oct 26, 2008 3:36 pm Post subject: |
|
|
the oil bath cleaners were a huge improvement over the coffee can felt filter from a maintenance stand point. I would suspect that the coffee can filter was not available as a spare part for long so they would get tossed and replaced with a oil bath air cleaner.
The first version of the strap filter was open around the sides and would allow water to drip into the oil. The solution was to add the little deflector rim.
Most zwitters and 53 ovals that I have seen have the coffee can filter but I think there was some cutover during the 53 model year to the strap without the deflector. Most of this is based on period magazine reviews that show pictures of the engine.
_________________
Chris
You know, a lot of these scratches will buff right out... Jerry Seinfeld |
|
| Back to top |
|
|
IN2VWS
Samba Member
Joined: January 29, 2006
Posts: 2556
Location: Australia
|
| Posted: Sun Oct 26, 2008 3:42 pm Post subject: |
|
|
| tazm wrote: |
When did they start to use the 54 model??
I found out that the oil bath aircleaner already was used from 20/8/52 on some models! So they are also correct for a zwitter
Edit
I found some pictures from that 53 air cleaner , but only in a bus not in a beetle, could it be that they where specific for a bus ! |
Yes Guido, you are correct. If you look in a Zwitter owners manual, it shows 2 types of air cleaners used, the coffee can and an oil bath air cleaner.
In 53 there were 2 types of oil bath air cleaners used. There was the type pictured above (not the 54 type), and another that was similar but it did not have the strap on the top. Instead it used a wing nut to hold the top on.
There is pictures somewhere on TheSamba showing these 2 types of oil bath filters.
_________________
( ⫏ ⫐ )
(ọ\ ¡ /ọ)¹⁹⁵⁴ ¹⁹⁵¹ ¹⁹⁵⁸
(⦷ ⥢ Ĭ ⥤ ⦷) 𝗞_𝗔_𝗥_𝗠_𝗔_𝗡_𝗡 𝓖𝓱𝓲𝓪¹⁹⁵⁶
⨴⨵--⊗--⨴⨵ 𝕊ℙ𝟚¹⁹⁷³ |
|
| Back to top |
|
|
73sports
Samba Member
Joined: September 26, 2004
Posts: 2107
Location: Warrington, PA
|
| Posted: Sun Oct 26, 2008 4:18 pm Post subject: |
|
|
My zwitter has the oil bath filter, and it has the wing nut on top, no strap.
_________________
I will never lie, but sometimes the truth changes.
Central Jersey VW Society |
|
| Back to top |
|
|
IN2VWS
Samba Member
Joined: January 29, 2006
Posts: 2556
Location: Australia
|
| Posted: Sun Oct 26, 2008 7:27 pm Post subject: |
|
|
PR lists an oil bath "now fitted in a number of cases" on 20th August 1952.
Then on the 2nd January 1953 the oil bath air cleaner is "now fitted with strap".
Then on the 21st of December 1953 the oil bath air cleaner is "standard equipment for all models", and I suspect this is when the 54 style was introduced.
The first 2 pics are from a September 1952 owners manual, and it shows the coffee can air cleaner and the oil bath aircleaner with the wing nut.
The third pic is from a March 1953 instruction manual showing the early strap type oil bath air cleaner.
_________________
( ⫏ ⫐ )
(ọ\ ¡ /ọ)¹⁹⁵⁴ ¹⁹⁵¹ ¹⁹⁵⁸
(⦷ ⥢ Ĭ ⥤ ⦷) 𝗞_𝗔_𝗥_𝗠_𝗔_𝗡_𝗡 𝓖𝓱𝓲𝓪¹⁹⁵⁶
⨴⨵--⊗--⨴⨵ 𝕊ℙ𝟚¹⁹⁷³ |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9417
Location: Northwood, NH USA
|
| Posted: Sun Oct 26, 2008 8:04 pm Post subject: |
|
|
So the wing nut cleaner is the earliest oil bath device used on Beetles? I'd guess they are pretty rare......
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
Heb623
Samba Member
Joined: October 01, 2005
Posts: 83
Location: Belgium
|
| Posted: Mon Oct 27, 2008 2:11 am Post subject: |
|
|
Australia 1 - Belgium 0 (specific part of Belgium)
ET |
|
| Back to top |
|
|
tazm
Samba Member
Joined: June 10, 2001
Posts: 530
Location: Belgium
|
| Posted: Mon Oct 27, 2008 5:01 am Post subject: |
|
|
Thanks John,
For the information !
A few years ago , I trow one of these air cleaners with wingnut away because I thought is was a home made part !
Never to old to learn, thanks again for the great information !!
Now I can sell the 54 air cleaner and not giving people the wrong information because I thought it was correct for a 53 !
Best regards,
Guido |
|
| Back to top |
|
|
ZwitterND
Samba Member
Joined: September 08, 2005
Posts: 1453
Location: Fargo, ND
|
| Posted: Mon Oct 27, 2008 10:50 am Post subject: |
|
|
Guido, don't feel bad I thought the same thing about the wing nut air cleaner on my zwitter, I thought someone replaced the coffe can with a newer style, but I remember contacting Claus Jacobsen and he informed me of the rarity. And confirmed it recently on another thread on here. The hard part is having to explain to other split owners that yes it is correct air cleaner.
Bill
_________________
Bill |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9417
Location: Northwood, NH USA
|
| Posted: Mon Oct 27, 2008 11:17 am Post subject: |
|
|
Nothing beats Bill Collins old story, of the first Split he was restoring.
Doing body work, he "hammered flat a round-ish dent just above the windshield, in the middle...."
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
