 Posted: Thu Nov 20, 2008 11:19 am Post subject: fuse box nut |
 |
|
I would like to know how to resolve this problem.
[img][/img]
The threads of the nut were drilled by the previous owner.
Where could I found these nuts?
Thanks for your help. |
|
| Back to top |
|
 |
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Thu Nov 20, 2008 12:14 pm Post subject: |
|
|
you may fill them with mig welding, then drill with a small diameter and then tap new threads...
my opinion, that is...
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
vintagemx0
Samba Member
Joined: October 07, 2005
Posts: 427
Location: Portland, Oregon USA
|
| Posted: Thu Nov 20, 2008 7:07 pm Post subject: |
|
|
You could drill those out and tack-weld on some T Nuts.
_________________
Where ever you go, there you are. |
|
| Back to top |
|
|
ZwitterND
Samba Member
Joined: September 08, 2005
Posts: 1453
Location: Fargo, ND
|
| Posted: Fri Nov 21, 2008 12:16 am Post subject: |
|
|
Use a thread insert? Google Helicoil
_________________
Bill |
|
| Back to top |
|
|
virtanen
Samba Member
Joined: January 08, 2006
Posts: 1506
Location: Finland
|
| Posted: Fri Nov 21, 2008 6:01 am Post subject: |
|
|
| eurodub wrote: |
you may fill them with mig welding, then drill with a small diameter and then tap new threads...
my opinion, that is... |
I would make the same way. |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9416
Location: Northwood, NH USA
|
| Posted: Fri Nov 21, 2008 7:49 am Post subject: |
|
|
| virtanen wrote: |
| eurodub wrote: |
you may fill them with mig welding, then drill with a small diameter and then tap new threads...
my opinion, that is... |
I would make the same way. |
X3
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
r39o
Samba Polizei
Joined: May 18, 2005
Posts: 9800
Location: San Diego
|
| Posted: Fri Nov 21, 2008 12:33 pm Post subject: |
|
|
Fastest fix: Use BIGGER screws to match the holes!
Quick fix: Use flat sheet metal "speed nuts" from behind.
Use small "nutserts."
The above require no welding.
Hardest is to weld and redrill for the correct sheet metal screws..... |
|
| Back to top |
|
|
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4216
|
| Posted: Fri Nov 21, 2008 12:37 pm Post subject: |
|
|
they aren't sheet metal screws. They are machine screws. That is why the insert is there.
_________________
Chris
You know, a lot of these scratches will buff right out... Jerry Seinfeld |
|
| Back to top |
|
|
VWwerks
Samba Member
Joined: March 07, 2002
Posts: 207
Location: Wisconsin
|
| Posted: Fri Nov 21, 2008 4:49 pm Post subject: |
|
|
For sure plug weld them, drill and tap new threads...good as new.
_________________
www.VWwerks.com |
|
| Back to top |
|
|
r39o
Samba Polizei
Joined: May 18, 2005
Posts: 9800
Location: San Diego
|
| Posted: Fri Nov 21, 2008 4:58 pm Post subject: |
|
|
Just put in a nutsert then. Done.

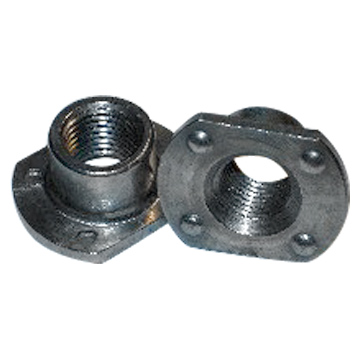

If you insist, you can put a weld nut in. |
|
| Back to top |
|
|
twinwindows
Samba Pimp
Joined: December 08, 2000
Posts: 4086
Location: So.Cal. Highland Park GFK!
|
| Posted: Fri Nov 21, 2008 5:36 pm Post subject: |
|
|
| johnshenry wrote: |
| virtanen wrote: |
| eurodub wrote: |
you may fill them with mig welding, then drill with a small diameter and then tap new threads...
my opinion, that is... |
I would make the same way. |
X3 |
4X
_________________
CRG
My builds
BAD TEMPER 11
CHRISTINE
GFK LIFER!
| myzamboni wrote: |
| Yeah, everyone's now doing it GFK style . . . everythinig is covert until the finished product is revealed. |
|
|
| Back to top |
|
|
ZwitterND
Samba Member
Joined: September 08, 2005
Posts: 1453
Location: Fargo, ND
|
| Posted: Fri Nov 21, 2008 7:24 pm Post subject: |
|
|
All that work for two holes, drag out the welder, find the gloves , worry about sparks igniting the tank, grinding the surface, find a place to ground, welding, grinding then determing the center to center, hoping your drill goes straight and doesnt break when hits the now tempered steel then hoping the tap doesn't break...phew. Mean while, I grab the drill, no need to center punch, enlarge the hole, run a tap thru, put some red loc-tite on the insert, install insert, BAM! I am done having a cold one.
_________________
Bill |
|
| Back to top |
|
|
vintagemx0
Samba Member
Joined: October 07, 2005
Posts: 427
Location: Portland, Oregon USA
|
| Posted: Fri Nov 21, 2008 8:10 pm Post subject: |
|
|
runsplit hasn't chimed back in since his initial inquiry. 'Lots of good suggestions have been given. I wonder what path he/she will take? I'm thinking now just use the existing large holes and just use a bolt and nut without welding the nut, maybe a drop of loc-tite. How many times are you going to need to R&R the item anyway?
_________________
Where ever you go, there you are. |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9416
Location: Northwood, NH USA
|
| Posted: Fri Nov 21, 2008 9:55 pm Post subject: |
|
|
Depends on how much of a "purist" you are obviously.....
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
ZwitterND
Samba Member
Joined: September 08, 2005
Posts: 1453
Location: Fargo, ND
|
| Posted: Fri Nov 21, 2008 10:00 pm Post subject: |
|
|
Hey John the ultimate "purist" would replace the entire quarter panel ...bwahaha...I kill me
_________________
Bill |
|
| Back to top |
|
|
runsplit
Samba Member
Joined: September 18, 2005
Posts: 118
Location: REUNION ISLAND
|
| Posted: Sat Nov 22, 2008 2:42 am Post subject: |
|
|
| johnshenry wrote: |
| Depends on how much of a "purist" you are obviously..... |
Sorry I was out for a while.
I tries to be the closest possible of the original because I restore completely the car.
That's why no bigger screw.... no no no. Not like original even if no one can see it when closed. and of course no sheet metal behind.
My first idea was of course to weld and drill.I have to pay attention at this moment because it should be harder.
I read somewhere helicoil are not sure for small diameters...and it's just a fuse box.
I thought these special nuts exist and I still haven't noticed them.
Something like this:http://www.clufix.com/ENGLISH/produits_tab2.htm
Thanks for your help. |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9416
Location: Northwood, NH USA
|
| Posted: Sat Nov 22, 2008 7:57 am Post subject: |
|
|
Yes, I was thinking about a "panel nut" to like these. It would work well, but still not look correct. Welding, drilling and tapping really isn't that hard.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
runsplit
Samba Member
Joined: September 18, 2005
Posts: 118
Location: REUNION ISLAND
|
| Posted: Thu Dec 04, 2008 9:51 am Post subject: |
|
|
| eurodub wrote: |
you may fill them with mig welding, then drill with a small diameter and then tap new threads...
my opinion, that is... |
Holes are filled. Now I would tlike to know the diameter to drill. Are they M4 or M5 threads?
Thanks |
|
| Back to top |
|
|
52crotch
Samba Member
Joined: July 22, 2005
Posts: 91
Location: Boise Idaho - Gifhorn Germany
|
| Posted: Thu Dec 04, 2008 10:37 am Post subject: |
|
|
| I believe they are 5mm x .7 or .8. Just fixed those on my '52 |
|
| Back to top |
|
|
virtanen
Samba Member
Joined: January 08, 2006
Posts: 1506
Location: Finland
|
| Posted: Thu Dec 04, 2008 1:22 pm Post subject: |
|
|
| runsplit wrote: |
| eurodub wrote: |
you may fill them with mig welding, then drill with a small diameter and then tap new threads...
my opinion, that is... |
Holes are filled. Now I would tlike to know the diameter to drill. Are they M4 or M5 threads?
Thanks |
Spare catalog says 5x15 mm (N 010 702 1) |
|
